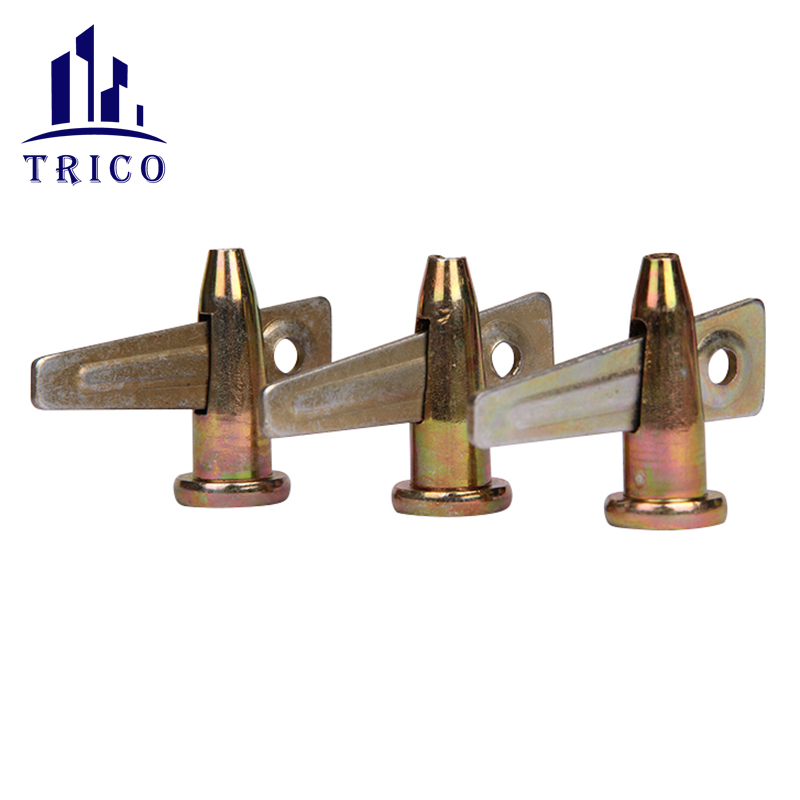

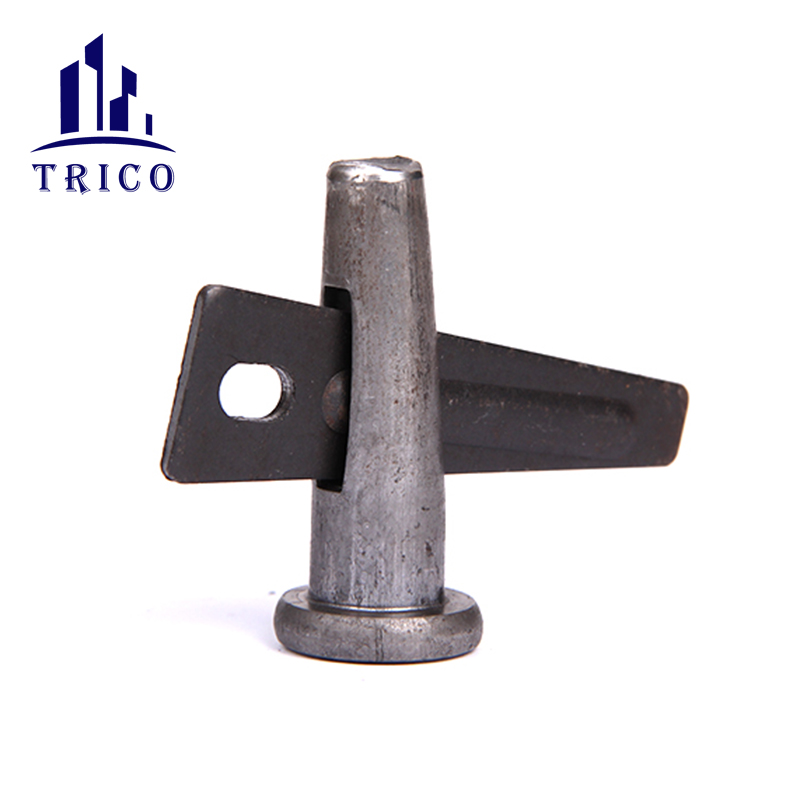

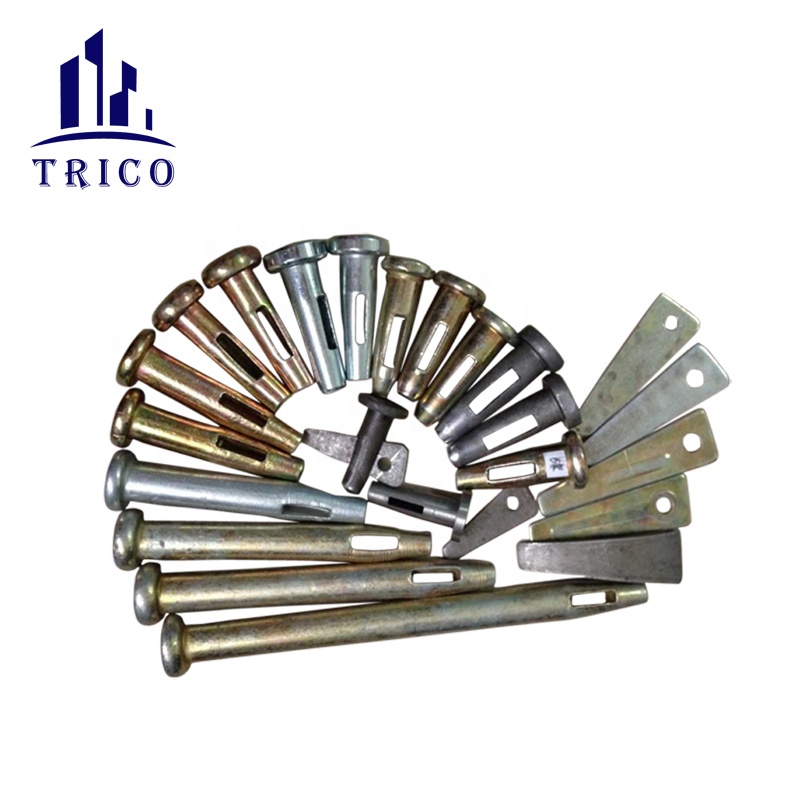

Aluminum Formwork Standard Wedge Bolt

Aluminum Formwork is popular formwork system for construction. With Full Tie, Nominal Tie, AL Flat Tie and different wedge bolt to lock panels. Related accessories include AL Sepa Tie, Waler Bracket, Turnbuckle, Gang Form Bolts, One Touch Clamp and so on. Since 2002, we export those products to different countries. Welcome your inquiry.

Aluminum Formwork Accessories

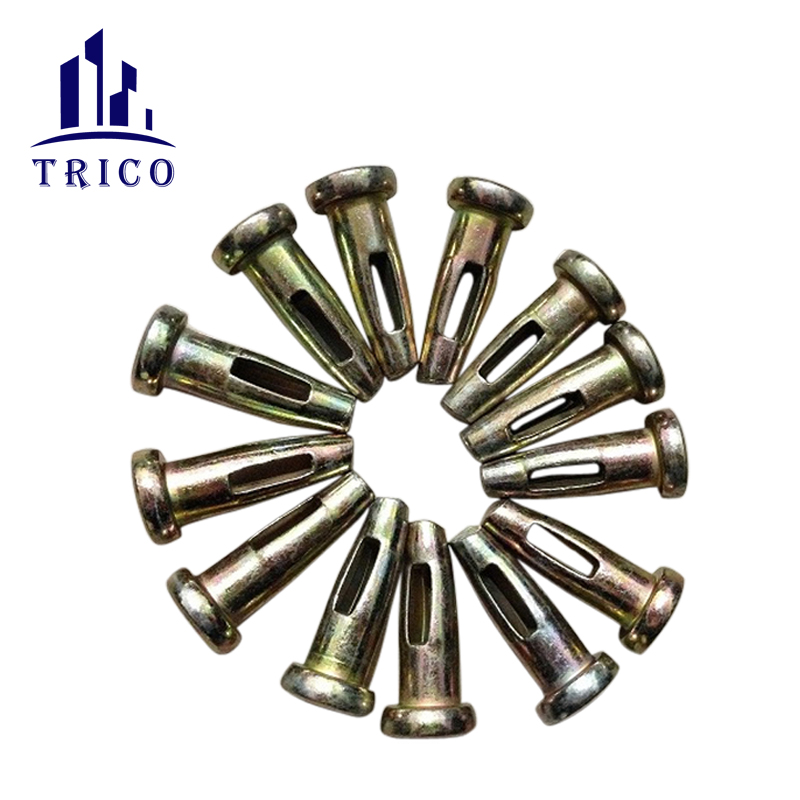

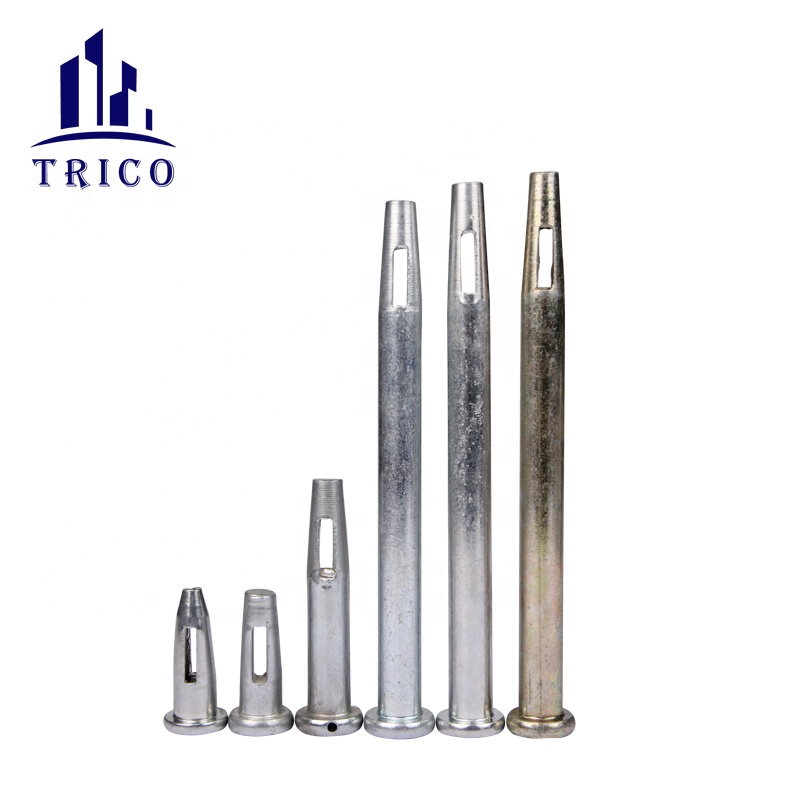

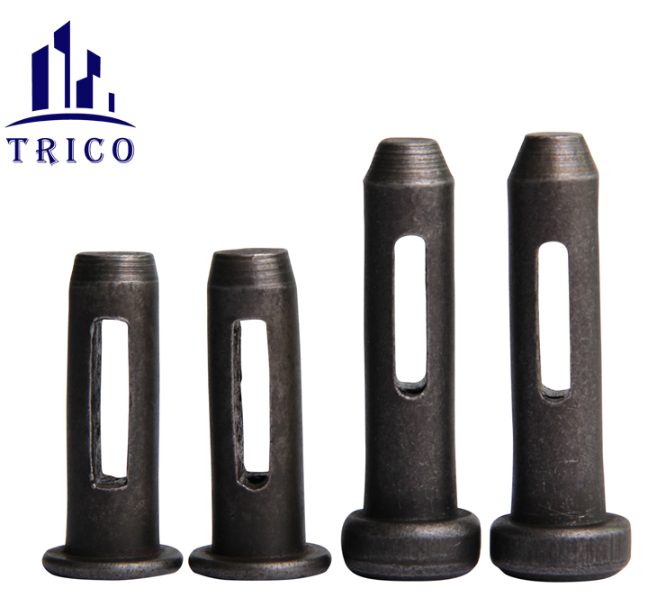

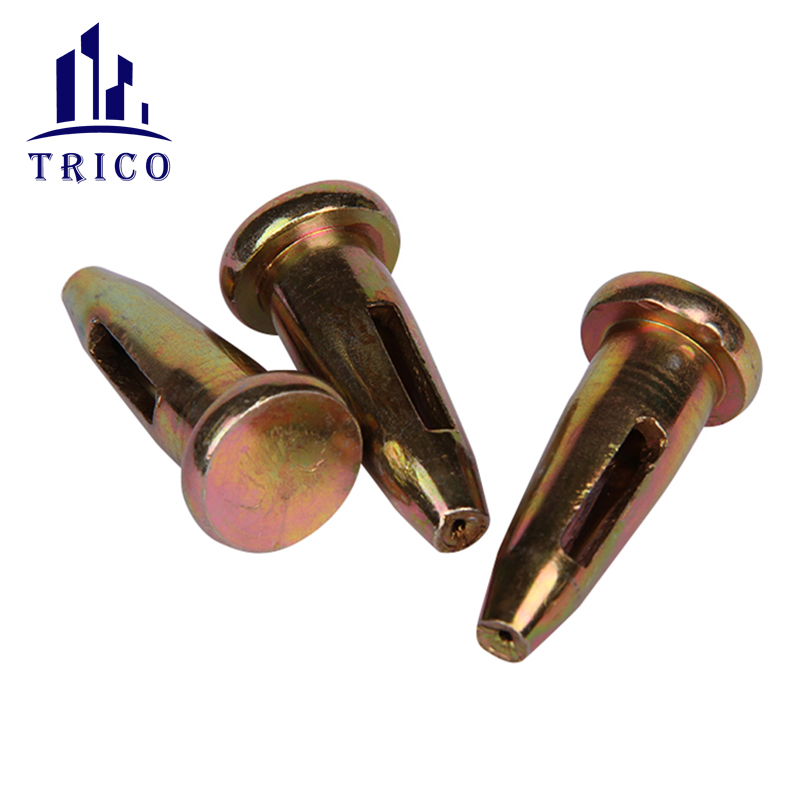

Product: Stub Pin		Product: Full Tie Pin	Advantage: Heat   Treatment
Material: Carbon Steel		Material: 45# Steel
Length: 50L/52L/65L/195L		Weight: 71g/103g/178g
Surface: Black/ Zinc		Surface: Black
Accessories: AL Tie /Wedge		Accessories: Full Tie/Nominal Tie/Wedge
Related Accessories

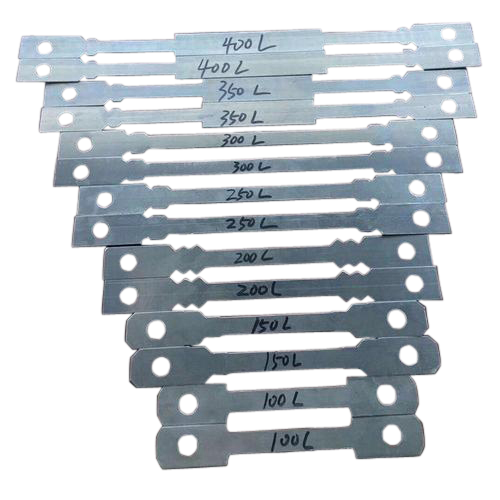

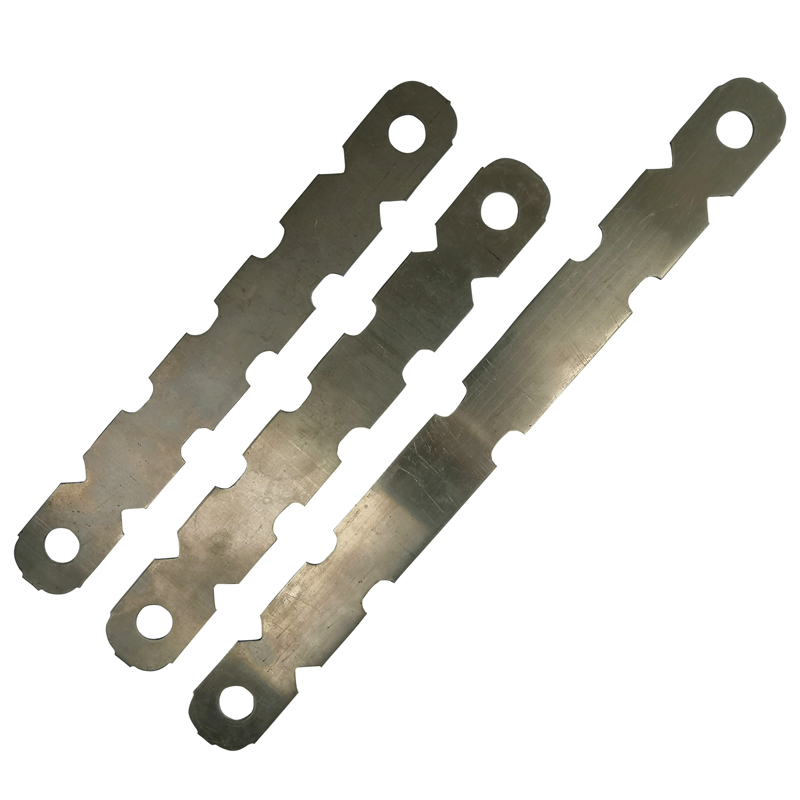

AL Flat Tie	100L-1200L	Material: Carbon Steel Thickness:1.85mm-2.0mm Packing: Bundle+Pallet Main market: Korea/Vietnam	Wedges, Waler Bracket,  Turnbuckle, Anchor Bolts Supporting
Full Wall Ties&Nominal Wall Ties	6"-24"	Ultimate:7200lbs Packing: Bundle+Pallet Main market: Europe/America	Wedges, Turnbuckle Supporting

Related Formwork and Scaffolding Accessories

1) Aluminum Formwork System Accessories: AL Flat Tie, Full Tie, Nominal Tie, Standard Pin. Wedge Bolt, Waler Bracket,etc.

2) Steel Ply Forming System Accessories: X-Flat Tie, Wedge Bolt, Wedge Pin, SnapTie, Steel Wedge, Jahn Clamp, Turnbuckle, Z Tie Holder, etc.

3) Formwork Tie Rod System: Tie rod, Tie Nut, Swivel Wing Nut, Waller Plate, Formwork Clamp, Hex Nut

4) Form Tie System: B Form Tie, Plastic B Cone, Rib Washer, Hex Nut, Plastic D Cone, D Form Tie, D Inner Uint, etc.

5) Scaffolding System: Ringlock System, Cuplock System, Scaffolding Frame, Scaffodling Coupler, Scaffolding Safety Net, etc.

6) Plastic Accessories: Plastic Hollow Formwork, Plastic Spacers, etc.

7) Building Fasteners, etc.

Where Are Wedge Bolts Used Regularly?

Wedge Bolts, also called Concrete Wedge Anchor Fasteners, are commonly used in the following applications due to their high strength, vibration resistance and anti-loosening properties:

Mechanical Equipment and Heavy Machinery: Wedge bolts are often used in some equipment that needs to withstand vibration and impact for a long time, such as mining machinery, metallurgical equipment, construction machinery, etc. Its design helps prevent bolt loosening and ensures stable operation of the equipment.

Bridge and Railway Engineering: Wedge bolts are often used to fix steel components or track plates at the joints of bridges and railway tracks. Since these structures need to withstand large loads and external vibrations, wedge bolts can provide a more secure connection.

Automobile and Aviation Industry: Wedge bolts are also used in some key components (such as engines, chassis, aircraft fuselages, etc.). Cars and airplanes will generate large vibrations during high-speed driving, and wedge bolts help maintain the tightness of components and prevent loosening.

Steel Structure Construction: In the construction of steel structures, especially the steel structure parts of high-rise buildings, large factories and bridges, wedge bolts are used to fix large-sized steel components. It can ensure the stability of structural connections and prevent loosening or falling off due to external forces.

Lifting equipment: Heavy lifting equipment such as cranes and hoists also use wedge bolts to connect components such as crane arms and hooks. These components are subject to heavy loads and frequent vibrations. Wedge bolts can provide stronger tightening force to ensure the safety of the equipment.

Wind turbines: Wedge bolts are often used in towers, blades and other important components of wind turbines. The continuous operation of wind turbines in windy environments will generate large forces and vibrations. Wedge bolts ensure that these key components are firmly connected to prevent loosening due to vibration.
