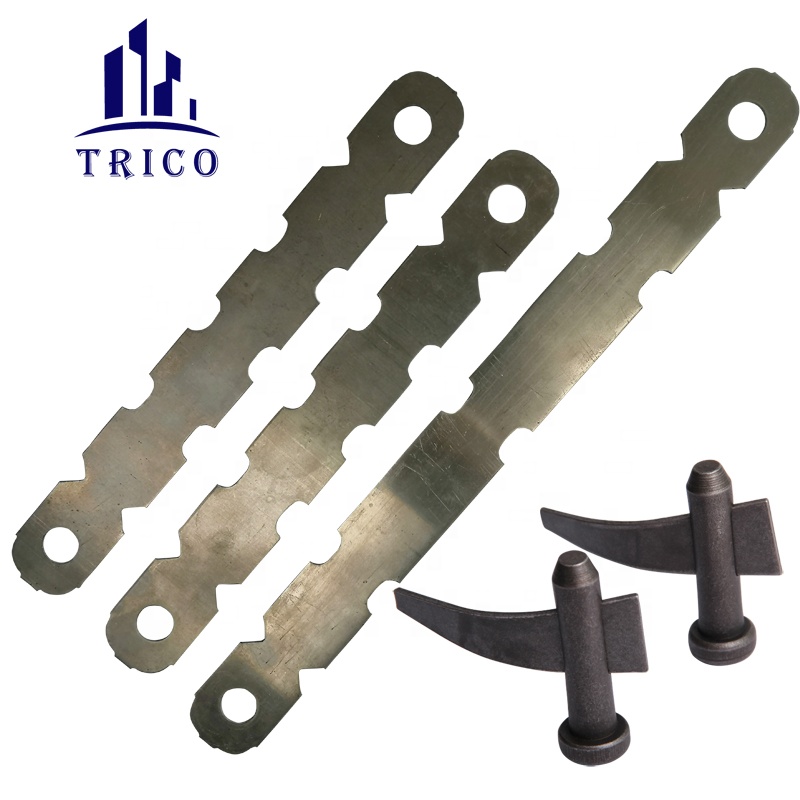

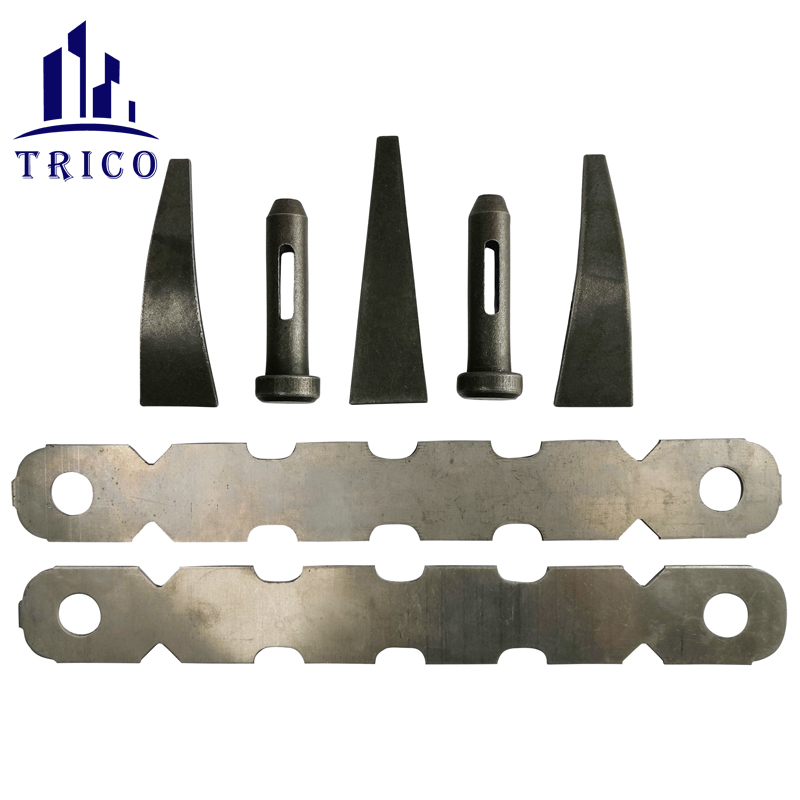

Formwork Full Wall Ties&Nominal Wall Ties are used for Aluminum Formwork System. There are different size for choosing from6"-24". With curved wedge or straight wedge and Round Head Pin, they can lock aluminum formwork panel during wall concrete formwork. American type and korea type are available.
Aluminum Formwork is popular formwork system for construction. With Full Tie, Nominal Tie, AL Flat Tie and different wedge bolt to lock panels. Related accessories include AL Sepa Tie, Waler Bracket, Turnbuckle, Gang Form Bolts, One Touch Clamp and so on. Since 2002, we export those products to different countries. Welcome your inquiry.
| Aluminum Forming System Accessories | |||||
| Picture | Item | Wall Size | Weight | Ultimate Load | Packing |

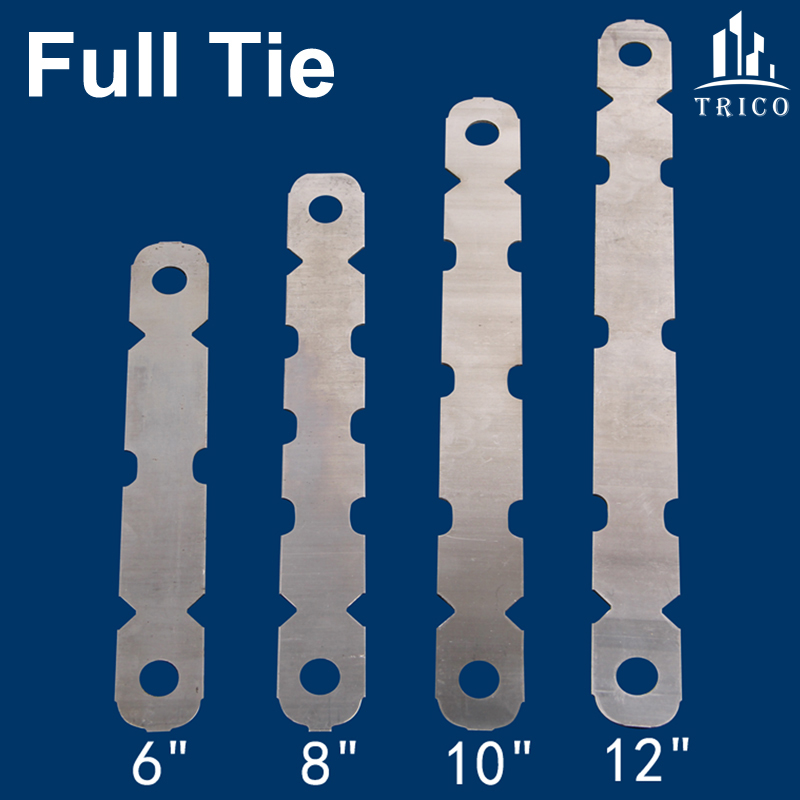

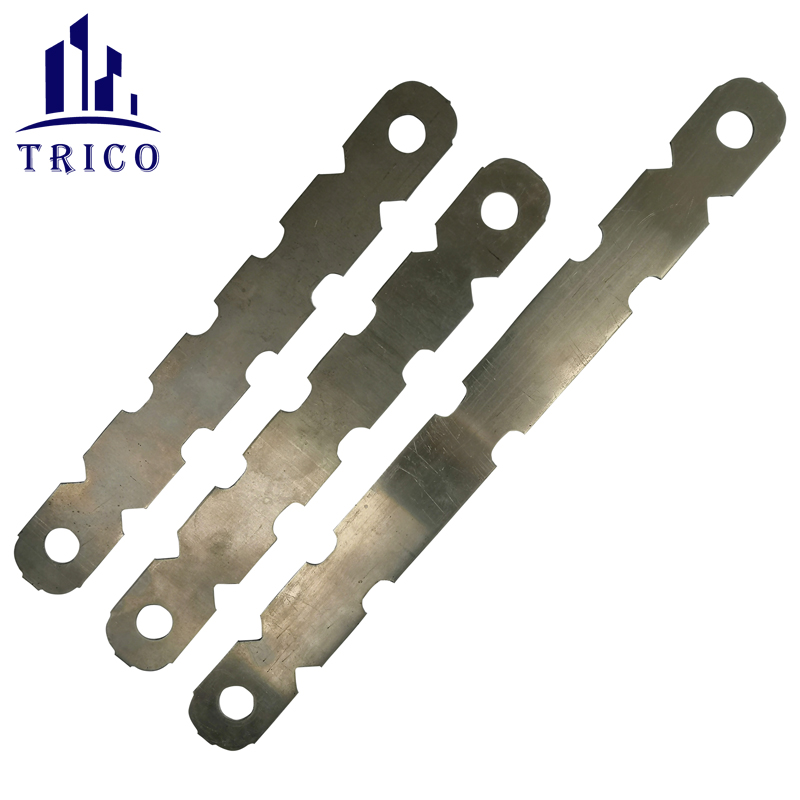

 | Full Wall Tie | 6" | 133g | 7,200lbs | 100pcs/bundle 50bundles/pallet Other packing support |
| 8" | 155.1g | ||||
| 9" | 170.3g | ||||
| 10" | 185.5g | ||||
| 12" | 217.8g | ||||
| Other Sizes Support | |||||

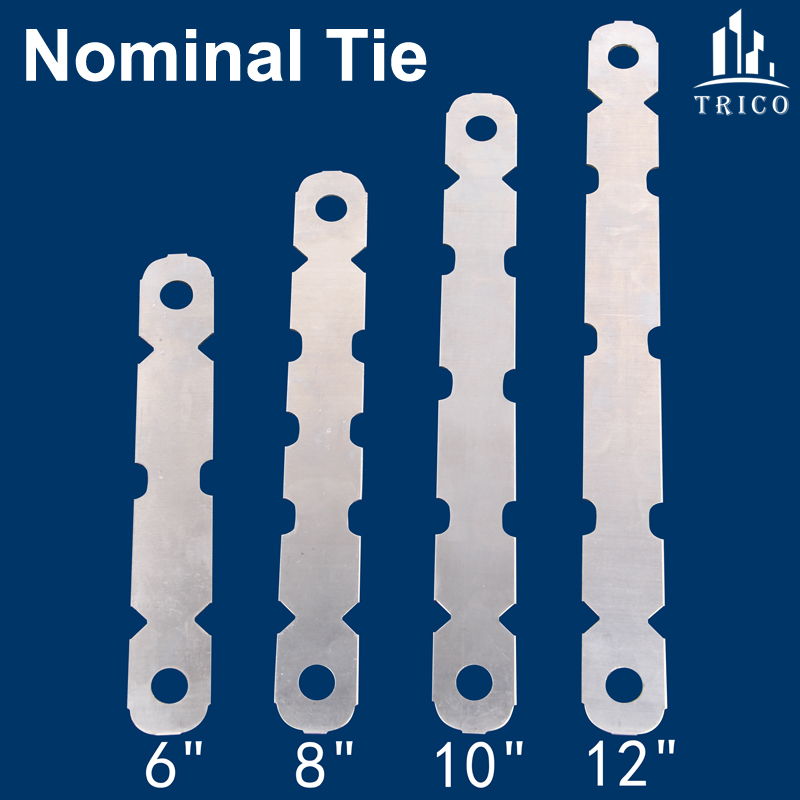

| Nominal Wall Tie | 6" | 127g | 7,200lbs | 100pcs/bundle 50bundles/pallet Other packing support |
| 8" | 150.6g | ||||
| 10" | 181g | ||||
| 12" | 211.3g | ||||
| Other Sizes Support | |||||
| Picture | Item | Size | Material | Feature | Packing |

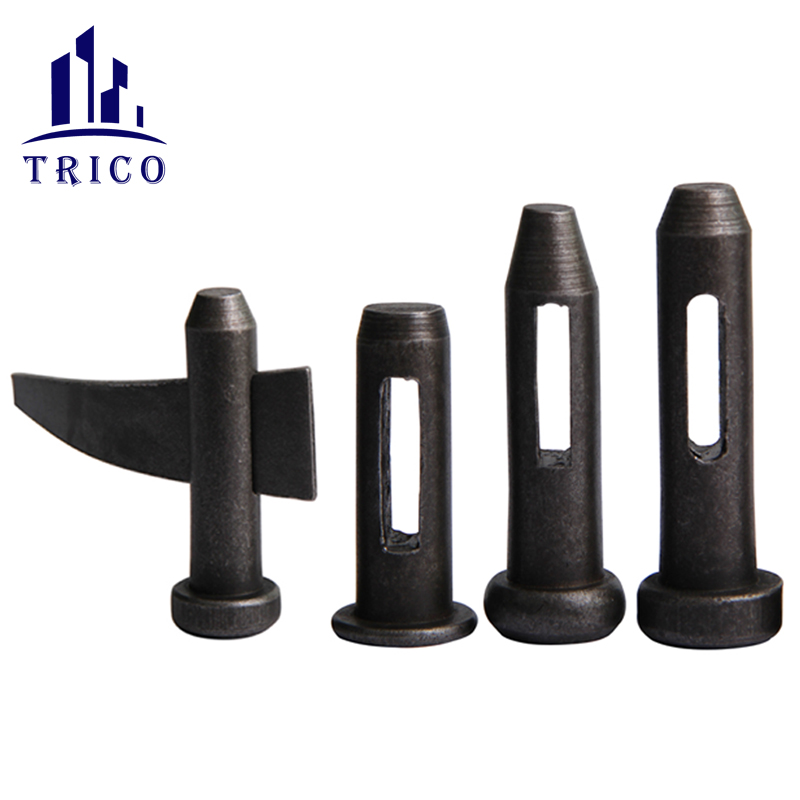

 | Flat Head Pin | 71g | Steel #45 | Heat Treatment | 250pcs/pail 64pails/crate Other packing supporting |
 | Round Head Pin | 103g | Steel #45 | Heat Treatment | |
 | Comobo Filler Pin | 178g | Steel #45 | Heat Treatment | |
| Other Sizes Support | |||||
 | Straight Wedge | 49.2g | Steel #45 | Heat Treatment | 250pcs or 500pcs/pail 36pails or 64pails/crate |
 | Curved Wedge | 49.4g | Steel #45 | Heat Treatment | |
| Other Sizes Support | |||||
| Related | Snap Tie System, Steel Plywood Forming System | ||||
Application
Packaging
Five Promises:
1.Quality: Strictly control the quality through three levels. First level, quality test on the producing line. Second level, quality test during warehousing. Third level, quality test before loading.
2.Timeliness: 24 hours online.Provide consulting and quotation services for customers all the time.
3.Veracity: Strictly follow the customer standard to ensure the tolerance range and meet customer's requirement.
4.Integrity: If The customer complains about the quality of the products, our company will actively cooperate with them to solve the problem. If it is the responsibility of our company, we will bear the corresponding responsibility and compensation.
5.Longevity: Establish good long-term relationship with customers.
