We provide wide range of anchor castings for unbonded post-tensioning application. Anchor casting are suitable for 0.5” and 0.6” strand. Special anchor casting also can be manufactured by your requirement.
0.5" 0.6" Strand Prestressed Unbonded Monostrand Anchor System for Post Tensioning In Civil Construction

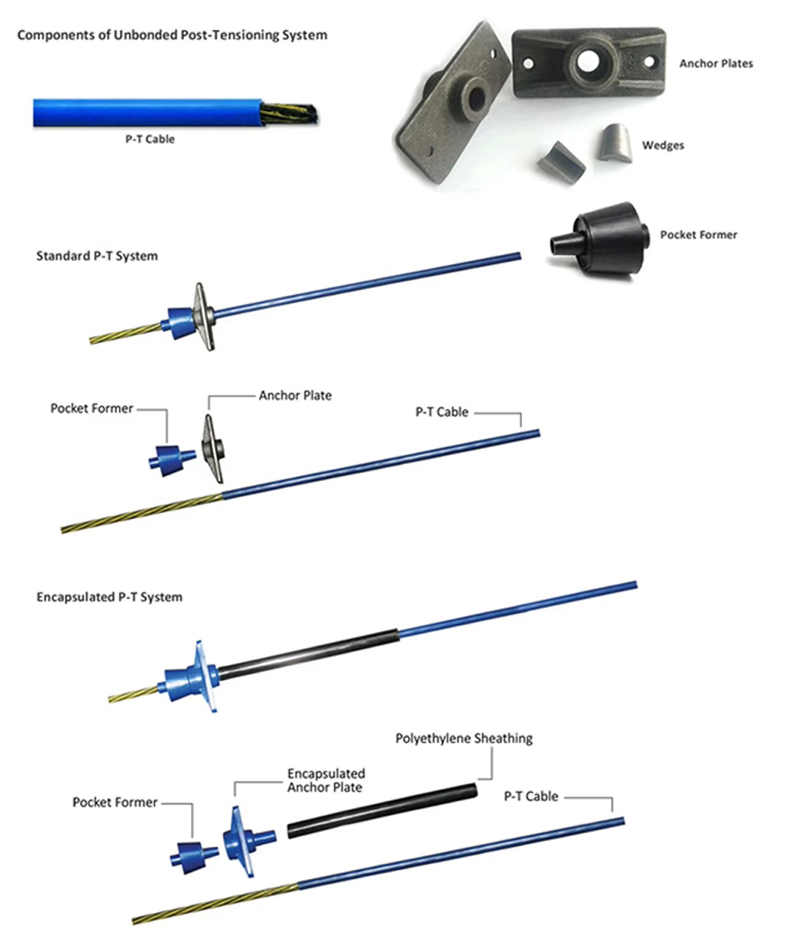

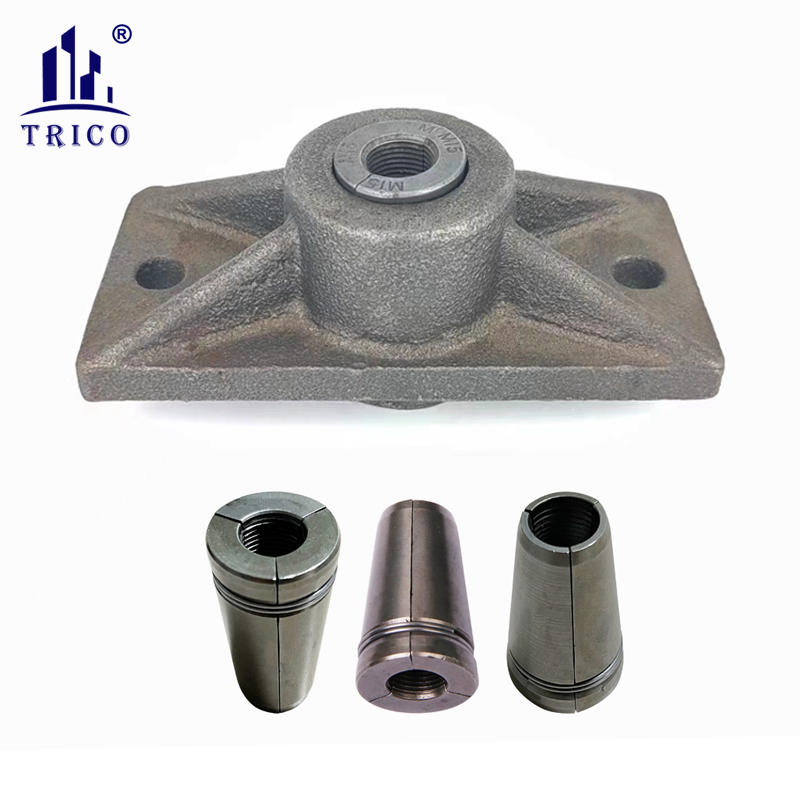

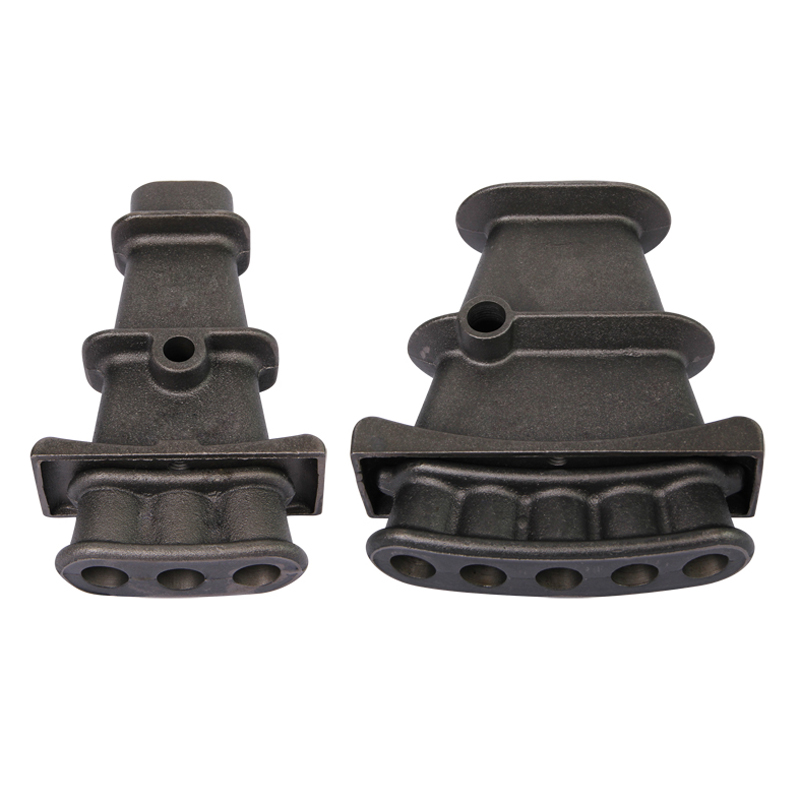

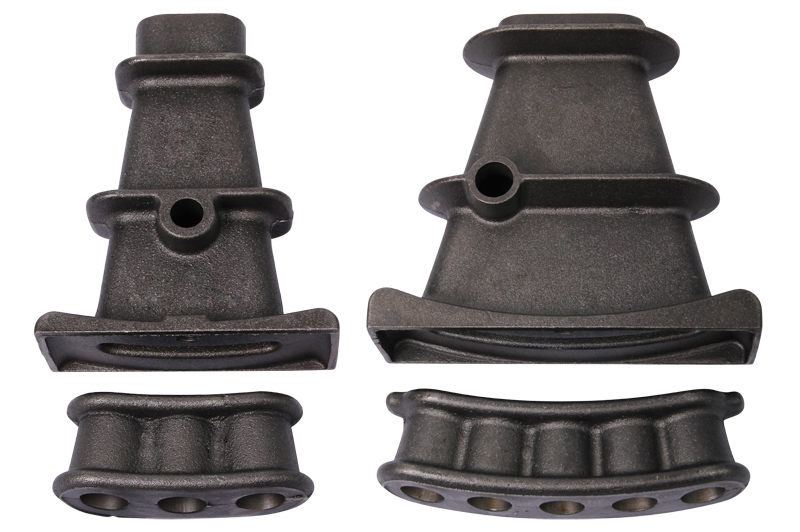

The material for Prestressed Unbonded Monostrand Anchor can be spheroidal graphite cast iron, which puts traditional anchor ring and plates into one integration anchor. It simplifies the complicated manufacturing procedure and structure, which has the advantage of convenient construction, perfect seal ability and easy to guarantee the perpendicularity between the anchorage and steel strands.
1. Type: Unbonded Post Tension |
2. Capacity: HRC 15-35 |
3. Holes for anchorage: One hole |
4. Wedges: 2pcs or 3pcs |
5. Shape: Flat |
6. Specification: Used for the PC steel strand 12.7mm and 15.24mm. |
7. Package: In box and outside wooden case |
8. Other parts for the anchor: anchor ring/plate, wedge, base plate, spiral bar, bellows/corrugated pipe. |
Application

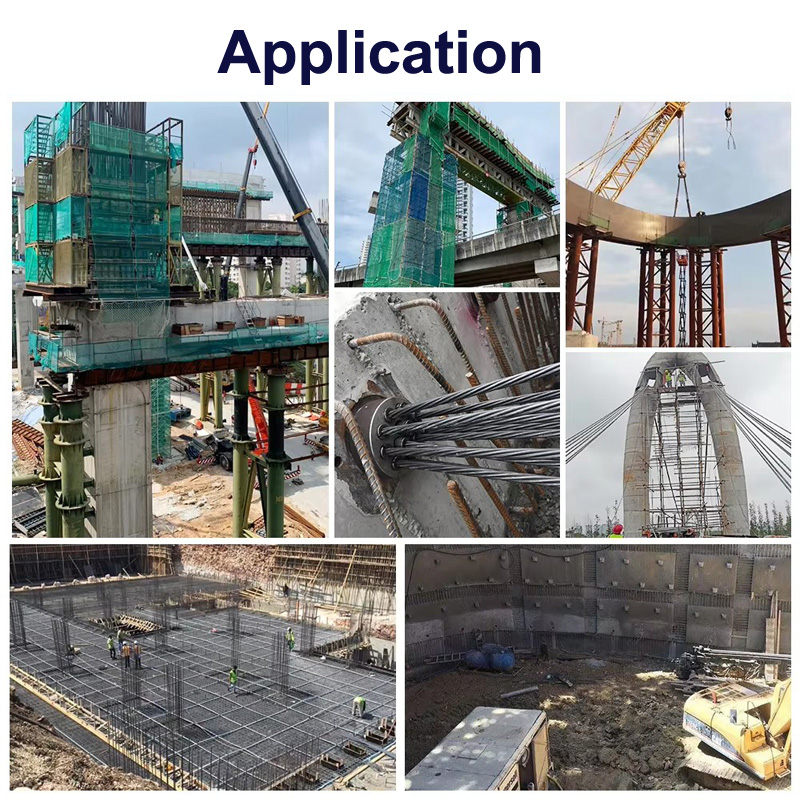

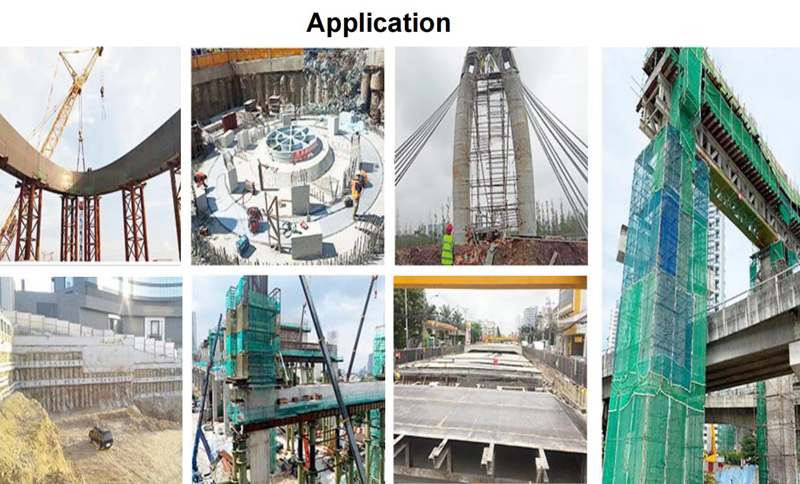

Prestressed Anchor system is a completed, independent building measure researched, it has been widely adopted by modern construction, especially used in pre-tension or post-tension for concrete constructions as building materials, such as bridge construction, railway and highway construction, buildings and channel construction, etc.

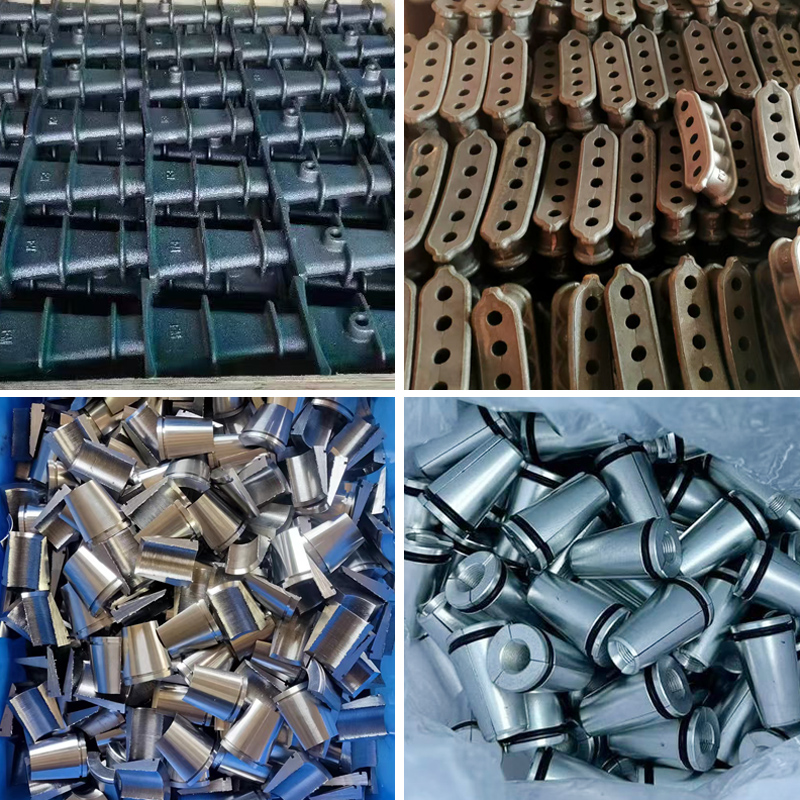

Pre & Post tension anchor (Cast iron)
Product Name | Product Code | Grout hole size(mm) | Flat duct hole size(mm) | Compatible Anchor Head | Weight(KG) | QTY(PCS)/Box | Compatible PC Strand（Dia） |
Anchor Type | TR153 | 17.0 | 78x20 | 2 holes*12.7mm | 2 | 500 | 12.7mm |
TR197 | 17.0 | 50*23 | 2 holes*12.7mm | 2 | 500 | 12.7mm | |
TR210 | 21.0 | 78*22 | 3 holes*12.7mm | 3.4 | 250 | 12.7&15.2mm | |
TR269 | 21.0 | 96*22 | 4 holes*15.2mm | 3.4 | 250 | 15.2mm | |
TR203 | 20.0 | 82*23 | 4 holes*15.2mm | 3.8 | 250 | 15.2mm | |
Product Name | Product code | Dimensions(L*W*H) | Compatible Anchor | Compatible Wedge | Weight(KG) | QTY(PCS)/Box | Compatible PC Strand（Dia） |
Anchor head type | 2 holes*12.7mm | 100*50*50 | TR153/TR197 | TRM013(12.7mm) | 1.3 | 500 | 12.7mm |
3 holes*12.7mm | 128*50*50 | TR153/TR197/TR210 | TRM013(12.7mm) | 1.6 | 500 | 12.7mm | |
4 holes*12.7mm | 169*50*50 | TR210 | TRM013(12.7mm) | 2.1 | 500 | 12.7mm | |
5 holes*12.7mm | 205*50*50 | TR210 | TRM013(12.7mm) | 2.6 | 500 | 12.7mm | |
3 holes*15.2mm | 136*53*51 | TR210 | TRM015(15.2mm) | 1.86 | 500 | 15.2mm | |
4 holes*15.2mm | 183*53*51 | TR210/TR269/TR203 | TRM015(15.2mm) | 2.4 | 300 | 15.2mm | |
5 holes*15.2mm | 246*48*54 | TR269 | TRM015(15.2mm) | 3.5 | 500 | 15.2mm |

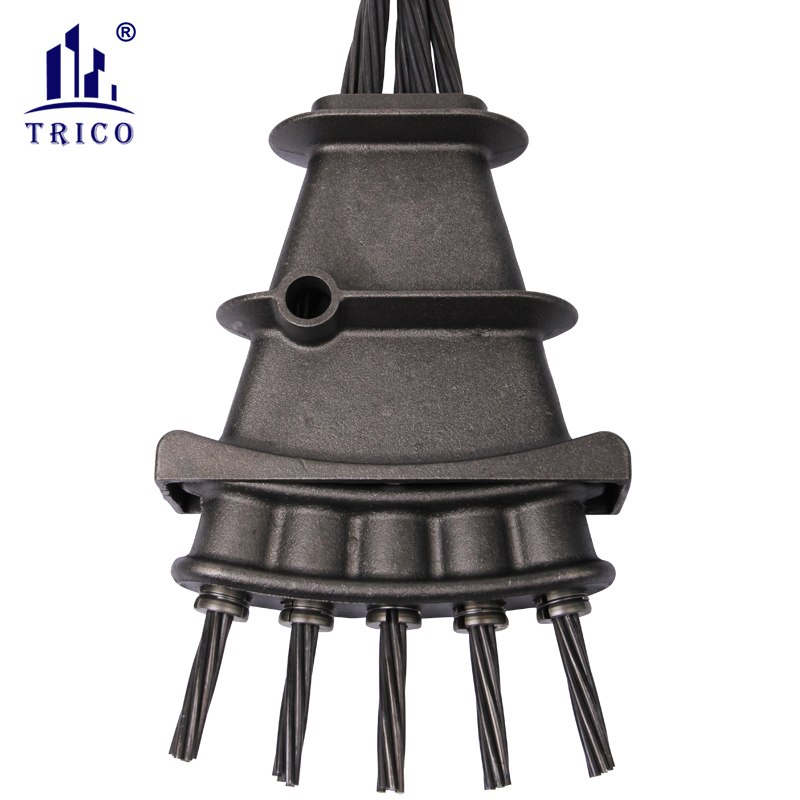

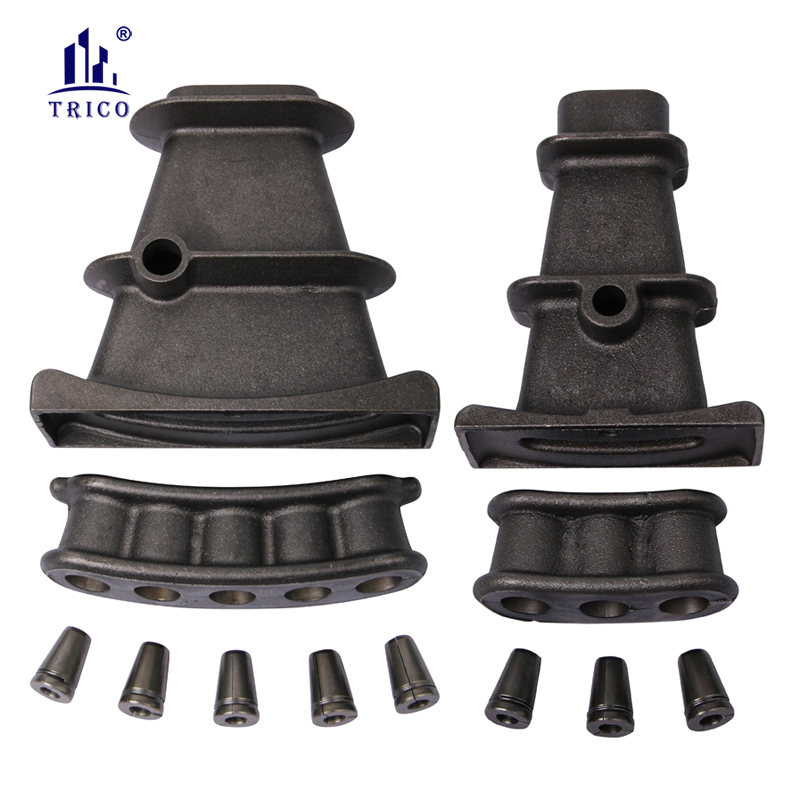

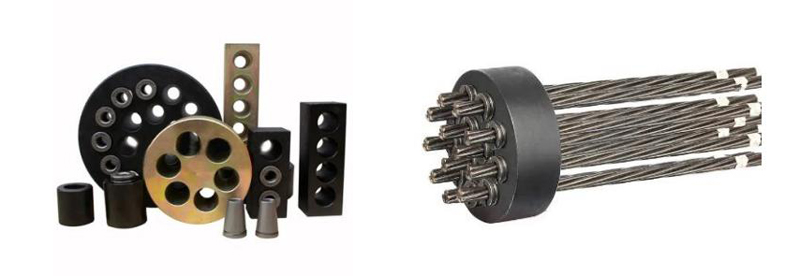

Pre & Post tension anchor (Machine made)
Product Name | Strands Number | Dimensions(OD*H mm) | Compatible Wedge | Material | Compatible PC Strand （Dia） |
Anchor head type | 2 | 78*44 | TRM013/TRM015 | 45# steel | 12.7mm & 15.2mm |
3 | 88*44 | TRM013/TRM015 | |||
4 | 98*45 | TRM013/TRM015 | |||
5 | 108*45 | TRM013/TRM015 | |||
6 | 118*46 | TRM013/TRM015 | |||
7 | 118*46 | TRM013/TRM015 | |||
8 | 128*49 | TRM013/TRM015 | |||
9 | 138*50 | TRM013/TRM015 | |||
10 | 148*50 | TRM013/TRM015 | |||
11 | 158*52 | TRM013/TRM015 | |||
12 | 158*52 | TRM013/TRM015 | |||
13 | 168*56 | TRM013/TRM015 | |||
14 | 168*56 | TRM013/TRM015 | |||
15 | 178*58 | TRM013/TRM015 | |||
16 | 188*62 | TRM013/TRM015 | |||
17 | 188*62 | TRM013/TRM015 | |||
18 | 198*65 | TRM013/TRM015 | |||
19 | 198*65 | TRM013/TRM015 | |||
20 | 218*68 | TRM013/TRM015 | |||
21 | 218*70 | TRM013/TRM015 | |||
22 | 218*70 | TRM013/TRM015 | |||
23/25 | 229*72 | TRM013/TRM015 |

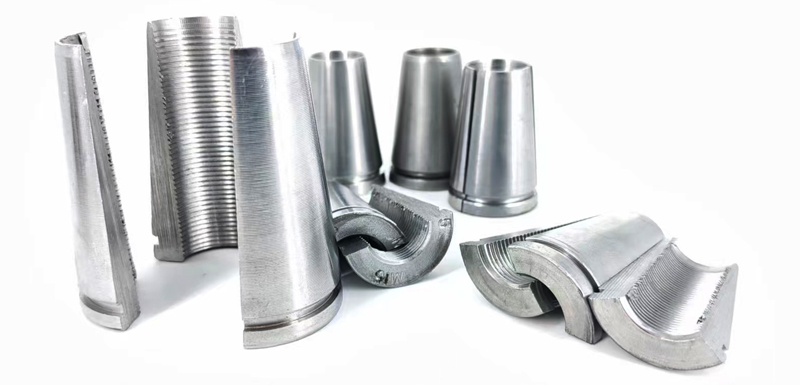

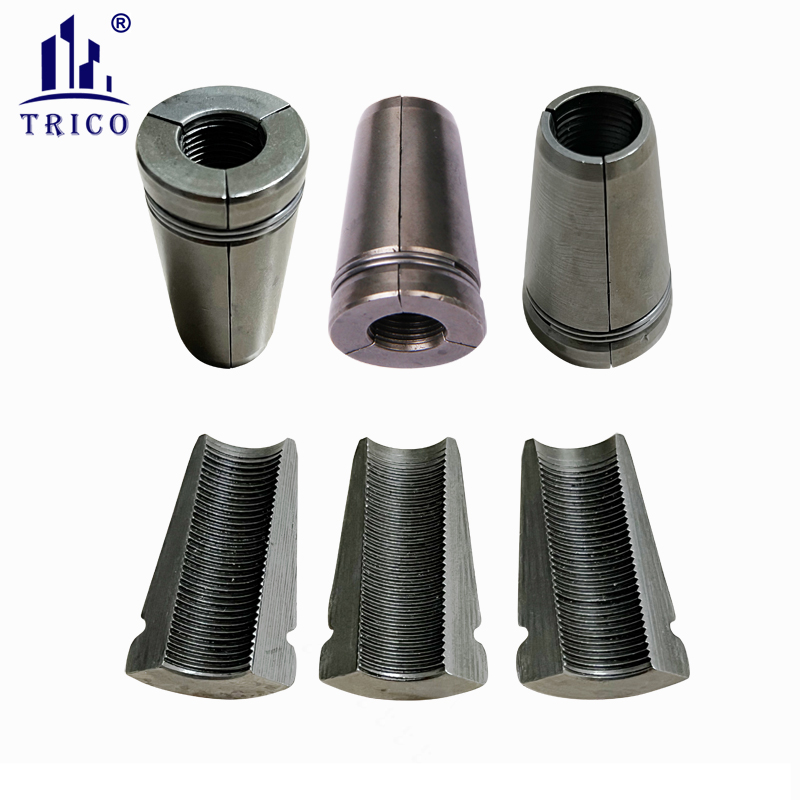

Pre & Post tension wedge

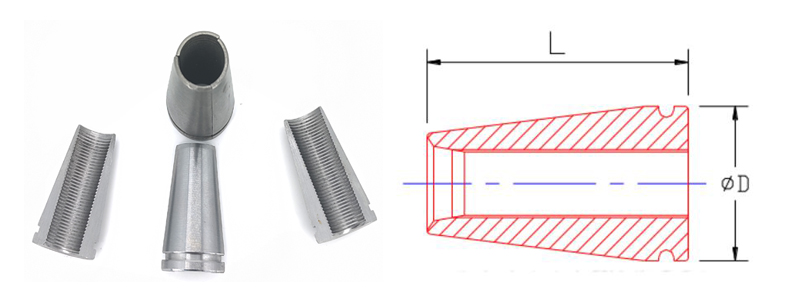

Wedge Type | Product Code | Dimensions | No. of (PCS) | Weight | Quantity(Sets) | Material | Hardness | |
D(mm) | L(mm) | |||||||
3.9mm | TRM04 | 16.0 | 27.0 | 2 | 25g | 500 | 20CrMnTi | 58-62 |
12.7mm | TRM013 | 23.7 | 35.8 | 2&3 | 62g | 200 | ||
15.2mm | TRM015 | 25.5 | 42.4 | 2&3 | 82g | 150 | ||
17.8mm | TRM018 | 30.0 | 47.0 | 2&3 | 120g | 75 | ||
21.6mm | TRM022 | 36.4 | 59.0 | 2&3 | 200g | 75 | ||
