Anchoring components for the post-tension anchorage for concrete slabs.
Categories: CONSTRUCTION, POST TENSION

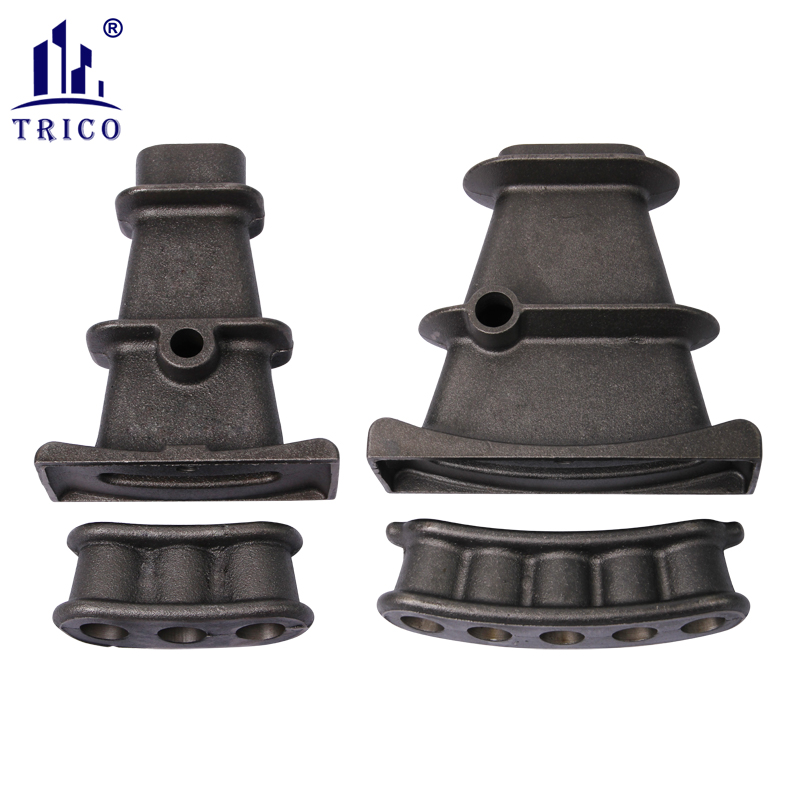

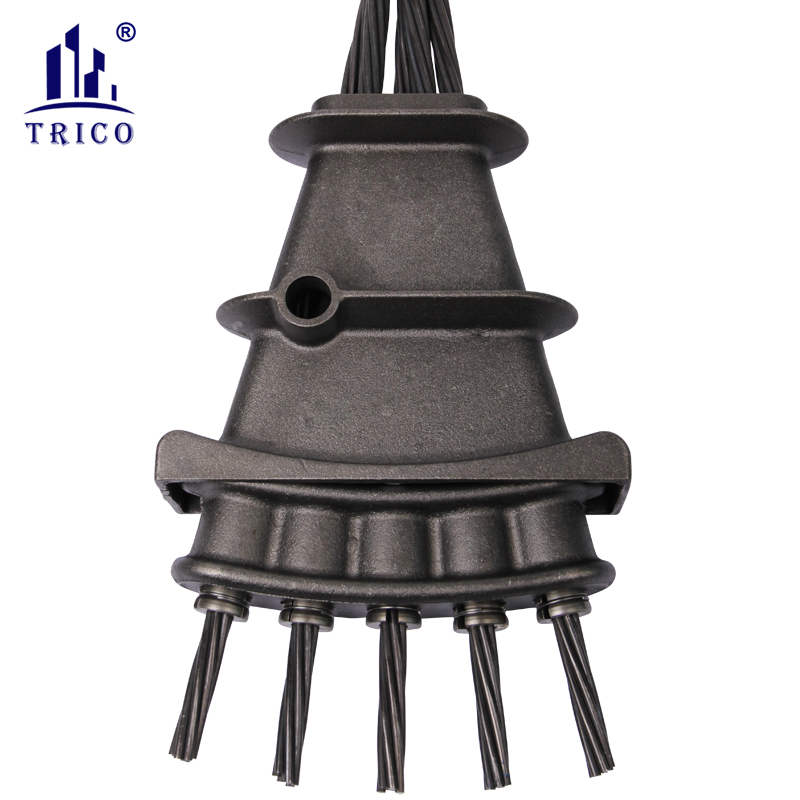

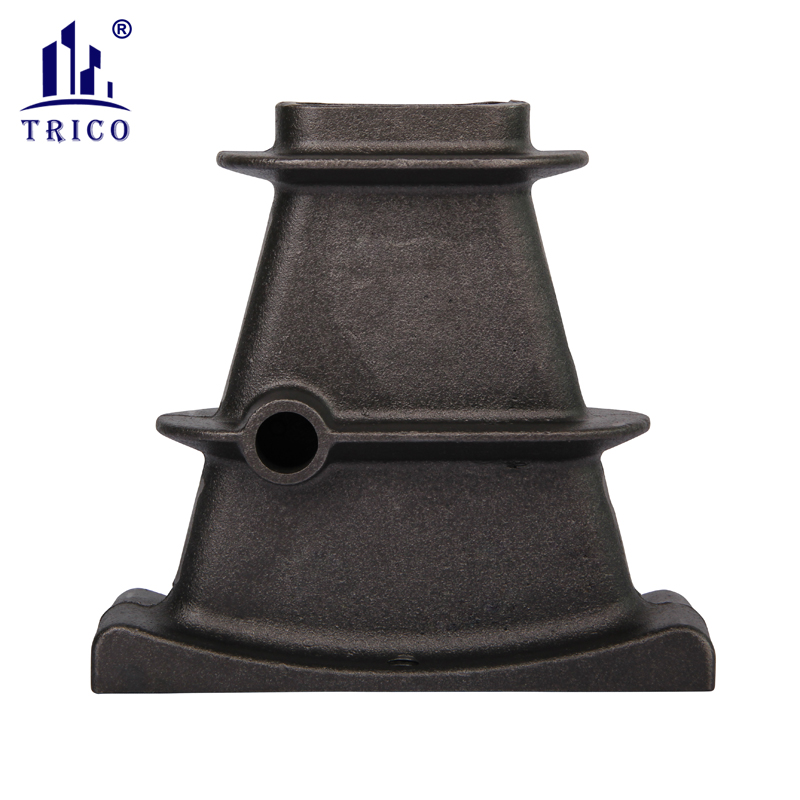

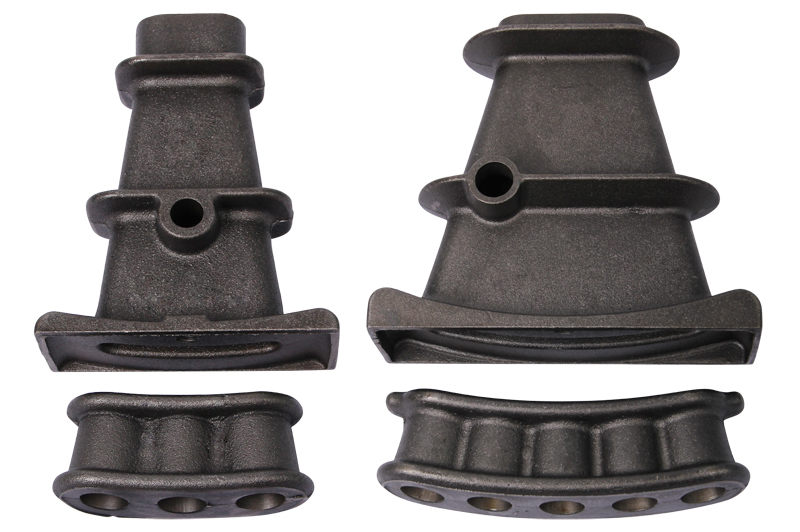

Cast Iron Post Tension Arc Flat Anchor for Prestressed Anchorage System

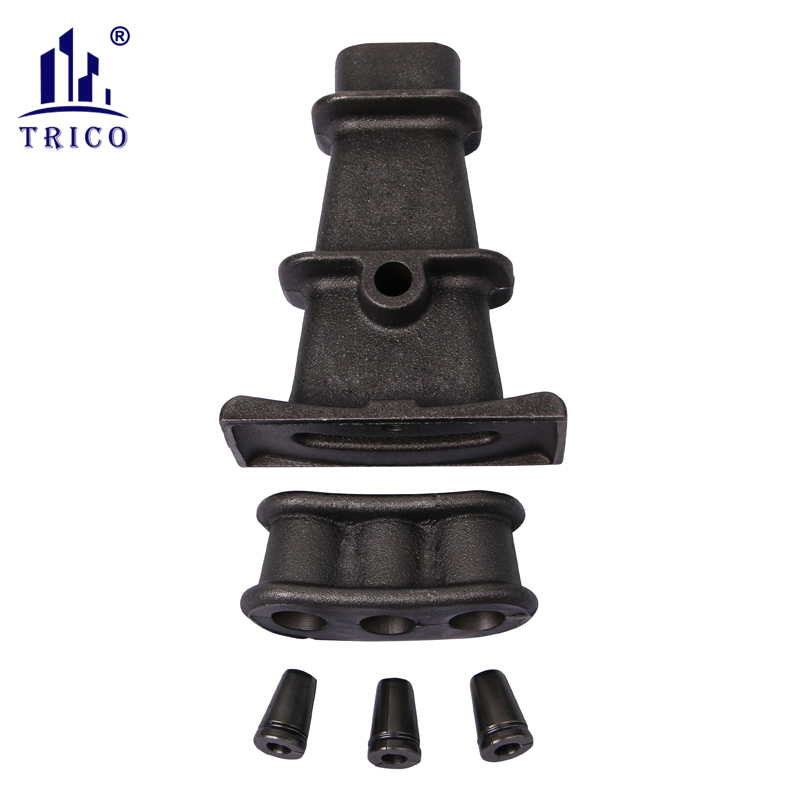

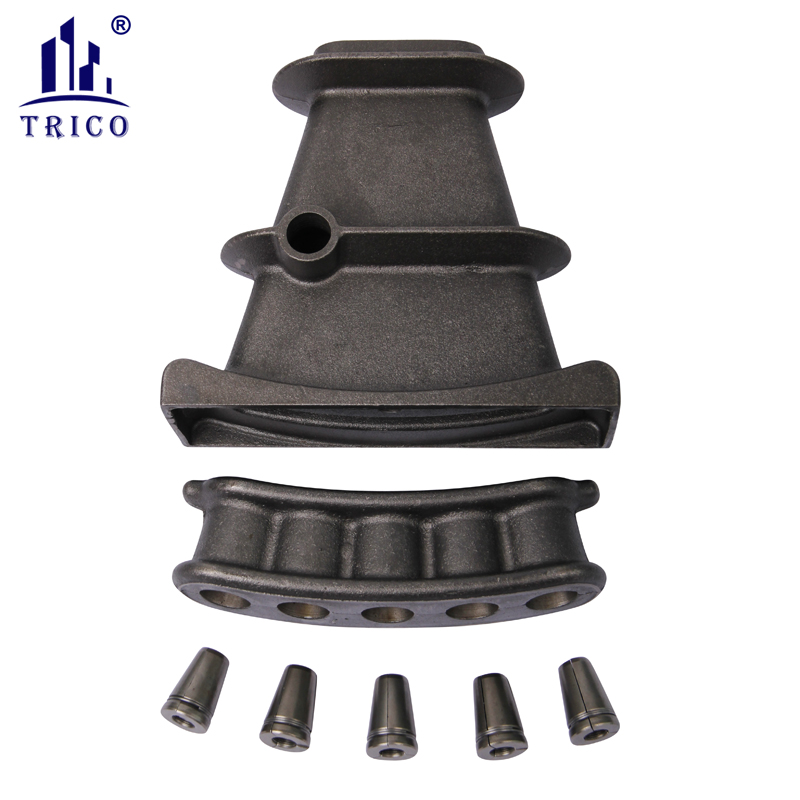

The anchoring system is including anchor head, anchor wedge and anchor plate.
Adopts the ductile iron material, and combines the traditional anchor head and the anchor plate into one,which greatly simplifies the complicated machining process in the previous anchor tool processing.
The utility model is characterized in that the tension end anchor is integrated with the anchor ring by ductile iron,and the structure is compact and the anchoring is reliable.

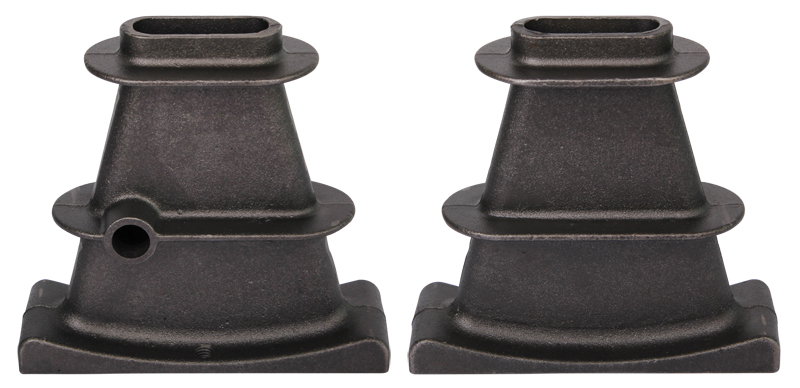

Pre & Post tension anchor (Cast iron)
Product Name | Product Code | Grout hole size(mm) | Flat duct hole size(mm) | Compatible Anchor Head | Weight(KG) | QTY(PCS)/Box | Compatible PC Strand（Dia） |
Anchor Type | TR153 | 17.0 | 78x20 | 2 holes*12.7mm | 2 | 500 | 12.7mm |
TR197 | 17.0 | 50*23 | 2 holes*12.7mm | 2 | 500 | 12.7mm | |
TR210 | 21.0 | 78*22 | 3 holes*12.7mm | 3.4 | 250 | 12.7&15.2mm | |
TR269 | 21.0 | 96*22 | 4 holes*15.2mm | 3.4 | 250 | 15.2mm | |
TR203 | 20.0 | 82*23 | 4 holes*15.2mm | 3.8 | 250 | 15.2mm | |

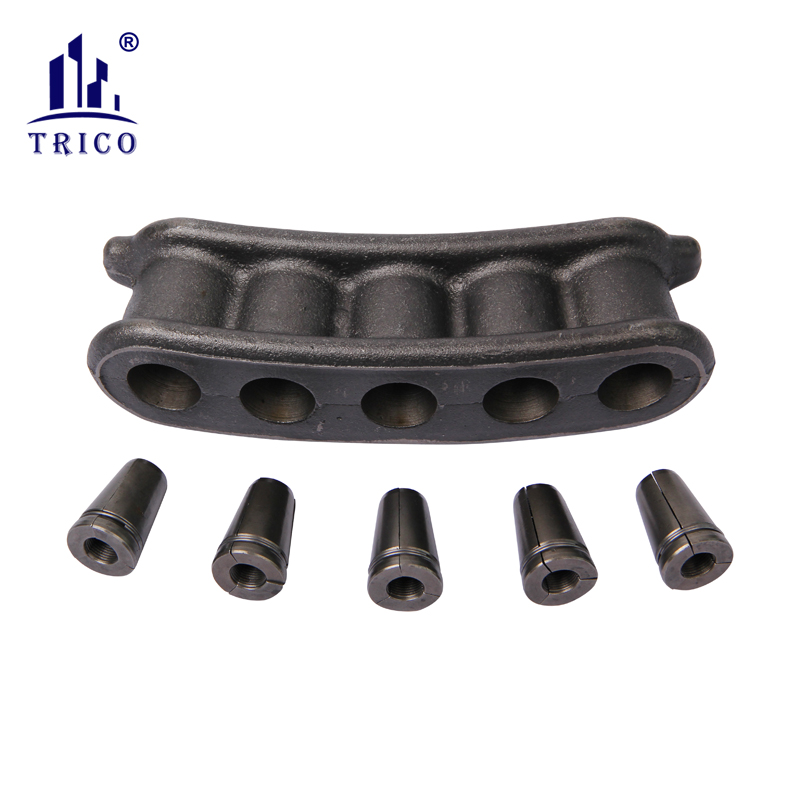

Anchor head type | 2 holes*12.7mm | 100*50*50 | TR153/TR197 | TRM013(12.7mm) | 1.3 | 500 | 12.7mm |
3 holes*12.7mm | 128*50*50 | TR153/TR197/TR210 | TRM013(12.7mm) | 1.6 | 500 | 12.7mm | |
4 holes*12.7mm | 169*50*50 | TR210 | TRM013(12.7mm) | 2.1 | 500 | 12.7mm | |
5 holes*12.7mm | 205*50*50 | TR210 | TRM013(12.7mm) | 2.6 | 500 | 12.7mm | |
3 holes*15.2mm | 136*53*51 | TR210 | TRM015(15.2mm) | 1.86 | 500 | 15.2mm | |
4 holes*15.2mm | 183*53*51 | TR210/TR269/TR203 | TRM015(15.2mm) | 2.4 | 300 | 15.2mm | |
5 holes*15.2mm | 246*48*54 | TR269 | TRM015(15.2mm) | 3.5 | 500 | 15.2mm |
The full length of the prestressing tendon can be completely closed.
Flat Shape, Mature Efficiency Design, Straight or Arc shape anchor head abailable 3, 4, 5 holes available;Well Deburring and Chamfering; Galvanized or Chemical Dioxide Surface Treatment( Black).
Advantage: simple structure, Convenient installation, Good sealing performance, Used for unbonded prestressed building works

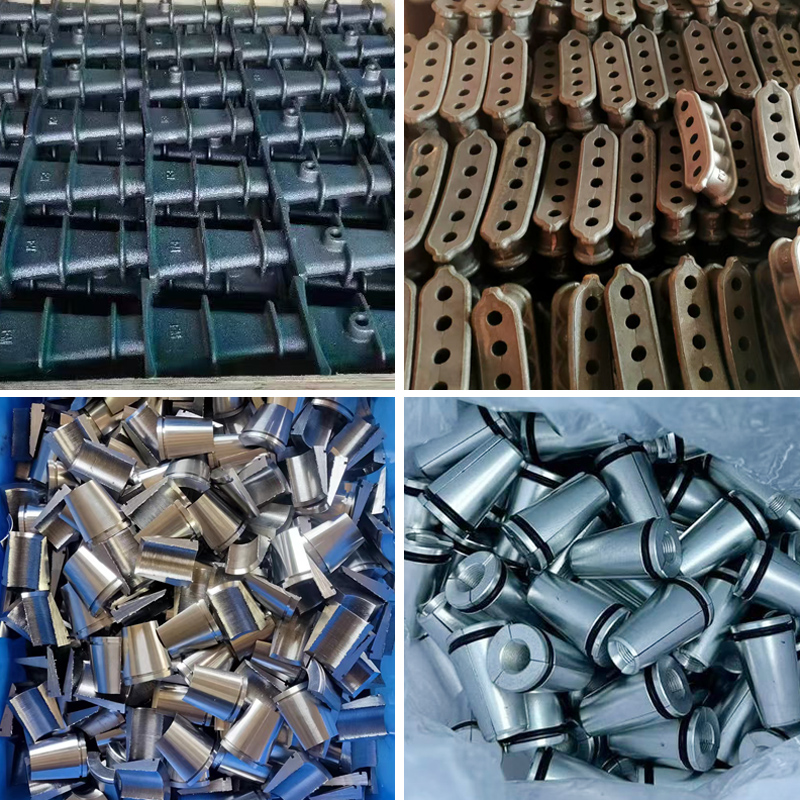

We stock and supply a wide variety of flat anchorage components to suit 12.7, 15.2 and 15.7 mm strand diameters, and can manufacture to meet your special needs by request.

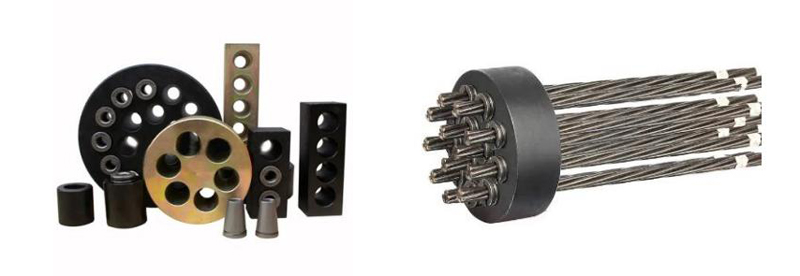

Pre & Post tension anchor (Machine made)
Product Name | Strands Number | Dimensions(OD*H mm) | Compatible Wedge | Material | Compatible PC Strand （Dia） |
Anchor head type | 2 | 78*44 | TRM013/TRM015 | 45# steel | 12.7mm & 15.2mm |
3 | 88*44 | TRM013/TRM015 | |||
4 | 98*45 | TRM013/TRM015 | |||
5 | 108*45 | TRM013/TRM015 | |||
6 | 118*46 | TRM013/TRM015 | |||
7 | 118*46 | TRM013/TRM015 | |||
8 | 128*49 | TRM013/TRM015 | |||
9 | 138*50 | TRM013/TRM015 | |||
10 | 148*50 | TRM013/TRM015 | |||
11 | 158*52 | TRM013/TRM015 | |||
12 | 158*52 | TRM013/TRM015 | |||
13 | 168*56 | TRM013/TRM015 | |||
14 | 168*56 | TRM013/TRM015 | |||
15 | 178*58 | TRM013/TRM015 | |||
16 | 188*62 | TRM013/TRM015 | |||
17 | 188*62 | TRM013/TRM015 | |||
18 | 198*65 | TRM013/TRM015 | |||
19 | 198*65 | TRM013/TRM015 | |||
20 | 218*68 | TRM013/TRM015 | |||
21 | 218*70 | TRM013/TRM015 | |||
22 | 218*70 | TRM013/TRM015 | |||
23/25 | 229*72 | TRM013/TRM015 |

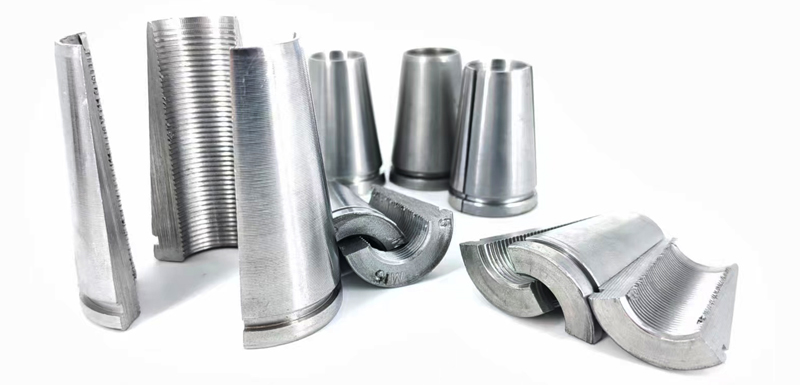

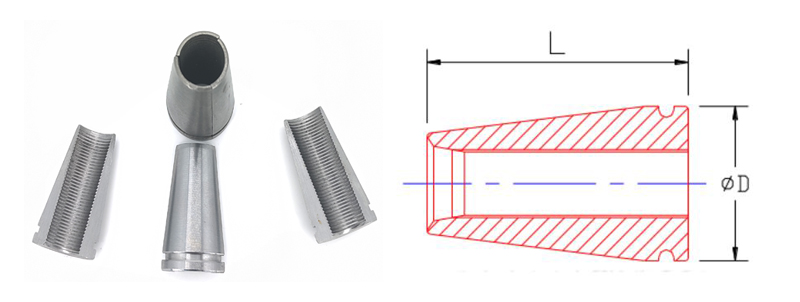

Pre & Post tension wedge
Post Tensioning Wedges Feature:
1.customize different size upon particular requests
2.Wedge is 20CrMoTi Anti-rust treatment, high anchoring coefficient,reliable and stable
3.Comply with international specifications and related standard
4.Simple and reliable for installation and tensioning
Wedge Type | Product Code | Dimensions | No. of (PCS) | Weight | Quantity(Sets) | Material | Hardness | |
D(mm) | L(mm) | |||||||
3.9mm | TRM04 | 16.0 | 27.0 | 2 | 25g | 500 | 20CrMnTi | 58-62 |
12.7mm | TRM013 | 23.7 | 35.8 | 2&3 | 62g | 200 | ||
15.2mm | TRM015 | 25.5 | 42.4 | 2&3 | 82g | 150 | ||
17.8mm | TRM018 | 30.0 | 47.0 | 2&3 | 120g | 75 | ||
21.6mm | TRM022 | 36.4 | 59.0 | 2&3 | 200g | 75 | ||
