Versatile solution for anchoring a variety of projects
Qualified for use in seismic zones
Ideal for concrete and grout-filled block
A steel expansion wedge anchor is a type of mechanical fastener used to securely attach objects to concrete or masonry structures.
A steel expansion wedge anchor is a type of mechanical fastener used to securely attach objects to concrete or masonry structures. These anchors are known for their high holding power and are widely used in construction, engineering, and industrial applications.

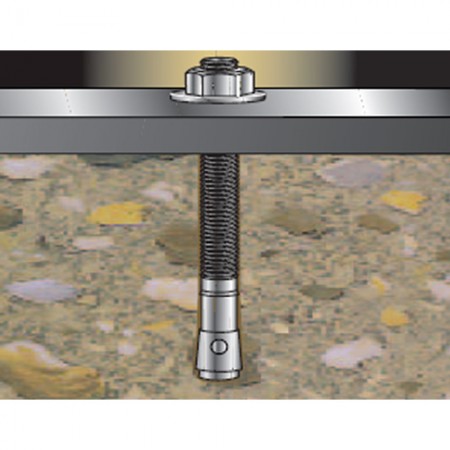

A steel expansion wedge anchor is a heavy-duty fastener that provides a secure hold in solid base materials such as concrete. It consists of a threaded bolt, an expansion clip or wedge, and a nut and washer. When the anchor is installed, the wedge is forced into the base material, creating a strong and reliable hold.
High Holding Power: Provides strong and reliable anchoring in concrete.
Easy Installation: Simple to install with standard tools.
Corrosion Resistance: Often made from stainless steel or coated with corrosion-resistant materials for durability.
Versatile Use: Suitable for various applications, including light to heavy loads.
Permanent Fixing: Once installed, the anchor provides a permanent and secure hold.
Structural Steel: Attaching structural steel components to concrete foundations.
Heavy Machinery: Securing heavy equipment and machinery to concrete floors.
Safety Barriers: Installing guardrails, safety barriers, and handrails.
Building Construction: Anchoring walls, beams, and columns in construction projects.
Mechanical Systems: Mounting HVAC units, plumbing fixtures, and electrical systems.
Strong and Reliable: Provides a secure hold even under heavy loads.
Corrosion Resistant: Suitable for outdoor and industrial environments.
Easy to Install: Requires standard tools and straightforward installation procedures.
Versatile: Can be used in a wide range of applications and materials.
Expansion Bolt: Specific type with a bolt and an expansion sleeve.
Expansion Anchor: Broad category including various types like wedge, sleeve, and drop-in anchors.
Expansion Bolt: Typically used for heavier-duty applications.
Expansion Anchor: Includes options for both medium and heavy-duty applications.
Expansion Bolt: Involves tightening a nut to expand the sleeve.
Expansion Anchor: Varies by type; wedge anchors involve tightening, sleeve anchors involve the sleeve expanding, and drop-in anchors involve setting with a tool.
Expansion Bolt: Always includes a bolt, sleeve, nut, and washer.
Expansion Anchor: This may include various combinations of bolts, sleeves, and wedges depending on the type.
General Load Capacities:
1/4-inch Diameter: Approximately 500-1,000 lbs (tension), 600-1,200 lbs (shear)
3/8-inch Diameter: Approximately 1,200-2,500 lbs (tension), 1,400-2,800 lbs (shear)
1/2-inch Diameter: Approximately 2,000-4,000 lbs (tension), 2,400-4,800 lbs (shear)
5/8-inch Diameter: Approximately 3,500-6,000 lbs (tension), 4,000-7,000 lbs (shear)
3/4-inch Diameter: Approximately 4,500-9,000 lbs (tension), 6,000-10,000 lbs (shear)
