Concrete Formwork Plastic Cone Coil Ties
  • Concrete Formwork Plastic Cone Coil Ties
  • Concrete Formwork Plastic Cone Coil Ties
  • Concrete Formwork Plastic Cone Coil Ties
  • Concrete Formwork Plastic Cone Coil Ties
  • Concrete Formwork Plastic Cone Coil Ties
  • Concrete Formwork Plastic Cone Coil Ties
Concrete Formwork Plastic Cone Coil TiesConcrete Formwork Plastic Cone Coil TiesConcrete Formwork Plastic Cone Coil TiesConcrete Formwork Plastic Cone Coil TiesConcrete Formwork Plastic Cone Coil TiesConcrete Formwork Plastic Cone Coil Ties

Concrete Formwork Plastic Cone Coil Ties

Product Introduction:

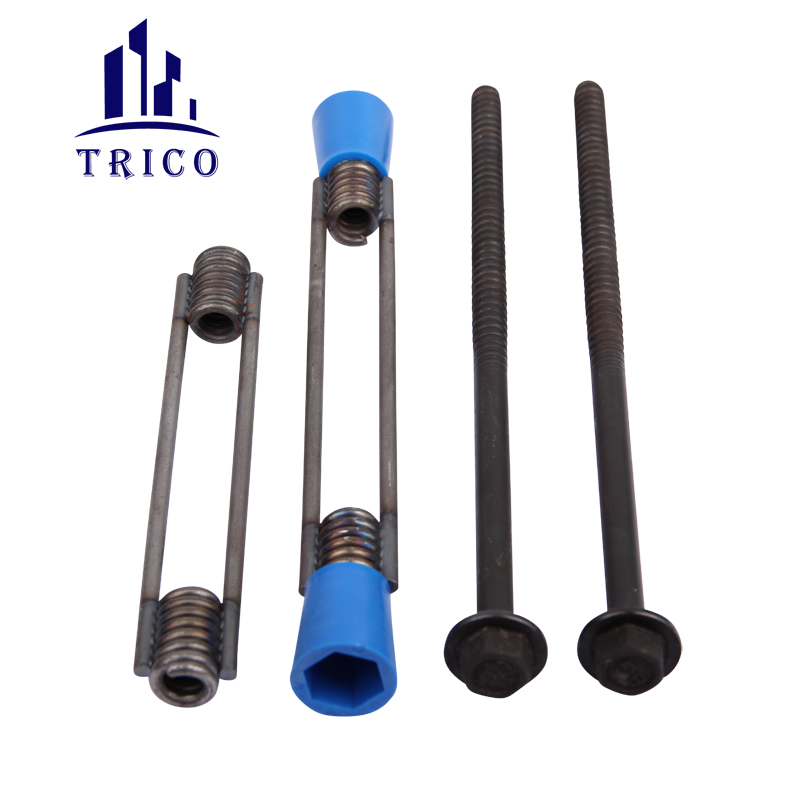

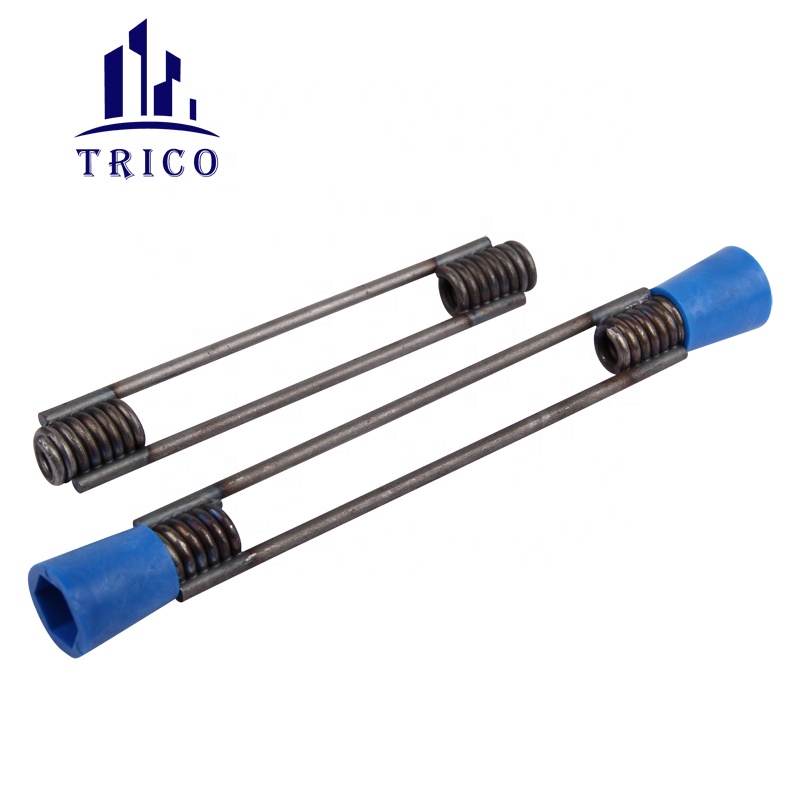

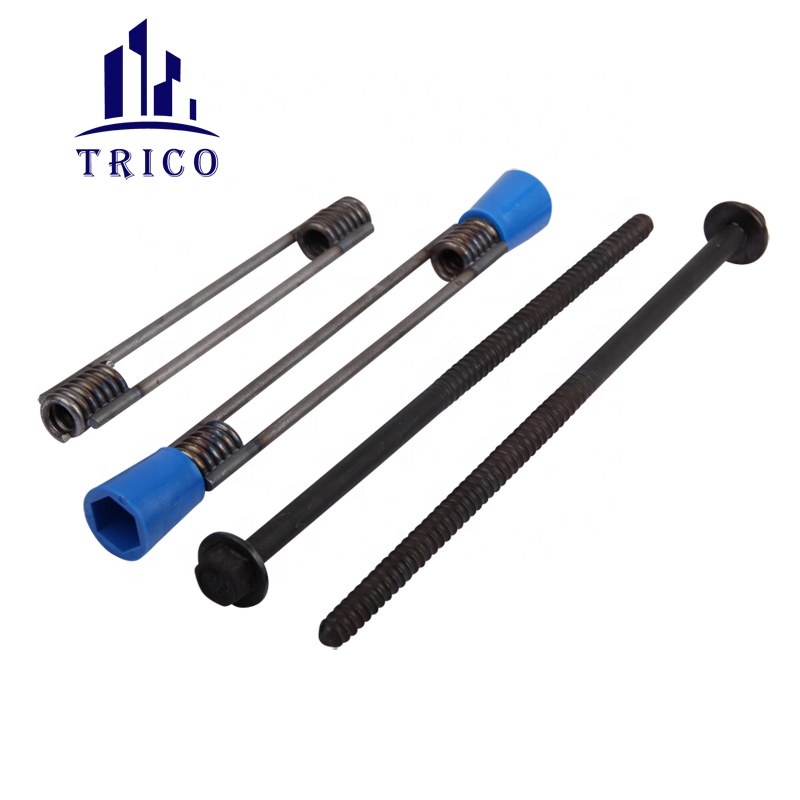

Conefast Coil Ties are one of the most economical and versatile Form Tie Systems available. They are commonly used with self cleaning Coil Rod or Coil Bolts/ Bolt Coil Tie. The Conefast Coil Ties have extended coils that protrude beyond the end of the struts allowing for a Conefast (Screw On) cone to be attachedThe main parts are Coil Tie, Bolt Coil Tie, Coil Tie Cone.

Product Details

Concrete Formwork Plastic Cone Coil Ties



Seq. No.

Product


Specification

Packing








1

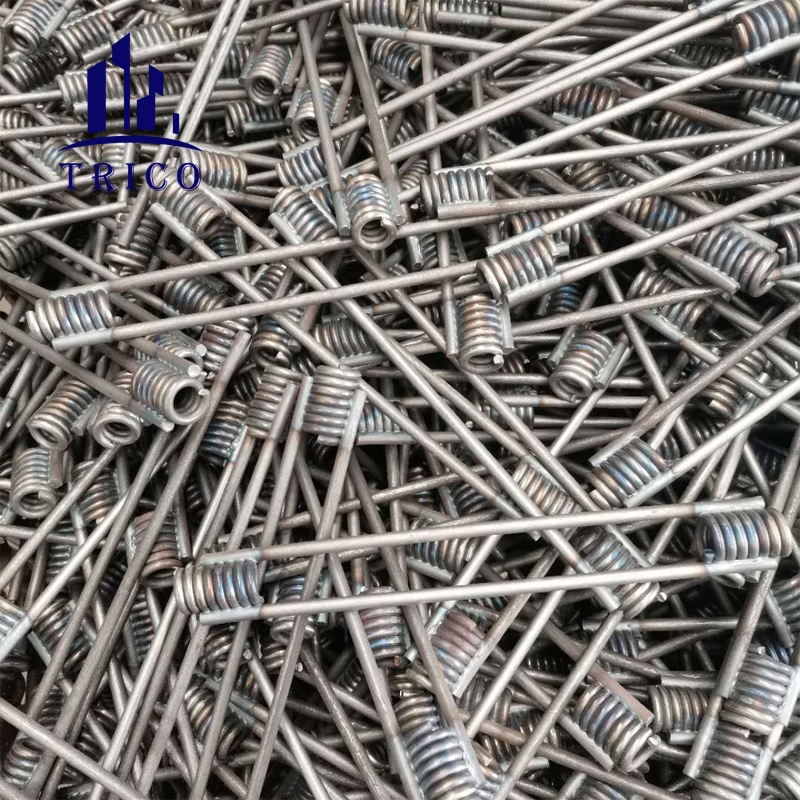

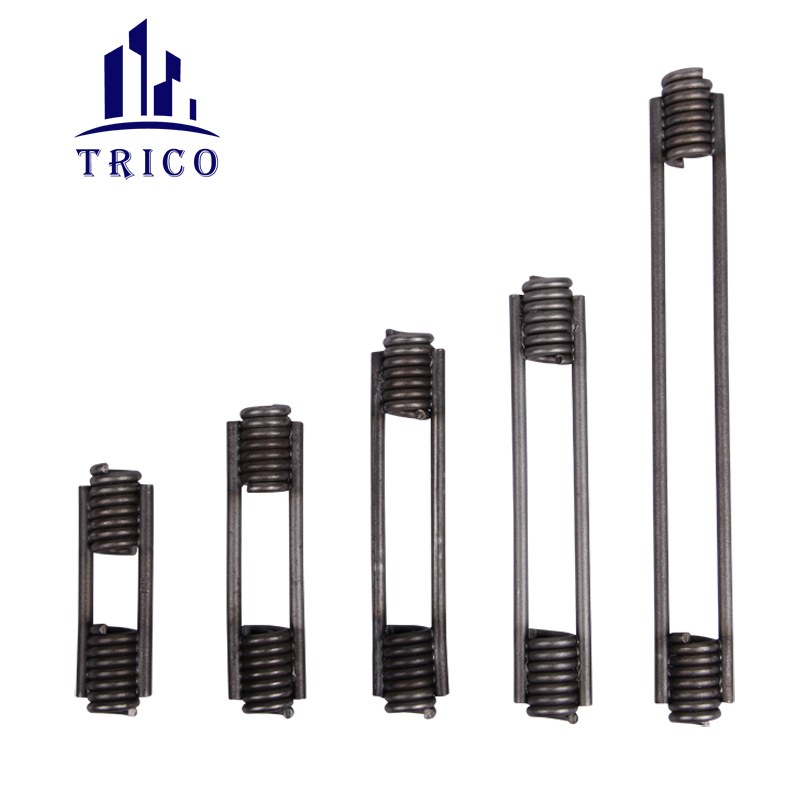

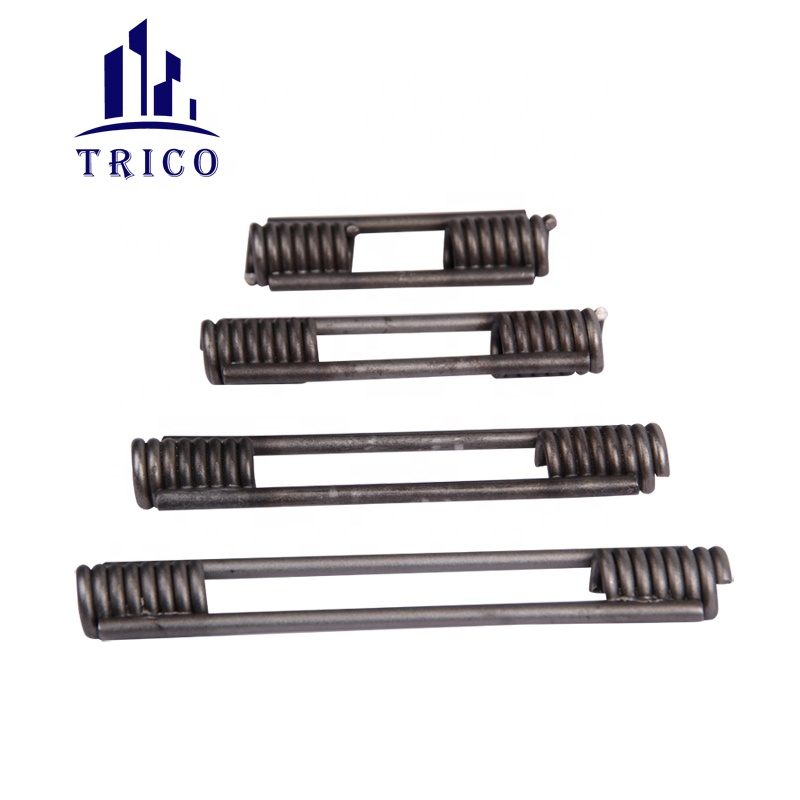

Coil Tie

(Self Color)





Concrete Formwork Plastic Cone Coil Ties

WT150MM,STRUT 80MM

112g/pc;100pcs/bag

WT200MM,STRUT 130MM

133g/pc;100pcs/bag

WT250MM,STRUT 130MM

153g/pc;100pcs/bag

WT275MM,STRUT 205MM

165g/pc;100pcs/bag

WT300MM,STRUT 230MM

175g/pc;100pcs/bag

WT350MM,STRUT 280MM

195g/pc;100pcs/bag

WT400MM,STRUT 330MM

215g/pc;100pcs/bag

WT450MM,STRUT 380MM

237g/pc;50pcs/bag

WT500MM,STRUT 430MM

258g/pc;50pcs/bag

WT550MM,STRUT 480MM

277g/pc;50pcs/bag

WT600MM,STRUT 530MM

298g/pc;50pcs/bag





2

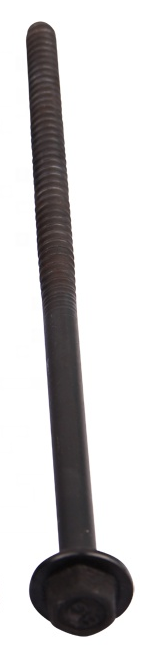

Bolt Coil Tie

              Concrete Formwork Plastic Cone Coil Ties




40CR,300MM,in balck




100pcs/carton



3

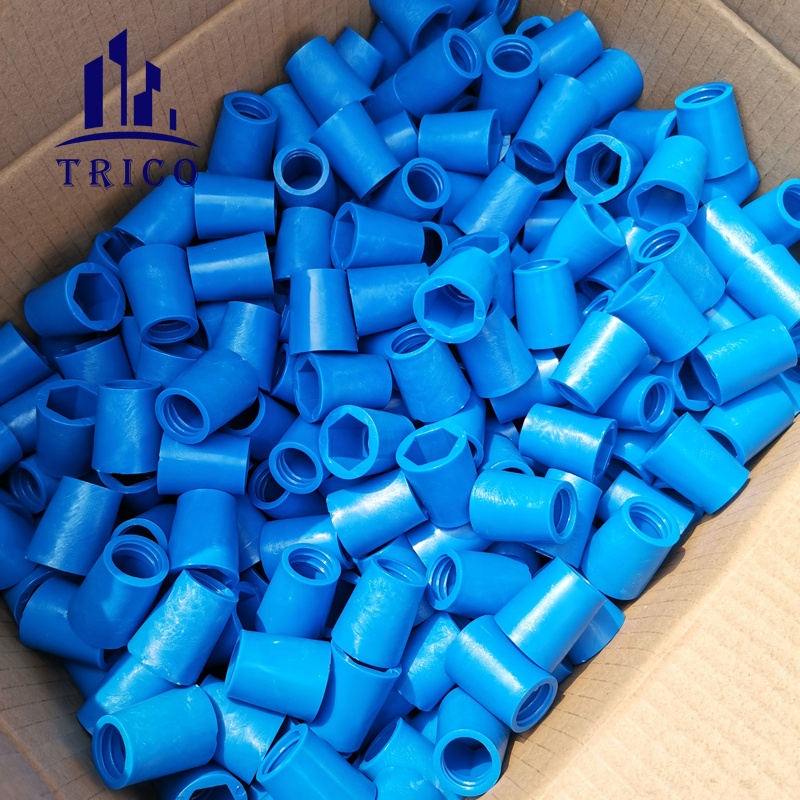

PVC Cone

Concrete Formwork Plastic Cone Coil Ties




Blue,35mm



500pcs/carton


Conefast Coil Ties are one of the most economical and versatile form tie systems available. They are commonly used with self cleaning Coil Rod or Coil Bolts/Bolt Coil Tie. The Conefast coil Ties have extended coils that protrude beyond the end of the struts allowing for a Conefast (Screw On) Cone to be attached.

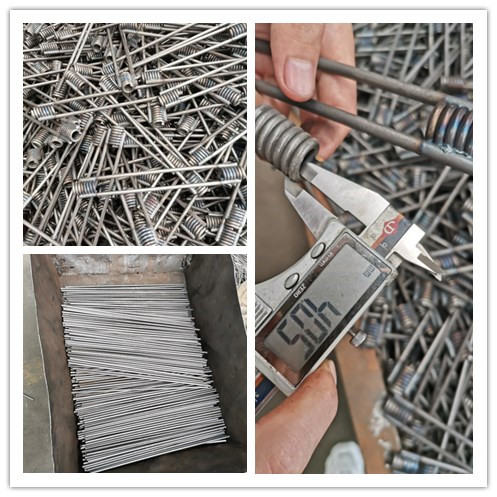

Packing Detail:

Concrete Formwork Plastic Cone Coil Ties
