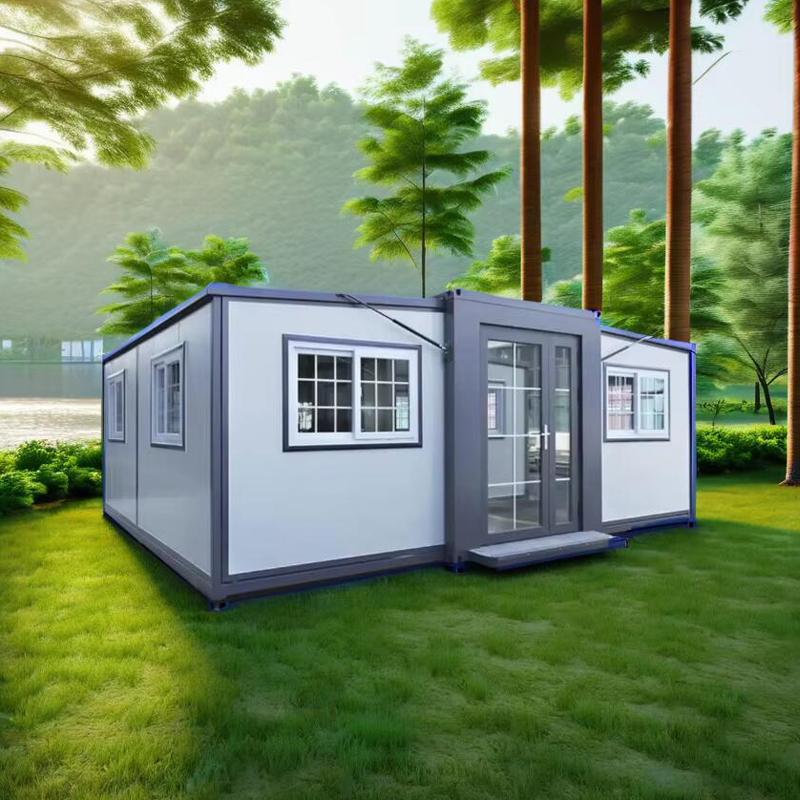

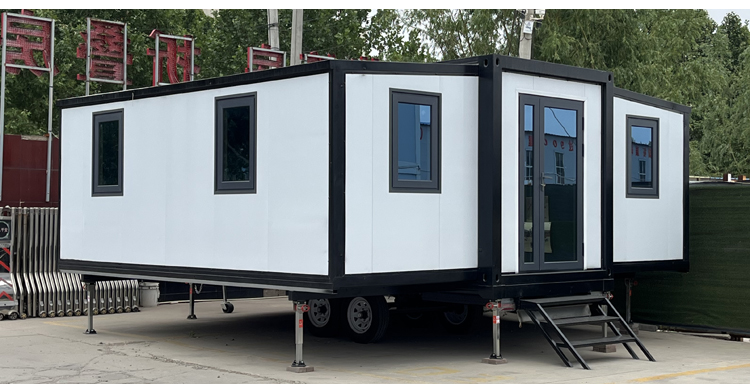

Expandable Container House is convenient to assemble and can be moved frequently. It has a large space for mobile living. The house will be folded to save space during transportation and can be installed quickly and easily, widely used in Military camp、field、hospital and villas.

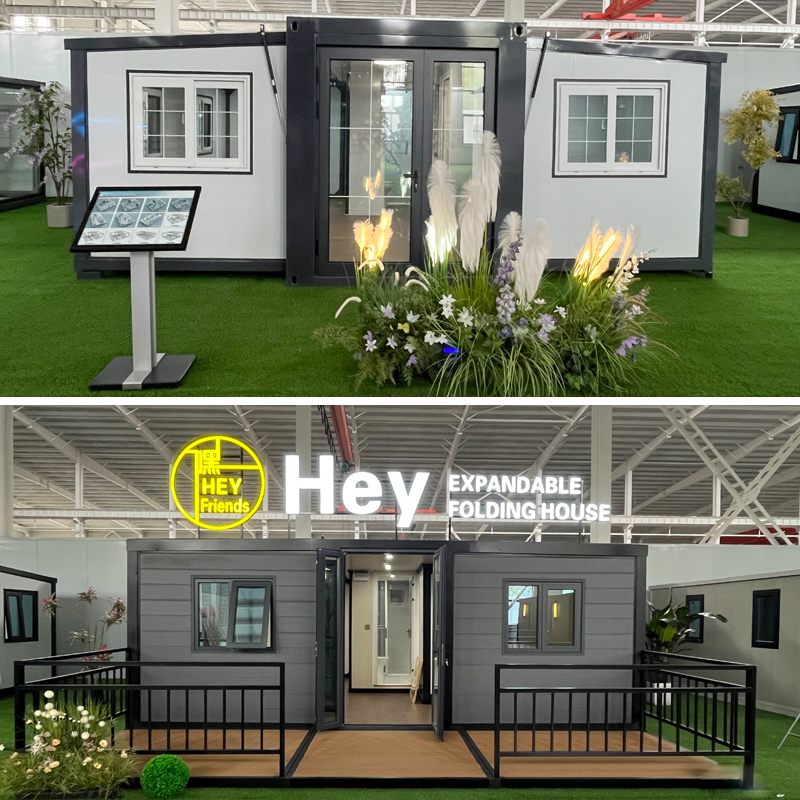

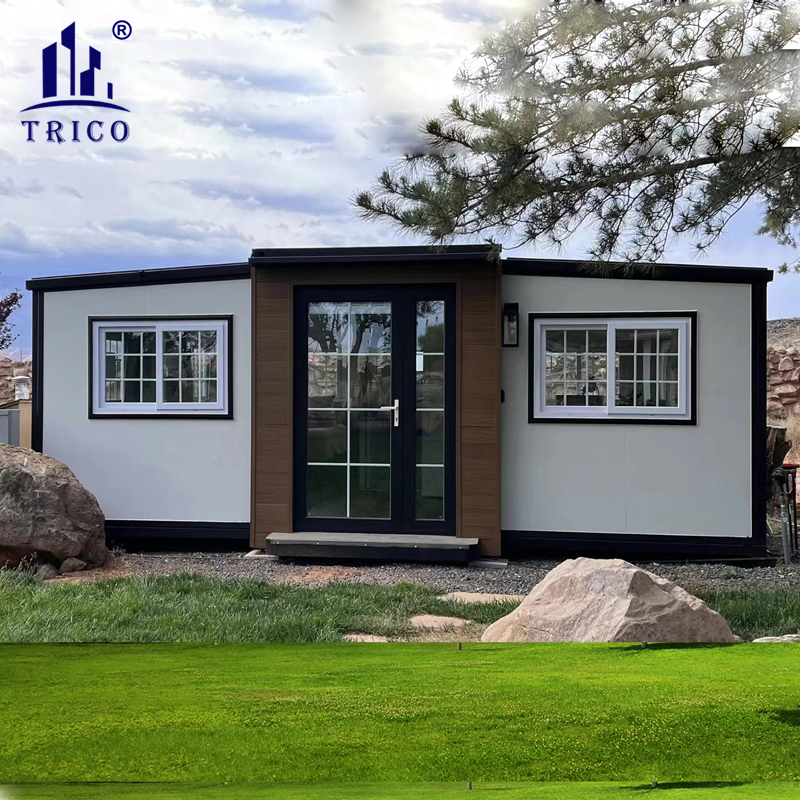

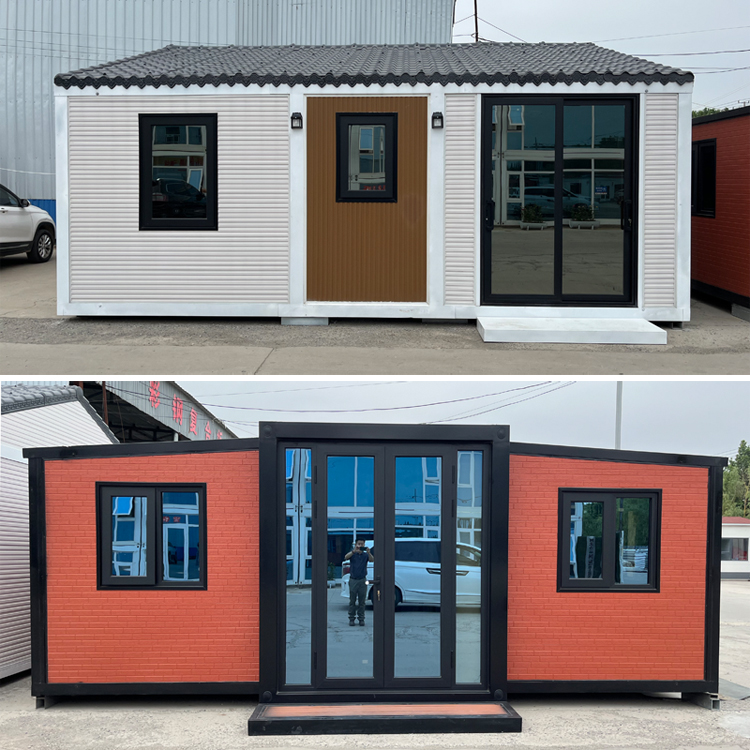

Expandable container house
Container houses are built significantly faster than traditional construction, since they are semi-finished
products directly sent from factory.
And expandable container house is also characteristics for the expandable installation that it can be

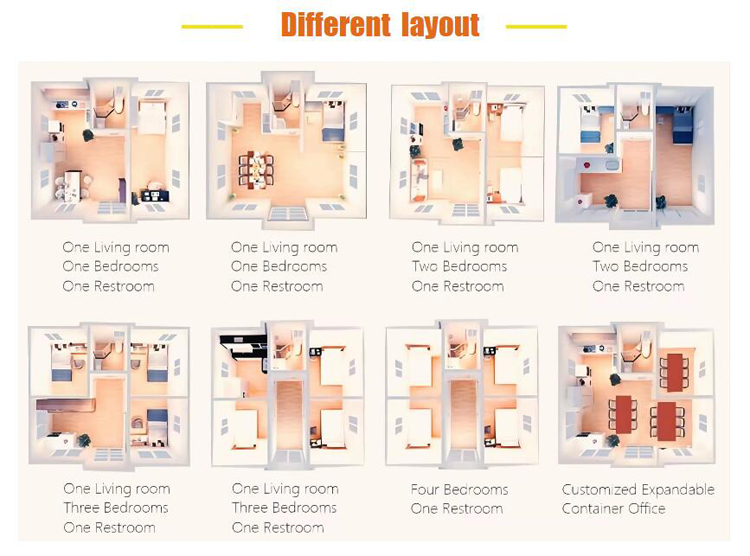

installed by just five steps. It can be expanded or closed according to your idea, such as Villa House,
Family Homes, Labour Dormitory, School, Restaurant, Hotel, Office, Shop, Camp House,etc.

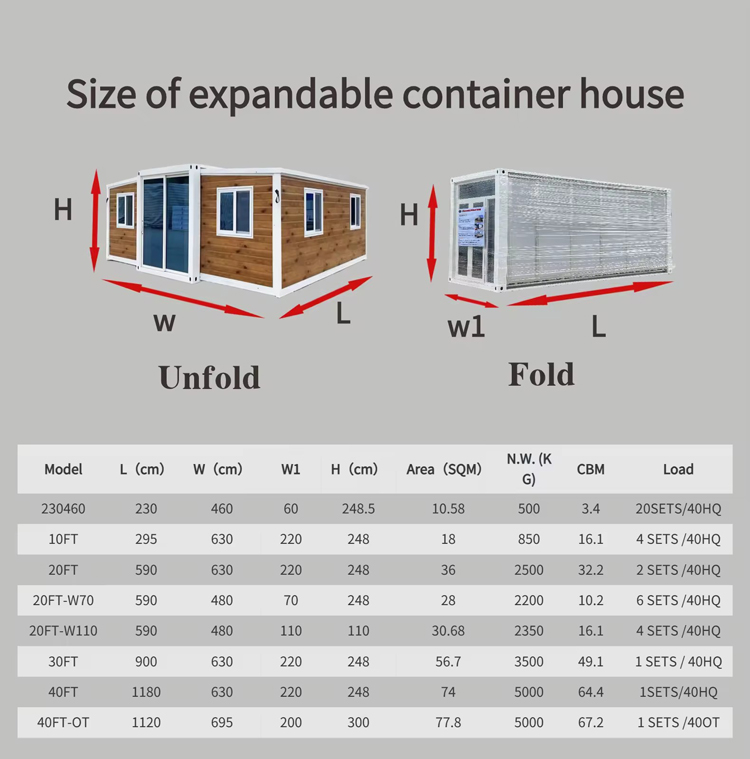

Technical Parameter of Expandable Container | ||
| External dimension (mm) | 6320*5900*2480 |
Internal dimension(mm) | 6160*5560*2240 | |
Folding state(mm) | 2200*5900*2480 | |
Total mass(kg) | About 2100 Kgs | |
| Middle roof beam | T2.5mmQ235B |
Middle base beam | T2.5mmQ235B | |
Side beam | T1.5mmQ235B | |
Middle pillar | T2.5mmQ235B | |
Side wall frame | T1.5mmQ235B | |
Sub-frame | T1.5mmQ235B | |
Hanging head | T4mmQ235B | |
Folding hinge | 13mm Galvanized hinge | |
Protective coating for integral frame | Electrostatic spraying/Straight white plastic powder | |
Top and bottom of middle cabinet | 80*100 | |
Top and bottom of side cabinet | 40*60*1.5 thick square tube | |
| External roof board | T0.5mm Galvanized plate |
Internal ceiling board | T831 internal ceiling board | |
| Heat preservation of middle top | T50mm glass filament cotton(Side top 50 foam plate) |

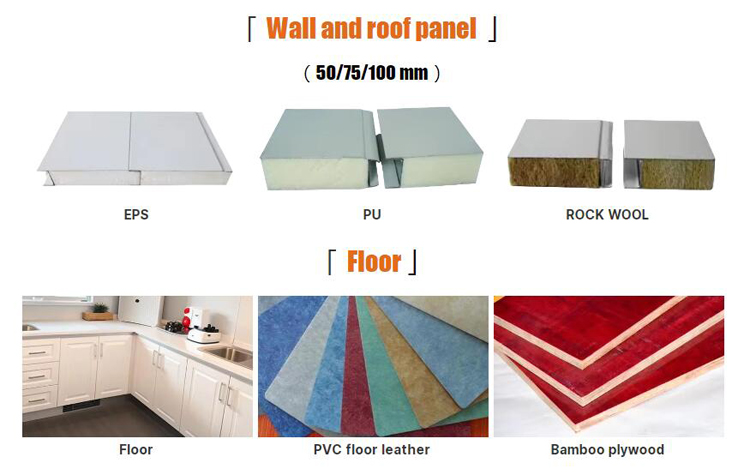

Side wall, front wall panel& back wall panel | T50mm-Color steel plate with glass filament cotton or T50mm-Foam plate | |
Internal partition | T50mm Foam board | |

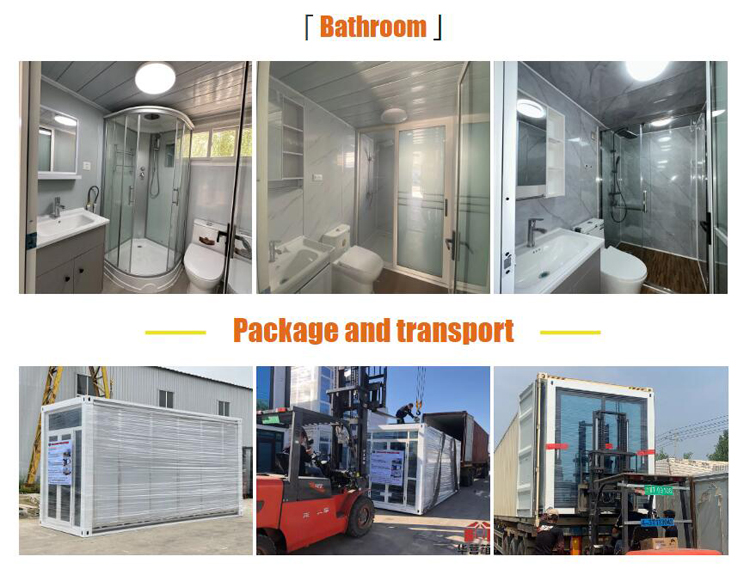

Internal washroom | About 1700*1500mm (can be adjusted) | |
| Middle floor | Fireproof glass magnesium floor 15mm |
Floor on both sides | Bamboo flooring | |
Electrical system | Electrical wiring, install in strict accordance with the moisture-proof specifications, all electrical products shall comply with 2 LED lights, 2 Ceiling lamp, 3 five- hole single socket, 1 single switch, 3 ten -hole socket,1 Air conditioner socket, 1 20A -Leakage protector. | |

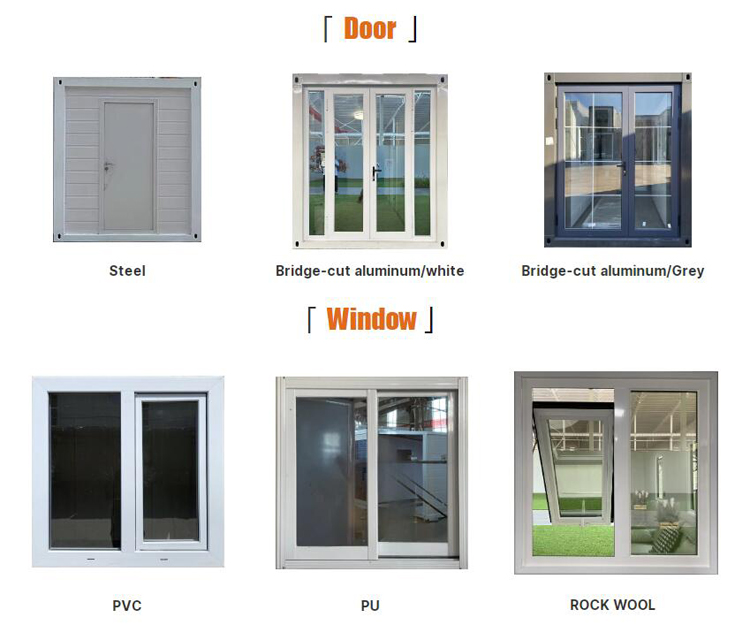

Common Security Door | 2 sets of Common security door | |
Window | 4 sets of Sliding plastic steel single glass window (920*1120mm) | |
Quality guarantee | 1 year | |
Expandable container house
Big space, family house layoutEasyinstallationHigher comfortPre-build the electricity and waterplumbing, bathroom fittings
