Wedge pins are used with a flat tie to tighten adjoining concrete forms, securing the flat tie and concrete form in place. The full set of the Symons Formwork Accessories including the Wedge Bolt, Long Bolt, Short Bolt, X-Flat Tie, Piece Waler Clamp, Z Tie Holders & Waler Tie, J-Strongback Hooks, and Strongback Ties, Scaffold Brackets and Turnbuckles.

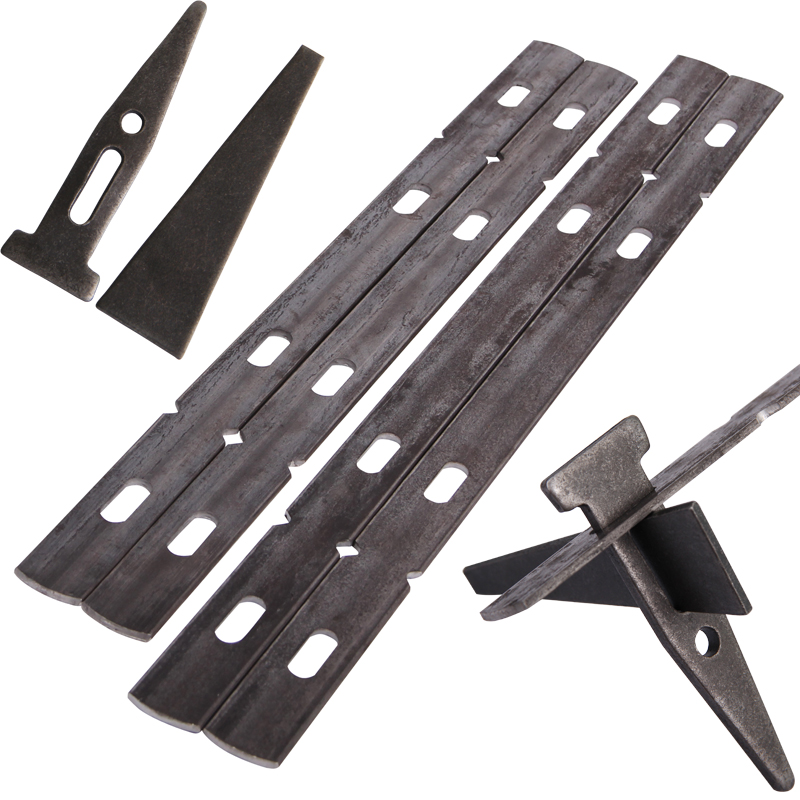

The X Flat Tie is a steel accessory used in plywood formwork systems to maintain the spacing between formwork panels and provide stability during concrete pouring. Steel plywood forming accessories, such as the X Flat Tie, play a crucial role in the construction of concrete structures. These accessories are designed to ensure the stability, accuracy, and ease of use of concrete formwork systems.
X-flat tie video display: The actual steel X-flat tie shown in the video, you can see some details of the product. If you want to know more about the steel plywood molding accessory product, please contact us.
Made from high-strength steel for durability and reuse.
A flat design allows for easy insertion and removal.
Helps maintain accurate wall thickness and alignment.
Applications: Commonly used in wall forming systems to secure plywood formwork panels in place, ensuring consistent wall thickness and preventing formwork movement.
The available size is from 4" to 48" wall thickness as your request.

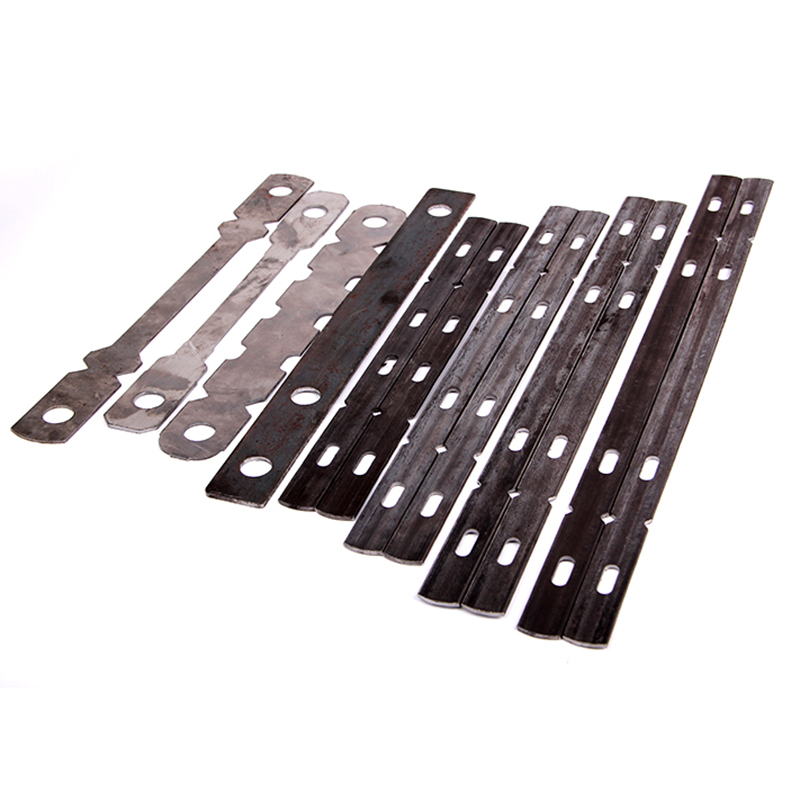

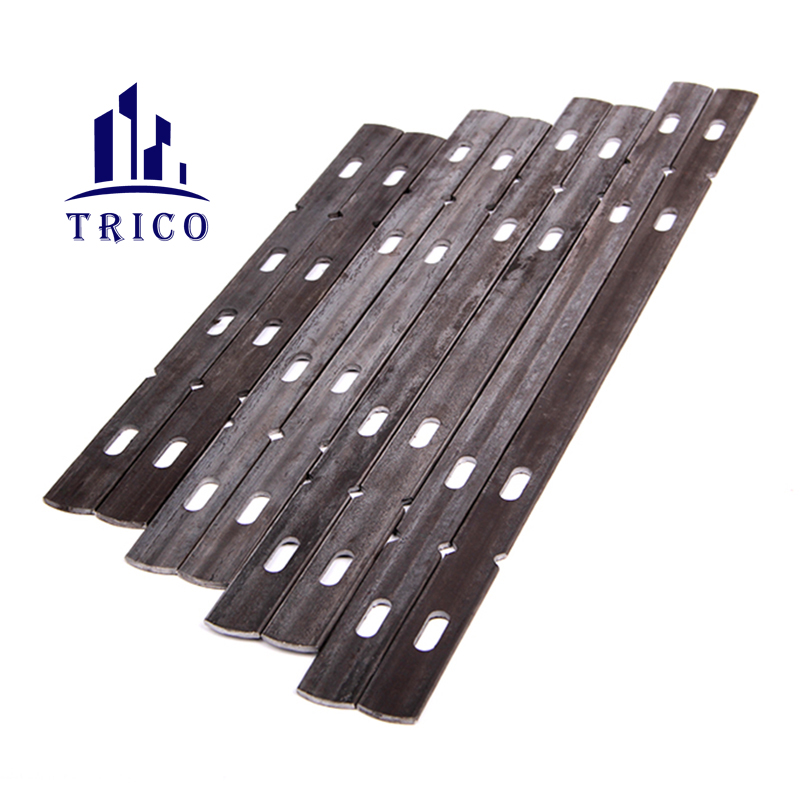

| Picture | Product Name | Wall Thickness | Weight (g) | Weight (LBS) | Ultimate Load | Packaging |
| X-FLAT TIE | 4" | 103.98 | 0.2292 | 6000LBS | 100pcs/carton； 10,000pcs/pallet |
| 5" | 111.9 | 0.2467 | ||||
| 6" | 119.81 | 0.2641 | ||||
| 8" | 141.21 | 0.3113 | ||||
| 9“ | 151.91 | 0.3349 | ||||
| 10” | 162.61 | 0.3585 | ||||
| 12“ | 184.01 | 0.4057 | ||||
| 14” | 205.41 | 0.4528 | 50pcs/bundle； 2,500pcs/pallet | |||
| 15“ | 216.11 | 0.4764 | ||||
| 16” | 226.81 | 0.5000 | ||||
| 18“ | 248.21 | 0.5472 | 50pcs/bundle； 2,500pcs/pallet | |||
| 20” | 269.61 | 0.5944 | ||||
| 22“ | 291.01 | 0.6416 | ||||
| 24” | 312.42 | 0.6888 | ||||
| ... | ... | ... | ... | |||
| 48“ | 569.22 | 1.2549 | 25pcs/bundle； 2,500pcs/pallet |
Accessories
| Picture | Product Name | Material | Weight | Surface Treatment | Packaging |

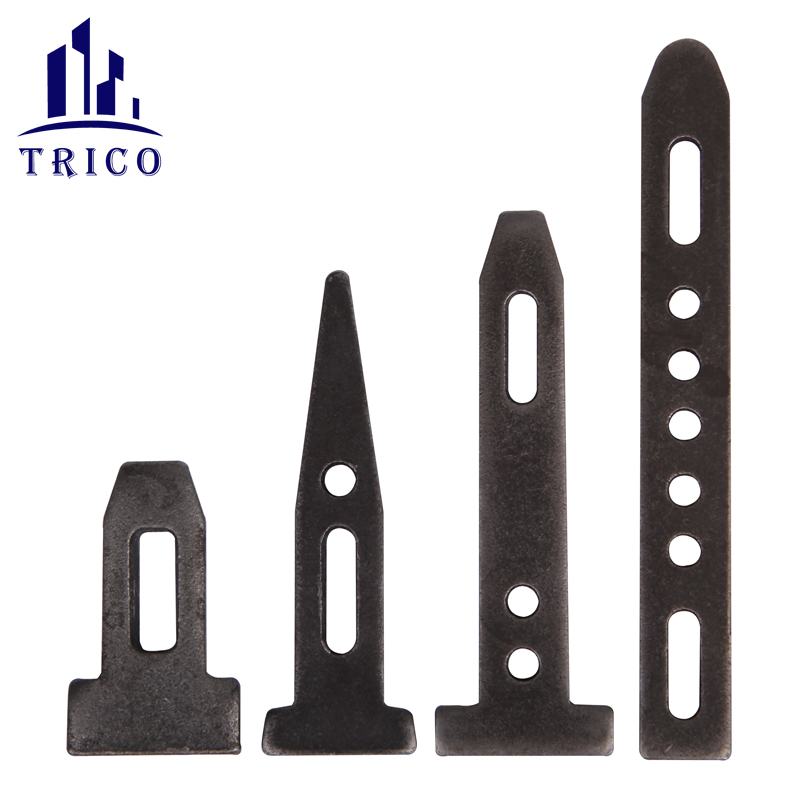

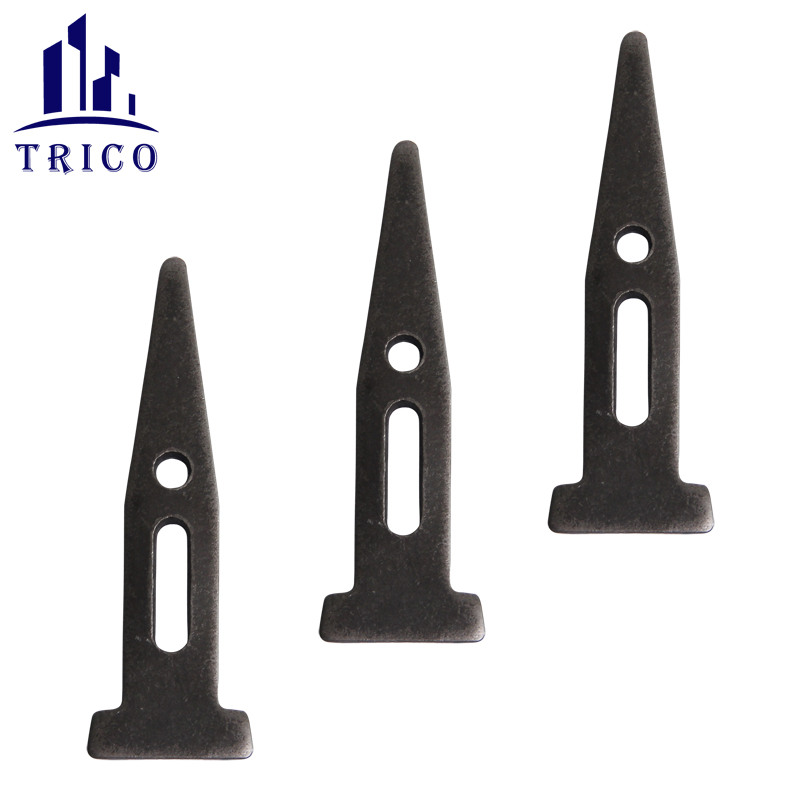

 | Standard Wedge Bolt | 45# Steel | 52g | heat treatment | 500pcs/pail then put on pallet |
 | Long Wedge Bolt | 71g | 250pcs/pail then put on pallet |
Product Detail:
Application scenarios:
Packaging :
Related Products

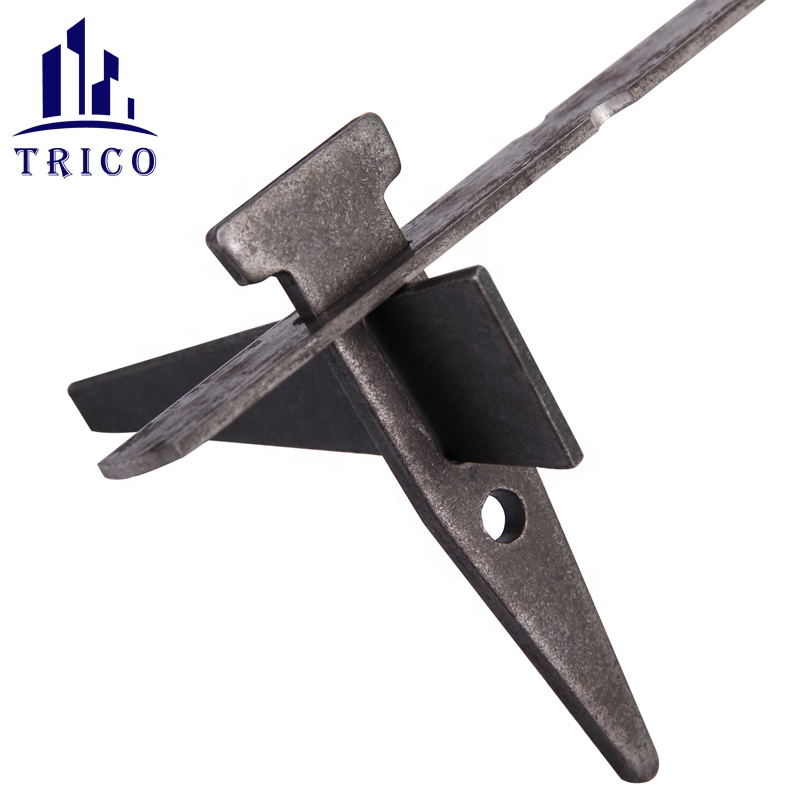

Wedge bolts connect panels and ties, eliminating the need for special tools or equipment in the setup process. Two identical wedge bolts work as a single lock-bolt set, connecting and clamping together. However, additional bolts may be needed for walker attachments, scaffold brackets, etc.
X Flat Ties are used with Wedge Bolts to secure and space modular forms. X Flat ties are available in 6″ up to 84″ in 1/2″ increments. The standard breakback is 1/4″.
One Piece Waler Clamps attach through the wedge bolt slot of modular type forms to provide wedge action aligning with single or double lumber.
Z Tie Holders are used in conjunction with Waler Ties to secure double 2x lumber wales to modular type forms. The Waler Tie is available in two sizes to accommodate 2 x 4 and 2 x 6 lumber.
Turnbuckle Form Aligner Lumber forms (also referred to as kickers) brace and support the fully assembled wall from the fluid pressure of the concrete.
