Adjustable Scissor Column Forming Clamps for Concrete Square Column

Adjustable Scissor Column Forming Clamps for Concrete Square Column

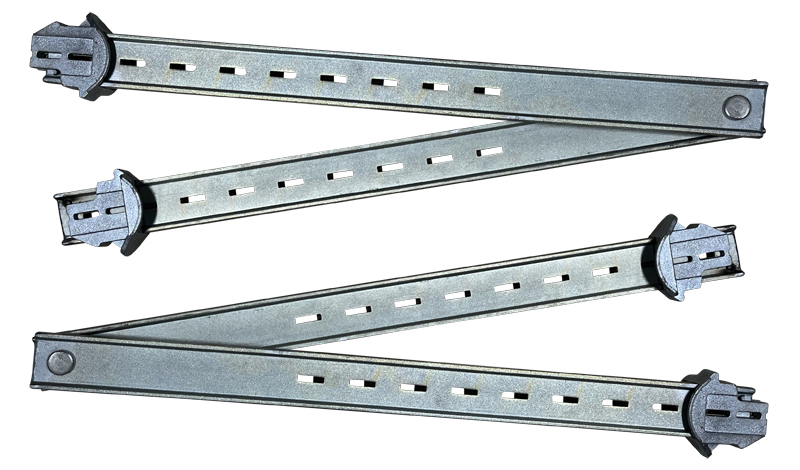

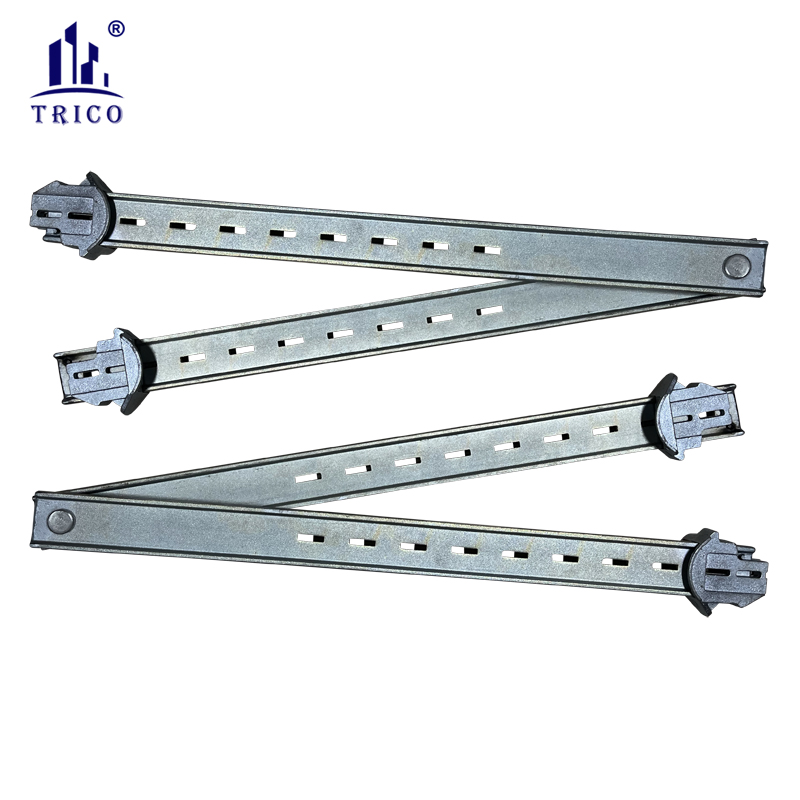

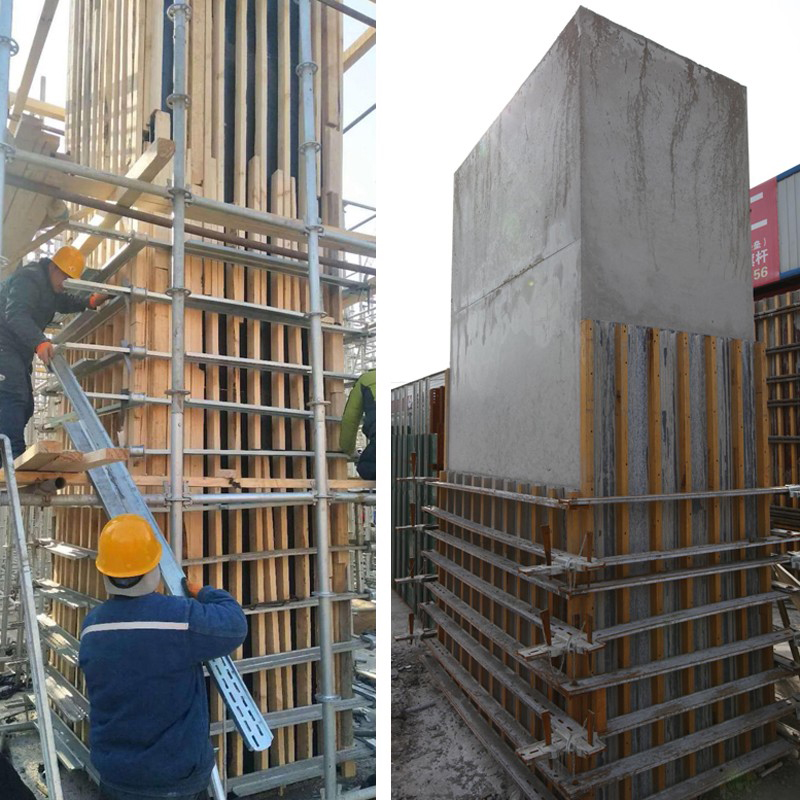

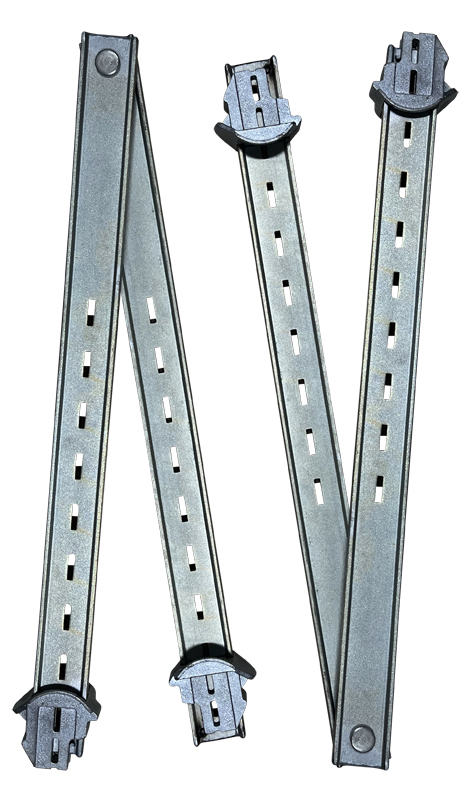

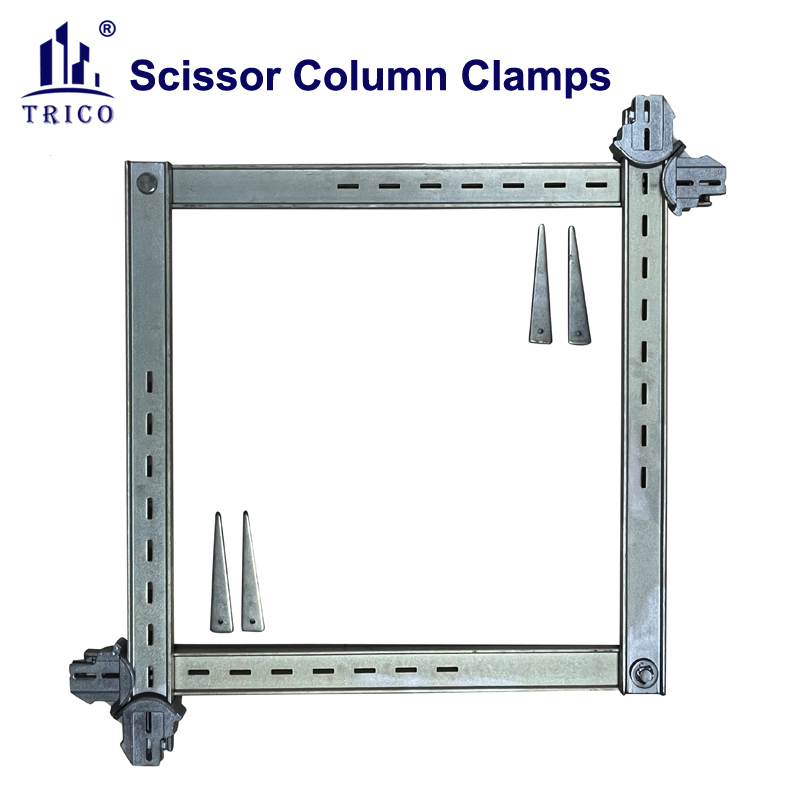

SCISSOR CLAMPS: The Trico Scissor Clamp is designed to help build concrete column forms to assist in the process of pouring concrete columns. This functional and dynamic Scissor Clamp is the perfect tool for any residential or commercial project.

Scissor Column Clamps	TR Part No.	Clamp Size	Column Size
	TR-36	36	6" - 23 1/2"
	TR-38	38	10" - 24"
	TR-48	48	10" - 34"
	TR-48/26	48/26	6" - 12"; 10" - 34"
	TR-50	50	12" - 36"
	TR-50/38	50/38	10" - 24"; 12" - 36"
	TR-60	60	22" - 46"
	TR-72	72	34" - 58"

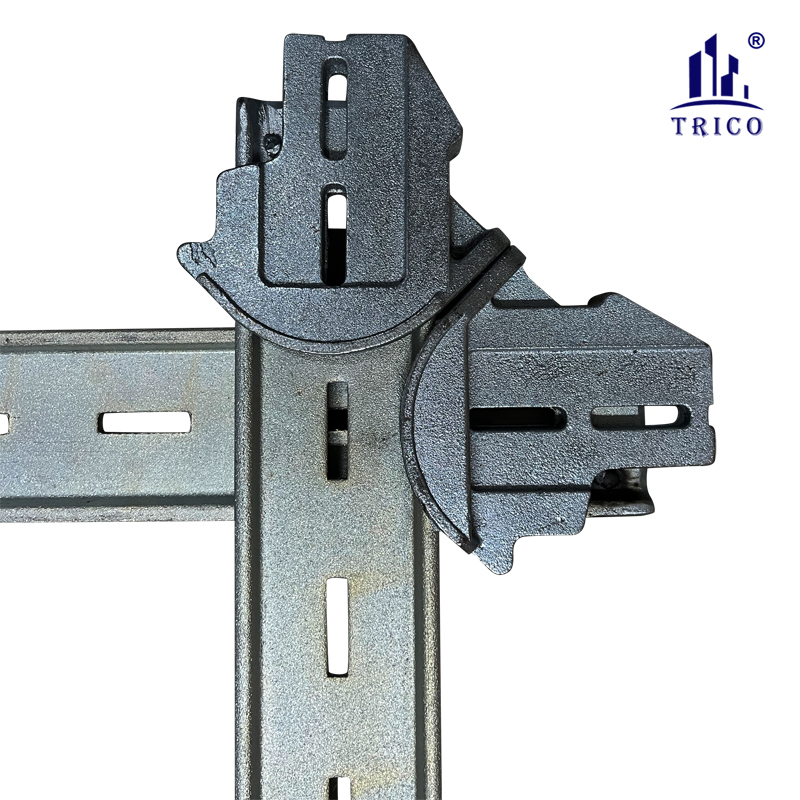

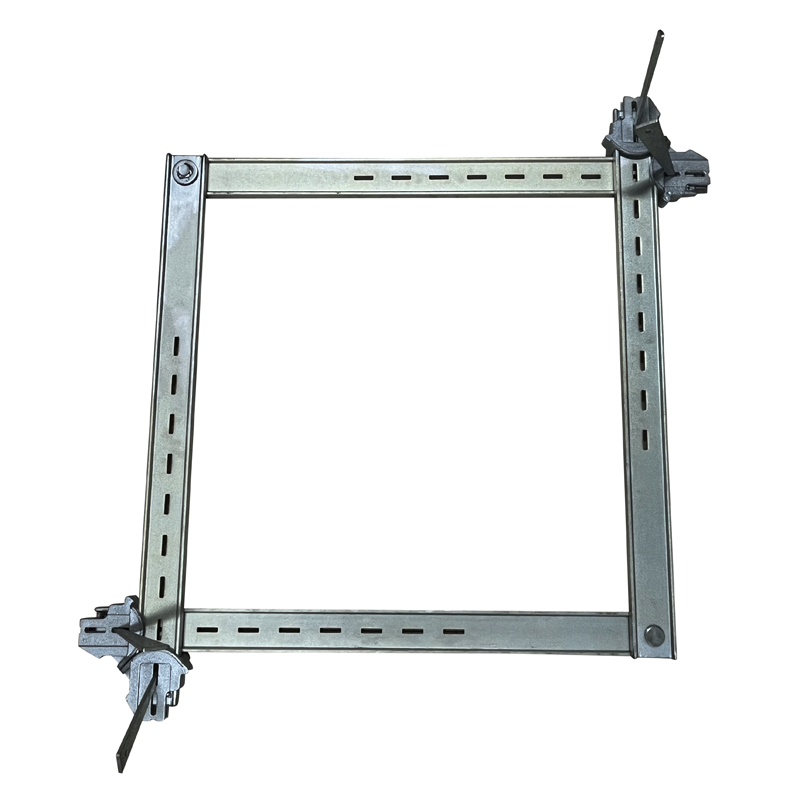

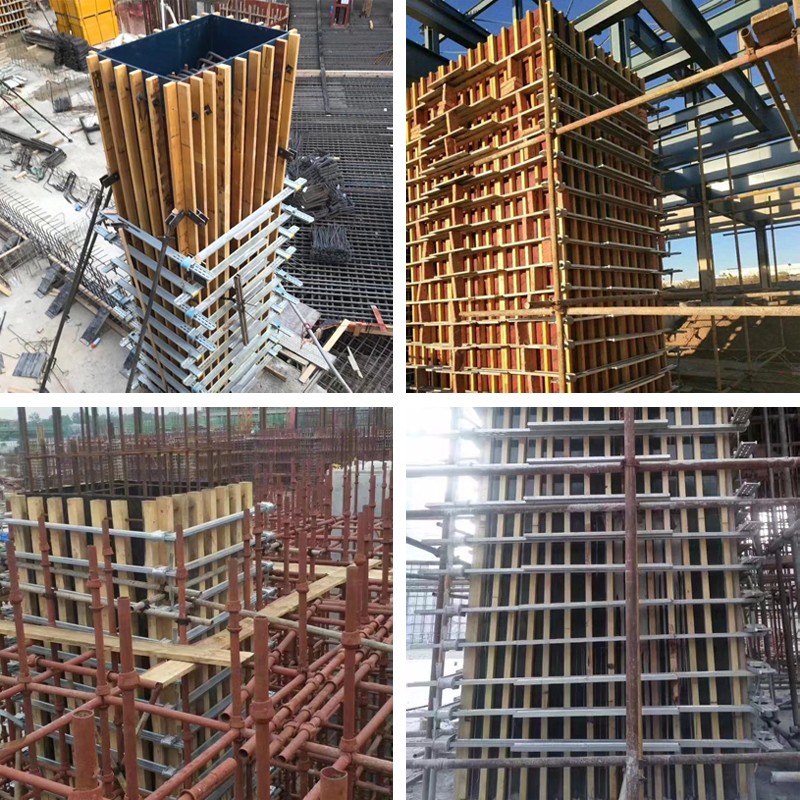

EASY TO USE: Simply slide each casting along the bar up to the adjacent bar, drop the wedge through a slot in the casting and matching slot, and hammer down each wedge to seat bars tight against the wood forms. Steel bars will quickly clamp snug to the wood forms.

SAFE & SECURE: Built with high quality materials, the scissor clamp has slot spacing in bars and castings that have been designed to eliminate dead spaces, and ensure that the clamp is always tight to the wood form. To dismantle the scissor columns, tap the wedge up until it is loosened from the wood form.
