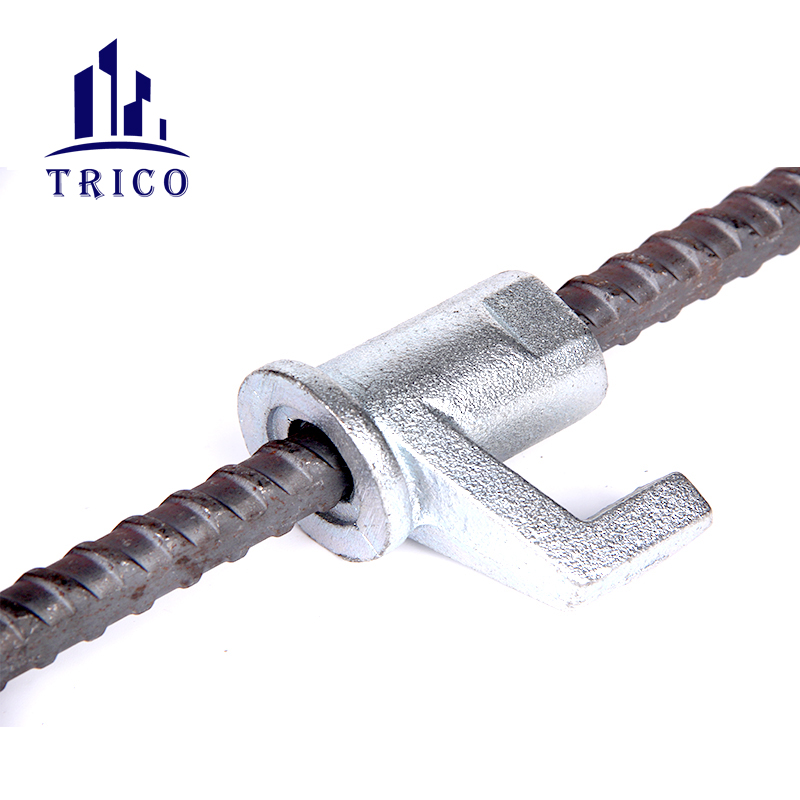

The one arm wing nut is a simple type of tie rod wing nut. Therefore, it works with a washer plate in concrete formwork. There are D12, D14, D17, and D22 wing nuts in Trico. You can choose the cast type and forged type butterfly wing nut. Wing nut plate sizes are customized according to your construction design and requirements.

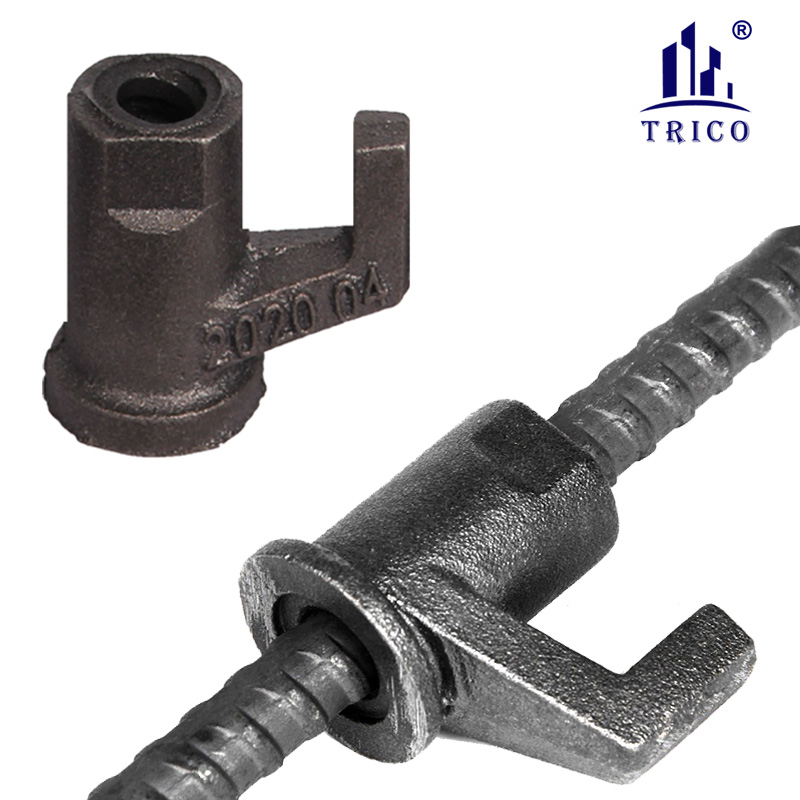

180KN 15/17mm Cast Iron Wing Nut with One Arm for Formwork Tie Rod System

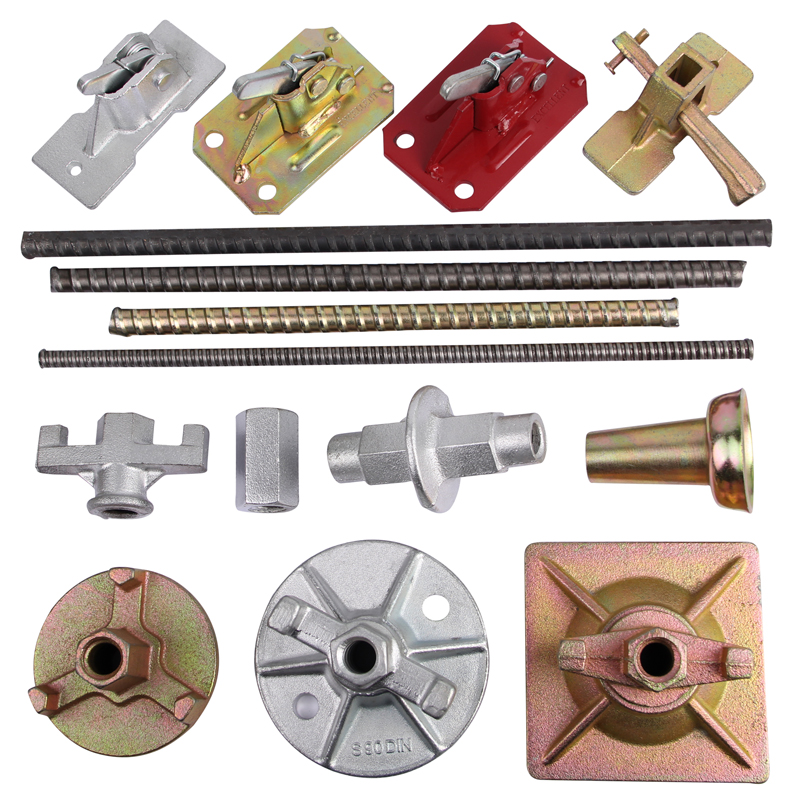

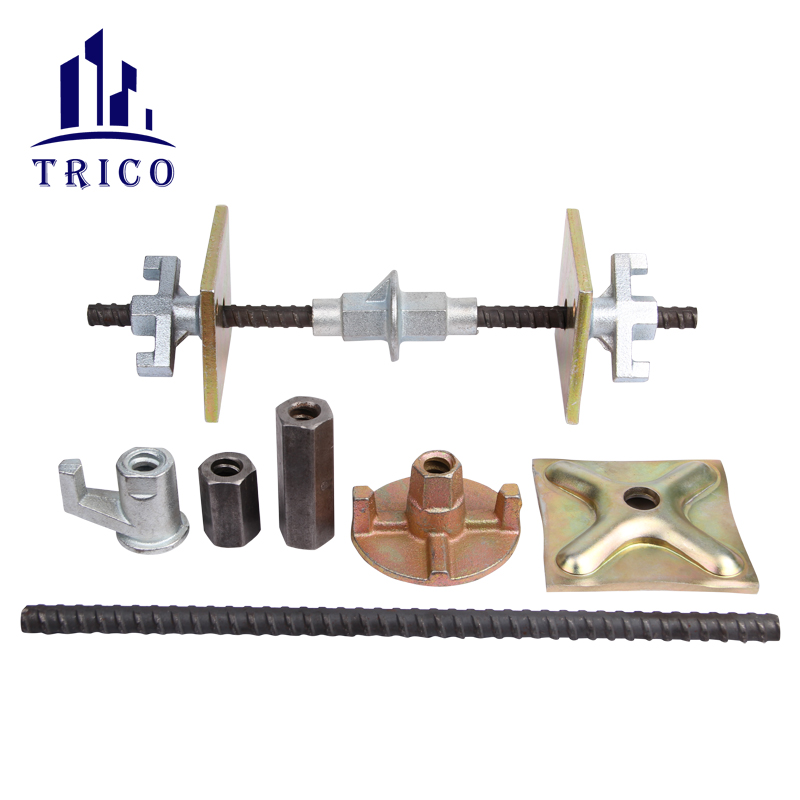

Concrete Formwork Tie Rod System is used with various formwork accessories in concrete construction. Tis system includes Tie Rod, Formwork Wing Nuts, Concrete Anchor Nuts, Hex Nuts, Connection Nuts, Washer Plates, Formwork Wedge Clamps, Formwork Spring Clamps, Water Stopper/Water Barrier Nut, Combi Plate Nut, Plastic Cones, Plastic Tubes, etc.
All of these items are popularly used for concrete formwork & shuttering systems, including wall formwork, column formwork, slab formwork, beam formwork, etc.

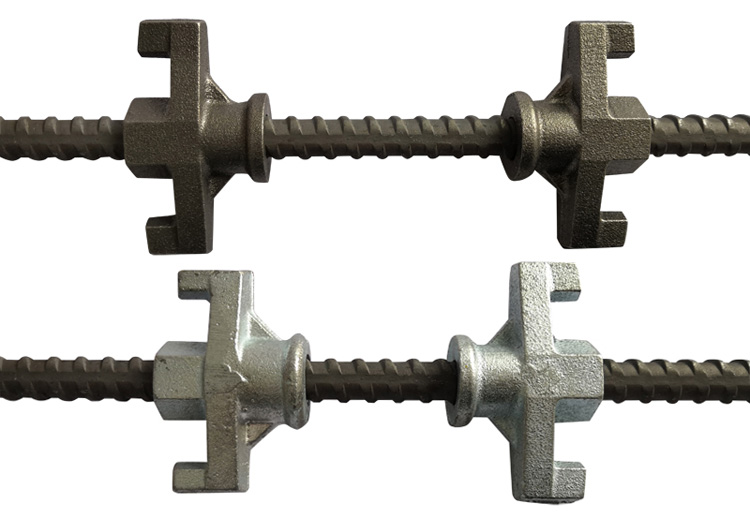

| Ductile Iron Casting Formwork Wing Nut | ||||
 | Material | Ductile Iron Casting | Packing | Bags or Pallets |
| Diameter | D15mm D20mm | Ultimate Load | Over 180kn | |
| Feature | One Arm Two Arms | Color | Gold, Silver or Black | |
| Surface Treatment | Galvanized or as Nature | Capacity | 300tons per month | |
| Application | Formwork Tie Rod System | Related Products | Tie Rod, Wing Nut, Climbing Steel Cone Nut, Hex Nut and etc. | |
| OEM Design is Acceptable | ||||
| Formwork Hot Rolled Tie Rod | ||
 | Material | Special mixture Steel |
| Diameter | DW15mm | |
| Weight | 1.42kg/meter | |
| Ultimate Load | 180kn-190kn | |
| Surface Treatment | Galvanized or as Nature | |
| Packing | Bundles | |
| Related Products | Tie Nut, Wing Nut, Water Stop, Climbing Cone Nut, Hex Nut and etc. | |
| Formwork Cold Rolled Tie Rod | ||
 | Material | Q235, 45# Steel, Special mixture Steel |
| Diameter | D12mm/ D15mm/ D20mm | |
| Weight | 0.75kg/meter (D12mm) 1.50kg/meter (D15mm) 2.32kg/meter (D20mm) | |
| Ultimate Load | 70kn-260kn | |
| Surface Treatment | Galvanized or as Nature | |
| Packing | Bundles | |
| Related Products | Tie Nut, Wing Nut, Water Stop, Climbing Cone Nut, Hex Nut and etc. | |

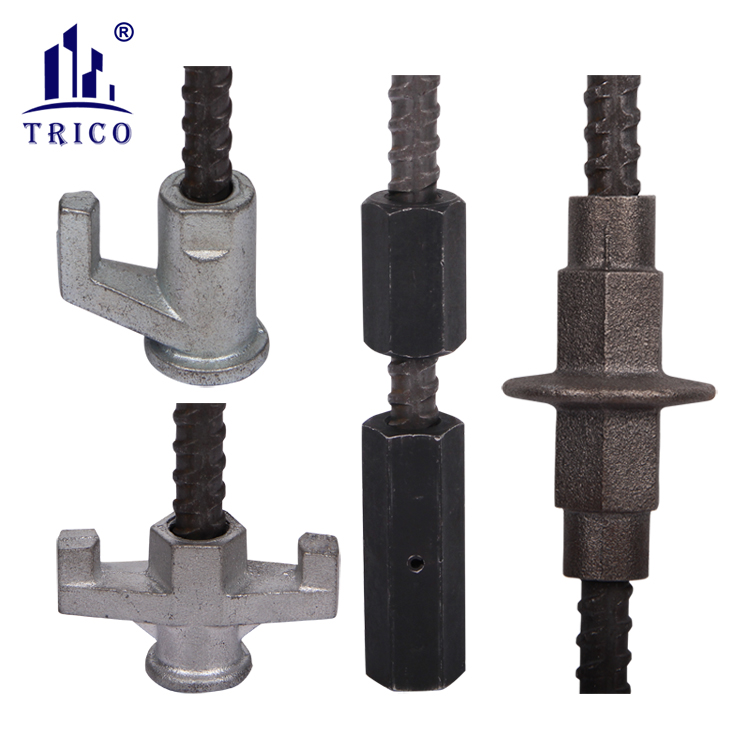

| Machining Weldable Formwork Hex Nut Connector | |||||||
 | Material | 45# Steel | Packing | Bags or Pallets | |||
| Diameter | D15mm D20mm | Color | Black,Silver or Gold | ||||
| Surface Treatment | Galvanized or Black | Application | Concrete Formwork | ||||
| Related Products | Tie Rod, Tie Nut, Water Stop, Washer Plate | ||||||
| OEM Sizes are Available | |||||||
| Ductile Iron Casting Formwork Hex Nut | |||||||
 | Material | Ductile Iron Casting | Packing | Bags or Pallets | |||
| Diameter | D15mm | Ultimate Load | Over 180kn | ||||
| Feature | One Arm Two Arms | Color | Gold, Silver or Black | ||||
| Surface Treatment | Galvanized or as Nature | Capacity | 300tons per month | ||||
| Application | Formwork Tie Rod System | Related Products | Tie Rod, Wing Nut, Climbing Steel Cone Nut, Hex Nut and etc. | ||||

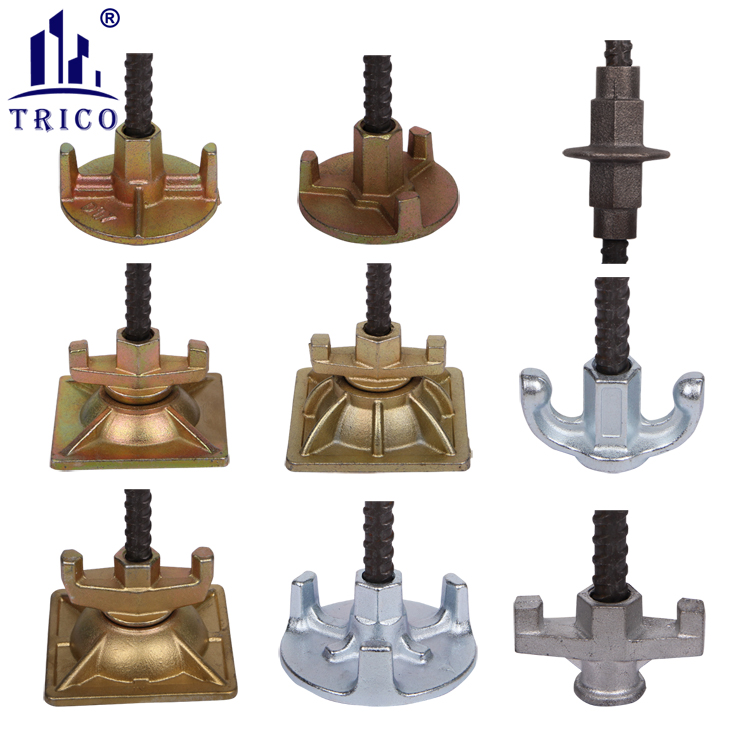

| Ductile Iron Casting Formwork Tie Nut Details | ||||
 | Material | Ductile Iron Casting | Packing | Bags or Pallets |
| Diameter | D12mm D15mm D20mm | Ultimate Load | Over 180kn | |
| Plate Size | D70mm D80mm D90mm D100mm D120mm | Color | Gold, Silver or Black | |
| Surface Treatment | Galvanized or as Nature | Capacity | 300tons per month | |
| Application | Formwork Tie Rod System | Related Products | Tie Rod, Wing Nut, Climbing Steel Cone Nut, Hex Nut and etc. | |
| OEM Design is Acceptable | ||||
| em Name | Photo | Material | Diameter | Weight | Finishing | Breaking Load |
| Water Stop |  | Cast Iron | D12 | / | Self color or galvanzing | / |
| Cast Iron | D15 | 440g 450g 500g | Self color or galvanzing | 180KN | ||
| Cast Iron | D20 | 1.0kg 1.2kg | Self color or galvanzing | 320KN |
| Formwork Tie Rod Washer Plate/Waler Plate | ||||
 | Material | Carbon Steel | Packing | Bags or Boxes |
| Size | 100x100mm 100x130mm 120x120mm | Thickness | 4.0-20.0mm | |
| Surface Treatment | Galvanized or as Nature | Capacity | 300tons per month | |
| Application | Formwork Tie Rod System | Related Products | Tie Rod, Wing Nut, Climbing Steel Cone Nut, Hex Nut and etc. | |
| Ductile Iron Casting Formwork Combi Plate Nut/Square Slope Nut | ||||
 | Material | Ductile Iron Casting | Packing | Bags or Pallets |
| Diameter | D15mm | Ultimate Load | Over 180kn | |
| Feature | Round Plate or Square Plate | Color | Gold, Silver or Black | |
| Surface Treatment | Galvanized or as Nature | Capacity | 300tons per month | |
| Application | Formwork Tie Rod System | Related Products | Tie Rod, Wing Nut, Climbing Steel Cone Nut, Hex Nut and etc. | |
| OEM Design is Acceptable | ||||
