D15-830 190KN Hot-Rolled Thread Bar/Tie Bar/Formwork Tie Rod for Concrete Formwork

D15-830 190KN Hot-Rolled Thread Bar/Tie Bar/Formwork Tie Rod for Concrete Formwork

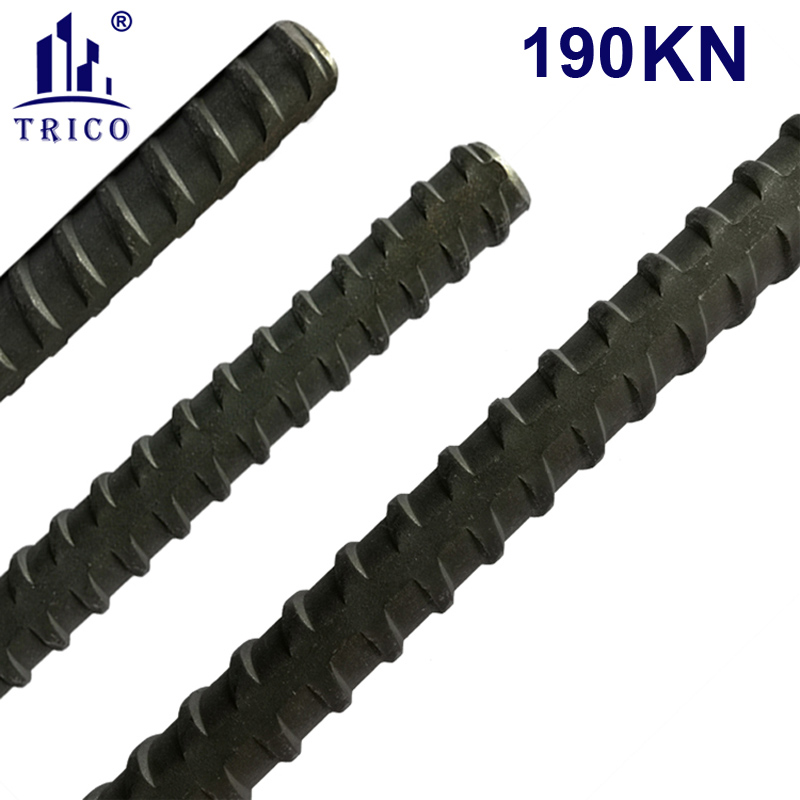

Dywidag tie bars are discontinuously threaded rebars.  It is a type of hot rolled concrete tie rod. According to the sizes, there are 6# to 28# dywidag bars. Among the hot-rolled dywidag tie rod, the sizes of dw 15 and dw20 are the most popular sizes.

TRICO’s dywidag type concrete tie rods are made from 830 and 930 steel grades.  The ultimate load of the 15mm hot-rolled dywidag bars is reaching 201KN. Thus, the dywidag threaded concrete tie rod is also called heavy load capacity construction rebar.

Discontinuous threaded make the concrete tie rods self-cleaning in construction after working from the concreting.

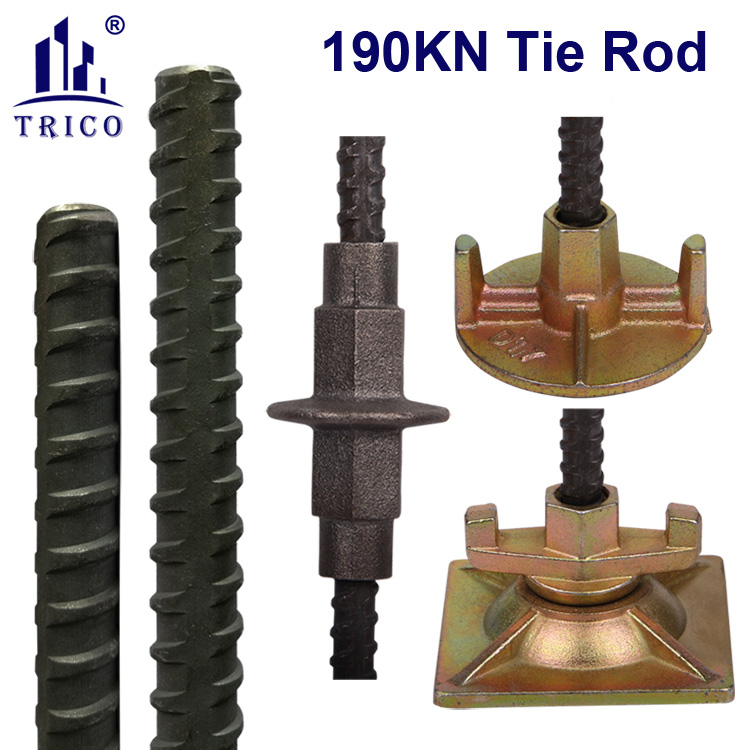

l190KN Concrete Rods(Hot Rolled Steel Tie Rod)

l188 KN Tie Bars (42CrMo Steel Cold Rolled Type Rod)

l145KN Concrete Tie bars(45# Steel Cold Rolled Rod)

l95KN Tie Rods (Q235 Steel Cold Rolled Rods)

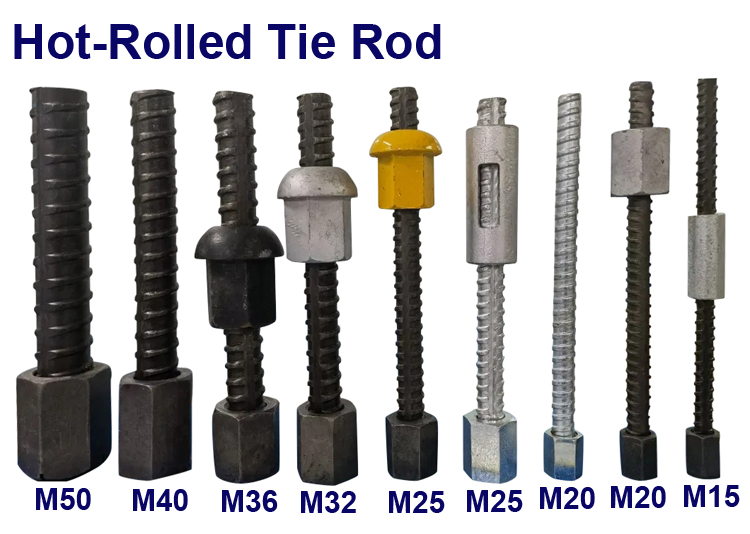

Formwork Hot Rolled Tie Rod
	Material	Special mixture Steel
	Diameter	DW15mm/DW20mm or OEM sizes are available
	Weight	1.42kg/meter
	Ultimate Load	DW15mm: 180kn-190kn
	Surface Treatment	Galvanized or as Nature
	Packing	Bundles
	Related Products	Tie Nut, Wing Nut, Water Stop, Climbing Cone Nut, Hex Nut and etc.

Formwork Cold Rolled Tie Rod
	Material	Q235, 45# Steel, Special mixture Steel
	Diameter	D12mm/ D15mm/ D20mm
	Weight	0.75kg/meter (D12mm) 1.50kg/meter (D15mm) 2.32kg/meter (D20mm)
	Ultimate Load	70kn-260kn
	Surface Treatment	Galvanized or as Nature
	Packing	Bundles
	Related Products	Tie Nut, Wing Nut, Water Stop, Climbing Cone Nut, Hex Nut and etc.

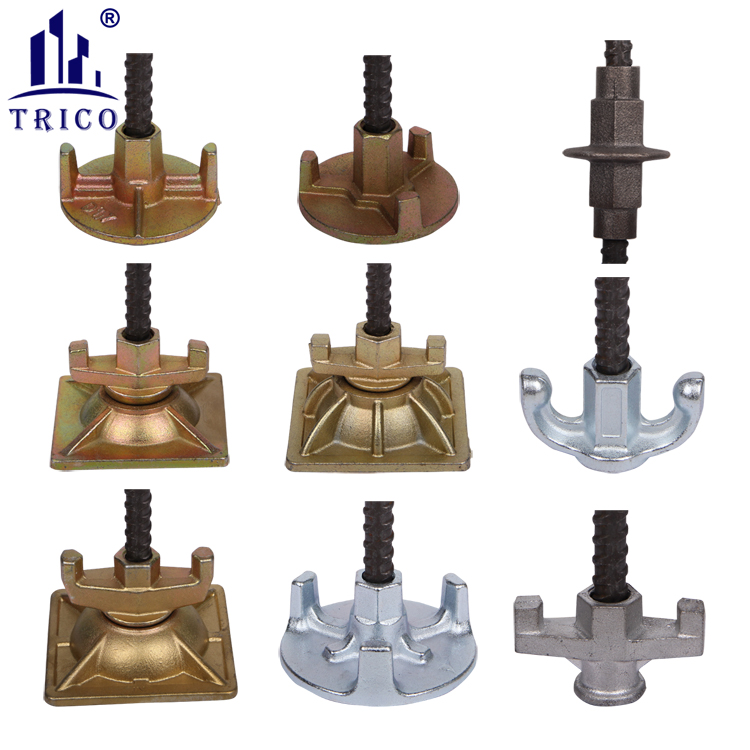

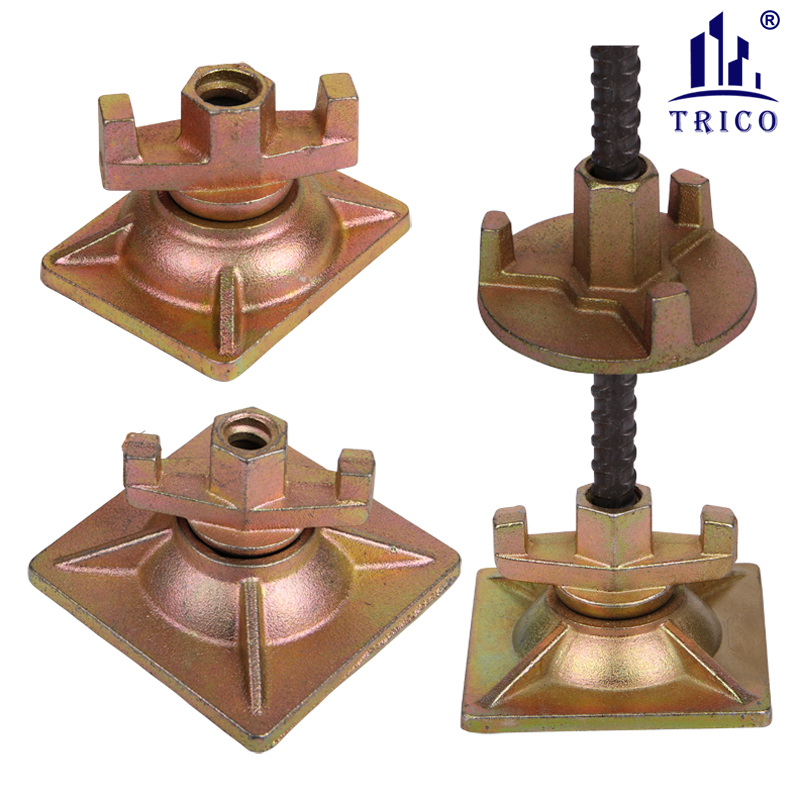

Ductile Iron Casting Formwork Combi Plate Nut/Square Slope Nut
	Material	Ductile Iron Casting	Packing	Bags or Pallets
	Diameter	D15mm	Ultimate Load	Over 180kn
	Feature	Round Plate or Square Plate	Color	Gold, Silver or Black
	Surface Treatment	Galvanized or as Nature	Capacity	300tons per month
	Application	Formwork Tie Rod System	Related Products	Tie Rod, Wing Nut, Climbing Steel Cone Nut, Hex Nut and etc.
	OEM Design is Acceptable

Ductile Iron Casting Formwork Tie Nut Details
	Material	Ductile Iron Casting	Packing	Bags or Pallets
	Diameter	D12mm D15mm D20mm	Ultimate  Load	Over 180kn
	Plate Size	D70mm D80mm D90mm D100mm D120mm	Color	Gold, Silver or Black
	Surface Treatment	Galvanized or as Nature	Capacity	300tons per month
	Application	Formwork Tie Rod System	Related Products	Tie Rod, Wing Nut, Climbing Steel Cone Nut, Hex Nut and etc.
	OEM Design is Acceptable

Item Name	Photo	Material	Diameter	Weight	Finishing	Breaking Load
Water Stop		Cast Iron	D12	/	Self color or galvanzing	/
		Cast Iron	D15	440g 450g 500g	Self color or galvanzing	180KN
		Cast Iron	D20	1.0kg 1.2kg	Self color or galvanzing	320KN

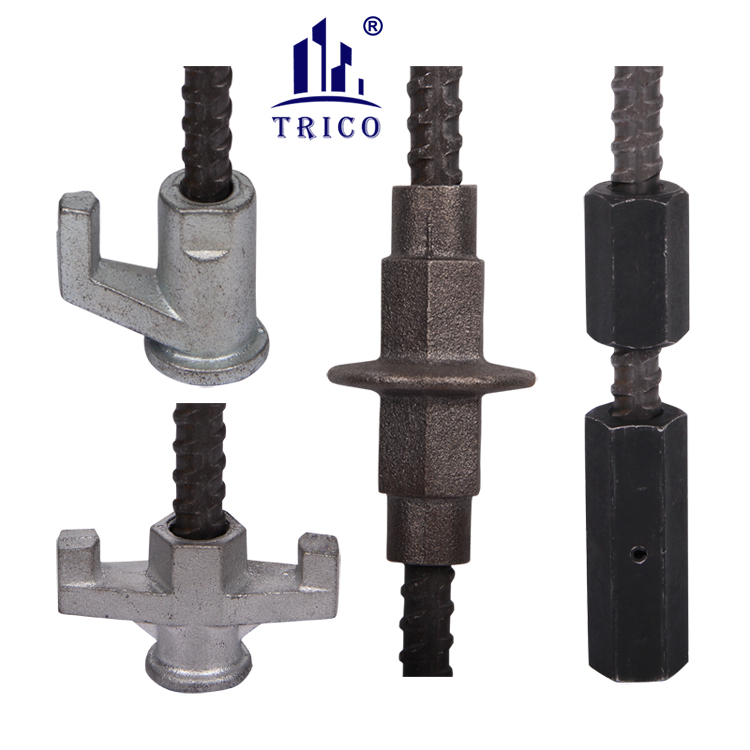

Ductile Iron Casting Formwork Wing Nut
	Material	Ductile Iron Casting	Packing	Bags or Pallets
	Diameter	D15mm D20mm	Ultimate  Load	Over 180kn
	Feature	One Arm Two Arms	Color	Gold, Silver or Black
	Surface Treatment	Galvanized or as Nature	Capacity	300tons per month
	Application	Formwork Tie Rod System	Related Products	Tie Rod, Wing Nut, Climbing Steel Cone Nut, Hex Nut and etc.
	OEM Design is Acceptable

Ductile Iron Casting Formwork Hex Nut
	Material	Ductile Iron Casting		Packing		Bags or Pallets
	Diameter	D15mm		Ultimate Load		Over 180kn
	Feature	One Arm Two Arms		Color		Gold, Silver or Black
	Surface Treatment	Galvanized or as Nature		Capacity		300tons per month
	Application	Formwork Tie Rod System		Related Products		Tie Rod, Wing Nut, Climbing Steel Cone Nut, Hex Nut and etc.
	OEM Sizes are Available

Machining Weldable Formwork Hex Nut Connector
	Material		45# Steel		Packing		Bags or Pallets
	Diameter		D15mm D20mm		Color		Black,Silver or Gold
	Surface Treatment		Galvanized or Black		Application		Concrete Formwork
	Related Products		Tie Rod, Tie Nut, Water Stop, Washer Plate
	OEM Sizes are Available

Formwork Tie Rod Washer Plate/Waler Plate
	Material	Carbon Steel	Packing	Bags or Boxes
	Size	100x100mm 100x130mm 120x120mm	Thickness	4.0-20.0mm
	Surface Treatment	Galvanized or as Nature	Capacity	300tons per month
	Application	Formwork Tie Rod System	Related Products	Tie Rod, Wing Nut, Climbing Steel Cone Nut, Hex Nut and etc.
	OEM Design is Acceptable

We custom your concrete tie rod sizes too. You can find the steel threaded rods in diameter from 6mm to 32mm here. Among all of them,  d15mm, d16mm, and d20mm sizes of tie rods are widely used sizes. They are working together with the inner threaded tie rod connectors in the concrete construction, like concrete tie couplings, tie rod hex nuts, anchor nut, wing nut, water stopper, formwork cones etc.

According to the threaded types, there are discontinuous dywidag bars and continuous tie bars in Trico. Discontinuous concrete tie rods are also called dywidag tie bars, it is hot rolled during tie rod manufacturing. While the continuously threaded rods are cold rolled.

Compare to hot rolled dywidag bars, the cold-rolled concrete tie rods are threaded from a steel round bar structure. According to the steel grade, TRICO supplies your Q235, 45#, and 42CrMo cold roll steel coil rods for your construction.

The different steel structure grade brings your different grade of concrete tie rods. Take D16(15/17mm) sizes for an example:

Q235 steel grade D16 concrete tie rods ultimate test result: 95KN

45# steel grade D16 tie rod: the maximum load is 145KN

42CrMo steel grade tie rod in 16mm: load capacity can reach 188KN

The cold-rolled concrete tie rods are at a lower cost and cheaper price than the dywidag hot rolled tie bars. Thus, this type of tie rods is used popularly in normal civil and commercial constructions.  In the other words, the hot-rolled dywidag tie rods are expected heavier and bigger breaking loads.

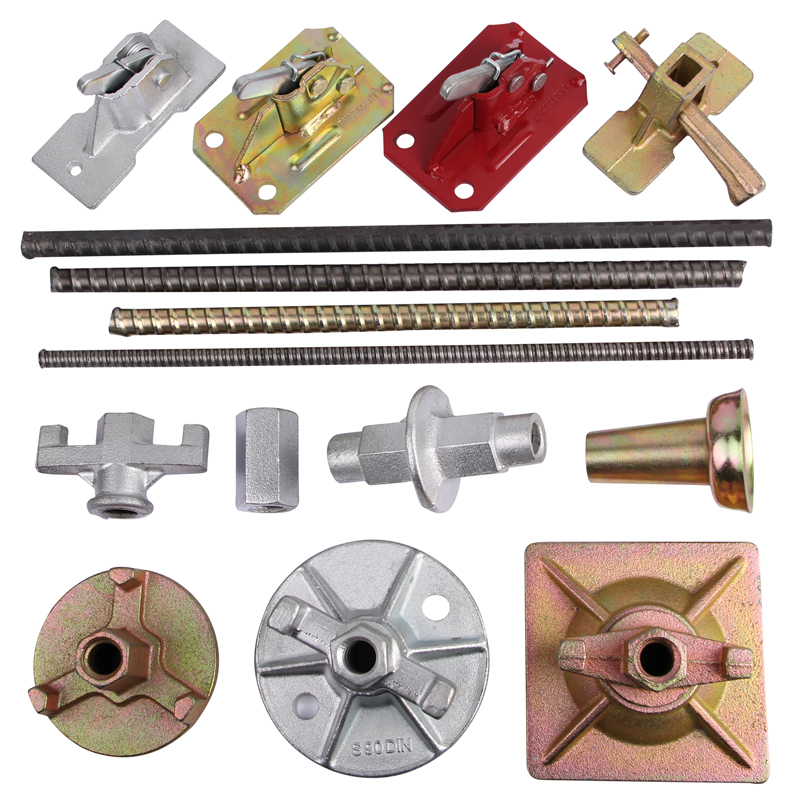

All of these items are popularly used for concrete formwork & shuttering systems, including wall formwork, column formwork, slab formwork, beam formwork, etc.

If you are on market for formwork tie rods and the related formwork accessories, welcome to contact us. OEM is available as your requirement.
