High Quality D12 D15 D16 D17 D20 Formwork Steel Tie Rod for Concrete Formwork

High Quality D12 D15 D16 D17 D20 Formwork Steel Tie Rod for Concrete Formwork

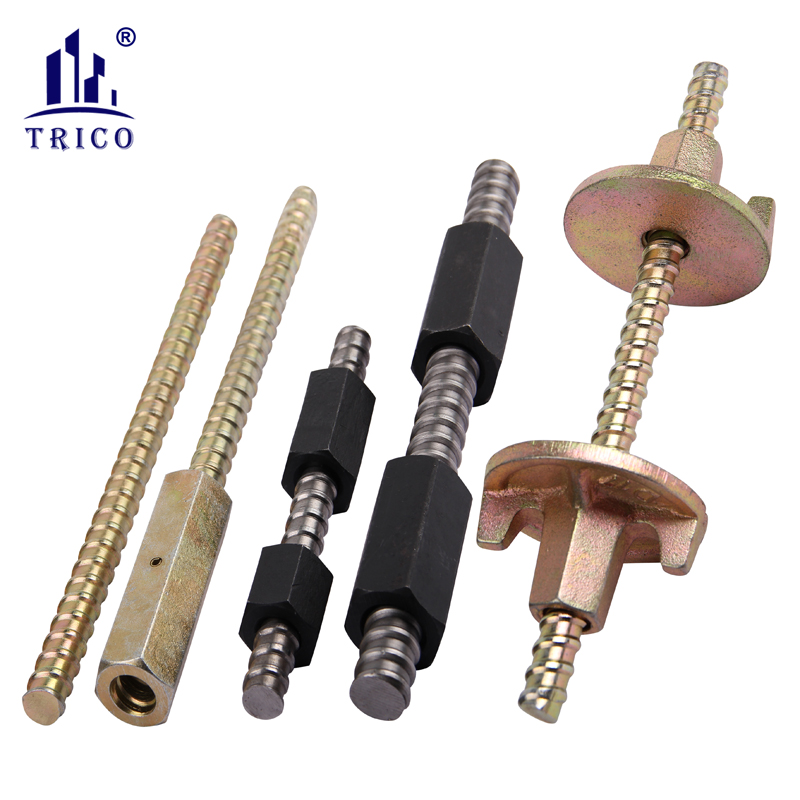

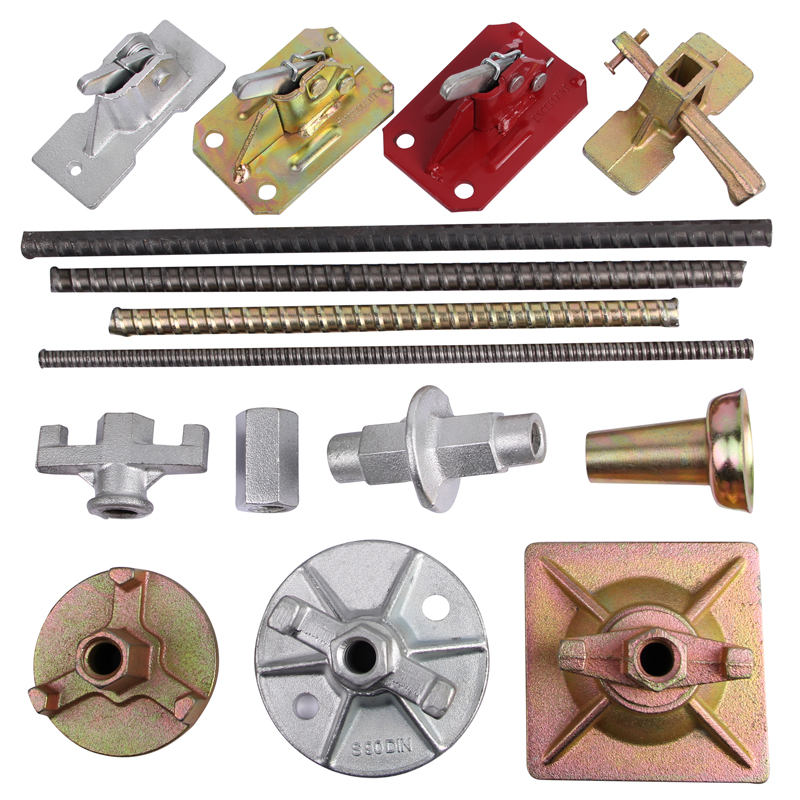

Concrete Formwork Tie Rod System is used with various formwork accessories in concrete construction. Tis system includes Tie Rod, Formwork Wing Nuts, Concrete Anchor Nuts, Hex Nuts, Connection Nuts, Washer Plates, Formwork Wedge Clamps, Formwork Spring Clamps, Water Stopper/Water Barrier Nut, Combi Plate Nut, Plastic Cones, Plastic Tubes, etc.

All of these items are popularly used for concrete formwork & shuttering systems, including wall formwork, column formwork, slab formwork, beam formwork, etc.

The cold rolled tie rods are threaded from a steel round bar structure. The different steel structure grade makes the conceret tie rods with different breaking load. Take the D15(15/17mm) tie rod for example:

The ultimate rest result of D15 concrete tie rod by Steel grade Q235: 95Kn

The ultimate rest result of D15 concrete tie rod by Steel grade #45: 145Kn

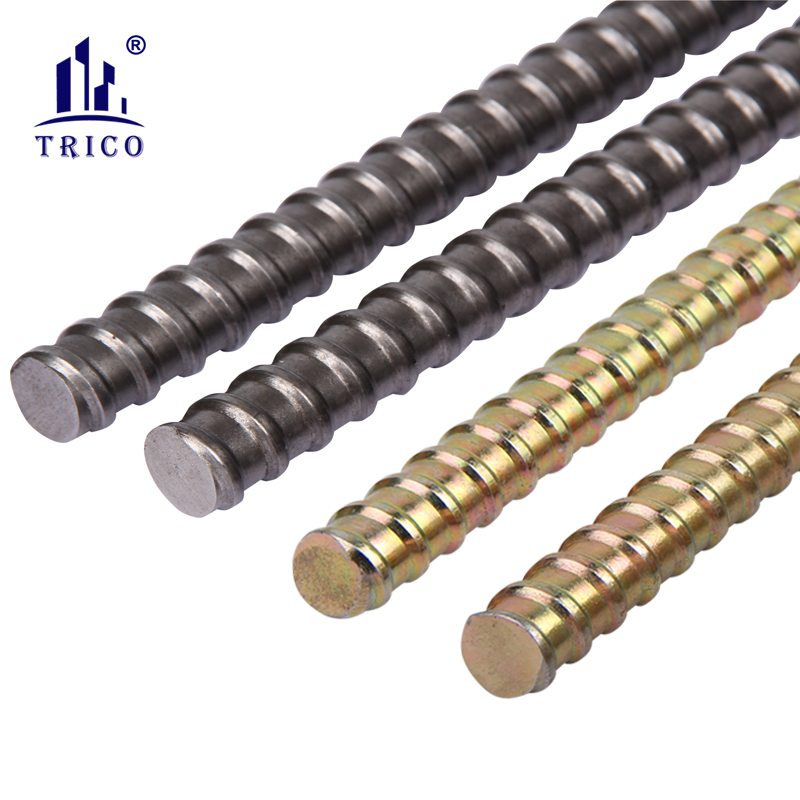

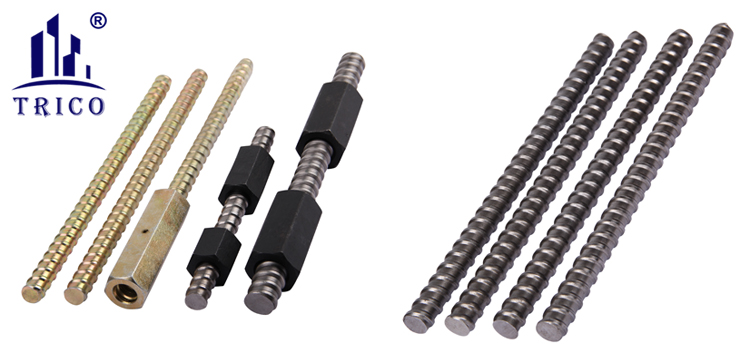

Formwork Cold Rolled Tie Rod
	Material	Q235, 45# Steel, Special mixture Steel
	Diameter	D12mm/ D15mm/ D20mm
	Weight	0.75kg/meter (D12mm) 1.50kg/meter (D15mm) 2.32kg/meter (D20mm)
	Ultimate Load	70kn-260kn
	Surface Treatment	Galvanized or as Nature

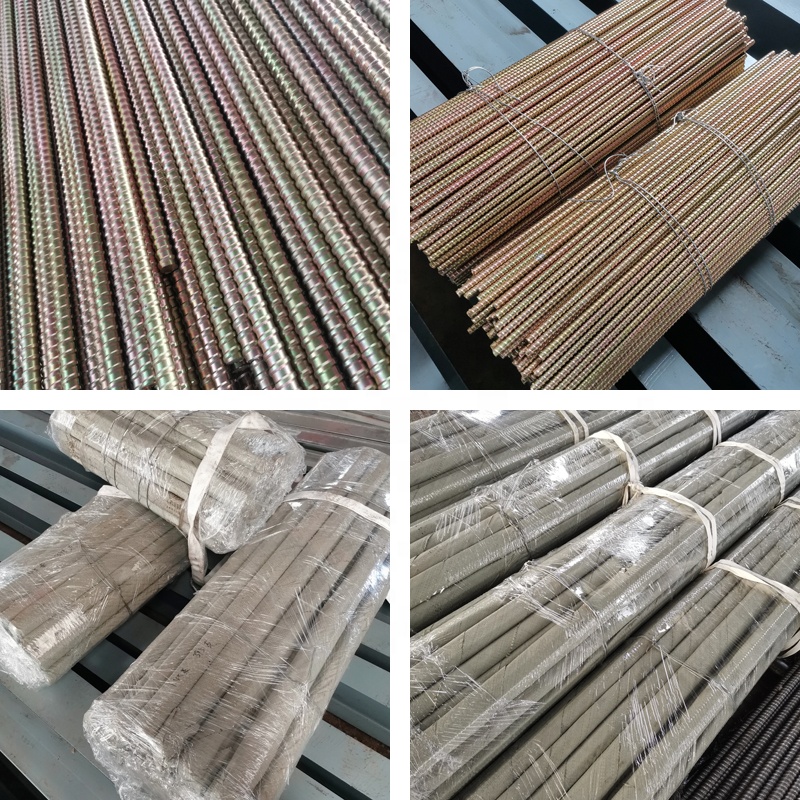

	Packing	Bundles
	Related Products	Tie Nut, Wing Nut, Water Stop, Climbing Cone Nut, Hex Nut and etc.

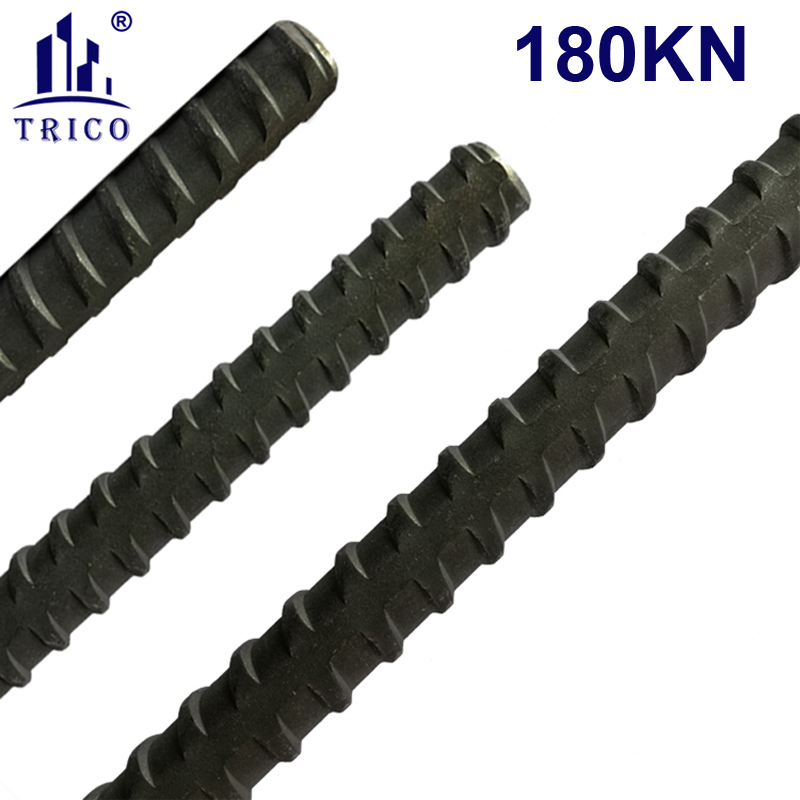

Formwork Hot Rolled Tie Rod
	Material	Special mixture Steel
	Diameter	DW15mm
	Weight	1.42kg/meter
	Ultimate Load	180kn-190kn
	Surface Treatment	Galvanized or as Nature
	Packing	Bundles
	Related Products	Tie Nut, Wing Nut, Water Stop, Climbing Cone Nut, Hex Nut and etc.

Ductile Iron Casting Formwork Combi Plate Nut/Square Slope Nut
	Material	Ductile Iron Casting	Packing	Bags or Pallets
	Diameter	D15mm	Ultimate Load	Over 180kn
	Feature	Round Plate or Square Plate	Color	Gold, Silver or Black
	Surface Treatment	Galvanized or as Nature	Capacity	300tons per month
	Application	Formwork Tie Rod System	Related Products	Tie Rod, Wing Nut, Climbing Steel Cone Nut, Hex Nut and etc.
	OEM Design is Acceptable

Ductile Iron Casting Formwork Tie Nut Details
	Material	Ductile Iron Casting	Packing	Bags or Pallets
	Diameter	D12mm D15mm D20mm	Ultimate  Load	Over 180kn
	Plate Size	D70mm D80mm D90mm D100mm D120mm	Color	Gold, Silver or Black
	Surface Treatment	Galvanized or as Nature	Capacity	300tons per month
	Application	Formwork Tie Rod System	Related Products	Tie Rod, Wing Nut, Climbing Steel Cone Nut, Hex Nut and etc.
	OEM Design is Acceptable

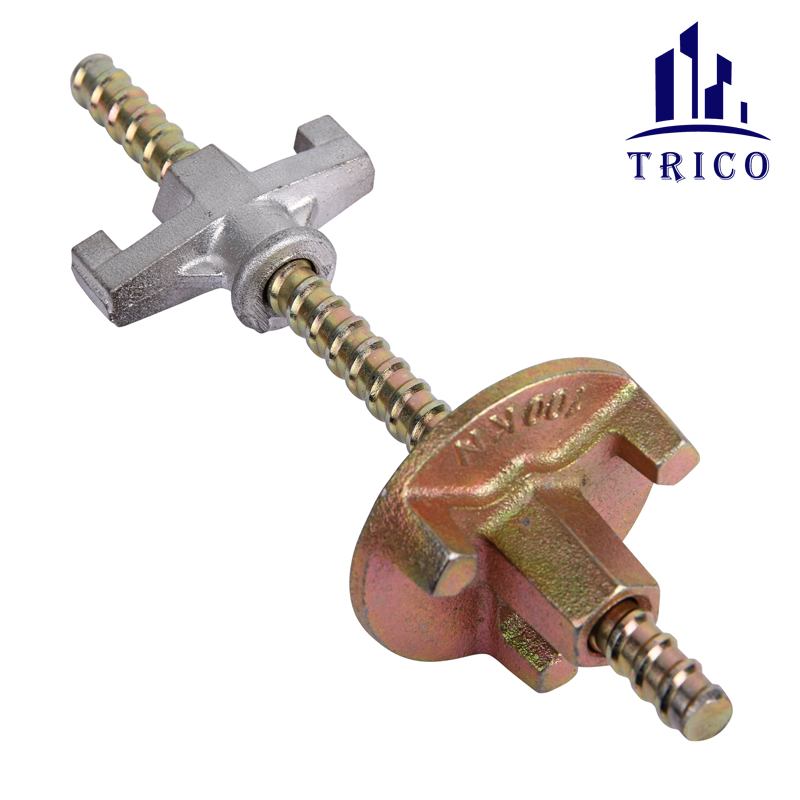

Ductile Iron Casting Formwork Wing Nut
	Material	Ductile Iron Casting	Packing	Bags or Pallets
	Diameter	D15mm D20mm	Ultimate  Load	Over 180kn
	Feature	One Arm Two Arms	Color	Gold, Silver or Black
	Surface Treatment	Galvanized or as Nature	Capacity	300tons per month
	Application	Formwork Tie Rod System	Related Products	Tie Rod, Wing Nut, Climbing Steel Cone Nut, Hex Nut and etc.
	OEM Design is Acceptable

Item Name	Photo	Material	Diameter	Weight	Finishing	Breaking Load
Water Stop		Cast Iron	D12	/	Self color or galvanzing	/
		Cast Iron	D15	440g 450g 500g	Self color or galvanzing	180KN
		Cast Iron	D20	1.0kg 1.2kg	Self color or galvanzing	320KN

Formwork Tie Rod Washer Plate/Waler Plate
	Material	Carbon Steel	Packing	Bags or Boxes
	Size	100x100mm 100x130mm 120x120mm	Thickness	4.0-20.0mm
	Surface Treatment	Galvanized or as Nature	Capacity	300tons per month
	Application	Formwork Tie Rod System	Related Products	Tie Rod, Wing Nut, Climbing Steel Cone Nut, Hex Nut and etc.
	OEM Design is Acceptable

Ductile Iron Casting Formwork Hex Nut
	Material	Ductile Iron Casting		Packing		Bags or Pallets
	Diameter	D15mm		Ultimate Load		Over 180kn
	Feature	One Arm Two Arms		Color		Gold, Silver or Black
	Surface Treatment	Galvanized or as Nature		Capacity		300tons per month
	Application	Formwork Tie Rod System		Related Products		Tie Rod, Wing Nut, Climbing Steel Cone Nut, Hex Nut and etc.
	OEM Sizes are Available

Machining Weldable Formwork Hex Nut Connector
	Material		45# Steel		Packing		Bags or Pallets
	Diameter		D15mm D20mm		Color		Black,Silver or Gold
	Surface Treatment		Galvanized or Black		Application		Concrete Formwork
	Related Products		Tie Rod, Tie Nut, Water Stop, Washer Plate
	OEM Sizes are Available

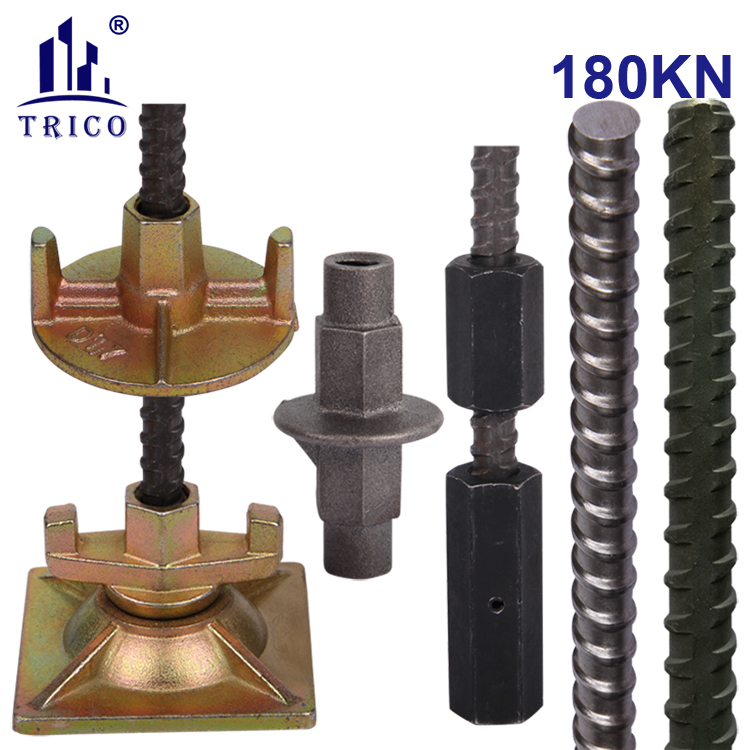

Formwork tie rod is one of the most important accessories in a poured wall project. We Hebei Trico supply different types of concrete tie rods, including the Hot Rolled discontinuous thread tie rod (with the breaking load of 180kn) and Cold Rolled continuous tie rods (with the breaking load of 140kn).

The concrete tie rods are used with various formwork accessories in concrete construction. Both the hot rolled and cold rolled the tie rods are able to work with formwork wing nuts, concrete anchor nuts, hex nuts, connection nuts, washer plates, formwork wedge clamps, formwork spring clamps, water stopper/water barrier nut, combi plate nut, plastic cones, plastic tubes, etc.

Tie Nut: There are single wing nut, butterfly wing nut, two anchor wing nut, three anchor wing nut,combination wing Nut. Because of this structure, wing nuts can be easily tightened and loosened by hand without any tools. Wing nuts have casting and forging types by processing technology , common thread size is 17mm/20mm.

Tie Rod: The Material of Tie Rod usually use Q235 carbon steel, 45# steel, surface finished as galvanized, zinc-plated and natural color. The working load from 80kn to 140kn. And we also offer Hot Rolled Tie Bar, which with the breaking load of 180kn.

Washer Plate: normally we offer 120x120x10mm, 120x120x8mm, 120x110x10mm, 100x100x10mm and other sizes can be made accordind to demand.

All of these items are popularly used for concrete formwork & shuttering systems, including wall formwork, column formwork, slab formwork, beam formwork, etc.

If you are on market for formwork tie rods and the related formwork accessories, welcome to contact us. OEM is available as your requirement.
