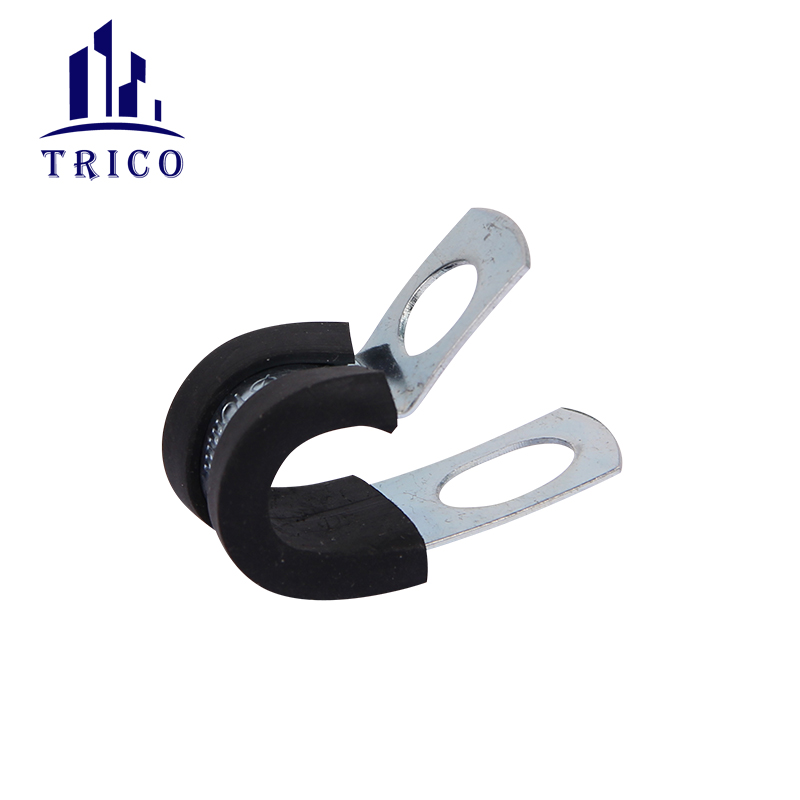

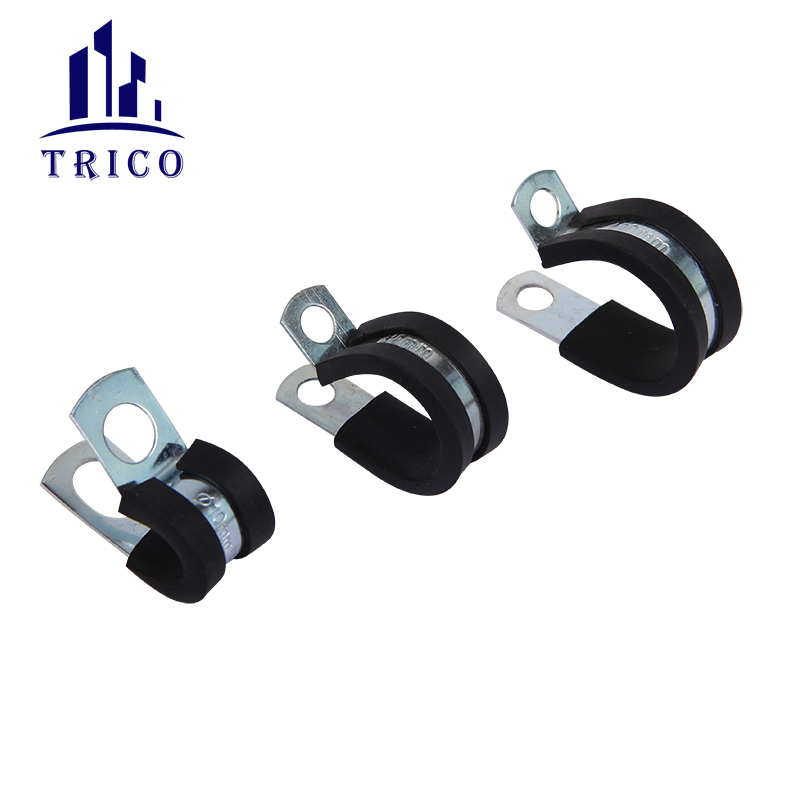

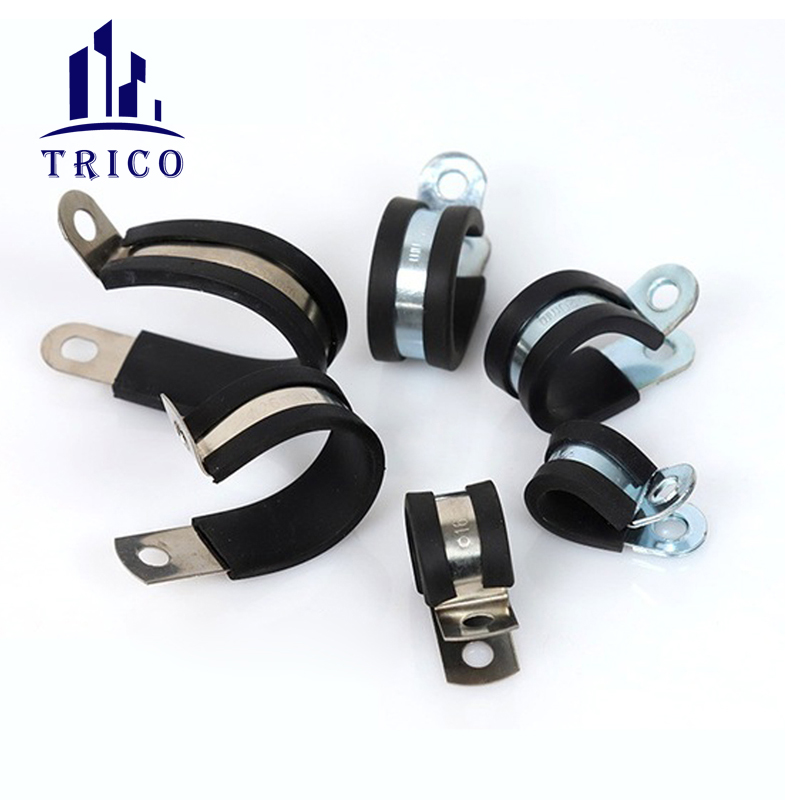

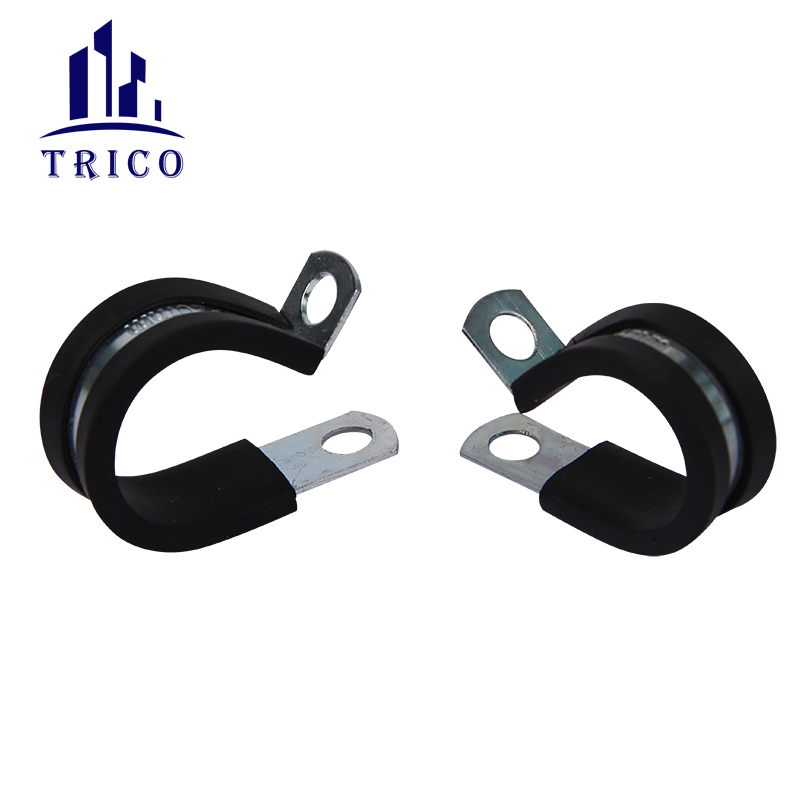

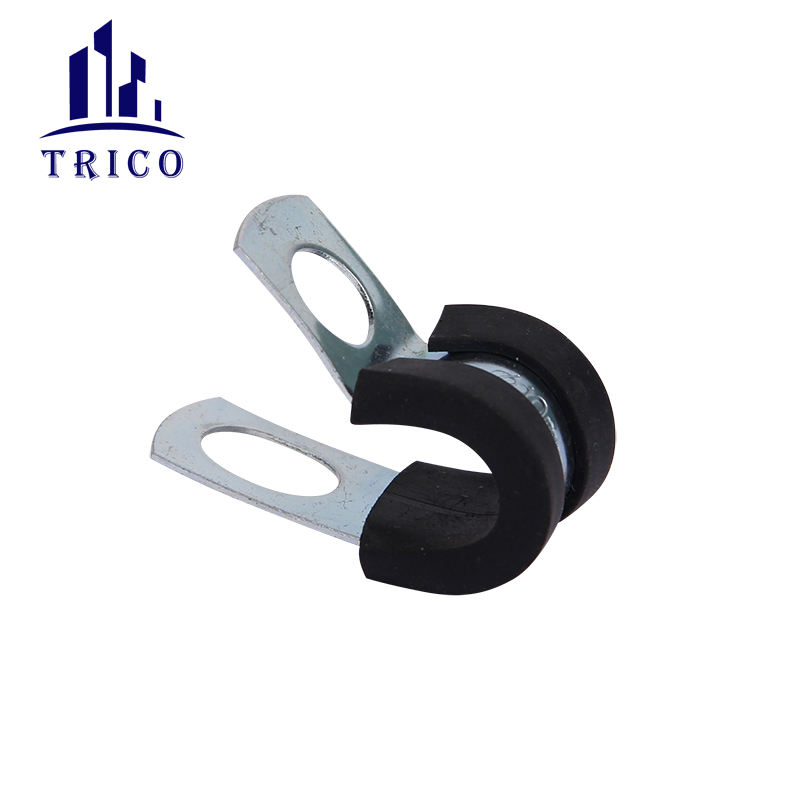

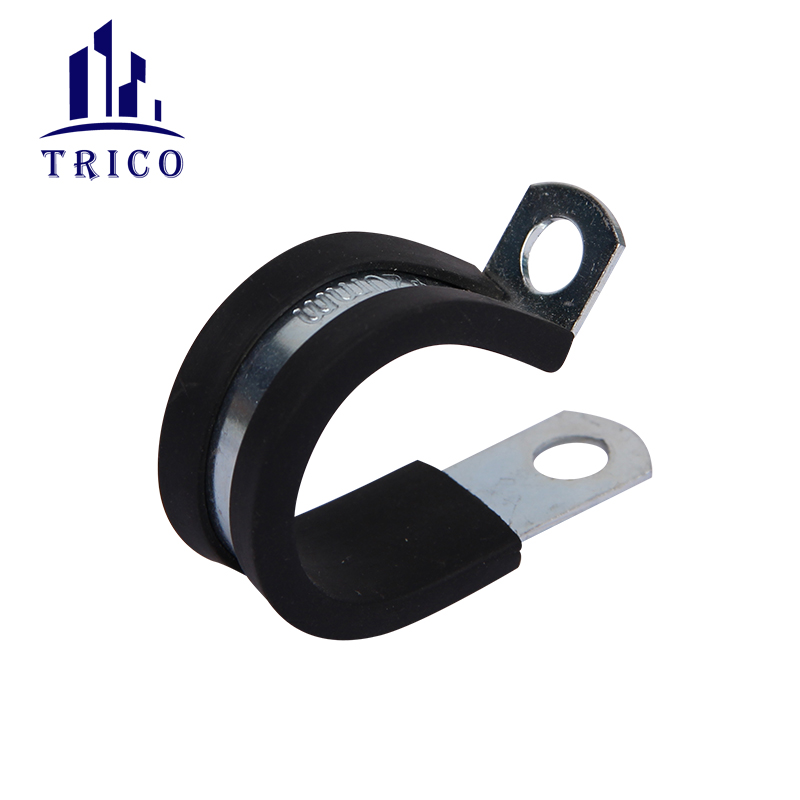

Rubber Lined P Clip is used extensively in many industries for securing pipes,hoses and cables. The liner also absorbs vibration and prevents water penetration. The snug fitting EPDM liner enables the clips to clamp the pipes,hoses and cable firmly.Bandwidth and mounting hose sizes vary by diameter and material.
| Specification of Rubber Lined P Clip | ||||||
| Material | W1 Series: All the parts are carbon steel W2 Series: All the parts are SS200 or SS300 W5 Series: All the parts are SS316 | |||||
Size (mm) | Bandwidth*Thickness (mm) | Hole Size | Pcs/Bag | Pcs/Ctn | Ctn Size (cm) | G. W./Ctn (kg) |
| 6 | 12*0.8 | M6 | 50 | 2000 | 38*27*17 | 12.40 |
| 8 | 12*0.8 | M6 | 50 | 2000 | 38*27*21 | 14.20 |
| 10 | 12*0.8 | M6 | 50 | 2000 | 38*27*27 | 17.10 |
| 13 | 12*0.8 | M6 | 50 | 2000 | 38*27*29 | 17.73 |
| 16 | 12*0.8 | M6 | 50 | 1000 | 38*27*17 | 10.44 |
| 19 | 12*0.8 | M6 | 50 | 1000 | 38*27*24 | 12.10 |
| 21 | 12*0.8 | M6 | 25 | 1000 | 38*27*24 | 13.20 |
| 25 | 12*0.8 | M6 | 50 | 1000 | 38*27*29 | 14.16 |
| 27 | 12*0.8 | M6 | 50 | 1000 | 38*27*31 | 15.60 |
| 32 | 12*0.8 | M6 | 50 | 500 | 38*27*24 | 10.57 |
| 35 | 12*0.8 | M6 | 50 | 500 | 38*27*34 | 14.60 |
| 40 | 12*0.8 | M6 | 50 | 500 | 38*27*29 | 9.04 |
| 50 | 12*0.8 | M6 | 25 | 500 | 38*27*29 | 10.80 |
| 60 | 12*0.8 | M6 | 25 | 250 | 38*27*24 | 6.90 |
| 6 | 20*0.8 | M8 | 50 | 1000 | 38*27*17 | 15.60 |
| 8 | 20*0.8 | M8 | 50 | 500 | 38*27*21 | 12.38 |
| 12 | 20*0.8 | M8 | 50 | 500 | 38*27*27 | 9.45 |
| 14 | 20*0.8 | M8 | 50 | 500 | 38*27*29 | 10.45 |
| 16 | 20*0.8 | M8 | 50 | 500 | 38*27*17 | 11.43 |
| 18 | 20*0.8 | M8 | 25 | 500 | 38*27*24 | 12.38 |
| 20 | 20*0.8 | M8 | 25 | 500 | 38*27*24 | 13.00 |
| 22 | 20*0.8 | M8 | 25 | 250 | 38*27*29 | 7.20 |
| 24 | 20*0.8 | M8 | 25 | 250 | 38*27*31 | 7.36 |
| 26 | 20*0.8 | M8 | 25 | 250 | 38*27*24 | 7.48 |
| 28 | 20*0.8 | M8 | 25 | 250 | 38*27*34 | 8.28 |
| 30 | 20*0.8 | M8 | 25 | 250 | 38*27*29 | 8.30 |
| 32 | 20*0.8 | M8 | 25 | 250 | 38*27*29 | 8.55 |
| 38 | 20*0.8 | M8 | 25 | 250 | 38*27*34 | 9.57 |
