T Bolt Spring Hose Clamp provides a quick, yet effective means of clamping a varity of fittings to a wide range of hose. Also clamp can do 360° sealing surface by using a shoe or formed brigde. This clamp's design compensates and provides constant tension to prevent leak paths due to temperature fluctuations. It is a high strangth, reliable clamp with numerous applications in both the commericial and industrial markets including hose and ductwork connections for air, oil, water, other types of low pressure fluid lines, engine air intake, exhaust, hose and filters. T Bolt Spring Hose Clamp typical Applications include heavy truck charge air and cooling systems.

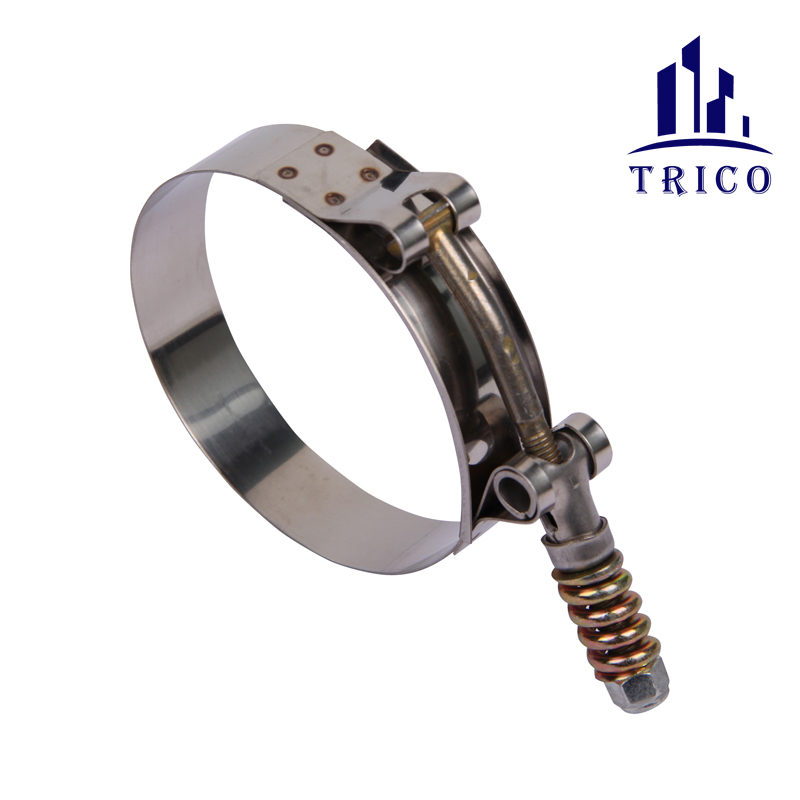

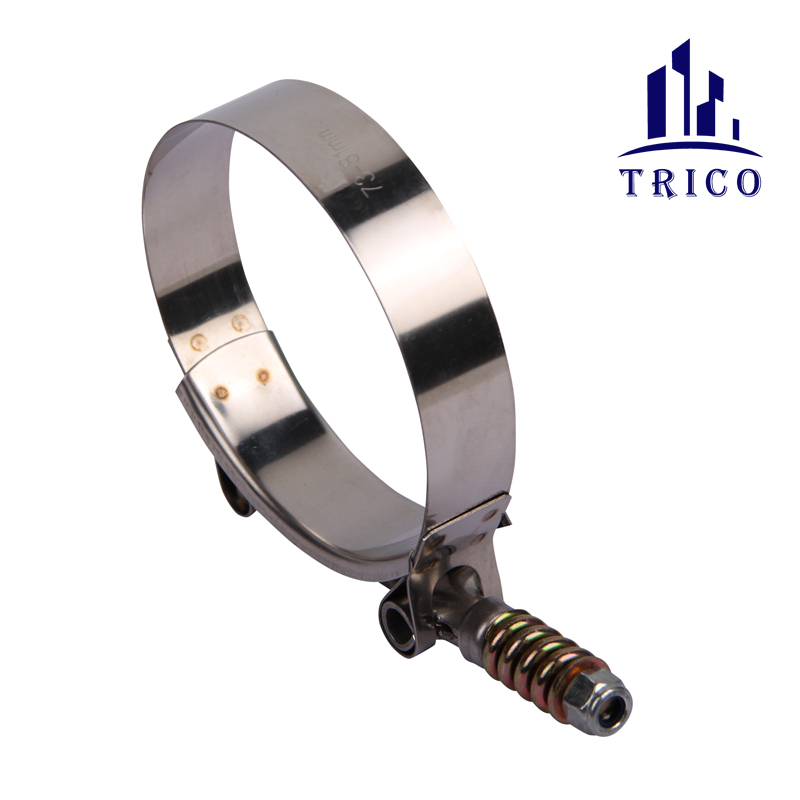

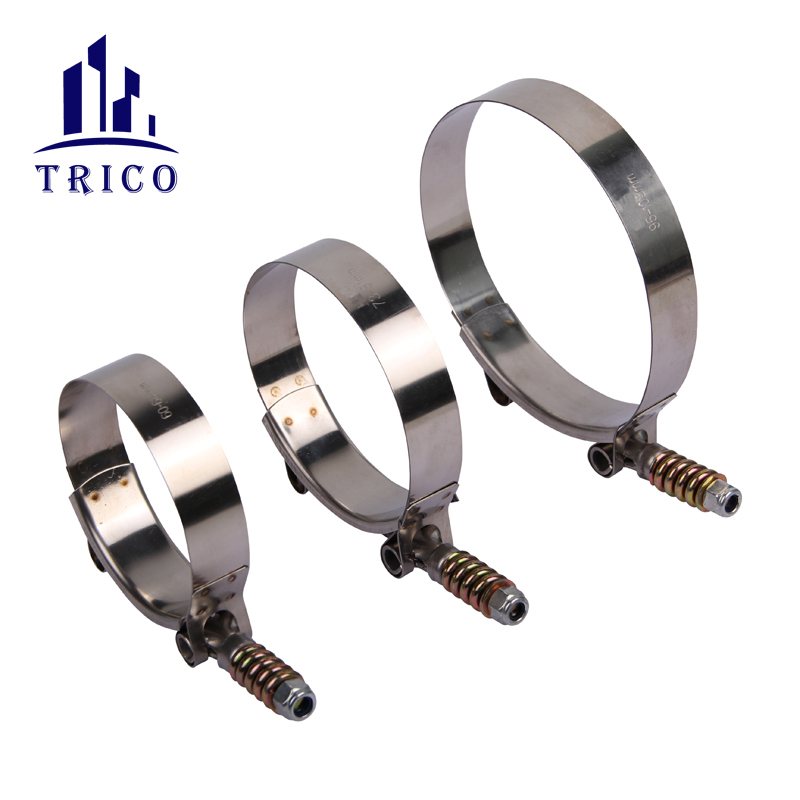

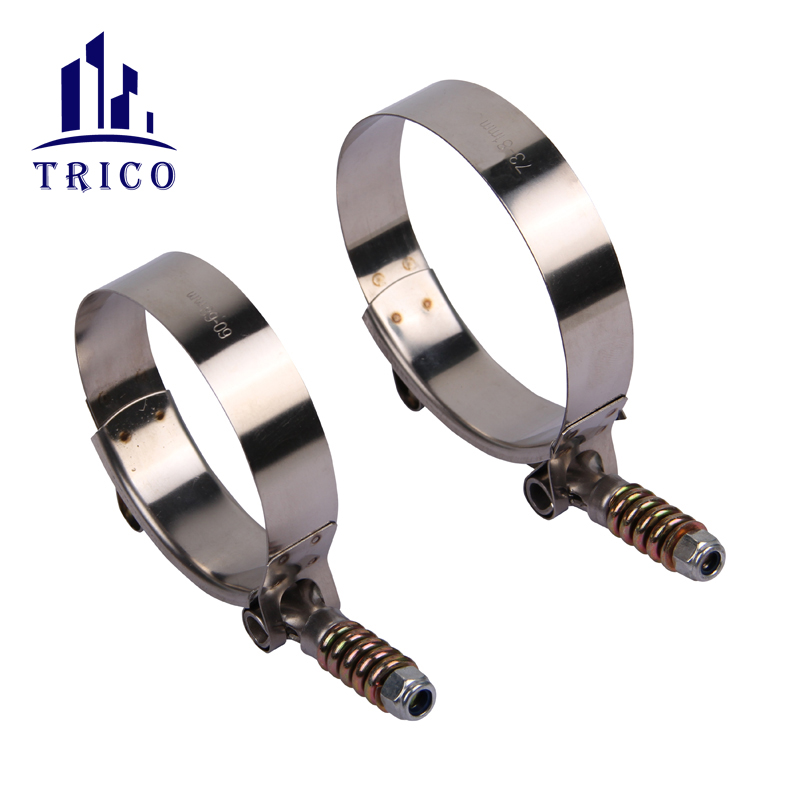

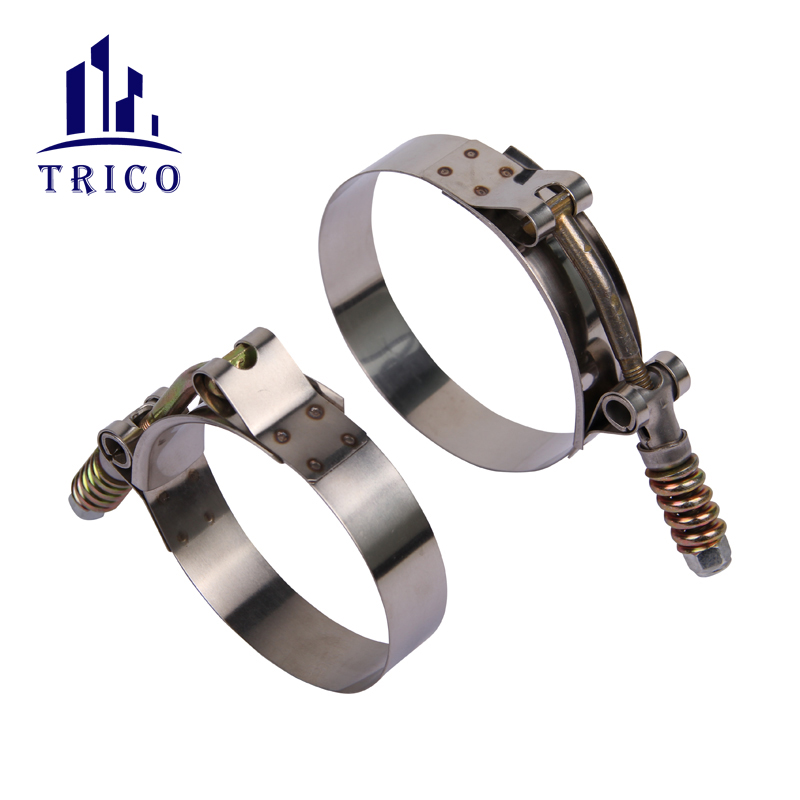

Stainless Steel or Carbon Steel T Bolt Spring Hose Clamp
The following are some of the benefits and features of our Spring Loaded T-Bolt Clamp:
1.Auto-adjusting diameter helps maintain constant tension throughout extremely low or very high temperatures and thermal cycling
2.Spring-loaded design provides constant band tension and tight fit without needing adjustments
3.Durable, long-lasting design that withstands thermal stress and provides a high level of vibration, shock, temperature, and corrosion resistance
4.Rounded edges reduce the risk of damage to parts being clamped, including hoses in critical applications
5.Double-plated 300 series stainless steel with self-locking nut, bolt, and spring
| Specification of T Bolt Spring Hose Clamp | ||||||
| Material | W2 Series: Band and Bridge plate are SS200 or SS300, others are carbon steel W4 Series: All the parts are SS200 or SS300 W5 Series: All the parts are SS316 | |||||
Size (mm) | Bandwidth*Thickness (mm) | Pcs/Bag | Pcs/Ctn | Ctn Siz e(cm) | G .W ./Ctn (kg) | Torque (N .m) |
| 55-60 | 19*0.6 | 10 | 250 | 40*37*28 | 17.00 | ≥15 |
| 63-70 | 19*0.6 | 10 | 250 | 40*37*28 | 18.80 | ≥15 |
| 64-71 | 19*0.6 | 10 | 250 | 40*37*28 | 18.90 | ≥15 |
| 67-75 | 19*0.6 | 10 | 250 | 40*37*30 | 18.90 | ≥15 |
| 70-78 | 19*0.6 | 10 | 250 | 40*37*30 | 19.00 | ≥15 |
| 72-80 | 19*0.6 | 10 | 250 | 40*37*30 | 19.00 | ≥15 |
| 73-81 | 19*0.6 | 10 | 250 | 40*37*30 | 20.30 | ≥15 |
| 76-84 | 19*0.6 | 10 | 250 | 40*37*30 | 20.40 | ≥15 |
| 77-85 | 19*0.6 | 10 | 250 | 40*37*30 | 20.40 | ≥15 |
| 79-87 | 19*0.6 | 10 | 250 | 40*37*30 | 20.50 | ≥15 |
| 83-90 | 19*0.6 | 10 | 250 | 40*37*35 | 20.80 | ≥15 |
| 86-94 | 19*0.6 | 10 | 250 | 40*37*35 | 21.00 | ≥15 |
| 87-95 | 19*0.6 | 10 | 250 | 40*37*35 | 21.00 | ≥15 |
| 89-97 | 19*0.6 | 10 | 250 | 40*37*35 | 21.10 | ≥15 |
| 92-100 | 19*0.6 | 10 | 250 | 40*37*38 | 21.10 | ≥15 |
| 95-103 | 19*0.6 | 10 | 250 | 40*37*38 | 21.10 | ≥15 |
| 99-106 | 19*0.6 | 10 | 250 | 40*37*38 | 21.10 | ≥15 |
| 102-109 | 19*0.6 | 10 | 250 | 40*37*38 | 21.60 | ≥15 |
| 103-110 | 19*0.6 | 10 | 250 | 40*37*38 | 21.60 | ≥15 |
| 105-113 | 19*0.6 | 5 | 100 | 40*37*24 | 8.70 | ≥15 |
| 107-115 | 19*0.6 | 5 | 100 | 40*37*24 | 8.80 | ≥15 |
| 108-116 | 19*0.6 | 5 | 100 | 40*37*24 | 8.90 | ≥15 |
| 111-119 | 19*0.6 | 5 | 100 | 40*37*24 | 9.00 | ≥15 |
| 112-120 | 19*0.6 | 5 | 100 | 40*37*28 | 9.00 | ≥15 |
| 114-122 | 19*0.6 | 5 | 100 | 40*37*28 | 9.10 | ≥15 |
| 130-138 | 19*0.6 | 5 | 100 | 40*37*34 | 9.10 | ≥15 |
| 132-140 | 19*0.6 | 5 | 100 | 40*37*34 | 9.20 | ≥15 |
| 138-146 | 19*0.6 | 5 | 100 | 40*37*34 | 9.30 | ≥15 |
| 140-148 | 19*0.6 | 5 | 100 | 40*37*34 | 9.40 | ≥15 |
| 152-160 | 19*0.6 | 5 | 100 | 40*37*37 | 9.50 | ≥15 |
| 155-164 | 19*0.6 | 5 | 100 | 40*37*37 | 9.50 | ≥15 |
| 182-190 | 19*0.6 | 5 | 50 | 40*37*34 | 4.80 | ≥15 |
| 187-195 | 19*0.6 | 5 | 50 | 40*37*34 | 4.80 | ≥15 |
