H20 Timber Beams
H20 wooden beam is a concrete formwork timber beam, double T-section timber beam used in a variety of forming and bracing
applications.
Lightweight, durable, and comes with a plastic cover to protect them from shock and moisture. Suitable for all formwork systems,
including wall formwork, table formwork, slab formwork, column formwork, etc.

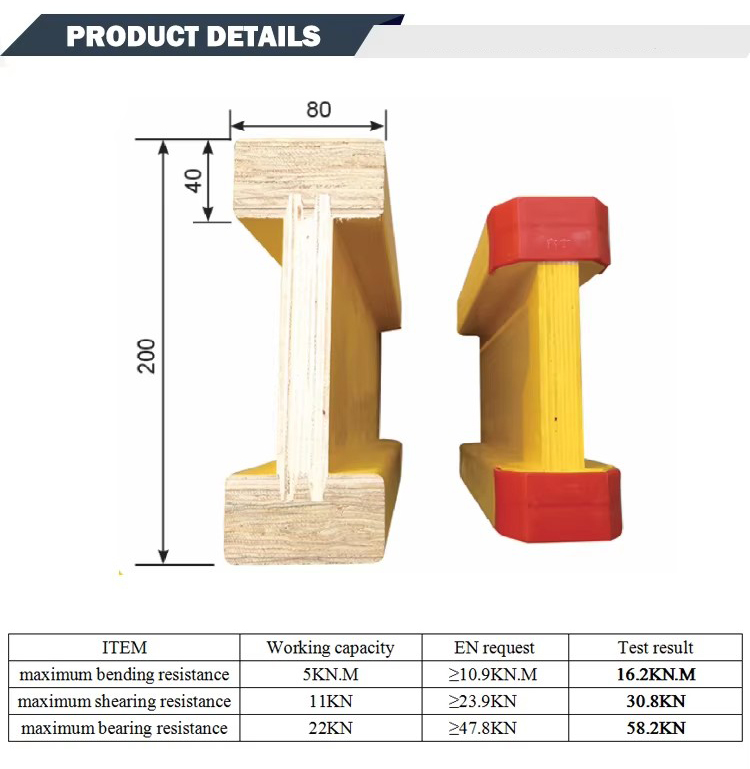

Product name | H20 Beam |
Material | Pine, spruce or as request |

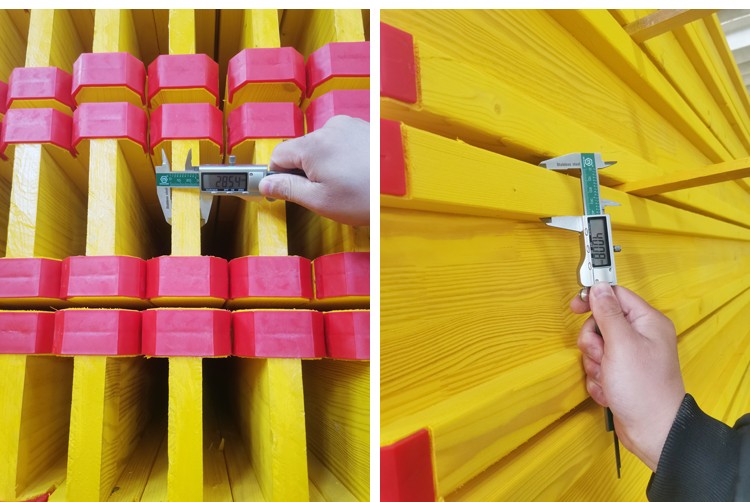

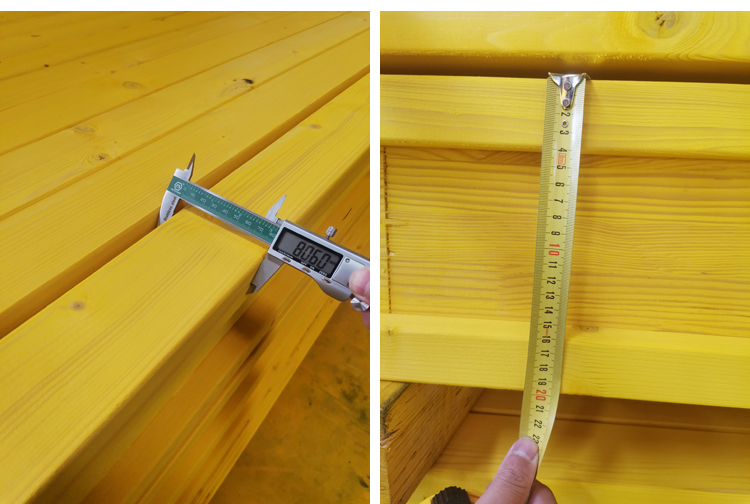

Height | 200mm, +/-0.5mm, as request |
Chord height | 40 mm or as request |
Chord width | 80 mm or as request |
Length | 1.8-5.9m (1.8m, 2.9m, 3.0m, 3.3m, 3.9m, 4.9m, 5.9m) |
Glue | Phenolic WBP/waterproof |
Color | Coating with painting (yellow color, waterproof, rot-proof, frozen-proof) |

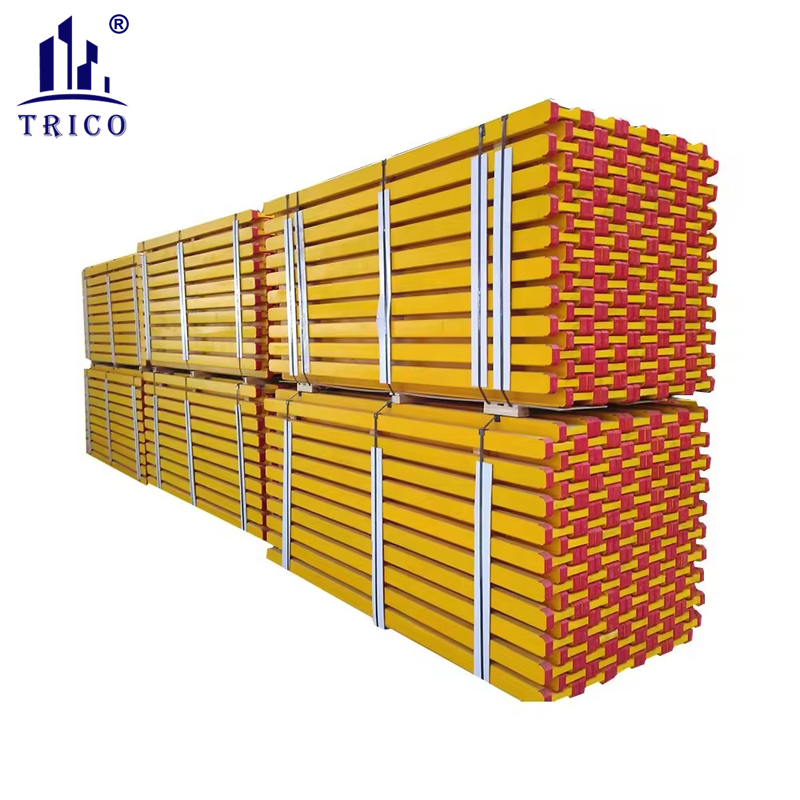

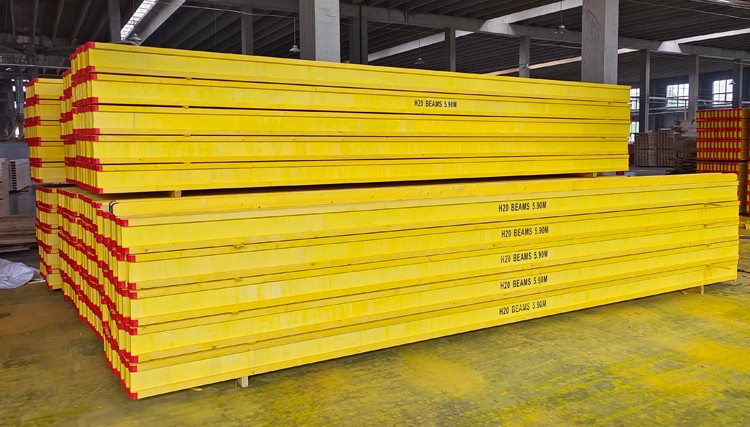

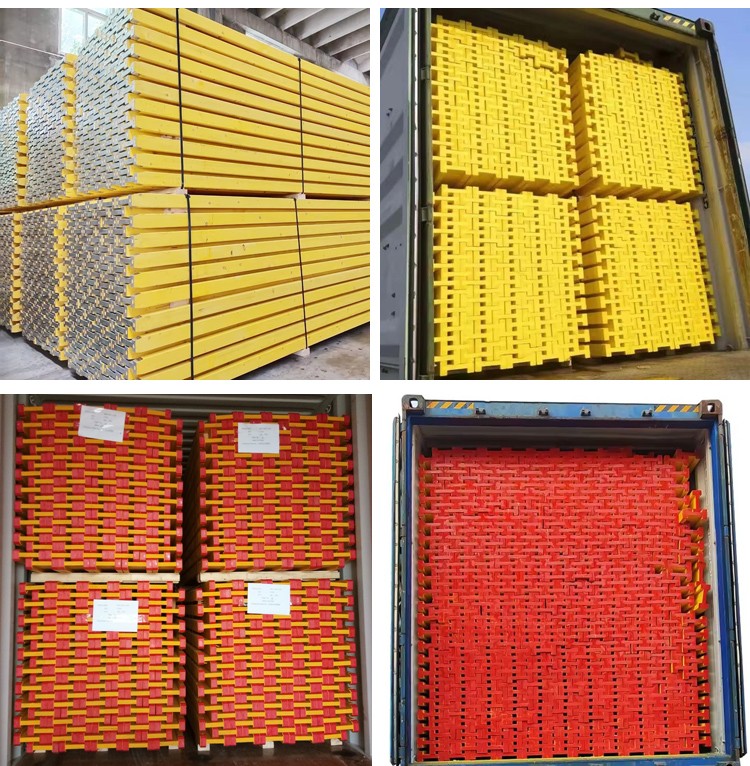

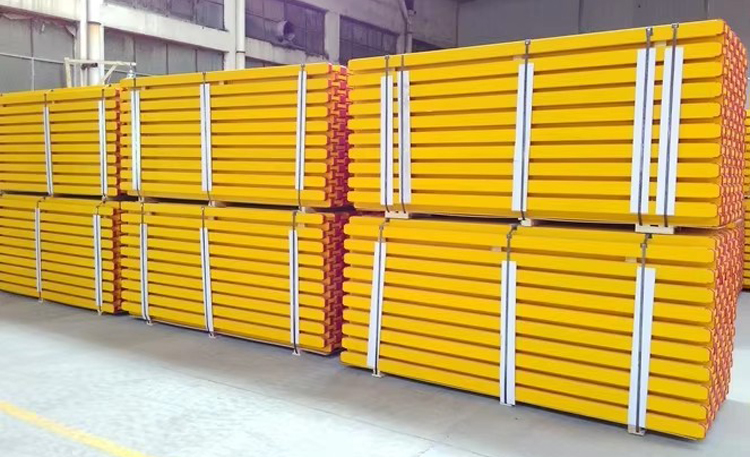

Package | Pallets on the bottom,and Steel band for strength |
Loading quantity | 3800-4200m per 40ft container. |
Certification | CE ISO9001 FSC CARB/AS/NZS4357.0 |
Usage | Wall formwork, slab formwork, table formwork, column formwork ect. |
H20 wooden beam features
• Available in a variety of sizes, the outer parts are made of selected high-quality solid fir wood, comb-coupled with finger-joint technology, and have a triple-layer core.
• On request, plastic protection is available to reduce the risk of scratching the outside of the beam.
• Wooden H20 beams are lightweight and heavy-duty, easy to handle and safe for construction.
Sturdy and stable. The surface of the formwork wooden beams is treated with water-repellent stains. H20 beam spray paint is also protected against UV radiation and fire.

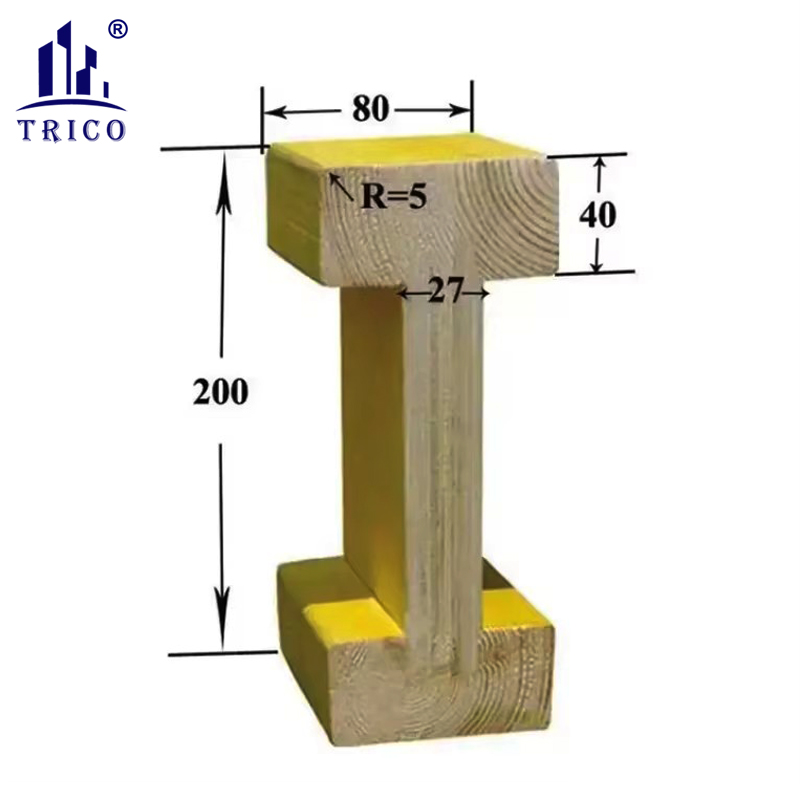

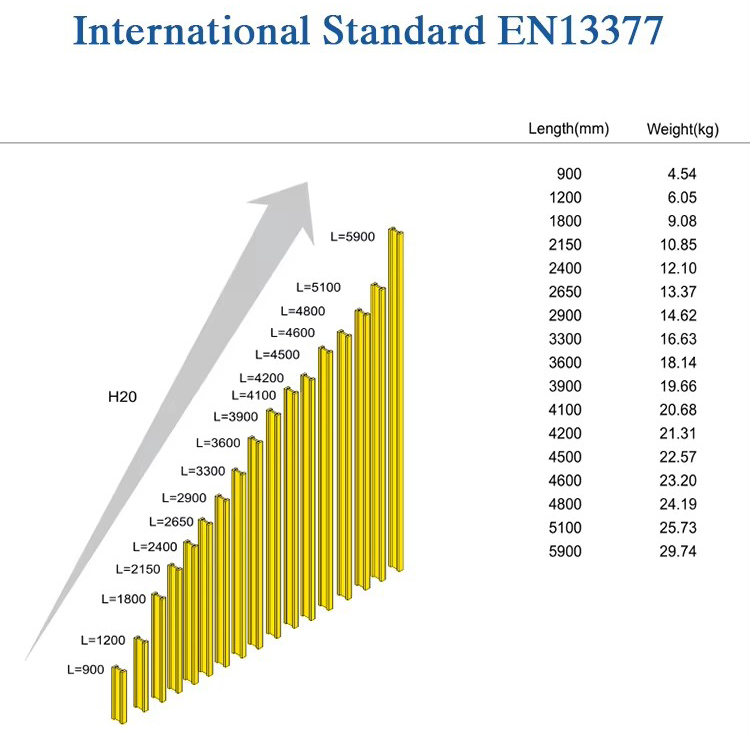

• Dimensions standards: 80 x200x2450/2900/3300/3600/3900/4200/4900/5900 mm
H20 wooden beam applications

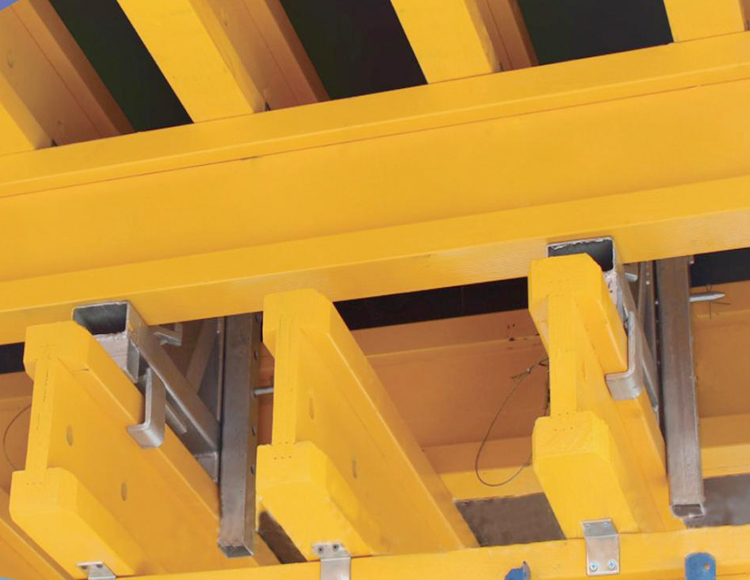

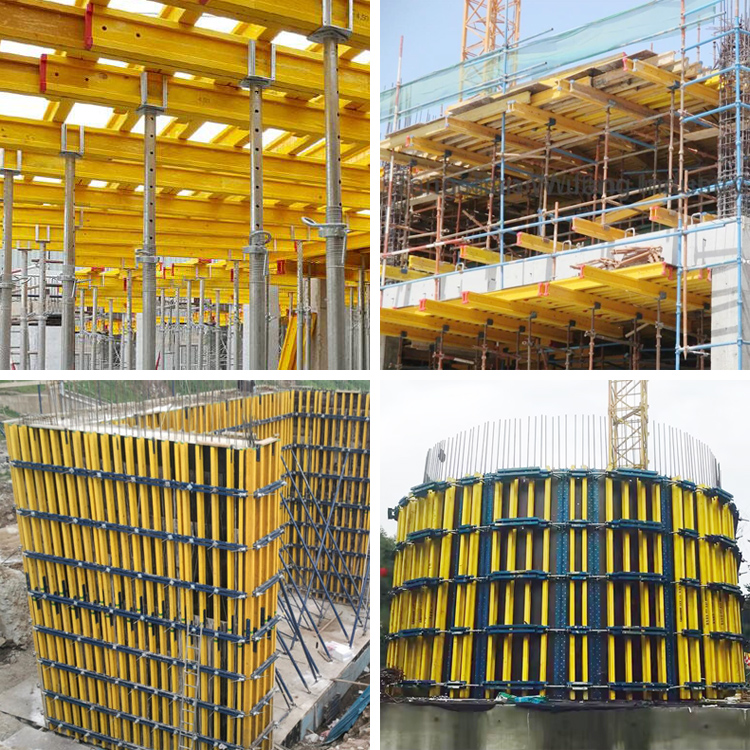

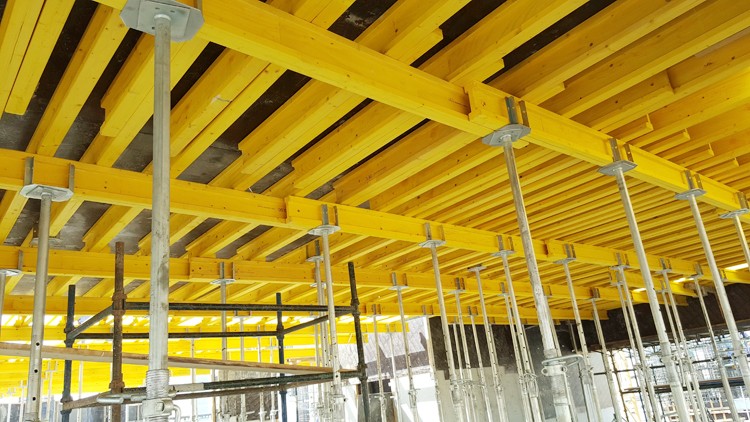

H20 timber beam is mainly used in the erection of horizontal formwork system, vertical formwork system, column formwork system and other ferroconcrete panel system.

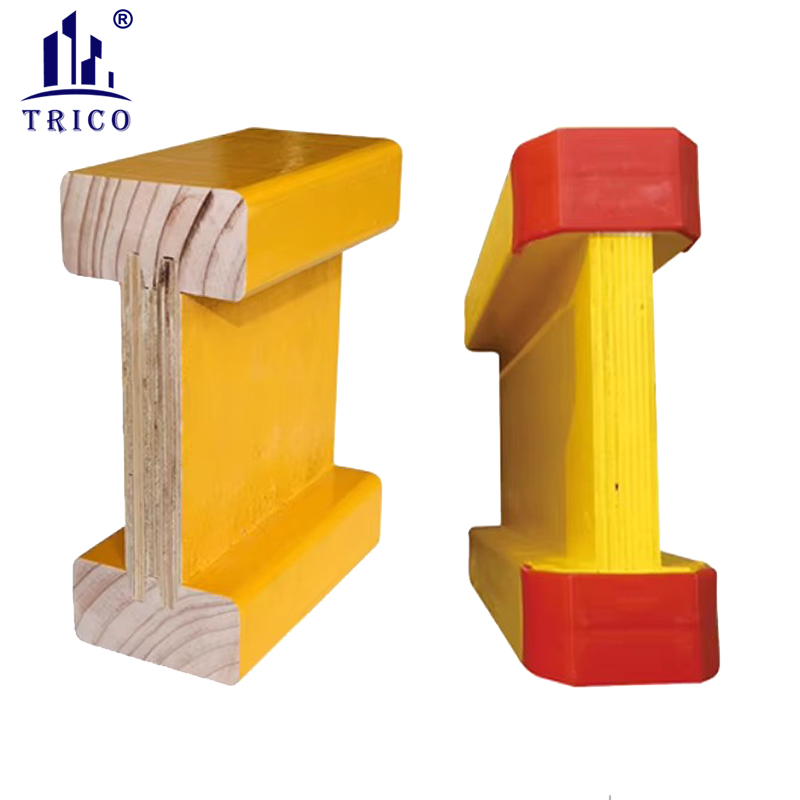

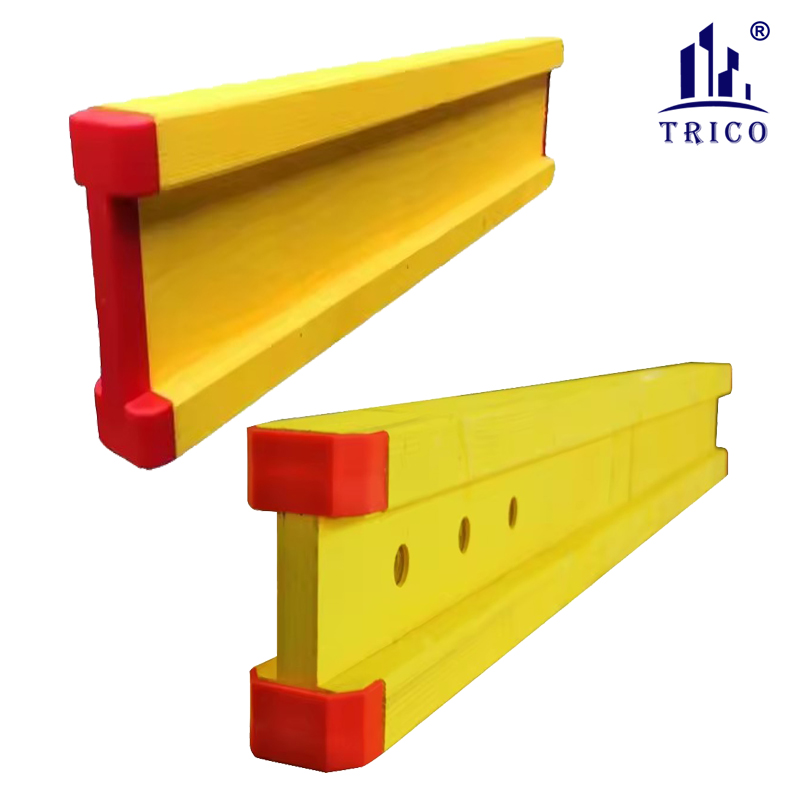

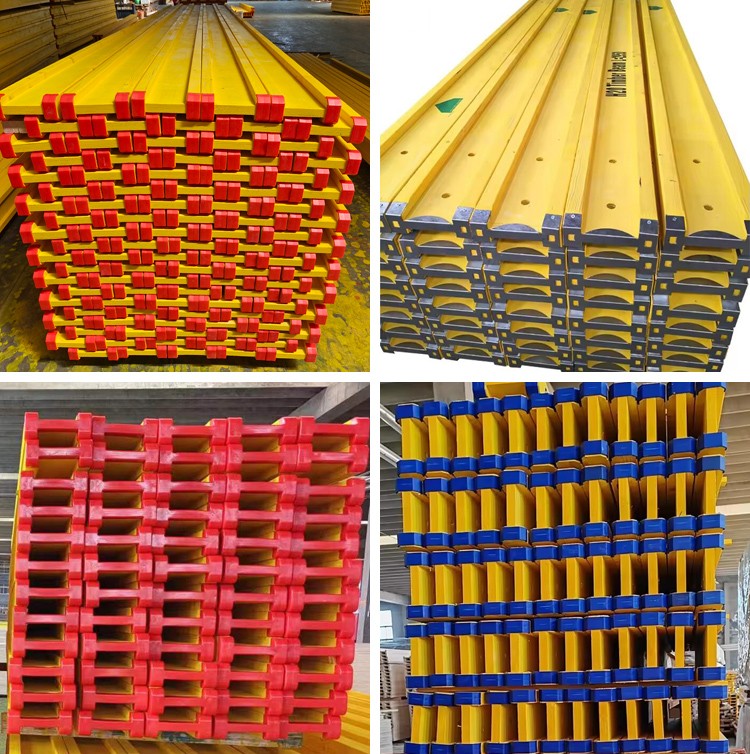

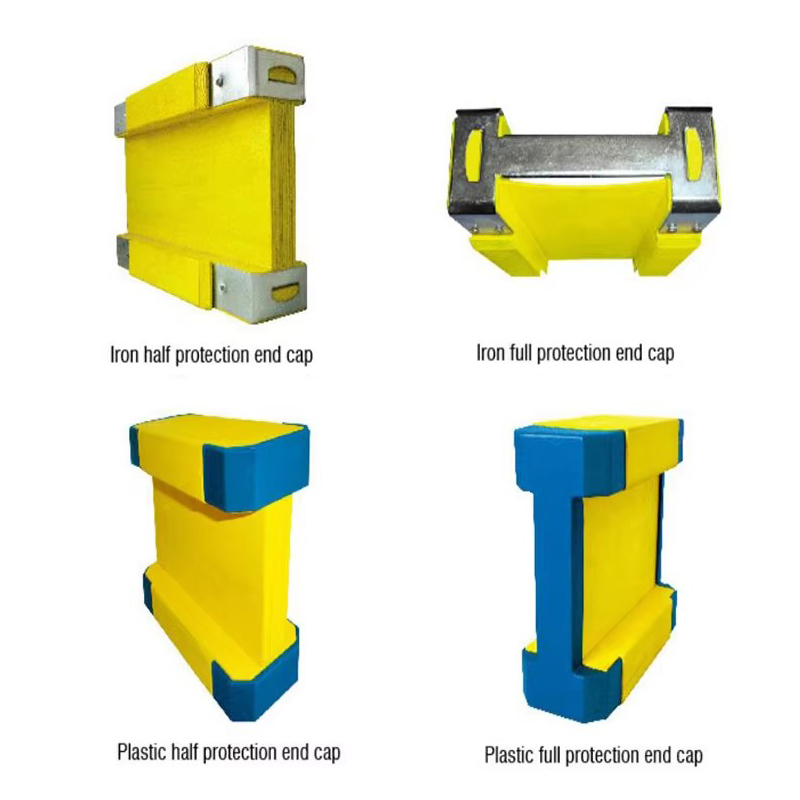

Plastic capped ends: with the protection of plastic caps, H beams can bear commonly direct clash and frication, while their prefect and conspicuous appearances are really popular.

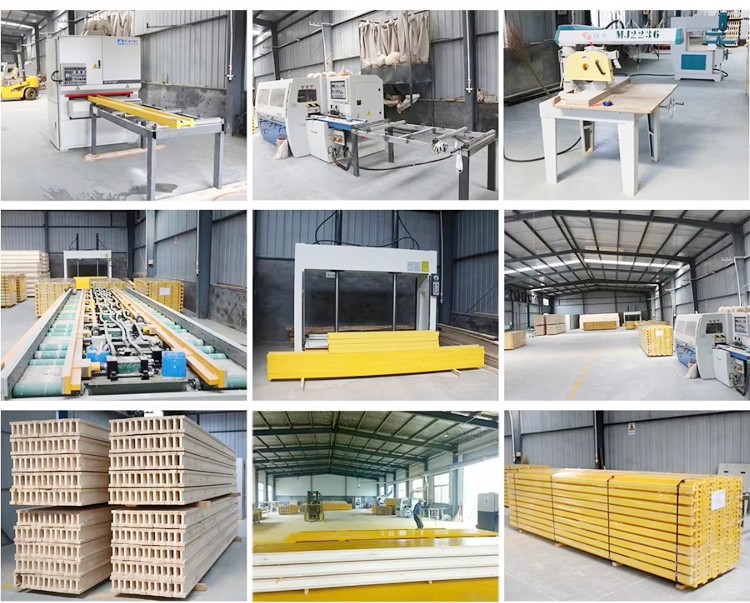

As a leading OEM H20 beam manufacturer in China. The standard size of Trico's H20 formwork beams are 200x80mm. It is compatible with all types of building props and scaffolding systems. Please contact us for the best H20 beam price immediately.
We also offer LVL Timber Beams for Concrete Formwork Support Structures, Laminated Veneer Lumber (LVL) OSHA Scaffolding Plank, LVL timber beam for roof construction, various plywood used in construction, etc.
Choose Trico , creating more business chances!
