B D Form Tie System Assembly and Usage

May. 24, 2021



Form Tie System is widely used in the construction industry, it is fast and easy to assemble and remove.The system prevents breakage in the formwork construction and keeps concrete structures in good shape. It can save construction costs, as all parts are reusable except for the separator (inner unit) which is caste into the concrete structures. There are four types:B Type,C Type, BC Type and D Type.

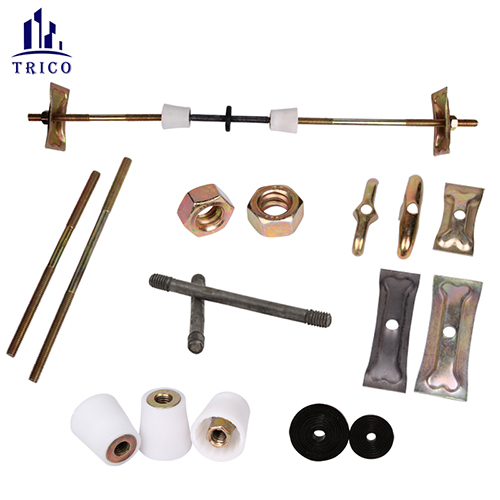

Components of B Form Tie System

B Form Tie, Plastic B Cone, B Inner Unit, Rubber Ring, Hex Nut, Rib Washer

B D Form Tie System Assembly and Usage

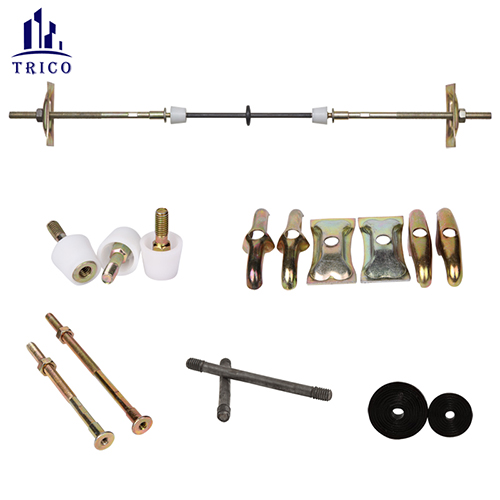

Components of D Form Tie System

D Form Tie, Plastic D Cone, D Inner Unit, Rubber Ring, Hex Nut, Rib Washer

B D Form Tie System Assembly and Usage

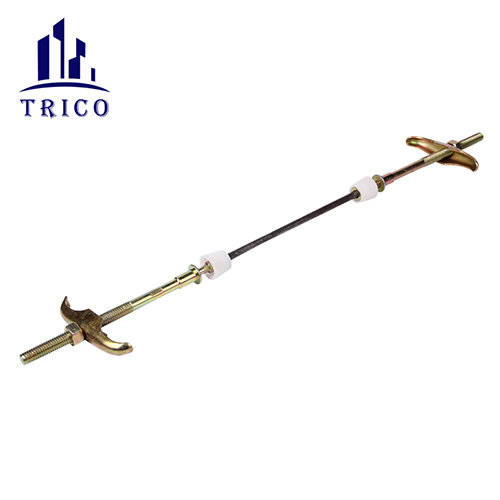

Assembly

B D Form Tie System Assembly and Usage
