Common Concrete Formwork Tie Rod System

Apr. 19, 2022

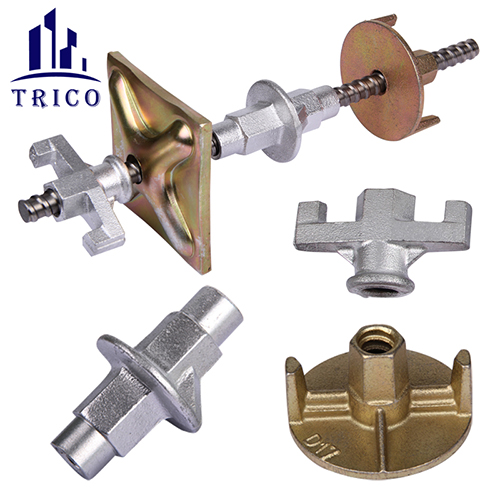

The Most Popular Tie Rod System for Concrete Formwork Construction

Tie Rod System is made of  heavy duty materials to meet higher strength requirements arising from thicker wall, bridge, tunnel and other mega structures. It consists of high tensile steel bar designed for holding formwork panels in place and has various connecting systems. Besides, it includes various casted iron tie nut used with tie bar.

---12mm&15mm&20mm Tie Rod

We offer different diameters with different material. Cold rolled and hot rolled are main manufacture process. The former is with 140KN breaking load but the latter can reach to 180KN. So please choose one of them according to your demand.

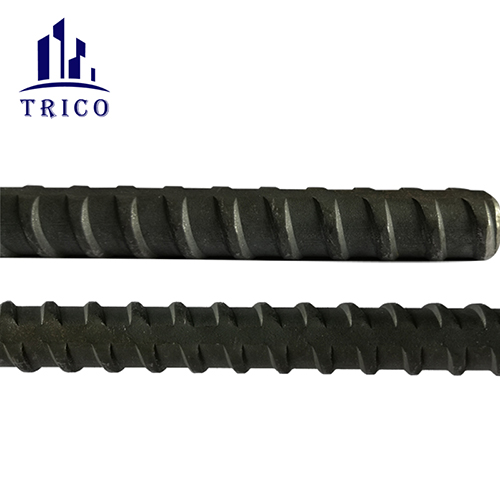

15/17mm Cold Rolled Type

Common Concrete Formwork Tie Rod System

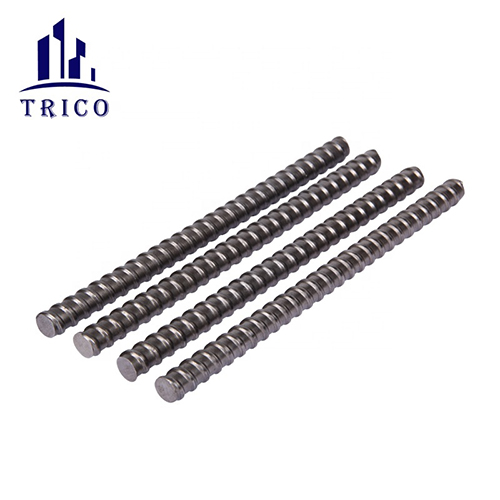

15/17mm Hot Rolled Type

Common Concrete Formwork Tie Rod System

---Various Casted Iron Products

They are mainly used to connected and fasten steel panels. Different markets have their own types.

Wing Nut, Water Stop, Hex Coupler, Anchor Nut, Steel Cone are available. All of them can meet breaking load 180KN.

Common Concrete Formwork Tie Rod System

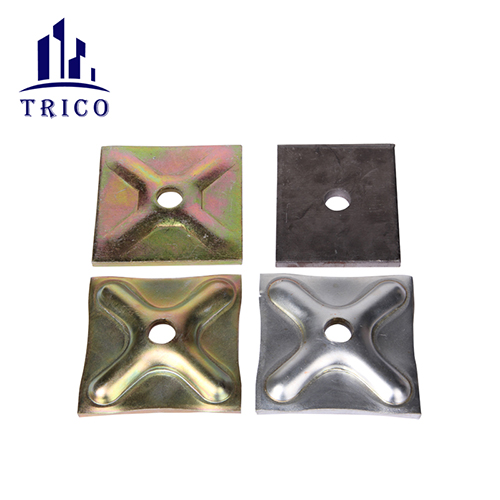

---High Strength Washer Plates

Common Concrete Formwork Tie Rod System
