Concrete Contrustion Plywood Formwork Jahn A/C Bracket Snap Tie With Wedge

May. 24, 2024

Concrete Contrustion Plywood Formwork Jahn A/C Bracket Snap Tie With Wedge

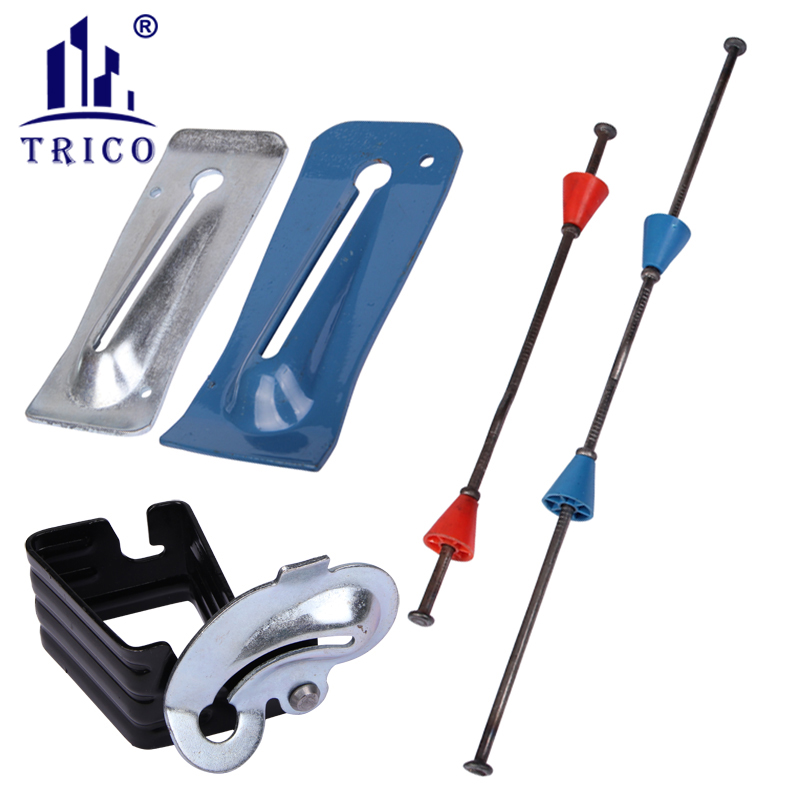

Snap Ties are manufactured with integal heads, and metal or plastic form spreaders.

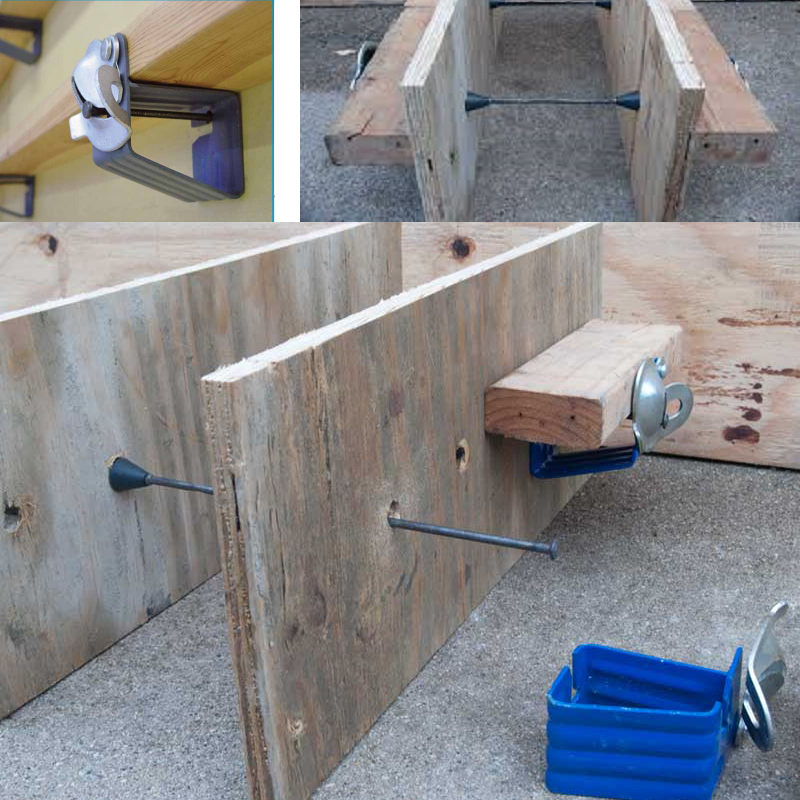

Snap Ties are designed to lock the Lumber or Plywood formwork easily. Snap Ties have a nominal 1" breakback. Each Tie incorporates an anti-turn device in order to properly break after use. Long End, Short End and Odd End Snap Ties for Plywood Formwork is available.

1). 4-3/4 End with 1”x1”plastic cone and hex head * wall size 6” to 72 as your requirement.

2). 8-1/4 End with 1”x1”plastic cone and hex head * wall size 6” to 72 as your requirement.

Short End Snap Tie with wall thickness 6"-24":

PictureItem NameShort End

Wall Thickness

Safe Working Load

Weight(kg)

Packing

Concrete Forming Snap TiesSnap Tie
4 -3/4"

6"

2250lbs

0.093

100pcs/Carton

8"

2250lbs

0.103

100pcs/Carton

10"

2250lbs

0.113

100pcs/Carton

12"

2250lbs

0.123

100pcs/Carton

14"

2250lbs

0.133

100pcs/Carton

16“

2250lbs

0.143

100pcs/Carton

18”

2250lbs

0.153

100pcs/Carton

24“

2250lbs

0.183

100pcs/Carton

Long End Snap Tie with wall thickness 6"-24":

PictureItem NameLong End

Wall Thickness

Safe Working Load

Weight(kg)

Packing

Concrete Forming Snap TiesSnap Tie8-1/4"

6"

2250lbs

0.128

100pcs/Carton

8"

2250lbs

0.138

100pcs/Carton

10"

2250lbs

0.148

100pcs/Carton

12"

2250lbs

0.158

100pcs/Carton

14"

2250lbs

0.168

100pcs/Carton

16“

2250lbs

0.178

100pcs/Carton

18”

2250lbs

0.188

100pcs/Carton

24“

2250lbs

0.218

100pcs/Carton

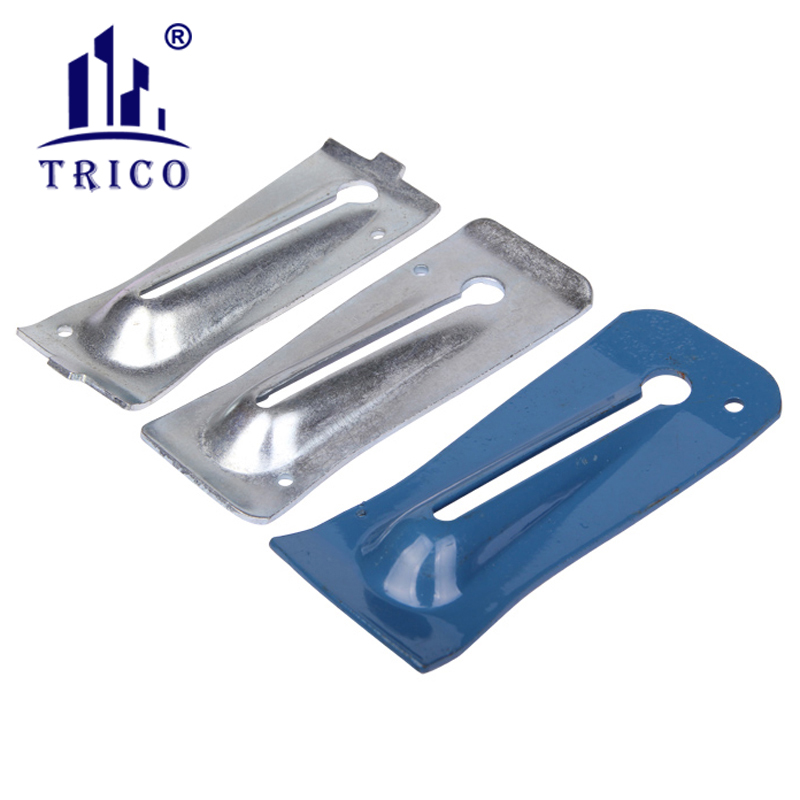

The snap tie wedge is a holding device that is fabricated from high strength galvanized steel that is used in a double waler or double strong back snap tie forming application to ensure proper load distribution when installed correctly.


Other related items: Snap Tie Wedge, X Flat Tie, Wall Ties , etc.

PictureItem NameSurface TreatmentWeight(kg)Packing
Concrete Forming Snap TiesSnap Tie WedgeGalvanizing0.18100pcs/carton
Concrete Forming Snap TiesSnap Tie WedgeGalvanizing0.21100pcs/carton
Concrete Forming Snap TiesSnap Tie WedgeBlue Painting0.25100pcs/carton

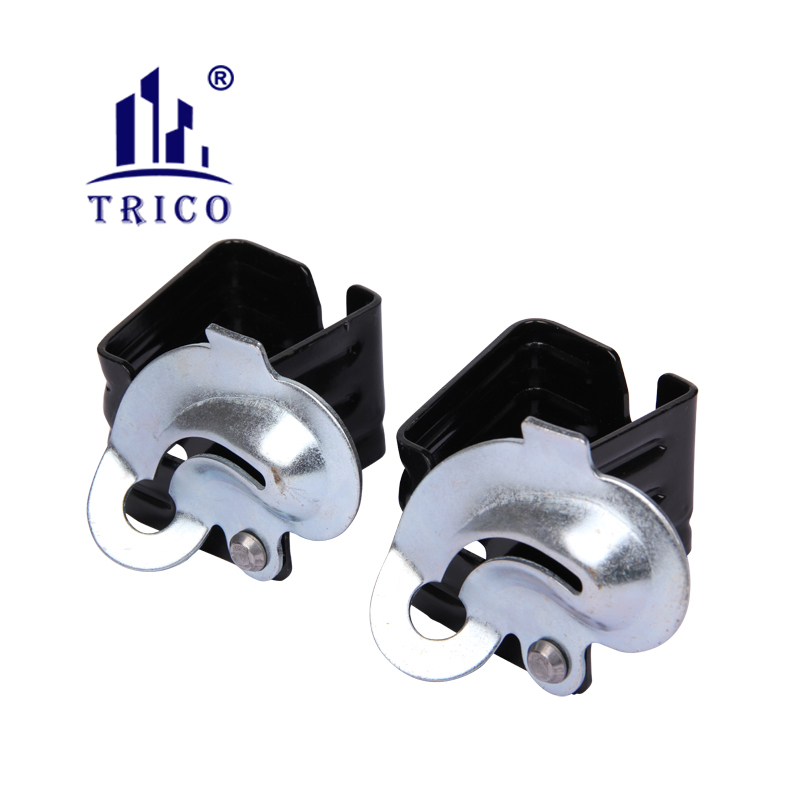

Concrete Forming Snap TiesJahn A BracketPainting and Galvanizing0.5725pcs/carton
Concrete Forming Snap TiesJahn C BracketPainting and Galvanizing0.43725pcs/carton
