Concrete Formwork Accessories Wall Tie Spacer X Flat Tie For Plywood Formwork Construction

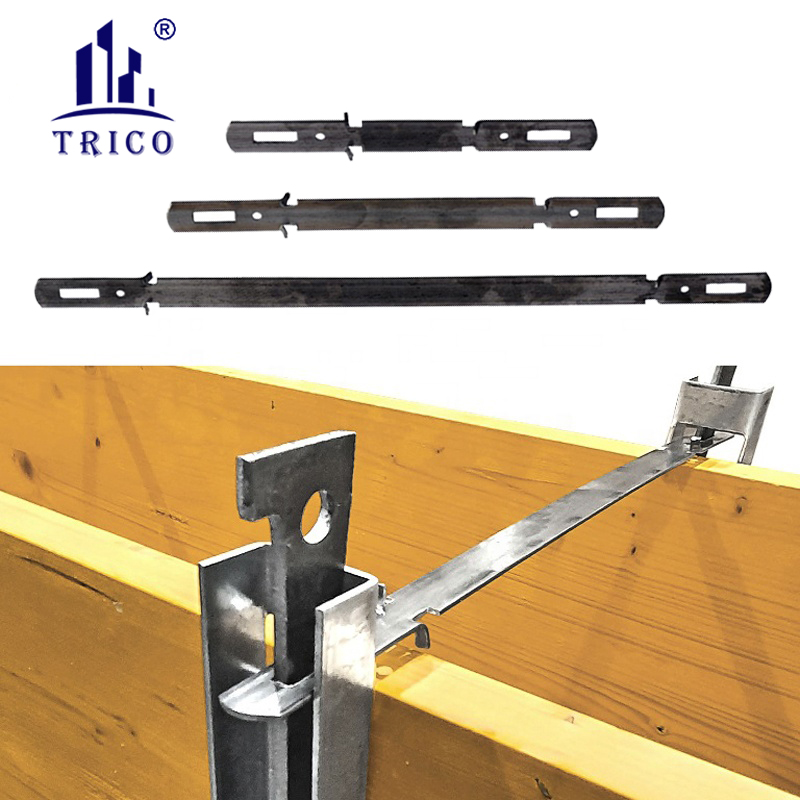

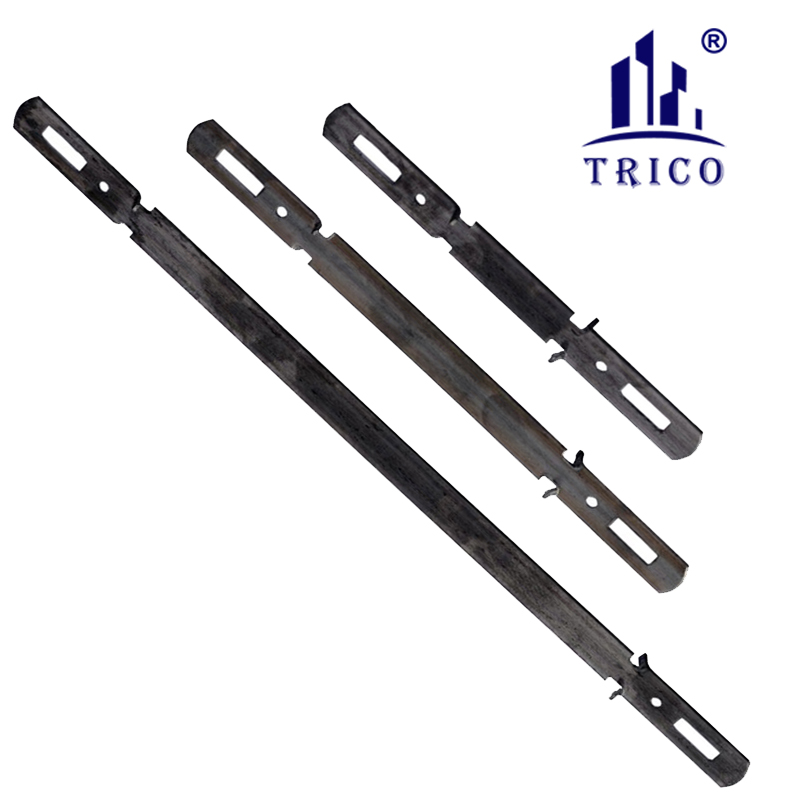

X-Flat Tie: X-Flat Tie are used with Wedge Bolt to secure and space modular forms. X Flat Ties are available from 4" to 24". And other sizes can be produced according to clients' demand.

Wedge Bolts: Wedge Bolt connect panels and ties together,eliminating the need for special tools or equipment in the set up process. Two idential wedge bolts work as a single lock-bolt set, connecting and clamping together. However, additional bolts may be needed for walker attachment, scaffold brackets and etc.

Long Bolts: similar to a wedge bolt, these Long Bolt connect the 1, 1-1/2 and 2 inch steel fillers, and are punched with two 1/4 inch hole to make room for 16 or 20 D nails.

Short Bolts: short bolts are used to attach the pilaster form a steel ply form. They eliminate the need for short stop wedge bolt, and upon proper installation, make stripping much easier.

One Piece Waler Clamp: One Piece Waler Clamps attach through the wedge bolt slot of modular type forms to provide wedge action aligning with single or double lumber.

Z Tie Holder & Waler Ties: Z Tie Holders are used in conjunction with Waler Ties to secure double 2 x lumber wales to modular type forms. The Waler Tie is available in two sizes to accomodate 2x4, 2x6 lumber.
