Hy Ribbed Formwork has excellent engineering quality, construction security and widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards,water pools and marine engineering works. It highly rises building projects and non-regular or bending pattern etc. as concrete permanent assembly-free formwork.
| (7 Rib 8 Openning) | |||
Thickness(mm) | Rib Distance(mm) | Weight (KG) | Width X length(mm) |
0.30 | 100 | 1.79 | 610 X 2440 |
0.35 | 100 | 2.09 | 610 X 2440 |
0.40 | 100 | 2.38 | 610 X 2440 |
0.45 | 100 | 2.68 | 610 X 2440 |
0.5 | 100 | 2.98 | 610 X 2440 |

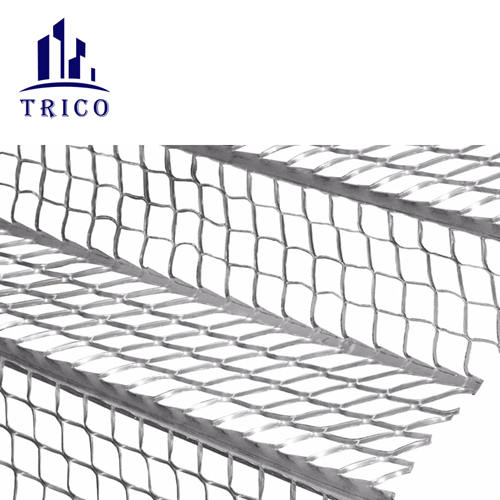

High rib lath has excellent engineering quality and construction security. It is widely used in construction reinforcement of tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern as concrete permanent assembly-free formwork lath.
Function
1.Hy Rib Lath has very good engineering quality and construction security;
2.Hy Rib Lath as the concrete permanent assembly,free sheet is much convenient for engineering design and processing;
3.Hy Rib Lath is widely used in tunnels,bridgesand so on to make the process of construction much more fast and stable.
4. Because it's the U patterns, the formwork has more capability form stress.
