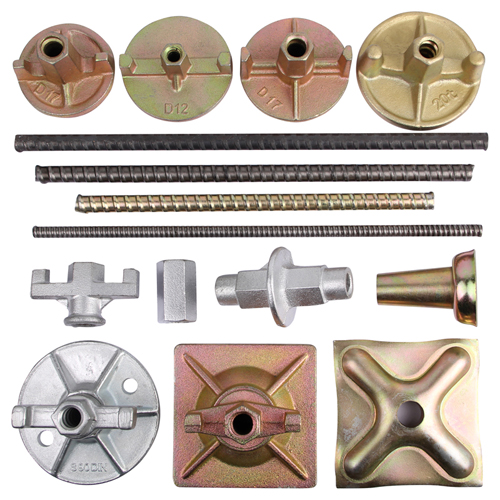

The Formwork Tie Rod system components include the Tie Rod, Wing Nut, Tie Nut, Anchor Nut, Water Barrier/Water Stop, Washer Plate/Waller Plate, Steel Cone, Plastic Tube and Cone and some European countries also asked for the Flupp Plug ( Rubber Stop).Wing nuts and Tie rods as a whole facility are used widely in formwork construction.

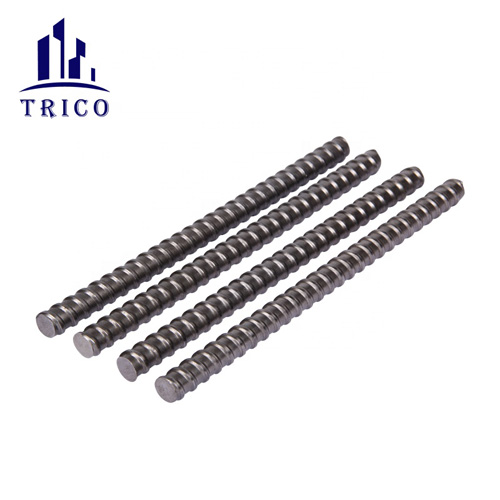

Tie Rod: The Material of Tie Rod usually use Q235 carbon steel, 45# steel, surface finished as galvanized, zinc-plated and natural color. The working load from 40kn to 70kn. And we also offer Hot Rolled Tie Bar, which with the breaking load of 180kn.

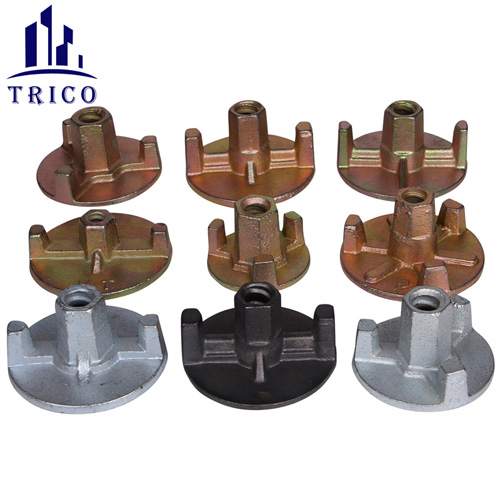

Tie Nut: There are single wing nut, butterfly wing nut, two anchor wing nut, three anchor wing nut,combination wing Nut. Because of this structure, wing nuts can be easily tightened and loosened by hand without any tools. Wing nuts have casting and forging types by processing technology , common thread size is 17mm/20mm.

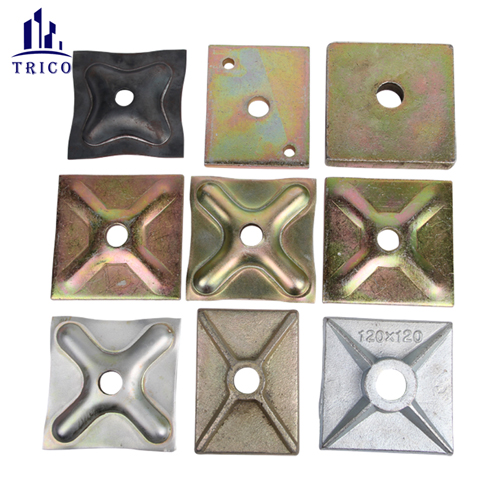

Washer Plate: normally we offer 120x120x10mm, 120x120x8mm, 120x110x10mm, 100x100x10mm and other sizes can be made accordind to demand.
