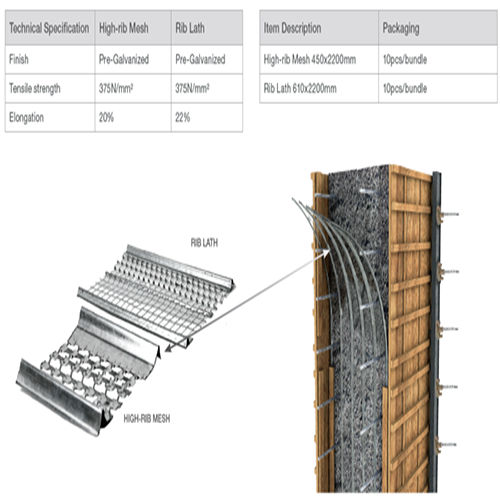

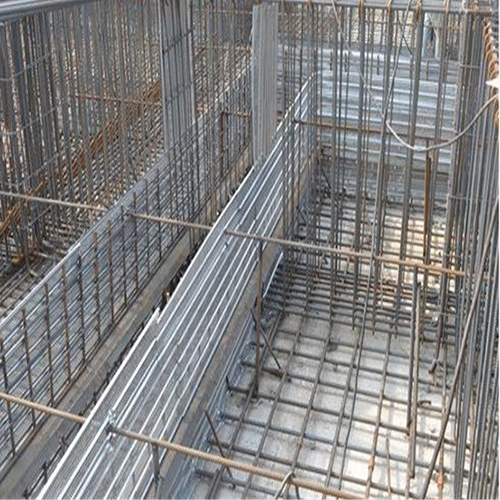

Hy-Ribbed Formwork is also known as Permanent Formwork, expended Formwork. It is used as the consumable template. The edges of the open of the mesh will be inset in the concrete when the concrete pouring behind the formwork. That will be a mechanical wedge to link with the block. The quality of the joint can be strictly controlled. The strength of the adhesion and shearing can be equal to the excelletn rough cut stitching. There is no drilling, plucking and other process needed when do the secondary pouring. It can shor the construction time and at the same time make the concrete stronger.
The interface of the Hy-Ribbed Formwork sheet can be a rough surface. And it can offer the very excellent sealing for the next concrete pouring. It can do the secondarypouring directly, without drilling, plucking, cleaning, maintaining by hand.It can make the old and new concrete block into a whole body easily. And there is no seepage. The permanent formwork do not need to remove the formwork or make the new sealing. It can directly do the next pouring. In this way, it makes the preparing work of the sealing much more easier.

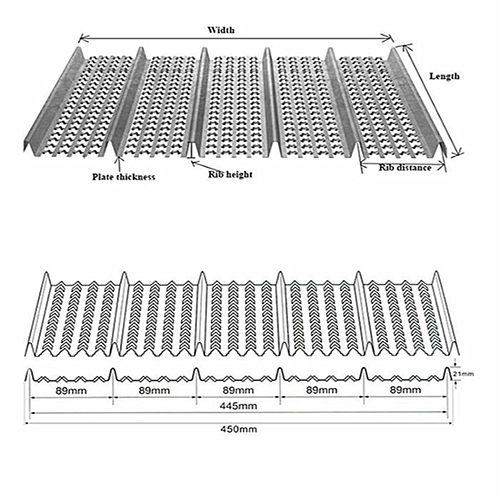

| High Ribbed Metal Mesh | ||
 | Size | 2000x445mm;3000x445mm |
| Thickness | 0.25mm, 0.30mm, 0.35mm, 0.40mm, 0.45mm | |
| Color | Silver | |
| Surface Treatment | Hot Dip Galvanized | |
| Packing | 250pcs/pallet or as demand | |
| Other Size Acceptable | ||
| High Ribbed Metal Rib Lath/Expended Metal Mesh | ||
 | Material | Mild Steel |
| Width | 200mm, 300mm, 400mm, 500mm,600mm,700mm or as demand | |
| Length | 2000mm,3000mm or as demand | |
| Thickness | 0.25mm,0.30mm,0.40mm,0.45mm,0.50mm | |
| Rib Distance | 10mm,15mm or as demand | |
| Packing | 250pcs/pallet or as demand | |
| Other Sizes Available | ||
| Bending Plate Metal Formwork Mesh | ||
 | Material | Mild Steel |
| Width | 880mm | |
| Length | 2500mm | |
| Thickness | 0.7mm | |
| Surface Treatment | Hot Dip Galvanized | |
| Packing | 250pcs/pallet or as demand | |
