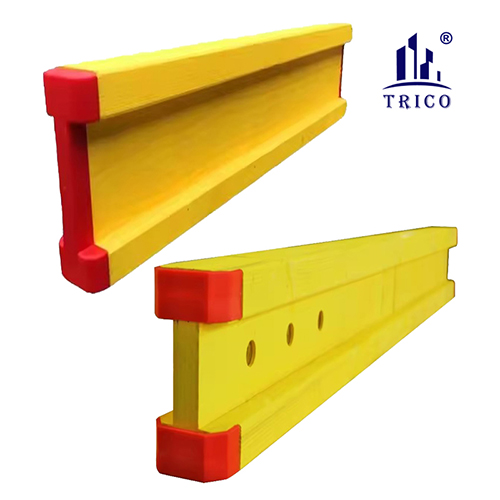

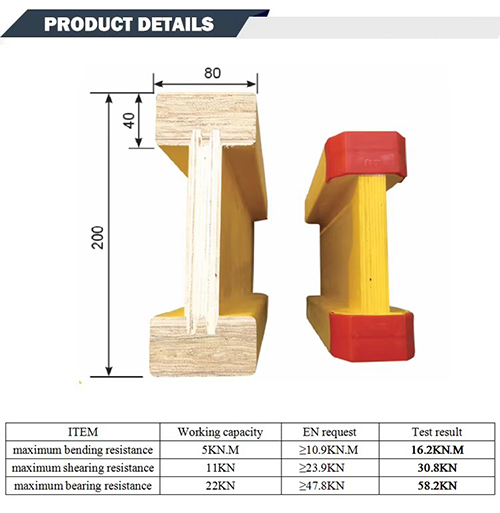

H20 Timber Beams are used as primary and secondary beams in column formwork systems. They provide stability to the structure and support the weight of concrete during the casting process. Due to their slightly different cross-section shape, thicker central web and wider flanges, H beams can bear larger loads. At present we supply 200×80mm with 27mm thickness of web . Length can be chosen as your demand.
H20 Beams give you higher strength and safety when using them on heavy-duty construction sites. lt possesses incredible dimension stability, Moreover, it has a higher recovery capacity after applying a heavy load.

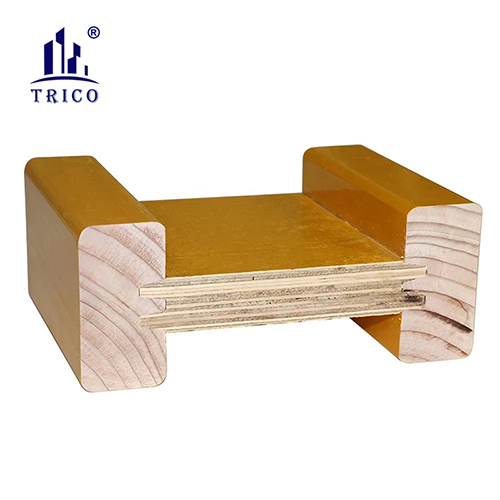

The flange is made of solid wood, and the web can be three solid wood or laminated plywood.
For long-time usage, we also can make plastic covering at the end. Half covering and full covering are with different cost.

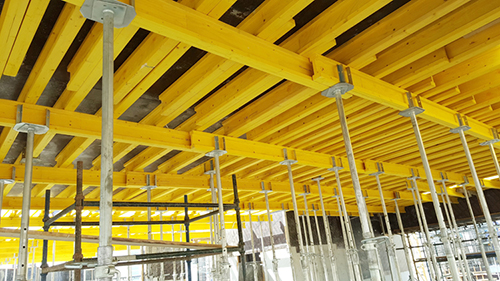

H20 timber beam is widely used in formwork systems, such as shear wall formwork, slab formwork, column formwork and etc.
Except H20 Beam, Trico also supply three-layer board 21mm, H20 Clamp, Fork Head and Steel Prop.
