H20 Timber Beams
H20 wooden beam is a concrete formwork timber beam, double T-section timber beam used in a variety of forming and bracing applications.
Lightweight, durable, and comes with a plastic cover to protect them from shock and moisture. Suitable for all formwork systems, including wall
formwork, table formwork, slab formwork, column formwork, etc.

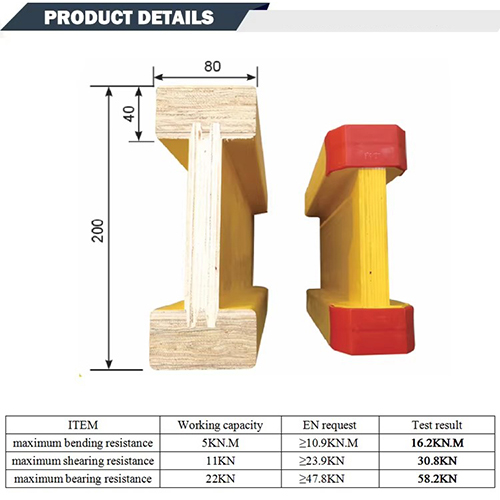

Product name | H20 Beam |
Material | Pine, spruce or as request |
Height | 200mm, +/-0.5mm, as request |
Chord height | 40 mm or as request |
Chord width | 80 mm or as request |
Length | 1.8-5.9m (1.8m, 2.9m, 3.0m, 3.3m, 3.9m, 4.9m, 5.9m) |
Glue | Phenolic WBP/waterproof |
Color | Coating with painting (yellow color, waterproof, rot-proof, frozen-proof) |

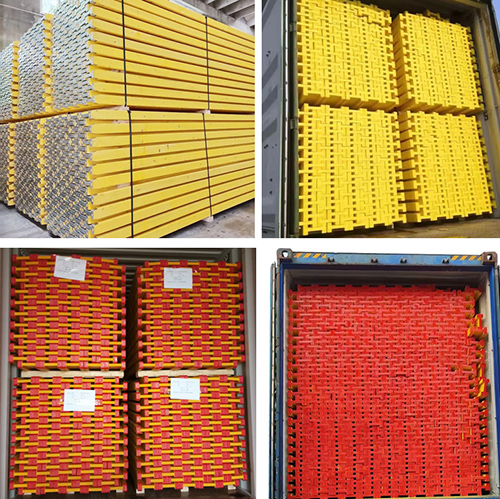

Package | Pallets on the bottom,and Steel band for strength |
Loading quantity | 3800-4200m per 40ft container. |
Certification | CE ISO9001 FSC CARB/AS/NZS4357.0 |
Usage | Wall formwork, slab formwork, table formwork, column formwork ect. |
H20 wooden beam features
• Available in a variety of sizes, the outer parts are made of selected high-quality solid fir wood, comb-coupled with finger-joint
technology, and have a triple-layer core.
• On request, plastic protection is available to reduce the risk of scratching the outside of the beam.
• Wooden H20 beams are lightweight and heavy-duty, easy to handle and safe for construction.
Sturdy and stable. The surface of the formwork wooden beams is treated with water-repellent stains. H20 beam spray paint is
also protected against UV radiation and fire.
• Dimensions standards: 80 x200x2450/2900/3300/3600/3900/4200/4900/5900 mm
