Hebei Factory Formwork Accessories D16mm Tie Rod System D15/17mm Tie Nut

Sep. 12, 2024

Formwork  Tie Rod Yellow Galvanized D15/17mm,D12mm and D20mm for Building Construction.

 Hebei Factory Formwork Accessories D16mm Tie Rod System D15/17mm Tie Nut

Our Form form Tie Rod Advatages:

1.  The thread pitch 6.35mm or 10mm. Different screw for different tie nut.

2.  Many kinds materials for different building project such as 45C,Q235(carbon steel ) etc.With different Work Load.

3.  The Price and quality is the best in China. Free Samples are avaliable for your test.




SizeSize
Plate D100mm D17×10mm Thread Ductile Iron, 0.53kg



Plate D100mm D17×6.35mm Thread Ductile Iron, 0.53kg

Plate D100mm D16×6mm Thread Ductile Iron, 0.53kg

Plate D100mm D17×10mm Thread Ductile Iron, 0.60kg

Plate D100mm D12×4.23mm Thread Ductile Iron, 0.44kg

Plate D100mm D17×10mm Thread Ductile Iron, 0.82kg

Plate D70mm D17×10mm Thread Ductile Iron, 0.35kg

Plate D100mm D17×10mm Thread Ductile Iron, 0.60kg

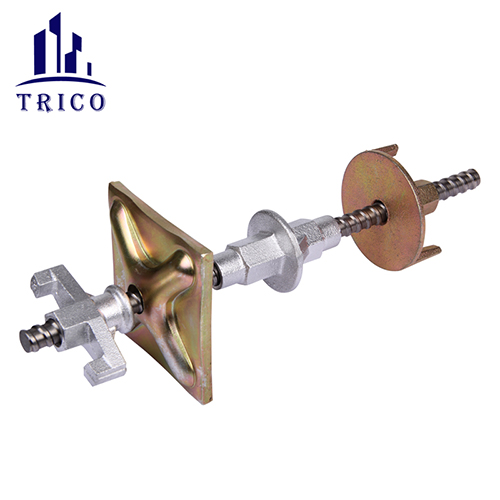

 Formwork Tie Rod Accessories such as Tie Nut,Wing Nut,Water Stopper,Hex Nut, Plate Washer, Steel Cone etc.

ProductDianeterFinishingBreaking load
Wing NutD15Self color or galvanizing180Kn
Tie nut/wing nutD15Self color or galvanizing180Kn
Water stopD15Self color or galvanizing180Kn
Hex nut/connection nut

D15*30

D15*50

D15*100



Self color or galvanizing180Kn
Waler plate

120*120*8/10mm

100*100*8mm

100*125*8/10mm,etc

Self color or galvanizing/



We have hot rolled tie rod D15/17mm, D20mm and cold rolled D12mm, D15/17mm,D20mm, the D15/17mm tie rod can be 140KN. The tie nut breaking load can be 180KN.


Welcome to send us inquiry.
