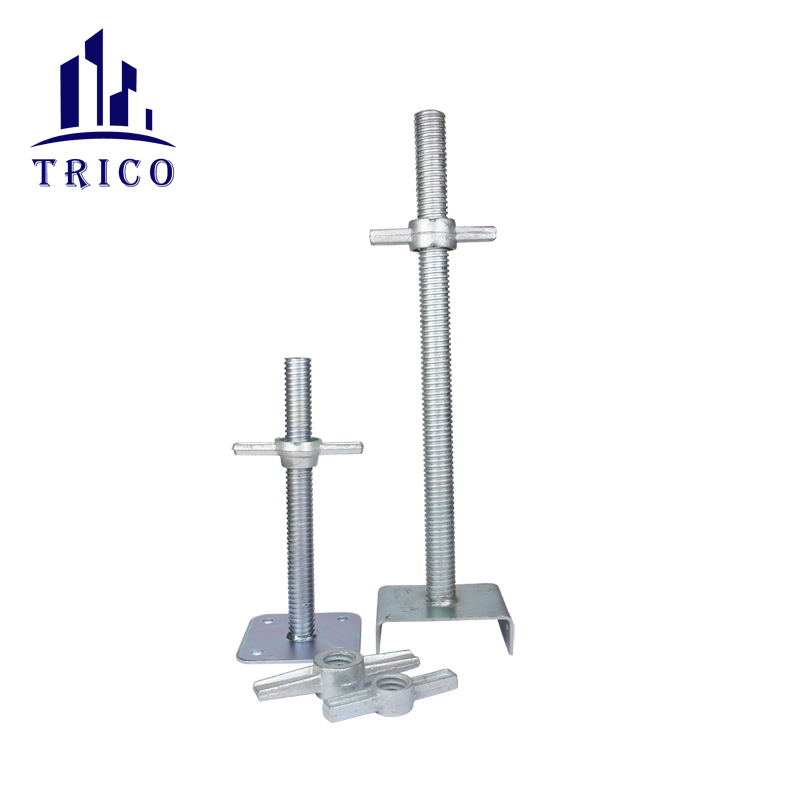

Hebei Factory Heavy Duty Scaffolding Hollow or Solid U-Head Base Jack

Aug. 01, 2023

Hebei Factory Heavy Duty Scaffolding Hollow or Solid U-Head Base Jack

The screw jack is used as a starting base for scaffolding. It has an adjustable height to allow for compensation on uneven grades so that a level scaffold is always attainable. Different diameters and lengths are available. Solid or hollow type supplying.

Material: Q235 round bar, seamless/ERW pipe.

Diameter:30mm/32mm/34mm/38mm/48mm or as your request

Adjustable Length: from 100 to 1000mm as per your request

Type: Solid/Hollow

Surface treatment: Paint/Galvanized

Main components: Threaded bar, cast nut, and base pate

ypesU headJack baseSwivel Jack baseScaffolding base plate
Sample Hot sales boutique scaffolding screw jack base Hot sales boutique scaffolding screw jack baseHot sales boutique scaffolding screw jack base Hot sales boutique scaffolding screw jack base
Weight1-5kg1-5kg1-5kg1-3kg
MaterialQ235 or 20# SteelQ235 or 20# SteelQ235 or 20# SteelQ235 or 20# Steel
Diameter

28/30/32/34

/35/38/48MM

28/30/32/34

/35/38/48MM

28/30/32/34

/35/38/48MM

28/30/32/34/

35/38/48MM

Length

200/280/600/760MM

 or customized

200/280/600

/760MM

or customized

200/280/600

/760MM

or customized

100MM,150MM

or customized

Floor size

120*120*50*4MM

120*120*50*5MM

150*150*50*4MM

150*150*50*5MM

or customized

120*120*5MM

150*150*5MM

or customized

20*120*5MM

150*150*5MM

 or customized

20*120*5MM

150*150*5MM

or customized

Surface treatment

Natural ,painted, Electric galvanized,

HDG

Natural ,painted,

 Electric galvanized,

HDG

Natural ,painted,

Electric galvanized,

HDG

Natural ,painted,

Electric galvanized,

HDG
