Hot Sale Hebei Trico Formwork Tie Rod System

Jan. 10, 2023

Hot Sale---Trico's Formwork Tie Rod System

Tie Rod System is used in formwork concrete system for holding the wall & column forms. They maintain the equal spacing of forms which results in the required thickness of the wall and columns.This system is produced from heavy duty materials to meet higher strength requirements arising from thicker wall, bridge, tunnel and other mega structures.Tie rod system includes tie rod, tie nut, water stop, steel cone, hex nut and washer plate.

Tie Rod

Diameter: D12, D15,D22

Material: Q235, Steel 45#

Length: 1m, 3m, 6m or as demand

Breaking Load: 90Kn, 140Kn, 180Kn

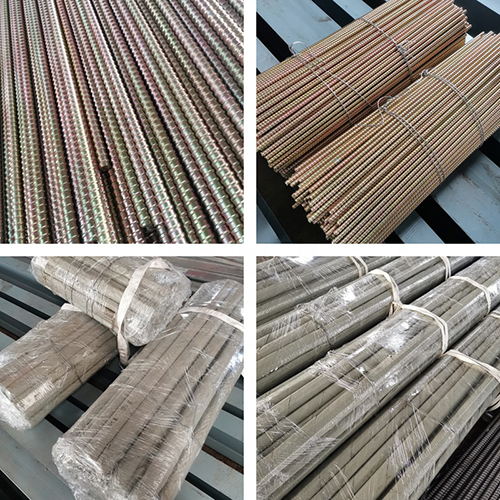

Tie Rod packing.jpg

Tie Nut

Diameter: D12, D15, D20

Material: Casted Iron, Forged Steel

Weight: 300g, 500g, 650g and etc.

Breaking Load: 180Kn, 200Kn

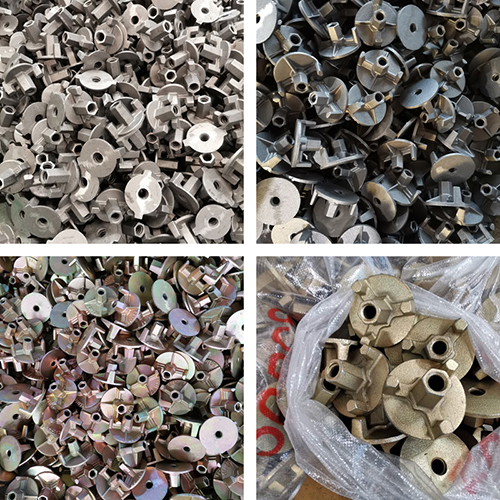

tie nut.jpg

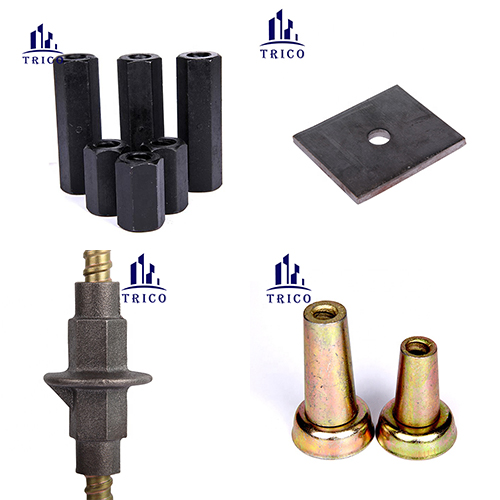

Other Accessories
