Light Duty Steel Frame Formwork Wall/Column Formwork System for
Concrete Construction

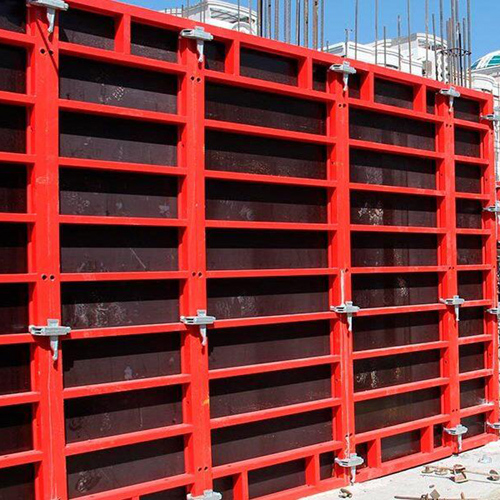

Trico light steel frame plywood formwork used in the formwork is 15mm thick high-quality plywood, which has the
characteristics of high elastic modulus, small elasticity and good load-bearing capacity. The steel frame and the panel
are connected by screws from the front. After the concrete is poured, the overall forming effect is better.
Material | Steel,plywood |
Feature | Reusable, high strength, adjustable size |
Place of Origin | Hebei,China |
Warranty | 1 Year |
Brand Name | TRICO |
Model Number | GT90 GT63 |
Color | Red, green, blue or customized |
Type of Steel | Q345B |
Thickness of Plywood | 15 mm 12mm |
Width | 300-2400 mm |
Height | 300-3000 mm |
Maximum Lateral Pressure to be Born for Column | 80 KN/meter |
Maximum Lateral Pressure to be Born for Wall | 60KN/meter |
Application |

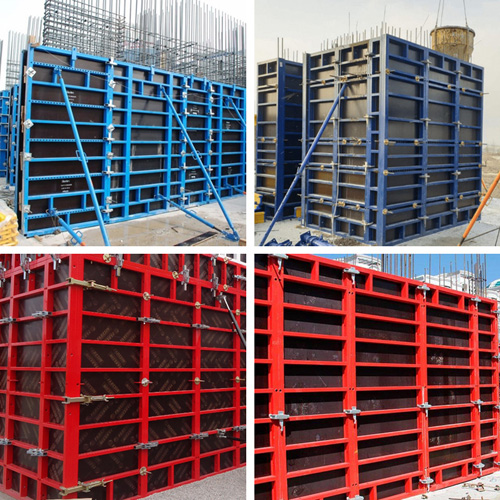

Wall template specifications | |
Height H (mm) | Width W (mm) |
1200 | 300/450/600/750/900 |
1500 | 300/450/600/750/900 |
2700 | 300/450/600/750/900 |
3000 | 300/450/600/750/900 |

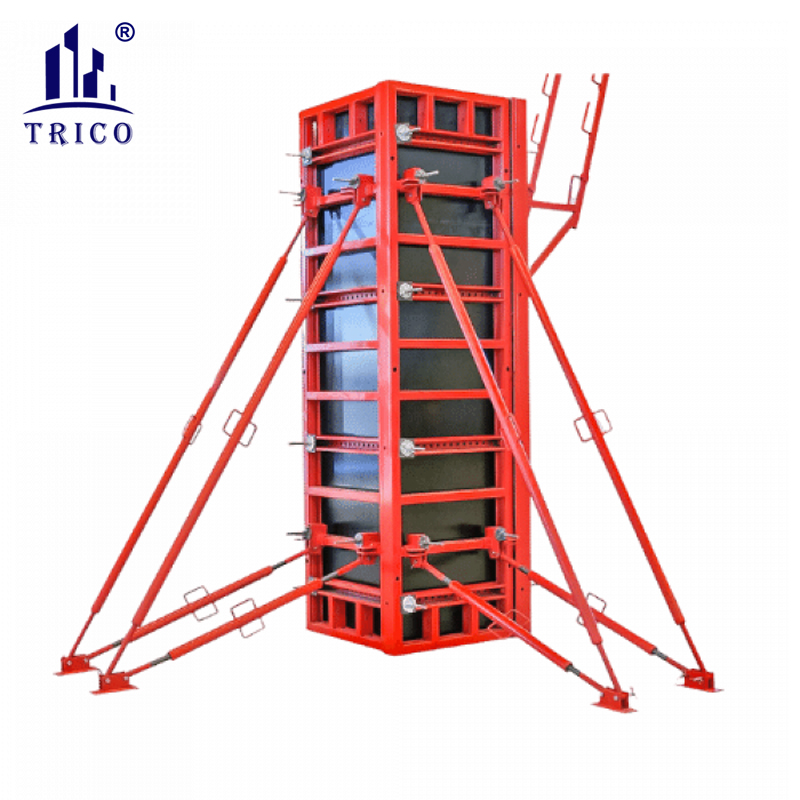

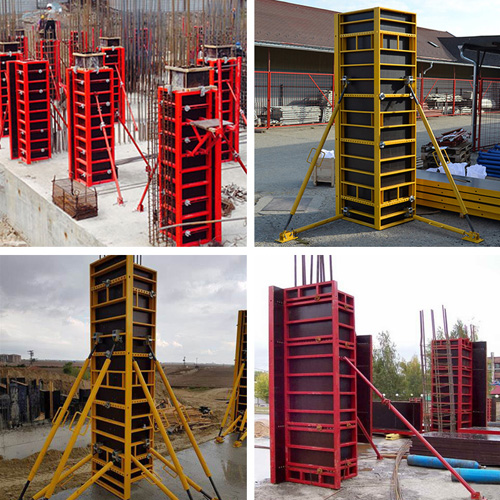

 | 750/1050 column formwork specifications | |
750 series | 1050 series | |
HxW (mmxmm) | ||
300x900 | 300x1200 | |
600x900 | 600x1200 | |
1200x900 | 1200x1200 | |
3000x900 | 3000x1200 | |
Product Advantages:
1. High degree of standardization and flexible assembly. The method of assembling and clamping wooden squares can be used to meet the needs of non-standard sizes.
2. The hollow section steel has high strength and reasonable stress. The steel frame plywood wall formwork can withstand the side pressure of 60KN/square meter.
3. Using standard fixtures, the template assembly is convenient and fast, and the clamping is fast.
4. The panel can choose domestic plywood or plastic panel with better stress, and there are various choices.
5. The template product system is complete, and the matching accessories are complete. They can be combined arbitrarily according to the needs of the project, and the layout of the plan is flexible and convenient.
