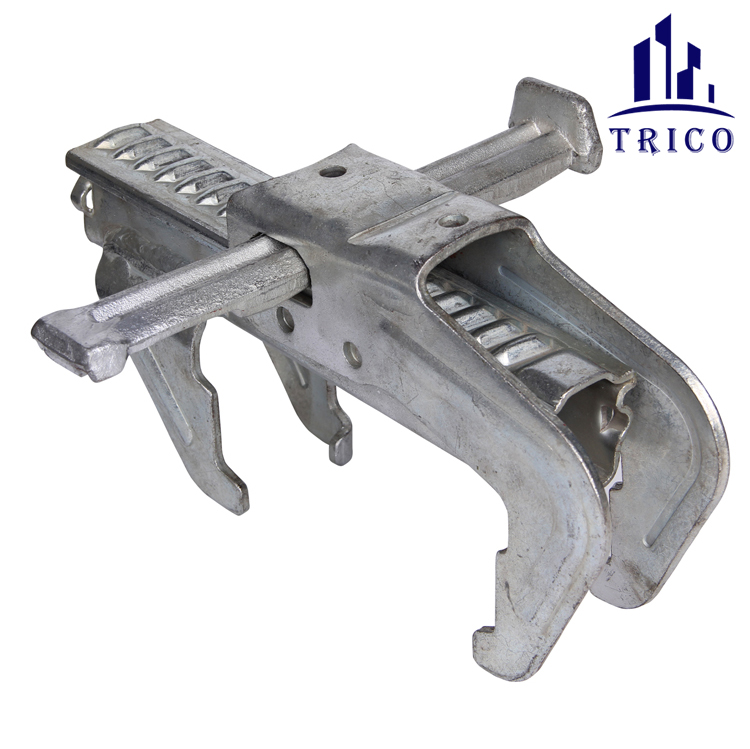

Peri formwork clamp Trio formwork lock alignment coupler BFD clamp

Apr. 25, 2023

The BFD alignment clamp ensures neat panel joints resulting in perfect concrete finishes.

With only one component, every panel connection is flush, aligned, and tight.

The BFD clamp guarantees strong joints and fast assembly of the panels.

This is the main component used to join formwork panels. With one single strike of the hammer, it can be used to make panel connections tight joints, no any concrete leak.

The BFD ensures a flexurally stiff connection of panels and allows large units to be moved.


Pressed Formwork Clamp
PictureSizeWeightMaterialFeature

Surface

Treatment

Packaging

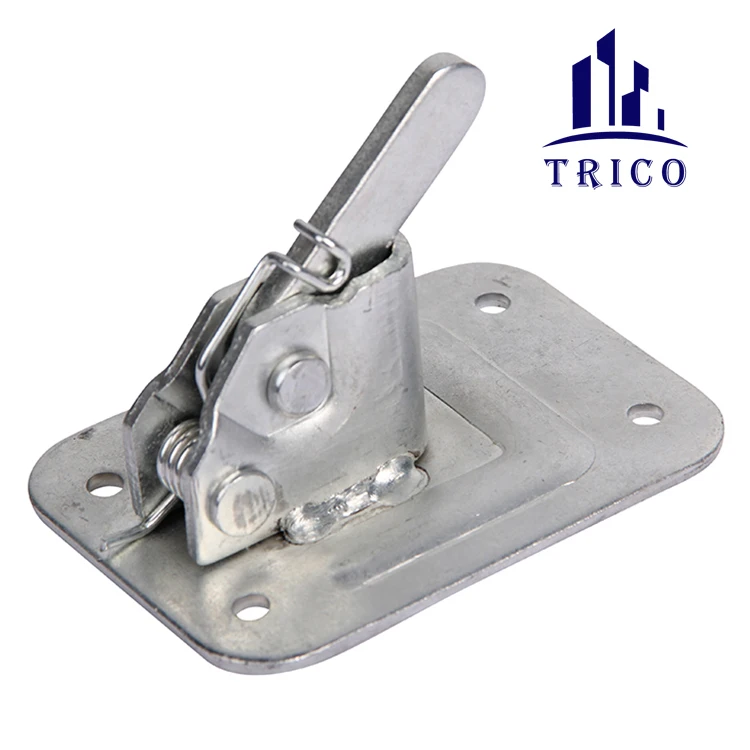

Peri formwork clamp Trio compatible concrete wall formwork lock alignment coupler BFD clamp69*105*3mm310gCarbon Steel Teeth with Heat Treatment

Painted/

Galvanized

1.Woven Bag+Ton Bag

2.Woven Bag+Pallet

3.Carton+Pallet

75*110*3.75mm420g
75*110*4mm450g
Other Sizes are Available

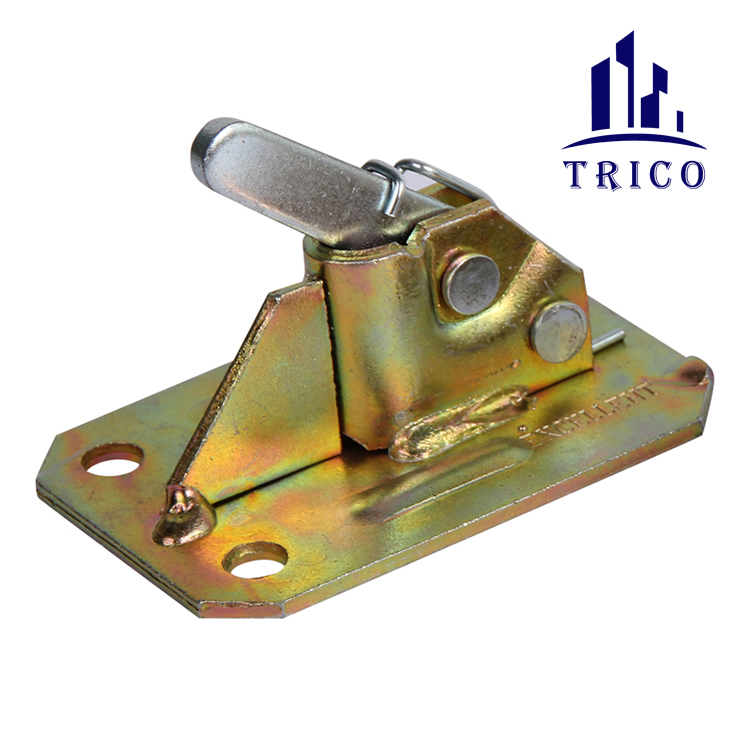

Peri formwork clamp Trio compatible concrete wall formwork lock alignment coupler BFD clamp70*105*3mm380gCarbon Steel Teeth with Heat Treatment

Painted/

Galvanized

1.Woven Bag+ Ton Bag

2.Woven Bag+Pallet

3.Carton+Pallet

75*110*3.75mm410g
Other Sizes are Available
Peri formwork clamp Trio compatible concrete wall formwork lock alignment coupler BFD clamp/2.9kgsCarbon SteelTeeth with Heat TreatmentGalvanizedCarton+Pallet
Peri formwork clamp Trio compatible concrete wall formwork lock alignment coupler BFD clamp/3.2kgsCarbon SteelTeeth with Heat TreatmentGalvanizedCarton+Pallet

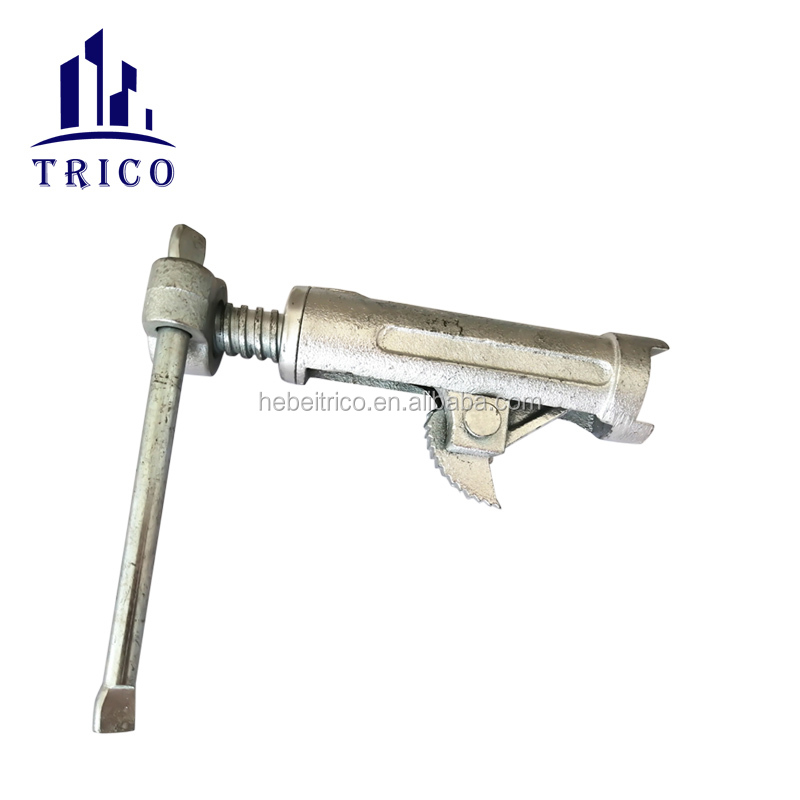

Peri formwork clamp Trio compatible concrete wall formwork lock alignment coupler BFD clamp

Adjusted Range

30-260mm

4.2kgsCarbon Steel /Galvanized

1.Ton Bag

2.Wooden Box

Other Formwork Clamps

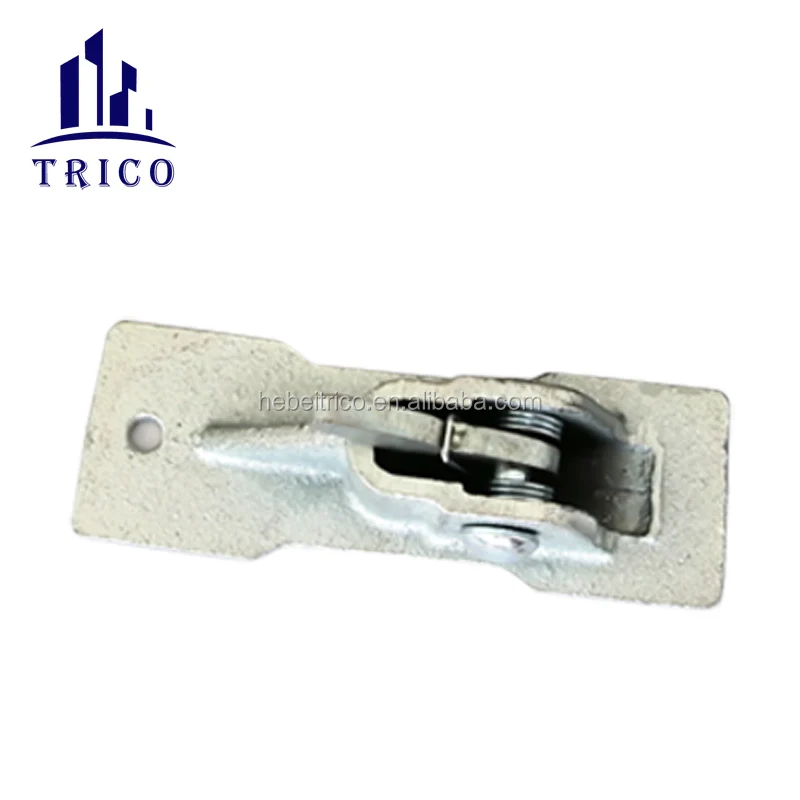

Peri formwork clamp Trio compatible concrete wall formwork lock alignment coupler BFD clamp102*43mm400gDuctile IronWedge with Heat TreatmentGalvanized

1.Woven Bag+Ton Bag

2.Woven Bag+Pallet

3.Wooden Box

114*50mm500g
Peri formwork clamp Trio compatible concrete wall formwork lock alignment coupler BFD clamp 115*50mm 380gDuctile Iron  /  Galvanized

1.Woven Bag+Ton Bag

2.Woven Bag+Pallet

3.Wooden Box

 144*49mm 410g
 Peri formwork clamp Trio compatible concrete wall formwork lock alignment coupler BFD clamp / 2.85kgsDuctile Iron / Galvanized

 1.Woven Bag+Ton Bag

2.Wooden Box

Peri formwork clamp Trio compatible concrete wall formwork lock alignment coupler BFD clamp/1.4kgs

Ductile

Iron

/

Galvanized

(Yellow/Silver)

1.Woven Bag+Ton Bag

2.Woven Bag+Pallet

3.Wooden Box
