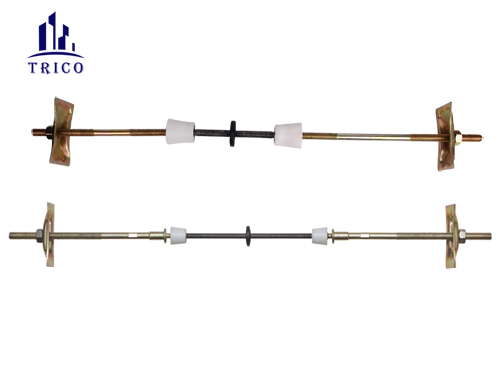

Form Tie System is designed to protect breakage of formwork, to maintain accurate form spacing and to ensure the dimensional accuracy of the conceret structure. It is widely used in the construction industry. Besides the ease of assemly and removal, the form tie system saves construction costs as all parts are reusable except for the separator(Inner Unit) which is casted into the wall.
There are 4 types of Form Tie System：B Type, C Type, BC Type and D Type.
Every form tie complete set require different accessories, like form tie, inner unit, plastic cone, washers, hex nuts, etc.

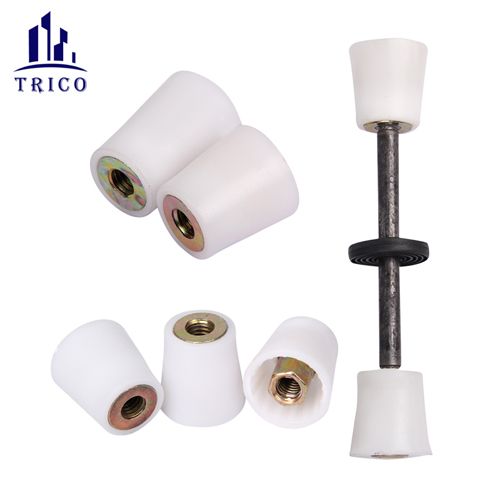

Plastic B Cone/Polycone is one part of the Form Tie B Type and BC Type. It has different lengths for different panels. We have sizes in 50mm(B9*12), 55mm(B9*16),65mm(B9*24), etc.

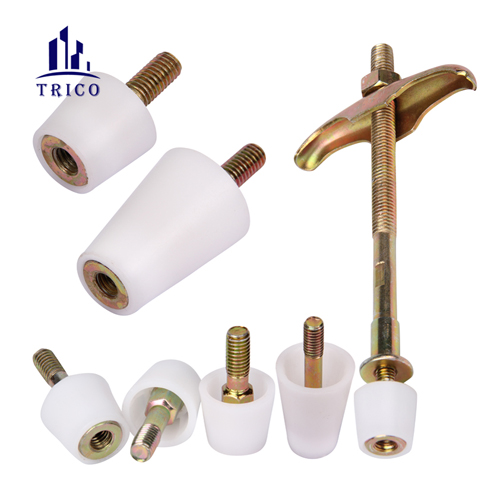

Plastic D Cone is one part of the Form Tie D Type. It is for Wooden panel.
How to order
For Form Tie B and D: Please mention size of Form Tie which is the thickness of wale and stud pus 2 inches. Specify W5/16 or W3/8 in accordance with inner unit dia.(Ex. Form Tie 250mm, W3/8)
For Inner Unit: Please specify B, C,BC or D and wall thickness(Ex. Inner Unit D 250mm(wall thickness))
For Plastic B Cone: Please specify concrete panel thickness and inner unit diameter.
For Plastic D Cone: Just let us know you want D cone 40mm or 50mm.
