Galvanized Scaffolding Prop Sleeve With Cast Jack Nut
Scaffolding prop sleeve screw threaded as adjustable components of scaffoldng jack and formwork props, Slot on the screw threaded sleeve are worked with G pins in prop height fixing. The prop nut is in cast and galvanized with handle. Cast prop jack nut is in OD60mm inner threaded screw,the inner threaded are machinery made.

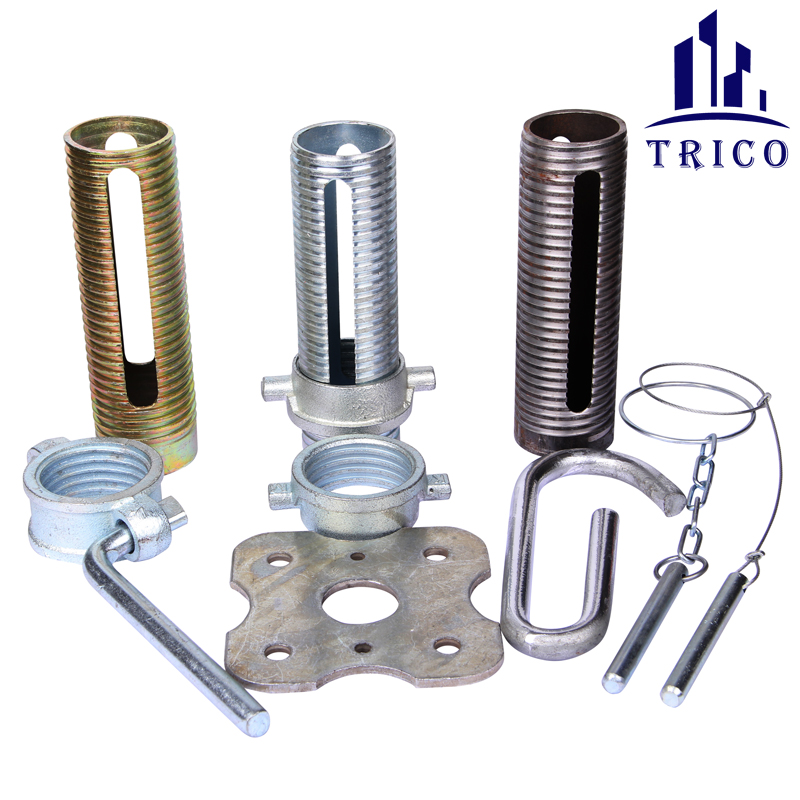

| Steel Prop Components | |||
| Picture | Commodity | Specification | Surface Treatment |
 | Prop Sleeve | Diameter:60mm, 76mm Length:195mm, 210mm, 250mm or As Demand Thickness: 2.75mm, 3.0mm, 3.25mm, 3.5mm | Self Color, Galvanized |

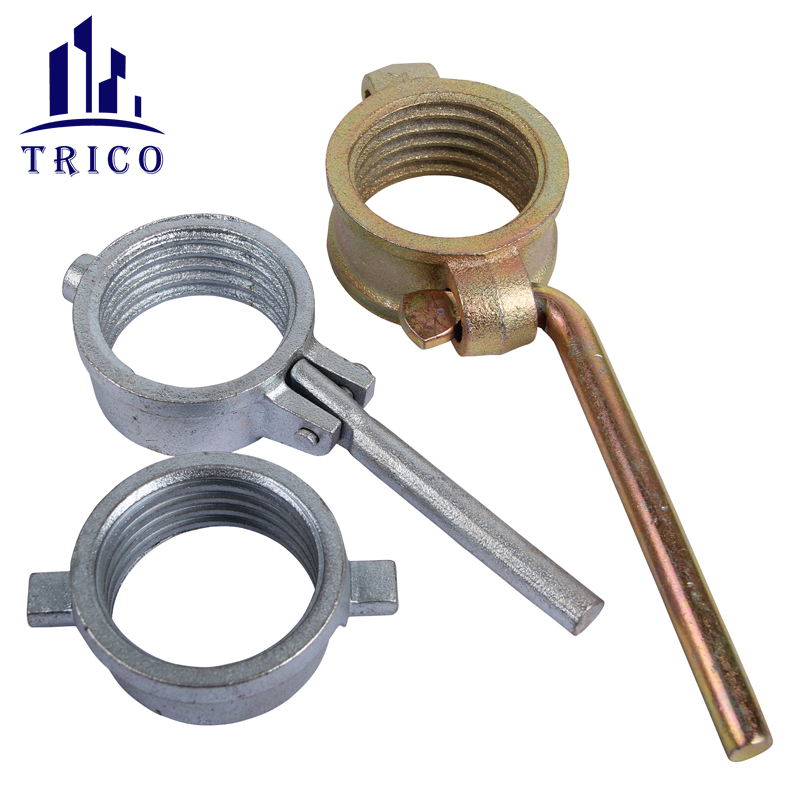

 | Prop Nut | Diameter: 60mm, 76mm Weight: 270g, 380g,450g, 620g, 1220g, etc. | Self Color, Galvanized |
 | Flat Base Plate | 120*120mm, 150*150mm, etc Other Sizes are Available | Self Color, Galvanized |
 | Flower Plate | ||
 | G Pin | Diameter: 11mm, 12mm, 16mm | Galvanized |
 | Wire Pin | Diameter: 11mm, 12mm Length: 95mm, 100mm,110mm Material: Q195, #45 Steel | Painted, Galvanized |
 | Chain Pin | ||
 | Fork Head | Weight: 2.0kgs, 2.2kgs, 2.7kgs | Painted, Galvanized |
 | Tripod | Weight: 5.5kgs | Painted, Galvanized |
Construction equipment concrete formwork threaded screw sleeve nut for adjustable props with inner threaded prop nut for slab form and beam formwork support.
