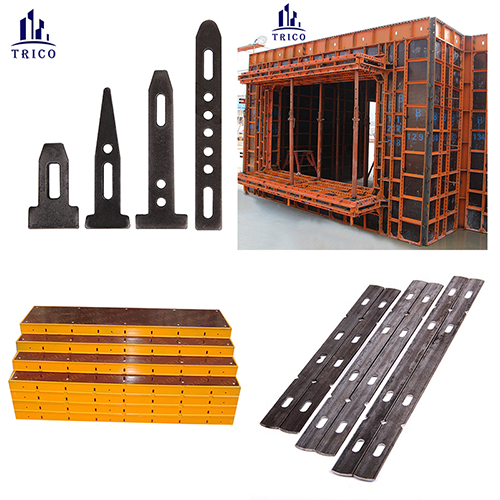

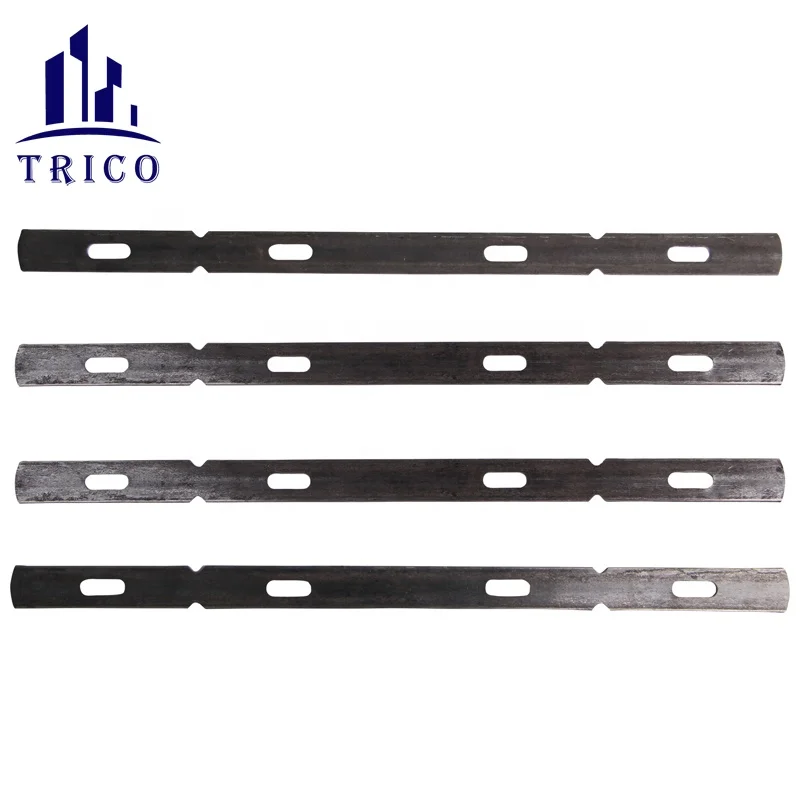

X-Flat Ties are designed for use in most steel ply modular forming systems utilizing wedge bolts to secure formwork. Normal sizes are available in 6” through 14” wall sizes. Other sizes are also can be done accordingly.
Formwork X-Flat Tie Forming System | ||||||
Photo | Size | Ultimate Load | Qty/Bundle | Qty/Pallet | Unit Weight | |
g | LBS | |||||
![]() | 4" | 6000LBS | 100pcs | 10000pcs | 103.97 | 0.2292 |
5" | 100pcs | 10000pcs | 111.90 | 0.2467 | ||
6" | 100pcs | 10000pcs | 119.81 | 0.2641 | ||
8" | 100pcs | 10000pcs | 141.21 | 0.3113 | ||
9" | 100pcs | 10000pcs | 151.91 | 0.3349 | ||
10" | 100pcs | 10000pcs | 162.61 | 0.3585 | ||
12" | 100pcs | 10000pcs | 184.01 | 0.4057 | ||
14" | 100pcs | 5000pcs | 205.41 | 0.4528 | ||
15" | 100pcs | 5000pcs | 216.11 | 0.4764 | ||
16" | 100pcs | 5000pcs | 226.81 | 0.5000 | ||
18" | 50pcs | 5000pcs | 248.21 | 0.5472 | ||
20" | 50pcs | 2500pcs | 269.61 | 0.5944 | ||
22" | 50pcs | 2500pcs | 291.01 | 0.6416 | ||
24" | 50pcs | 2500pcs | 312.42 | 0.6888 |

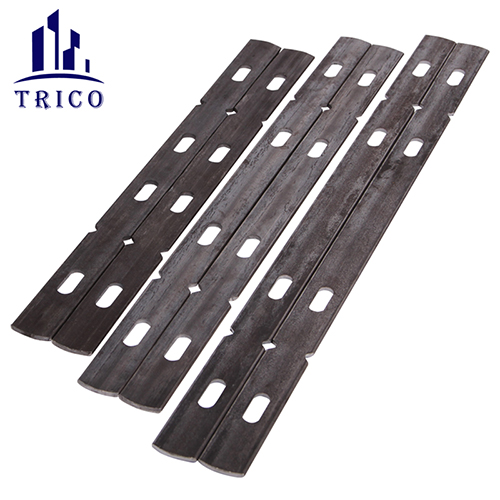

![Steel Ply Formwork Accessories X Flat Tie Steel Ply Formwork Accessories X Flat Tie](https://www.form-scaffs.com/data/upload/ueditor/20240712/6690a2ef5439c.jpg)

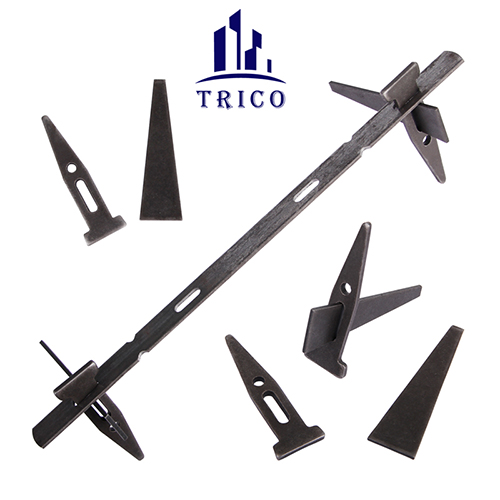

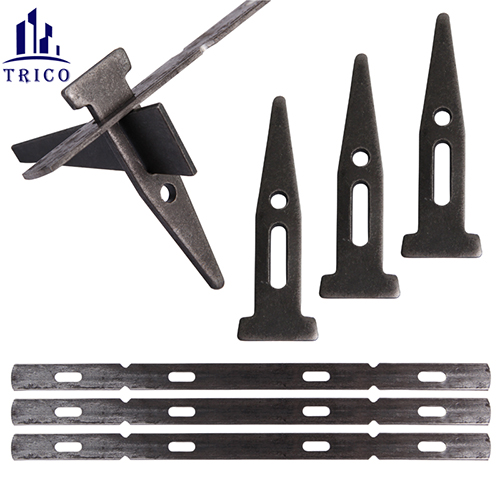

Wedge pins are used with flat tie to tighten adjoining concrete forms, securing the flat tie and concrete form in place. The full set of the Symons Formwork Accessories including the Wedge Bolt, Long Bolt, Short Bolt, X-Flat Tie, One Piece Waler Clamp, Z Tie Holders & Waler Tie, J-Strongback Hooks and Strongback Ties, Scaffold Brackets and Turnbuckles.

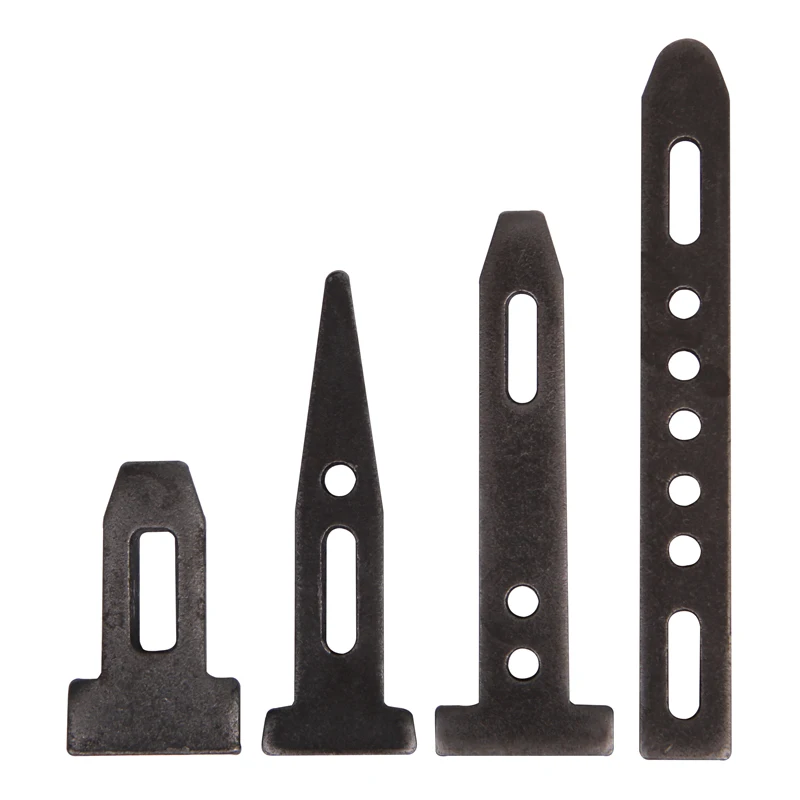

Wedge Bolt have Standard Wedge Bolt, Long Wedge Bolt and Adjustable Wedge Bolt.
Photo | Item | Weight | Material | Paking |
![]() | Short Wedge Bolt | 40g | 45# Steel | 250pcs/pail or 500pcs/pail |
Standard Wedge Bolt | 52g | |||
Long Wedge Bolt | 71g | |||
Adjust Wedge Bolt | 81g | |||
Both the X-Flat and Wedge Bolt can be OEM design |
