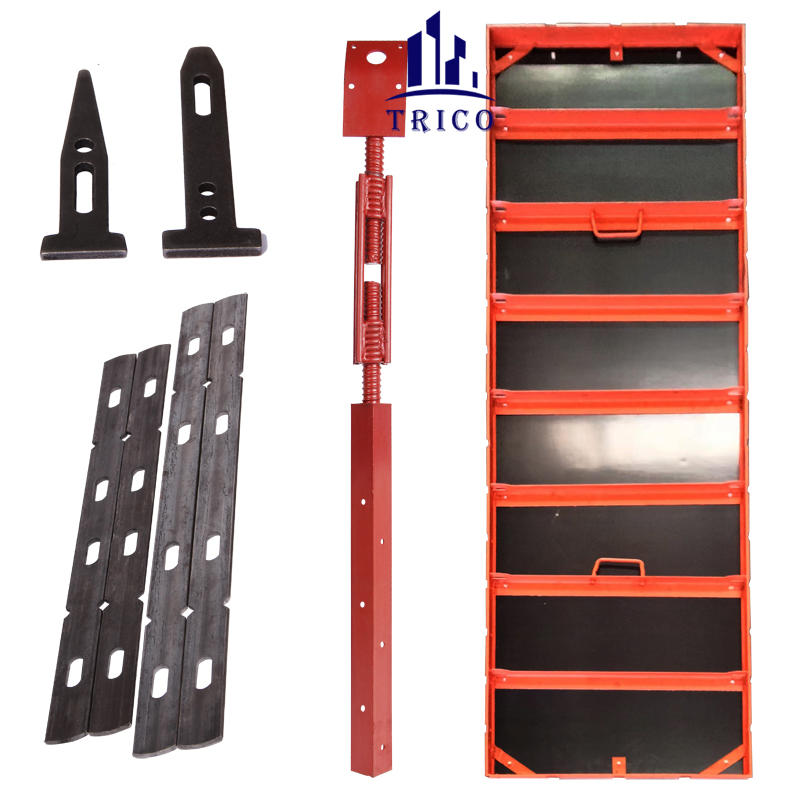

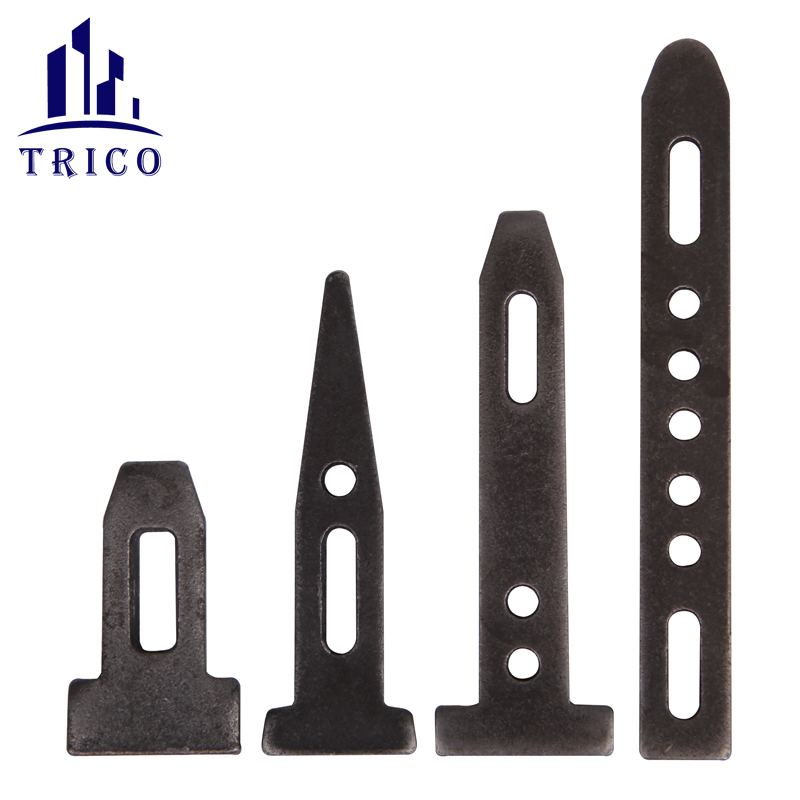

Wedge pins are used with a flat tie to tighten adjoining concrete forms, securing the flat tie and concrete form in place. The full set of the Symons Formwork Accessories including the Wedge Bolt, Long Bolt, Short Bolt, X-Flat Tie, Piece Waler Clamp, Z Tie Holders & Waler Tie, J-Strongback Hooks, and Strongback Ties, Scaffold Brackets and Turnbuckles.
The X Flat Tie is a steel accessory used in plywood formwork systems to maintain the spacing between formwork panels and provide stability during concrete pouring. Steel plywood forming accessories, such as the X Flat Tie, play a crucial role in the construction of concrete structures. These accessories are designed to ensure the stability, accuracy, and ease of use of concrete formwork systems.
X-flat tie video display: The actual steel X-flat tie shown in the video, you can see some details of the product. If you want to know more about the steel plywood molding accessory product, please contact us.
| Picture | Product Name | Wall Thickness | Weight (g) | Weight (LBS) | Ultimate Load | Packaging |
| X-FLAT TIE | 4" | 103.98 | 0.2292 | 6000LBS | 100pcs/carton； 10,000pcs/pallet |
| 5" | 111.9 | 0.2467 | ||||
| 6" | 119.81 | 0.2641 | ||||
| 8" | 141.21 | 0.3113 | ||||
| 9“ | 151.91 | 0.3349 | ||||
| 10” | 162.61 | 0.3585 | ||||
| 12“ | 184.01 | 0.4057 | ||||
| 14” | 205.41 | 0.4528 | 50pcs/bundle； 2,500pcs/pallet | |||
| 15“ | 216.11 | 0.4764 | ||||
| 16” | 226.81 | 0.5000 | ||||
| 18“ | 248.21 | 0.5472 | 50pcs/bundle； 2,500pcs/pallet | |||
| 20” | 269.61 | 0.5944 | ||||
| 22“ | 291.01 | 0.6416 | ||||
| 24” | 312.42 | 0.6888 | ||||
| ... | ... | ... | ... | |||
| 48“ | 569.22 | 1.2549 | 25pcs/bundle； 2,500pcs/pallet |
Accessories
| Picture | Product Name | Material | Weight | Surface Treatment | Packaging |
 | Standard Wedge Bolt | 45# Steel | 52g | heat treatment | 500pcs/pail then put on pallet |
 | Long Wedge Bolt | 71g | 250pcs/pail then put on pallet |
