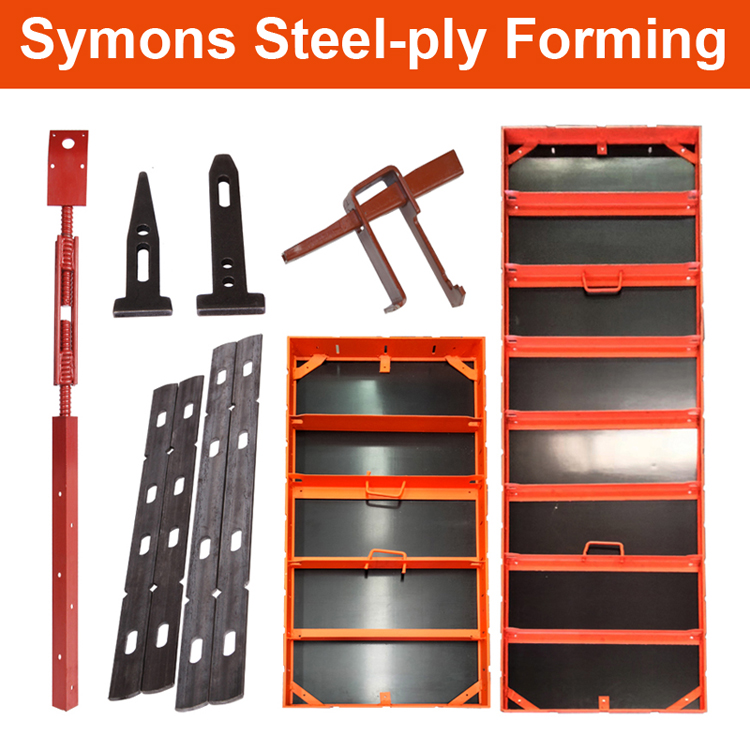

Steel Plywood Frame System Formwork with Plywood System for Construction
Steel-Ply is the most widely accepted, pre-engineered, modular formwork system in use today. It can be reused 200 times after timely replacement of plywood, and is compatible with all other industry standard formwork forming systems.It is designed for maximum versatility and can be used to form virtually any concrete structure.Steel-Ply specialty forms are used for Bulkhead Forming, Haunch Forming, Pilaster, Adjustable Pilaster Forms, and Culvert Forms.
| Steel Ply Forming System | |||||
| Product | Picture | Specification | Material | ||

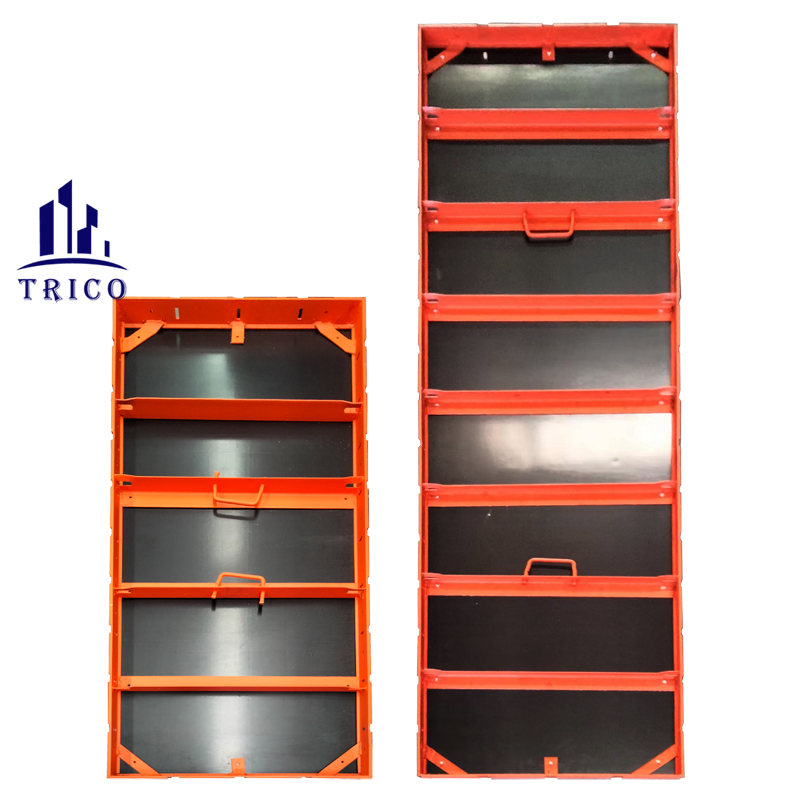

Symons Formwork |
| 8"x8' 10"x8' 12"x8' 14"x8' 16"x8' 18"x8' 20"x8' 22"x8' 24"x8' | 8"x6' 10"x6' 12"x6' 14"x6' 16"x6' 18"x6' 20"x6' 22"x6' 24"x6' | 8"x4' 10"x4' 12"x4' 14"x4' 16"x4' 18"x4' 20"x4' 22"x4' 24"x4' | 45# Steel |
| Other Size Available | |||||
| Steel Ply Forming System Accessories | ||||
| Product | Picture | Specification | Material | Feature |

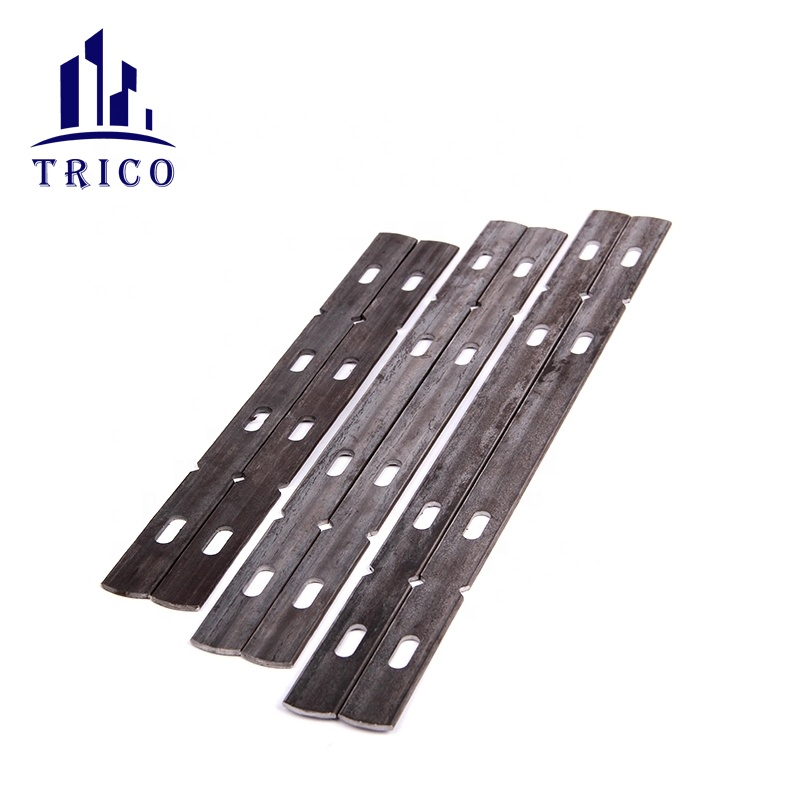

| X Flat Tie |  | Wall Tickness 6"-48" Other Sizes Support | Steel #45
| Ultimate Load 6000lbs |

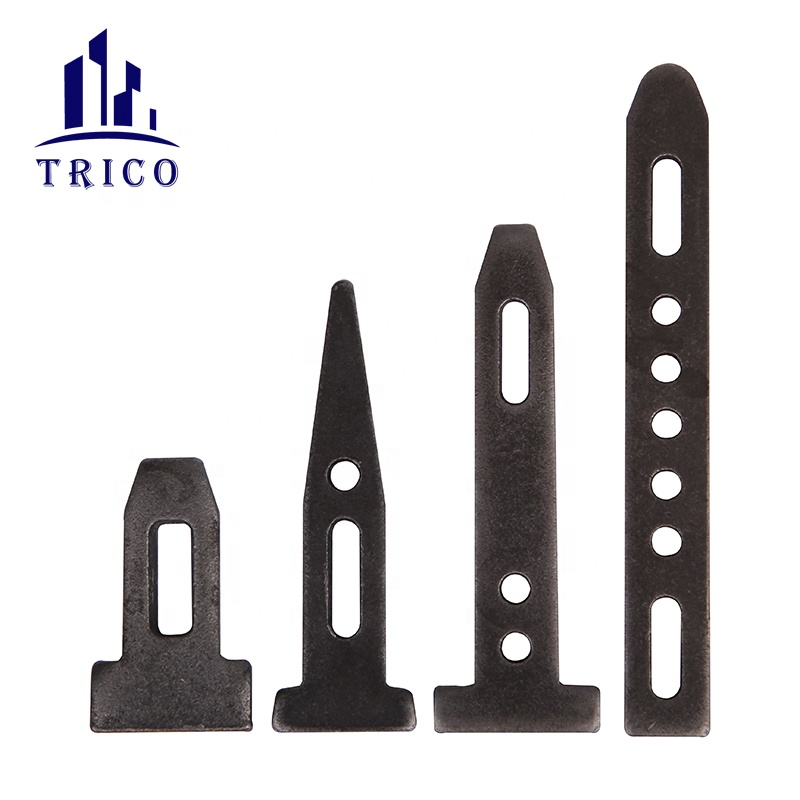

| Wedge Bolt |  | Short Wedge Bolt | Steel #45 | Heat Treatment |
| Standard Wedge Bolt | ||||
| Long Wedge Bolt | ||||
| ADJ Wedge Bolt | ||||

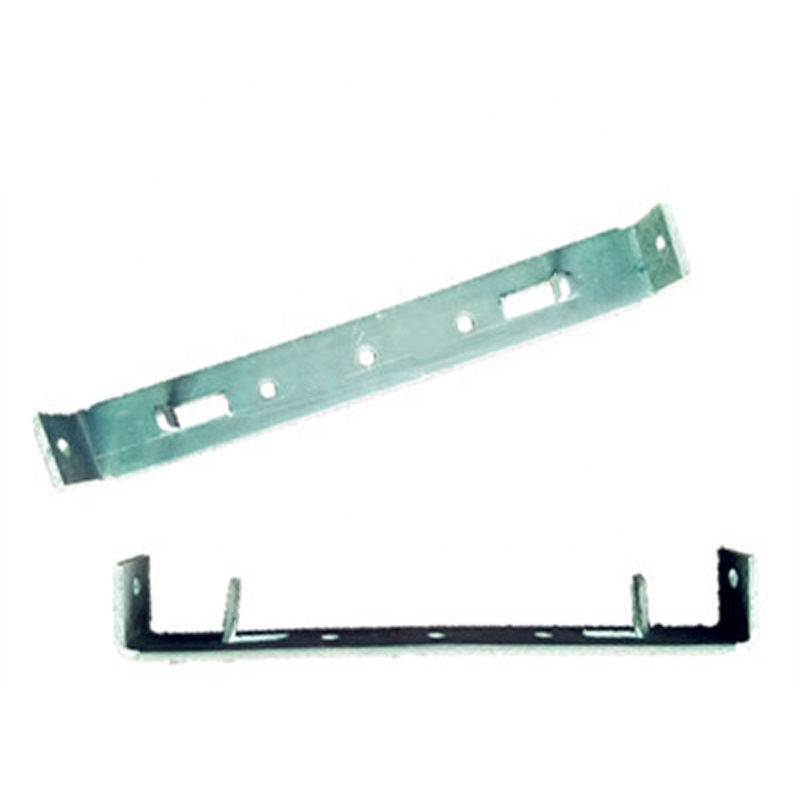

| Ply Spacer |  | 3/4", 1-1/8" 6-12" | Carbon Steel | High Quality |

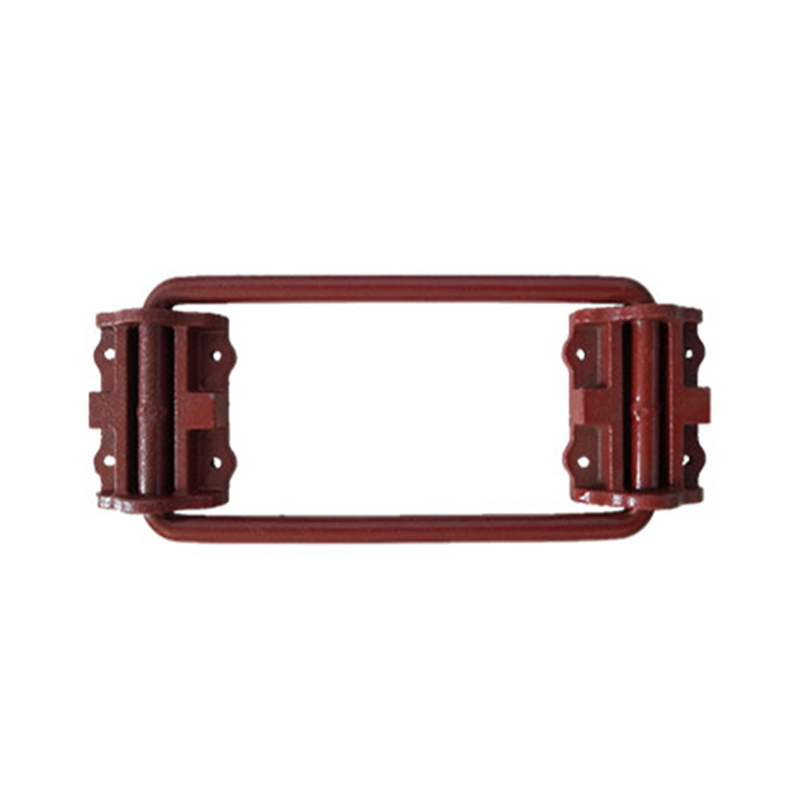

| Shore Clamp |  | 4*4, Painted | Carbon Steel | High Quality |

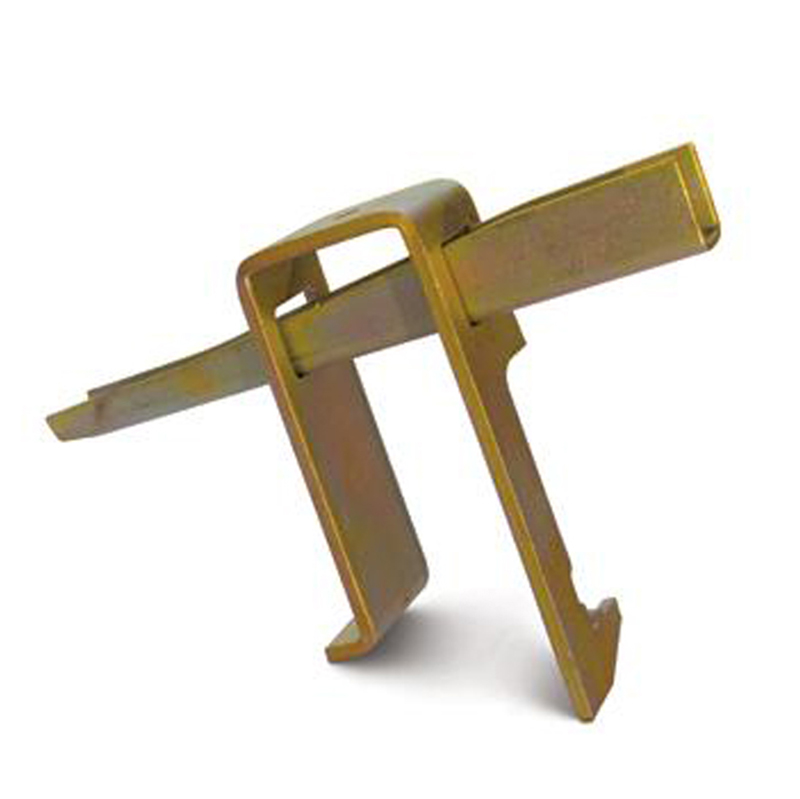

| One Piece Waler Clamp |  | 837g, Galvanized | Carbon Steel | High Quality |

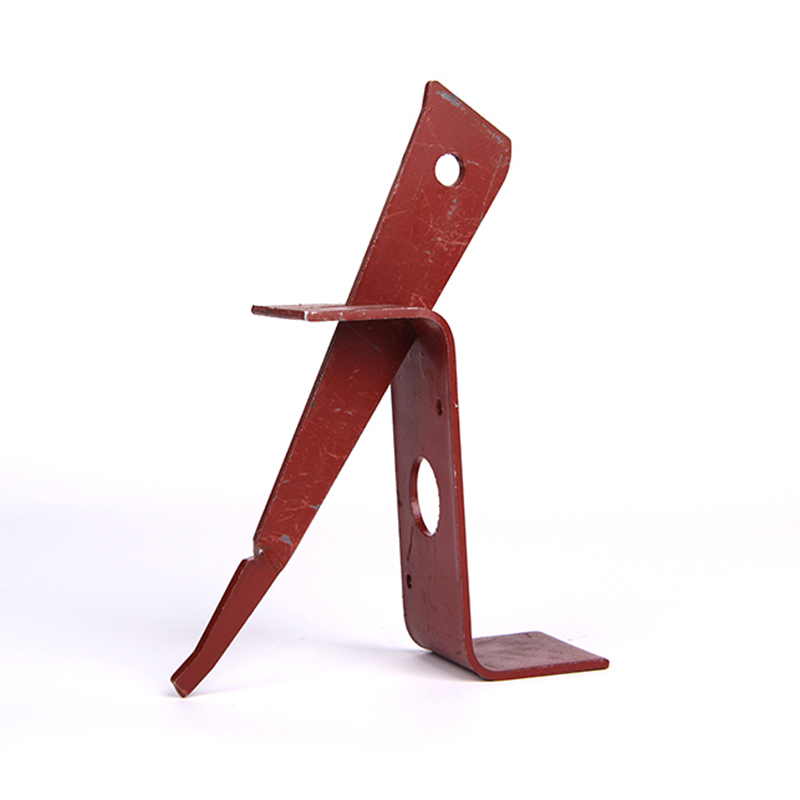

| Z Tie Holder |  | 325g, Red Painted | Carbon Steel | High Quality |

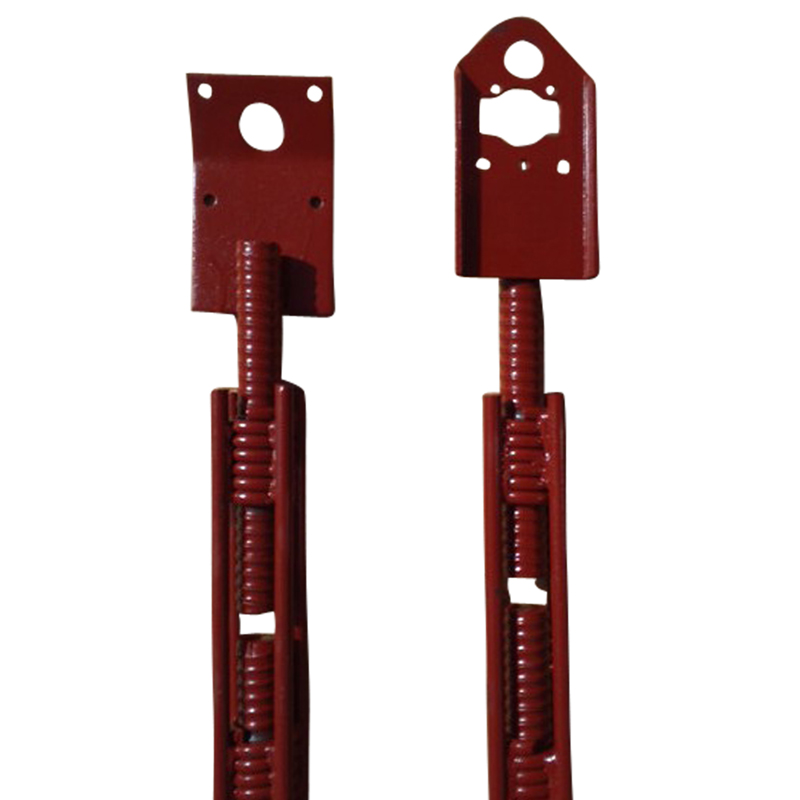

| Turnbuckle Aligner |  | 1.Standard Type /Heavy Duty Type 2. Bend Head/Flat Head
| Carbon Steel | Steel Angel /Four Steel Bar |
