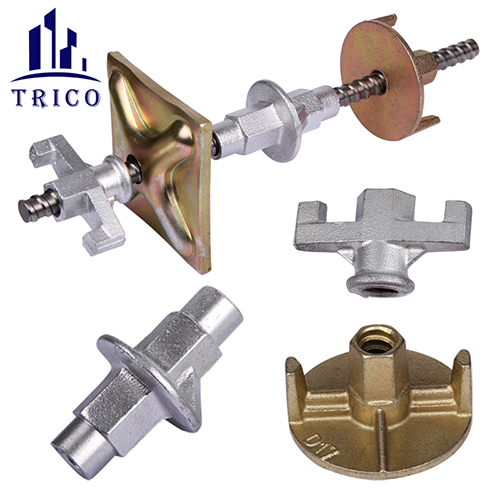

The Formwork Tie Rod system components include the Tie Rod, Wing Nut, Tie Nut, Anchor Nut, Water Barrier/Water Stop, Washer Plate/Waller Plate, Steel Cone, Plastic Tube and Cone and some European countries also asked for the Flupp Plug ( Rubber Stop).Wing nuts and Tie rods as a whole facility are used widely in formwork construction.

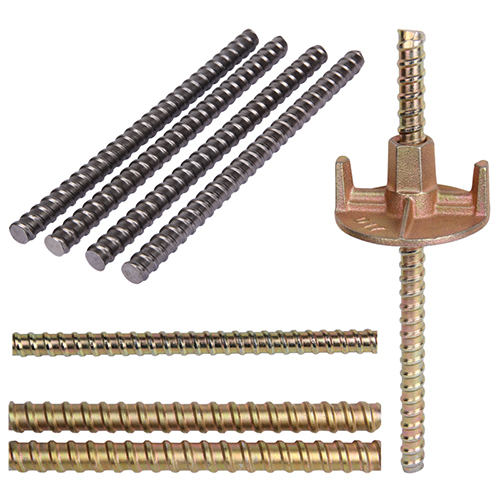

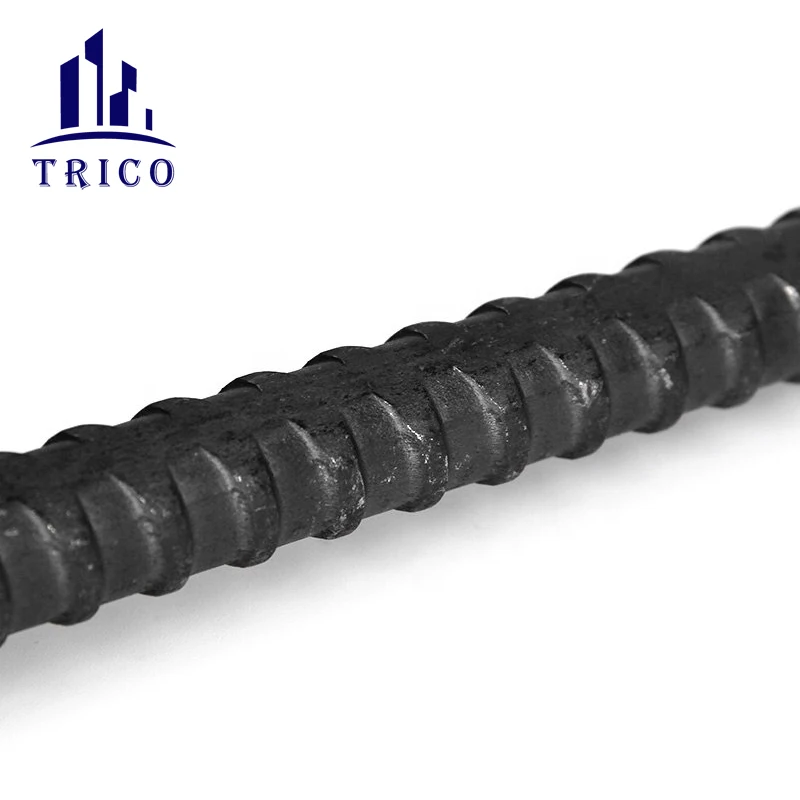

Formwork Steel Tie Rod/Tie Bar/Threaded Bar | |||||
Picture | Diameter | Length | Material | Breaking Load | Packaging |
D12*4.23mm | 1m 3m 5.8m Others Support | Q235 | 30KN | Bundle Others Support | |
D17*6.35mm D17*10mm D20*10mm | 1m 3m 5.8m Others Support | Q235 | 110KN | Bundle Others Support | |
Steel #45 | 140KN | ||||
D17*10mm | 1m 3m 5.8m Others Support | PSB830 | 180KN 195KN | Bundle Others Support | |
Surface Treatment | Black or Galvanized Support | ||||

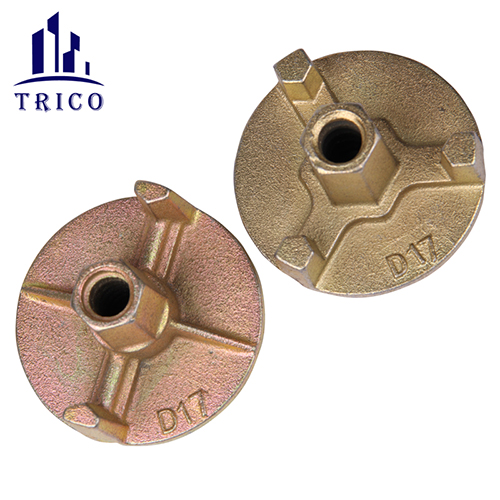

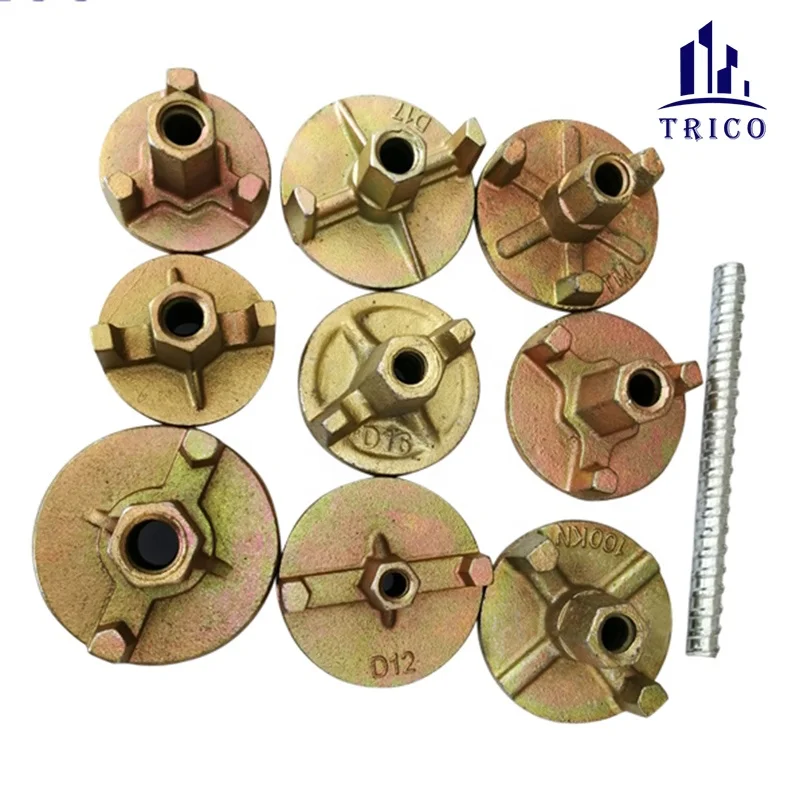

Formwork Tie Nut/Wing Nut/Anchor Nut | |||||
Picture | Size | Weight | Material | Breaking Load | Packaging |
D12*4.23mm | 0.18kg 0.2kg | Ductile Iron | 30KN | Bag Carton Wooden Box | |
D12*4.23mm | 0.125kg | Ductile Iron | 30KN | Bag Carton Wooden Box | |
D17*10mm | 0.3kg 0.35kg | Ductile Iron | 180KN | ||
D20*10mm | 0.62kg | Ductile iron | 180KN | ||
D12*4.23mm | 0.44kg | Ductile Iron | 30KN | Bag Carton Wooden Box | |
D17*10mm | 0.35kg 0.50kg 0.53kg 0.60kg | 180KN | |||
D20*10mm | 0.8kg 1.2kg | ||||
D17*10mm | 1.1kg 1.3kg | Ductile Iron | Over 180KN | Bag Carton Wooden Box | |

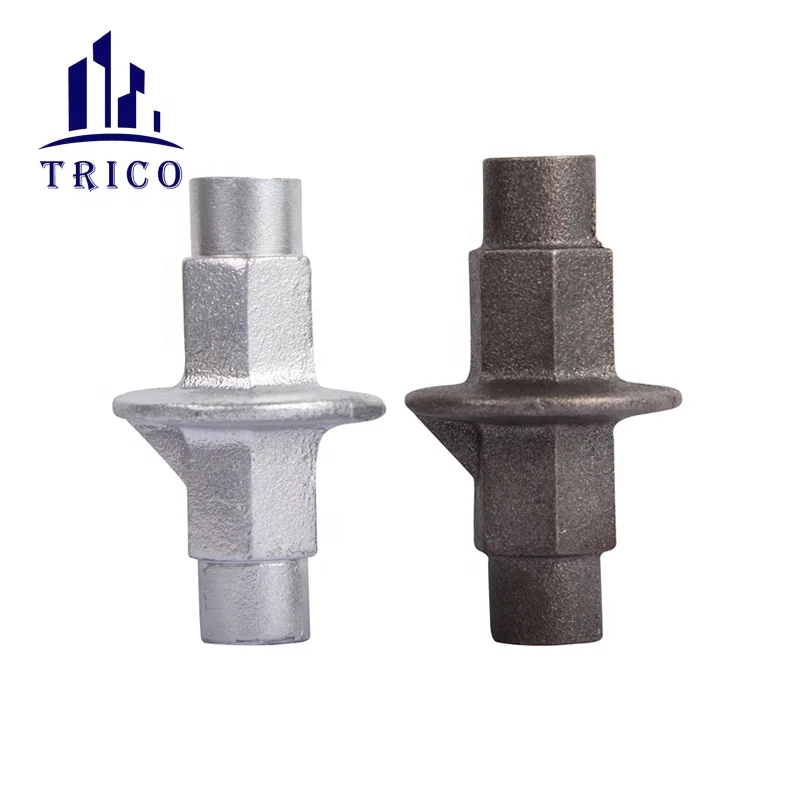

Water Stopper / Water Barrier Nut | |||||
D17*10mm | 0.44kg 0.5kg | Ductile Iron | 180KN | Bag Carton Wooden Box | |
D20*10mm | 0.9kg 1.2kg | ||||

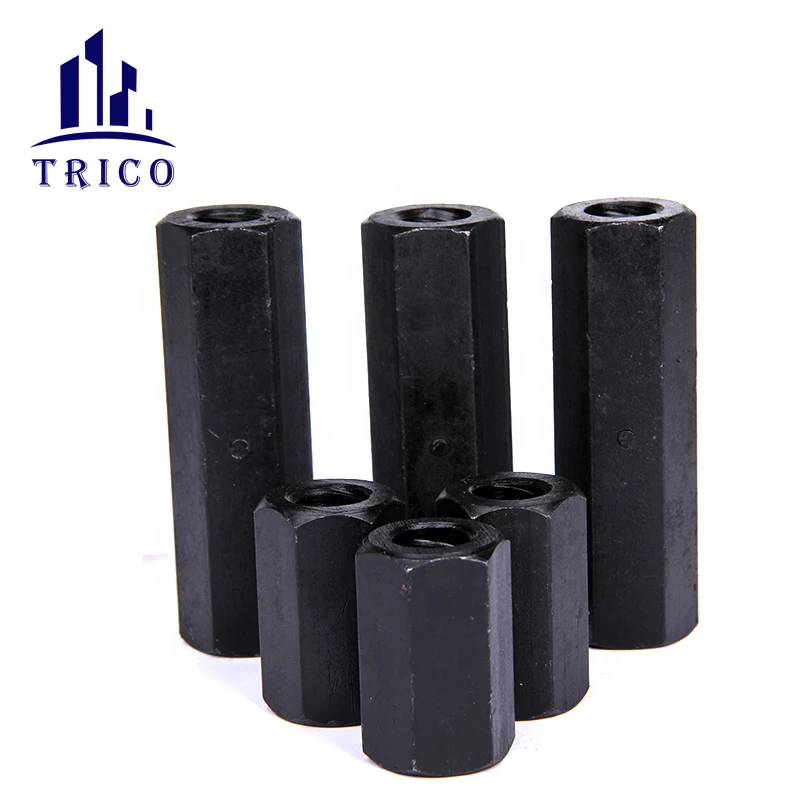

Hex Nut / Hex Coupler/Connection Nut | |||||
D17*10mm | L50--0.18kg L100--0.38kg L105--0.43kg | Ductile Iron | 180KN | Bag Carton Wooden Box | |
D17*10mm D20*10mm | 30mm 50mm 100mm 105mm 110mm | Carbon Steel | 180KN | Bag Carton Wooden Box |

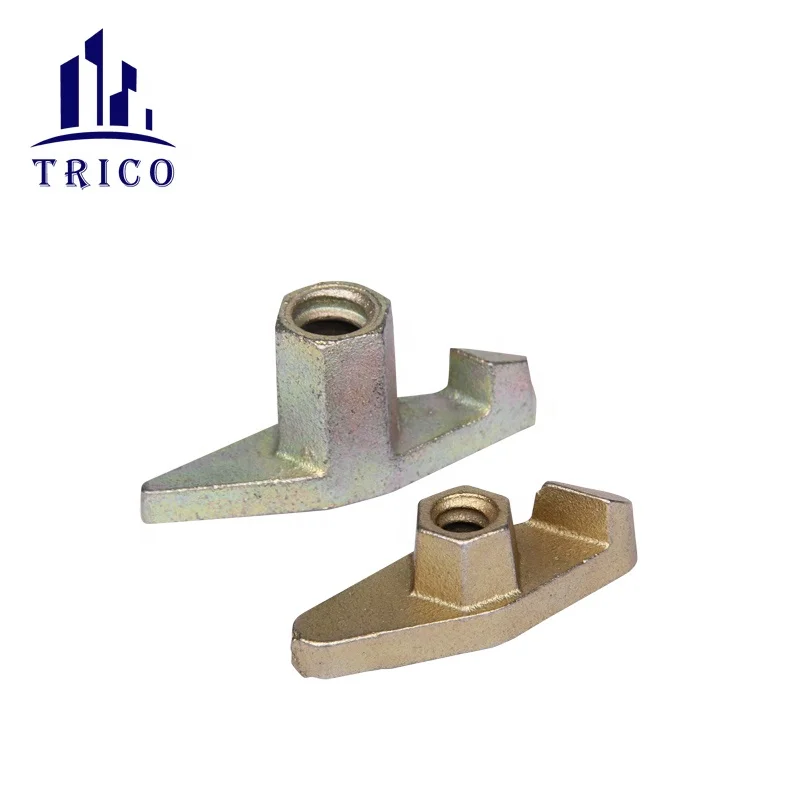

Tie Nut: There are single wing nut, butterfly wing nut, two anchor wing nut, three anchor wing nut,combination wing Nut. Because of this structure, wing nuts can be easily tightened and loosened by hand without any tools. Wing nuts have casting and forging types by processing technology , common thread size is 17mm/20mm.

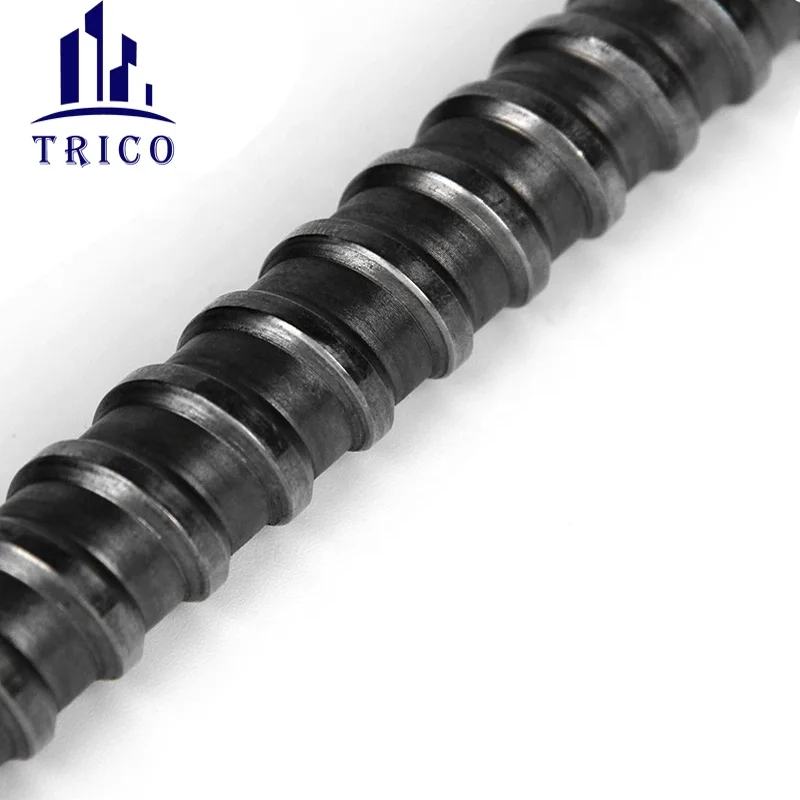

Tie Rod: The Material of Tie Rod usually use Q235 carbon steel, 45# steel, surface finished as galvanized, zinc-plated and natural color. The working load from 40kn to 70kn. And we also offer Hot Rolled Tie Bar, which with the breaking load of 180kn.

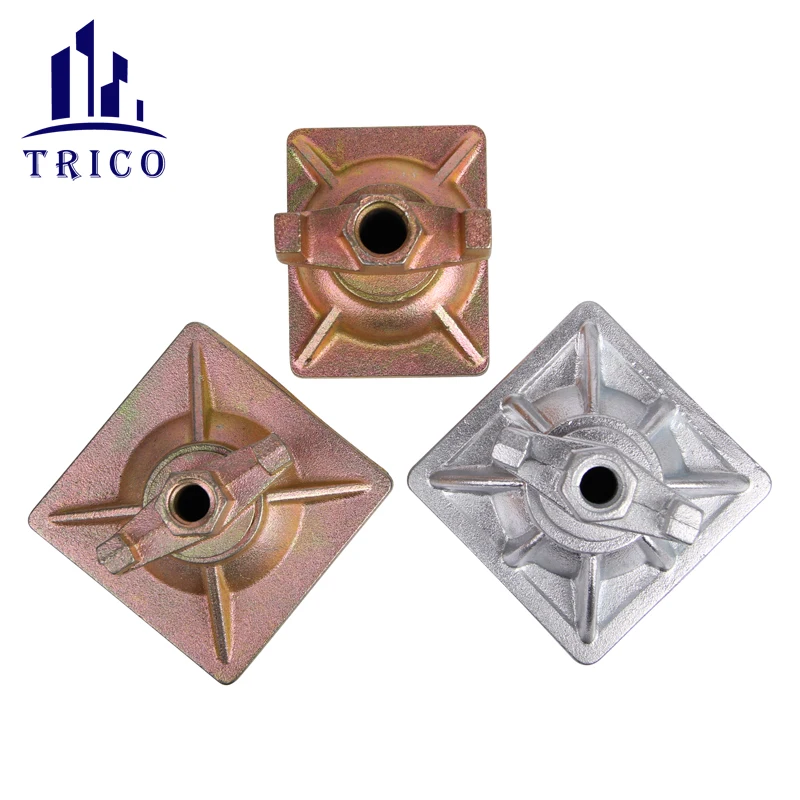

Washer Plate: normally we offer 120x120x10mm, 120x120x8mm, 120x110x10mm, 100x100x10mm and other sizes can be made accordind to demand.
