Components for Ringlock Scaffolding:Standards/vertical/upright/Ledger/Horizontal/Runner Truss Ledger / Double Ledger/Diagonal / Bay braces/Clamp Brace/Lattice Girder/Steel Plank/Side Bracket/Stair/Ladder & Bracket/Mid-Transoms/Screwjack/ Base Jack
Steel Ringlock Scaffold System
Ladger | Model | Specification | Material | Unit Weight |
A-LG-250 | Φ60*3.2*250 | Q335B | 2.65 | |
A-LG-500 | Φ60*3.2*500 | Q335B | 3.75 | |
A-LG-1000 | Φ60*3.2*1000 | Q335B | 6.65 | |
A-LG-1500 | Φ60*3.2*1500 | Q335B | 9.6 | |
A-LG-2000 | Φ60*3.2*2000 | Q335B | 12.5 | |
A-LG-2500 | Φ60*3.2*2500 | Q335B | 15.5 | |
B-LG-250 | Φ48*3.2*250 | Q335B | 1.89 | |
B-LG-500 | Φ48*3.2*500 | Q335B | 2.95 | |
B-LG-1000 | Φ48*3.2*1000 | Q335B | 5.3 | |
B-LG-1500 | Φ48*3.2*1500 | Q335B | 7.64 | |
B-LG-2000 | Φ48*3.2*2000 | Q335B | 9.9 | |
B-LG-2500 | Φ48*3.2*2500 | Q335B | 12.3 | |
Standard
| Model | Specification | Material | Unit Weight |
A-SG-300 | Φ48*2.75*240 | Q335B | 1.44 | |
A-SG-600 | Φ48*2.75*540 | Q335B | 2.48 | |
A-SG-1000 | Φ48*2.75*840 | Q335B | 3.37 | |
A-SG-1200 | Φ48*2.75*1140 | Q335B | 4.39 | |
A-SG-1500 | Φ48*2.75*1440 | Q335B | 5.25 | |
A-SG-1800 | Φ48*2.75*1740 | Q335B | 6.3 | |
Diagonal Brace | Model | Specification | Material | Unit Weight |
B-XG-300*1500 | Φ42*2.75*1606 | Q195 | 5.36 | |
B-XG-900*1500 | Φ42*2.75*1710 | Q195 | 5.64 | |
B-XG-1200*1500 | Φ42*2.75*1859 | Q195 | 6.03 | |
B-XG-1500*1500 | Φ42*2.75*2042 | Q195 | 6.5 | |
B-XG-1800*1500 | Φ42*2.75*2618 | Q195 | 7.21 |

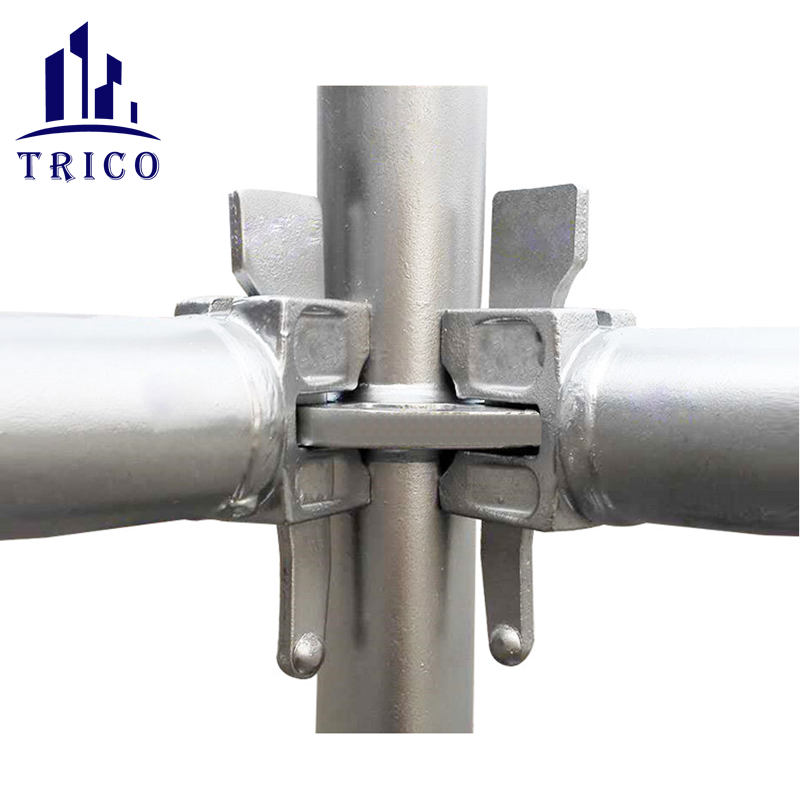

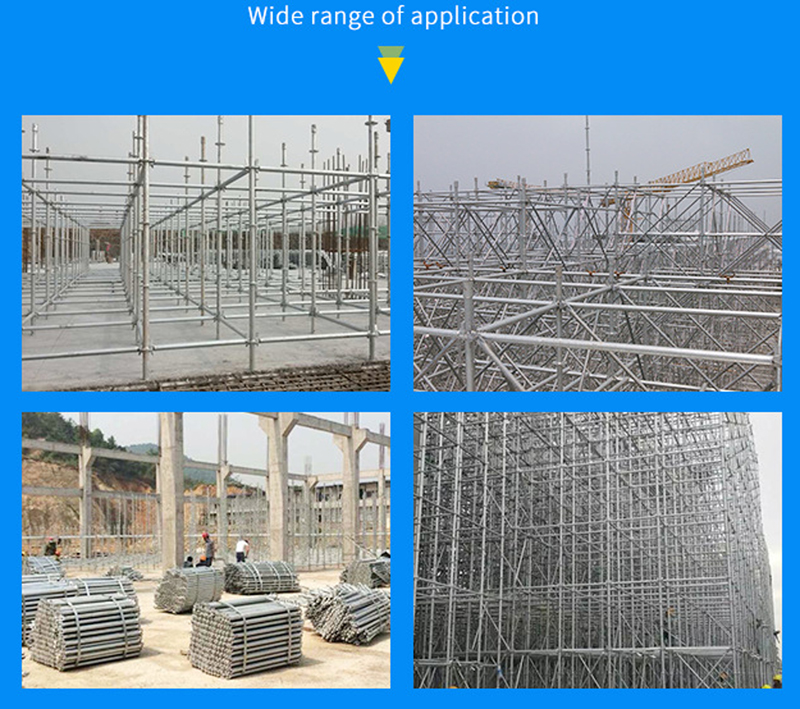

Ringlock scaffolding is a multi-purpose modular scaffold system that can be used for all forms of access and support structures in the building and construction industries, shipbuilding, off-shore construction, and industrial maintenance. And scaffolding consists of galvanized high strength steel modular components that are assembled together using integral wedge connectors. We can also supply a complete range of accessories, including steel planks, side brackets, system toe boards, stairs, ladders, and reinforced ledgers.
As all components are galvanized and built for increased safety, service life, and resistance to damage, they are perfect for all types of applications and industries.
