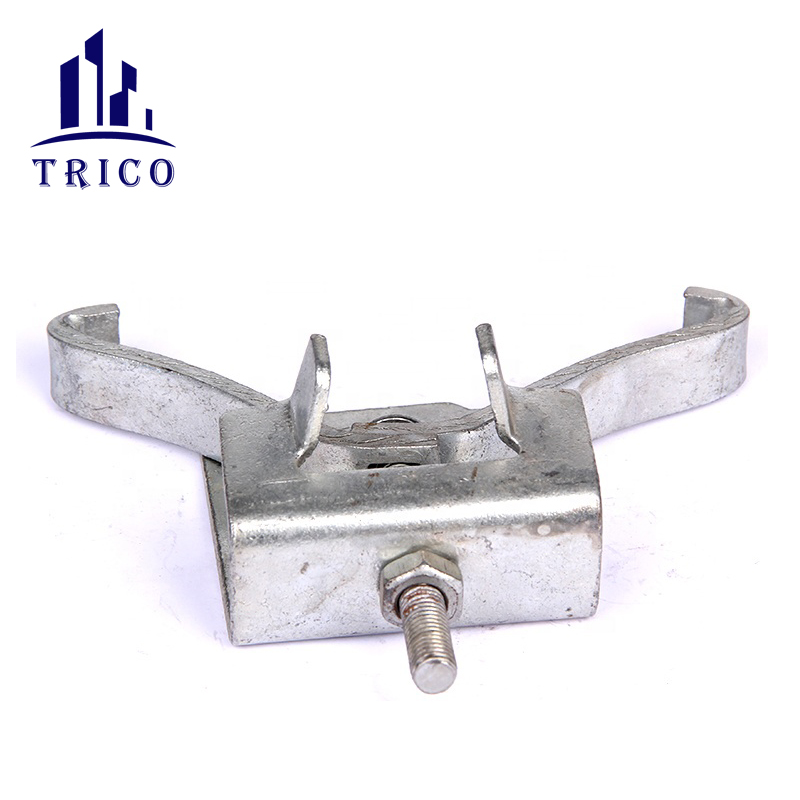

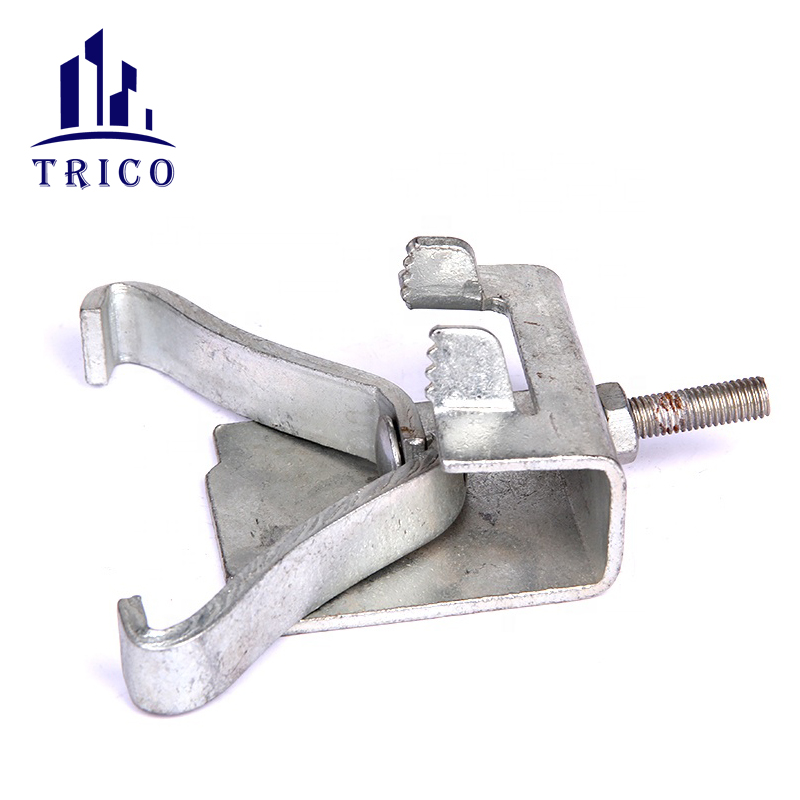

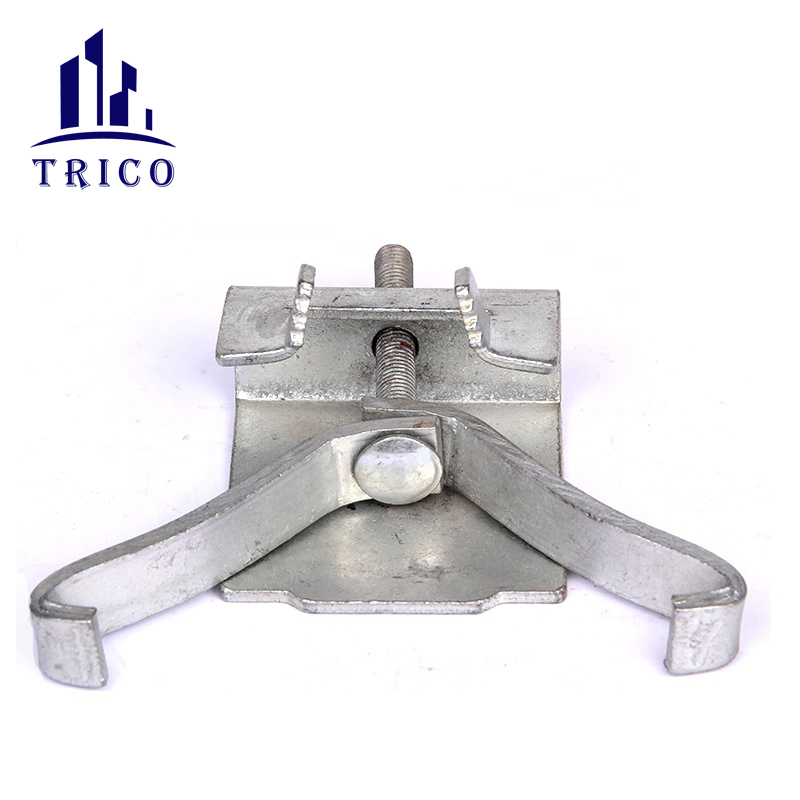

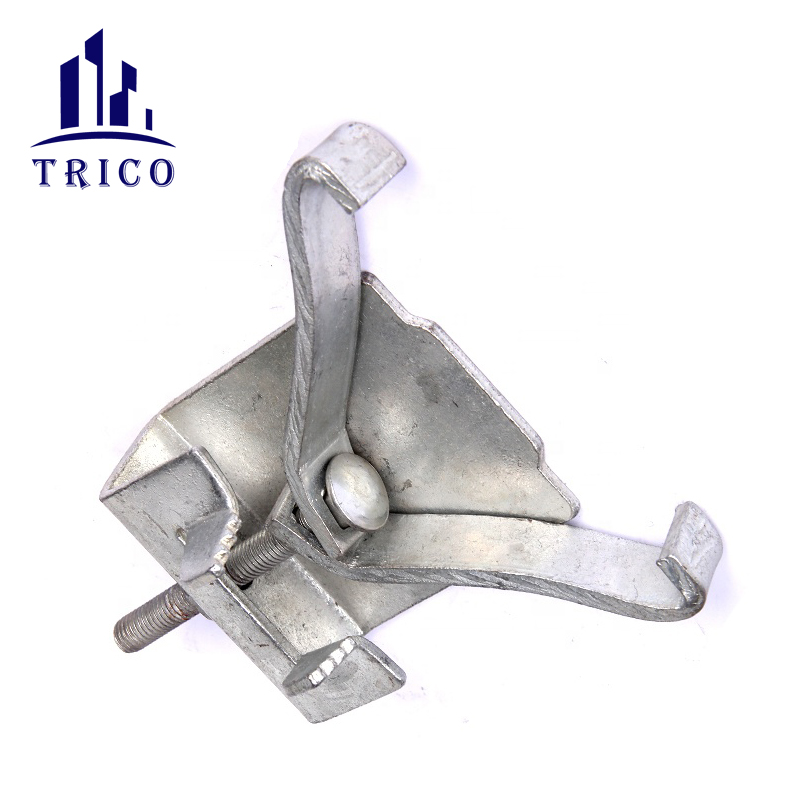

Construction h20 Beam Flange Clamp
  • Construction h20 Beam Flange Clamp
  • Construction h20 Beam Flange Clamp
  • Construction h20 Beam Flange Clamp
  • Construction h20 Beam Flange Clamp
Construction h20 Beam Flange ClampConstruction h20 Beam Flange ClampConstruction h20 Beam Flange ClampConstruction h20 Beam Flange Clamp

Construction h20 Beam Flange Clamp

Product Introduction:

Flange clamp and hook clamp are used for fastening timber beam H20 anywhere on the steel waling. First , Push the Flange clamps onto the timber beam H20.Second, Before tightening them to the steel waling, make sure that they are centrically positioned.Third, Gently tighten on one side. Tap the stirrup with a hammer to ensure that the clamp is sitting correctly.Forth,Tighten the clamp on the other side and tap the stirrup with the hammer. Fifth, Tighten the first side of the clamp completely.

Product Details

Steel U Bolt H20 Beam Flange Clamp With L&R Hook


Product nameH20 beam flange clamp
L x W x Has per request
Color silver or as per request
Surface tratementpowder coated
Type steel adjustable
Gradefirst class
UsageH20 timber beam formwork
MOQ5000pcs
SampleFree


H20 timber beam formwok is widely used in concrete project construction.

Flange Clamp is used in h20 timber beam system to connect timber beam onto steel waler.

We are specialized supplier, we have our own fty and can assure good quality and competitive

The formwork U beam clamp consists of u clamp and L&R hook or hex nuts. The U clamp is made of Q235 steel, the L&R hook is made of cast iron QT450-10.

It is used  to hold and secure fastening of timber beam and steel walings, and help to save time and cost.

Meantime, if needed, we could also produce as per the customers' samples or drawing.

Construction h20 Beam Flange Clamp

Five Promises:

1.Quality: Strictly control the quality through three levels. First level, quality test on the producing line. Second level, quality test during warehousing. Third level, quality test before loading.

2.Timeliness: 24 hours online.Provide consulting and quotation services for customers all the time.

3.Veracity: Strictly follow the customer standard to ensure the tolerance range and meet customer's requirement.

4.Integrity: If The customer complains about the quality of the products, our company will actively cooperate with them to solve the problem. If it is the responsibility of our company, we will bear the corresponding responsibility and compensation.

5.Longevity: Establish good long-term relationship with customers.
