Drive Rivet for Symons Steel-Ply Concrete Forms

Drive Rivet for Symons Steel-Ply Concrete Forms

Steel-ply Formwork

Steel-Ply is the most widely accepted, pre-engineered, modular formwork system in use today. It can be reused 200 times after timely replacement of plywood, and is compatible with all other industry standard formwork forming systems. It is designed for maximum versatility and can be used to form virtually any concrete structure. Steel-Ply specialty forms are used for Bulkhead Forming, Haunch Forming, Pilaster, Adjustable Pilaster Forms, and Culvert Forms.

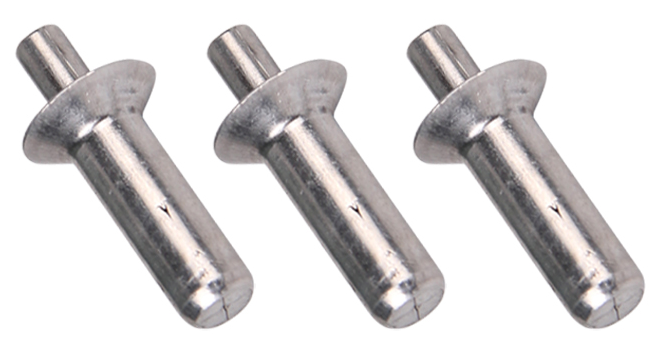

Drive Rivets

Drive Rivets For Refacing are used for refacing steel-plywood concrete forms.

Features

• Available in 2 sizes: 1/2" and 5/8".

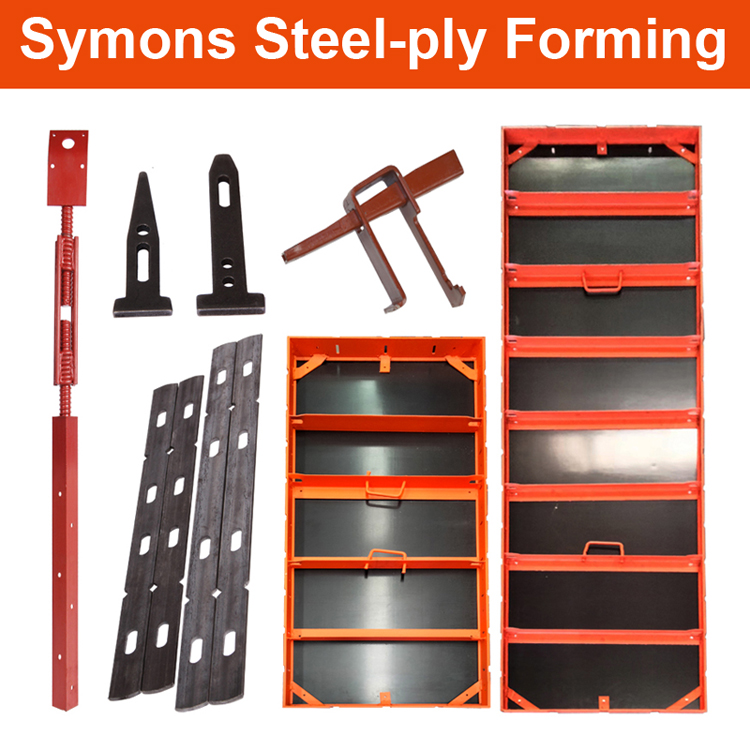

Steel Ply Forming System
Product	Picture	Specification			Material
Symons Formwork		8"x8' 10"x8' 12"x8' 14"x8' 16"x8' 18"x8' 20"x8' 22"x8' 24"x8'	8"x6' 10"x6' 12"x6' 14"x6' 16"x6' 18"x6' 20"x6' 22"x6' 24"x6'	8"x4' 10"x4' 12"x4' 14"x4' 16"x4' 18"x4' 20"x4' 22"x4' 24"x4'	45# Steel
Other Size Available

Steel Ply Forming System Accessories
Product	Picture	Specification	Material	Feature
Drive Rivets		6.4x20mm	Aluminium	High Quality

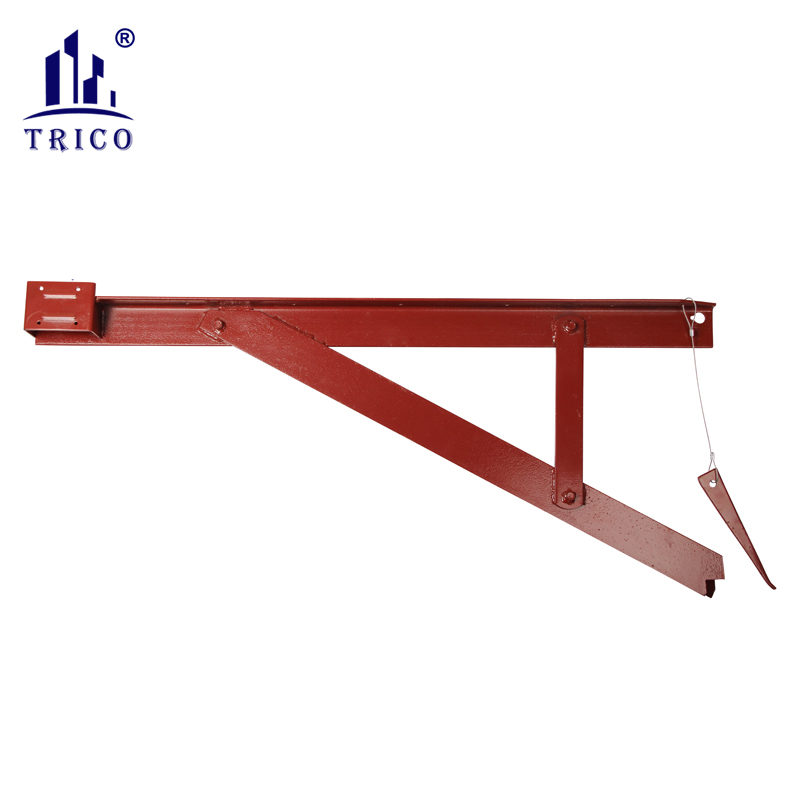

Hand-Set Scaffolding Bracket		7.2kg	High Strength Steel	High Quality
X Flat Tie		Wall Tickness 6"-48" Other Sizes Support	Steel #45	Ultimate Load 6000lbs

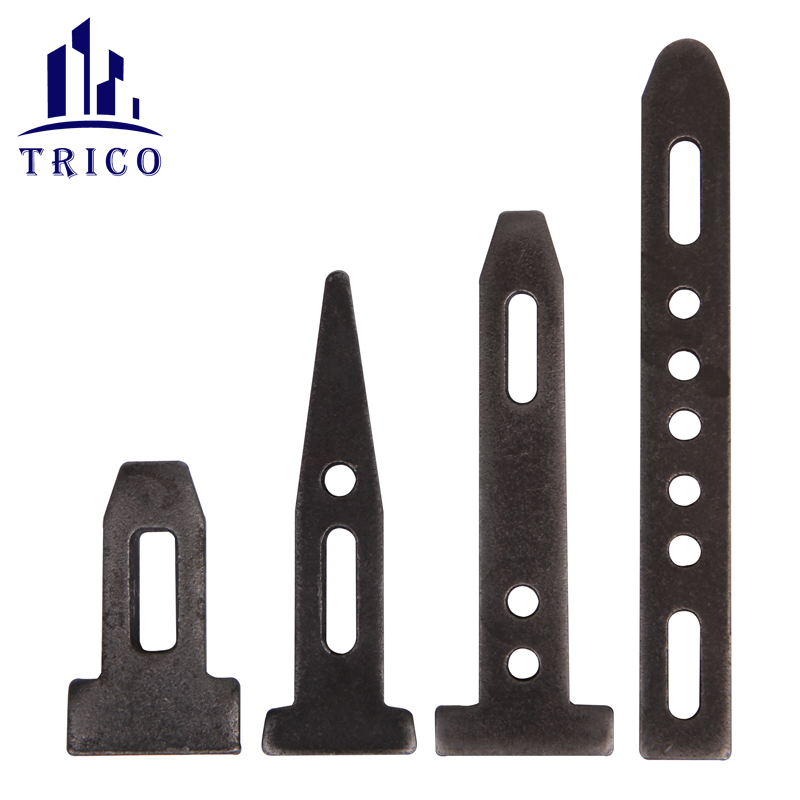

Wedge Bolt		Short Wedge Bolt	Steel  #45	Heat Treatment
		Standard Wedge Bolt
		Long Wedge Bolt
		ADJ Wedge Bolt
Ply Spacer		3/4", 1-1/8"  6-12"	Carbon Steel	High Quality
Shore Clamp		4*4, Painted	Carbon Steel	High Quality
One Piece Waler Clamp		837g, Galvanized	Carbon Steel	High Quality
Z Tie Holder		325g, Red Painted	Carbon Steel	High Quality
Turnbuckle Aligner		1.Standard Type /Heavy Duty Type 2. Bend Head/Flat Head	Carbon Steel	Steel Angel /Four Steel  Bar
Other Formwork System	Formwork Tie Rod System
	Aluminum Formwork System
	Snap Tie System

Symons Formwork Advantages:

• Designed to form both straight and radius walls

• No special tools required - just a hammer

• System may be handset or assembled into gangs

• Most popular concrete forming system in the America

The steel-ply formwork is a pre-engineered, factory-built, reusable concrete forming system. It may be used in handset or gang form applications, for commercial or residential structures. The Steel-Ply forming system can form walls of almost any shape or size, with accessories for special structures and details. This symons seel ply forms system is more productive and economical than job-built plywood formwork or other forming methods.

Steel-Ply Saves Time The Steel-Ply forming system saves time because it is easy to set up and strip. No measuring, sawing, drilling, or nailing is required. Minimal training is needed, so workers are quickly up to maximum efficiency. The only tool required for setup and stripping is a hammer.

The steel ply forms is equally ideal for commercial or residential structures. It uses standard sizes that can be combined to form almost any dimension. With more than 80 panel and filler sizes, this system offers maximum versatility no matter how they are combined. They can be handset or gang-formed horizontally or vertically. They can also be used for curved walls. This flexibility enables contractors to conserve materials and benefit from savings.
