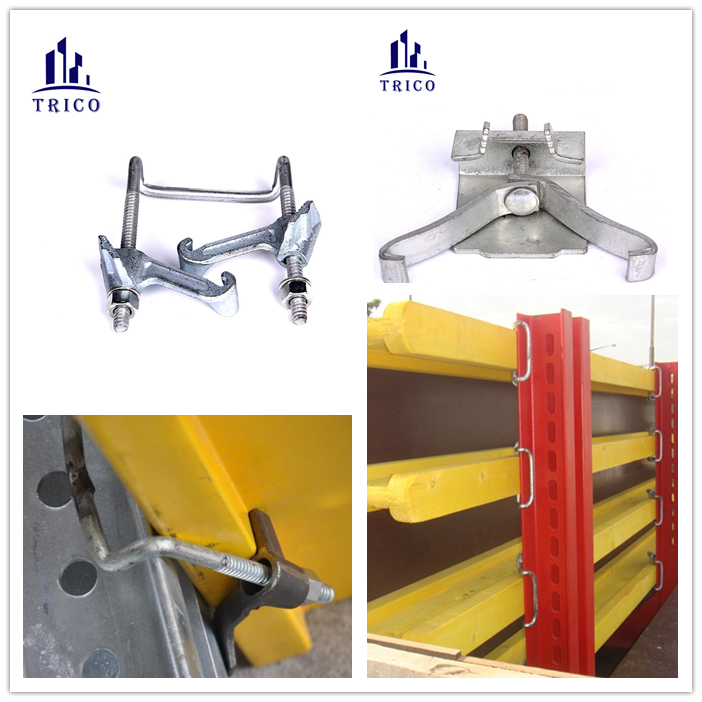

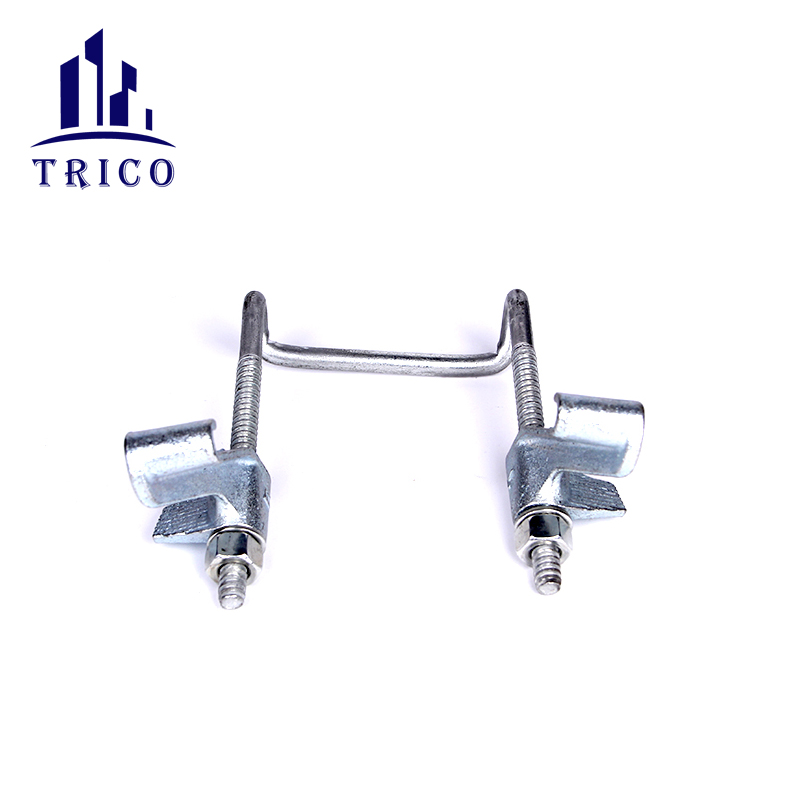

TRICO H20 Timber Beam, as one of the basic components in more than a half TRICO formwork system, maintains the property to be lighter, stronger, safer and more durable in order to achieve better performance for site jobs. The application range could cover kinds of different wall formwork, slab formwork, table formwork, column formwork ect.. Related formwork hook clamps are supplying.
H20 Beam

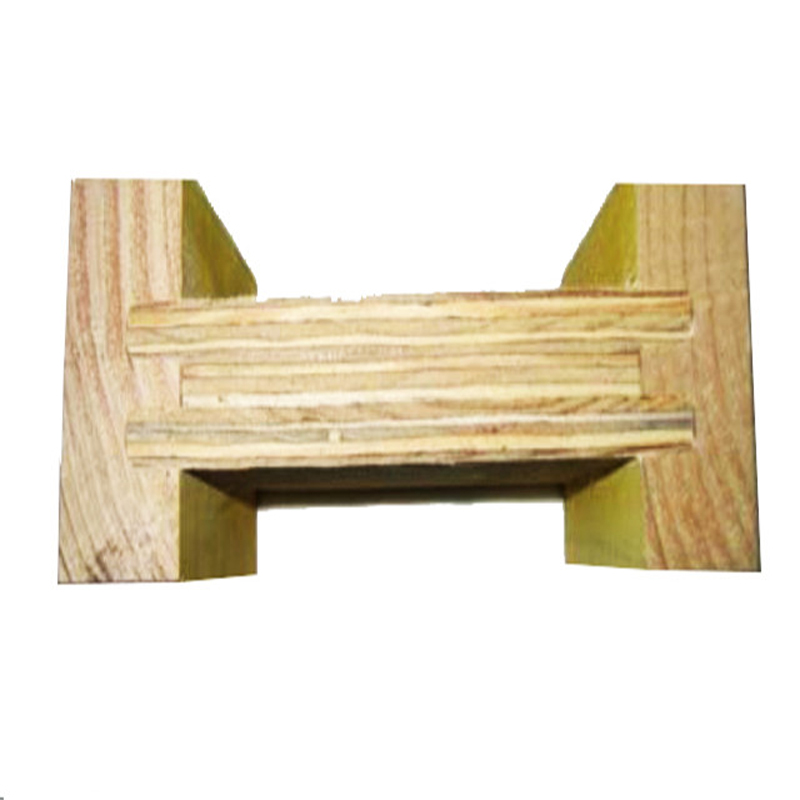

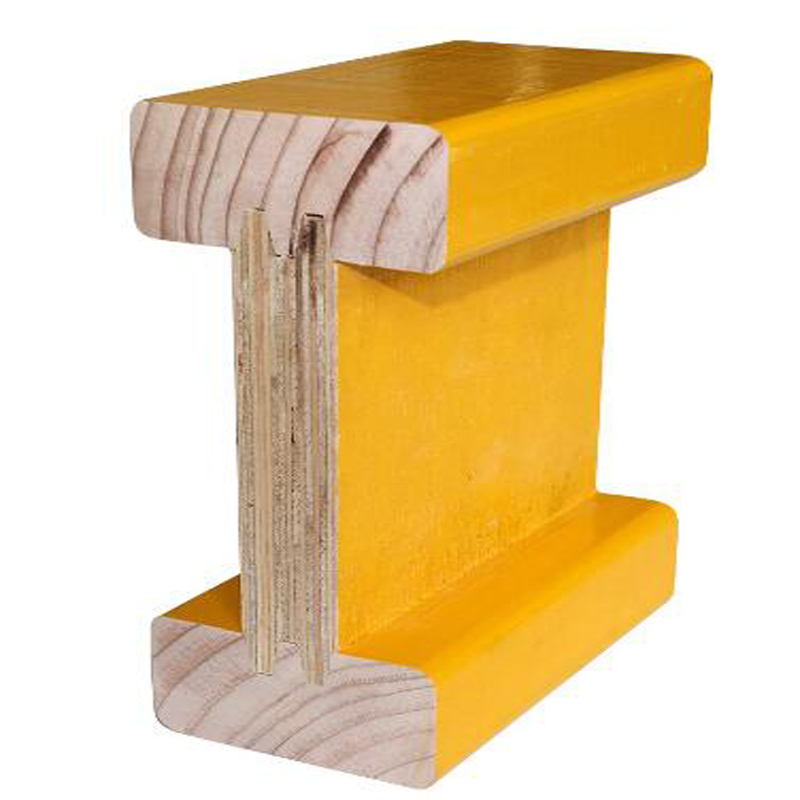

Available in various sizes, the outer parts are made of selected quality solid fir, comb-like coupled using the finger-joint technology, and with a three-layer core.

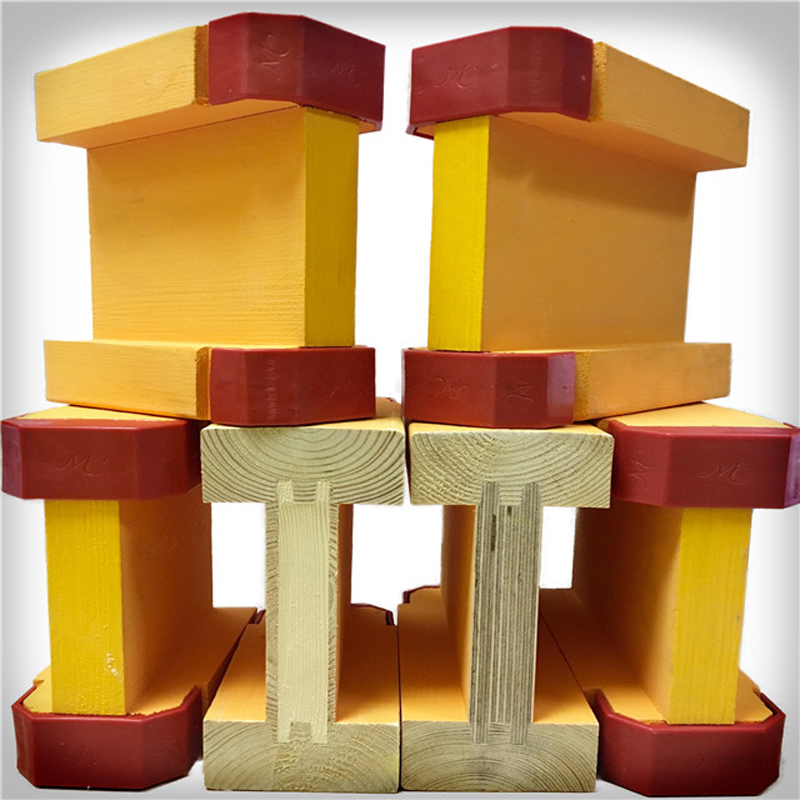

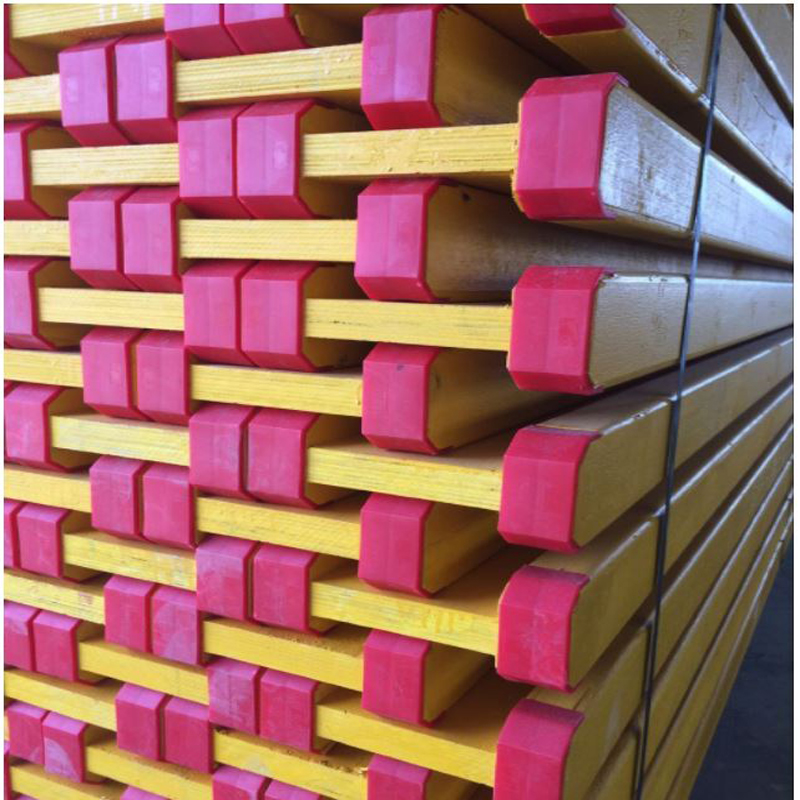

Upon request, they may come in plastic protections so as to reduce the risk of scratching the outer parts of the beams.
| Product Name | Pine Plywood Formwork Beam H20 |
Height | 200mm |
Flange | Wide*Thickness=80mm*40mm |
| Spruce, Pine, a mixture of wood species permitted | |
Web | Thickness:27-30mm |
| 3-plywood or plywood | |
Surface Protection | The complete beam is waterproofed using a water-repellent color glaze |
Weight | 4.6-5.2kg |
Standard Lengths | 2.45m,2.65m,2.9m,3.3m,3.6m,3.9m,4.5m,4.9m,5.9m, (Max.length:6.00m) |
Shear Force | q=11KN |
Permissible Bending Moment | m=5.0KN*M |
| Package | Customized Package,or In Bulk |
| Used for | Slab Formwork System,Vertical Formwork(Wall,Column,Hydraulic Climbing) Adjustable Arced Formwork, etc. |
Five Promises:
1.Quality: Strictly control the quality through three levels. First level, quality test on the producing line. Second level, quality test during warehousing. Third level, quality test before loading.
2.Timeliness: 24 hours online.Provide consulting and quotation services for customers all the time.
3.Veracity: Strictly follow the customer standard to ensure the tolerance range and meet customer's requirement.
4.Integrity: If The customer complains about the quality of the products, our company will actively cooperate with them to solve the problem. If it is the responsibility of our company, we will bear the corresponding responsibility and compensation.
5.Longevity: Establish good long-term relationship with customers.
