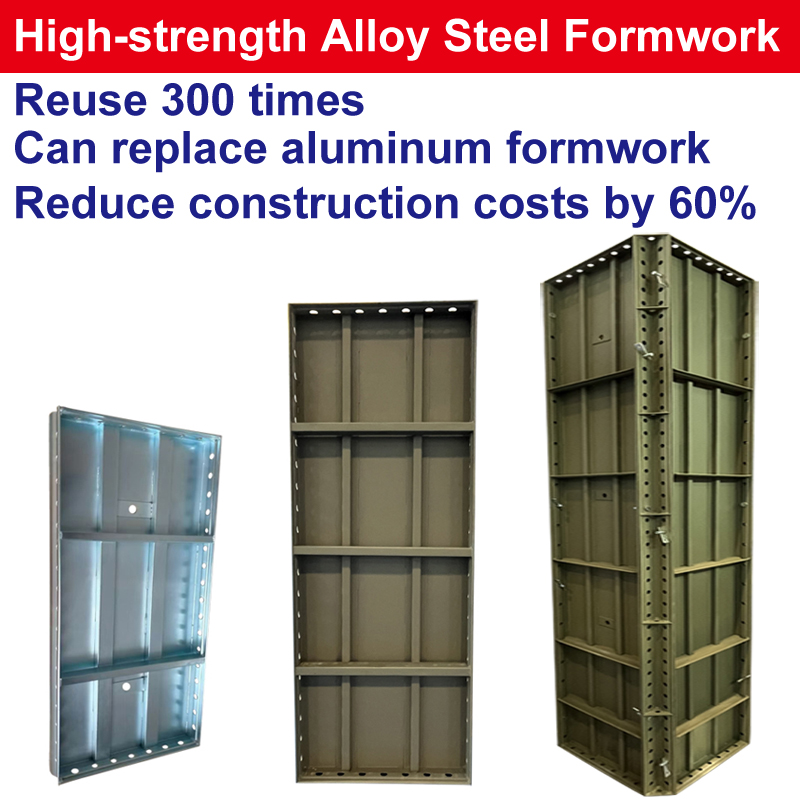

Reuse 300 Times High-strength Alloy Steel Formwork System for Concrete Construction Can Replace Aluminum Formwork

Reuse 300 Times High-strength Alloy Steel Formwork System for Concrete Construction Can Replace Aluminum Formwork

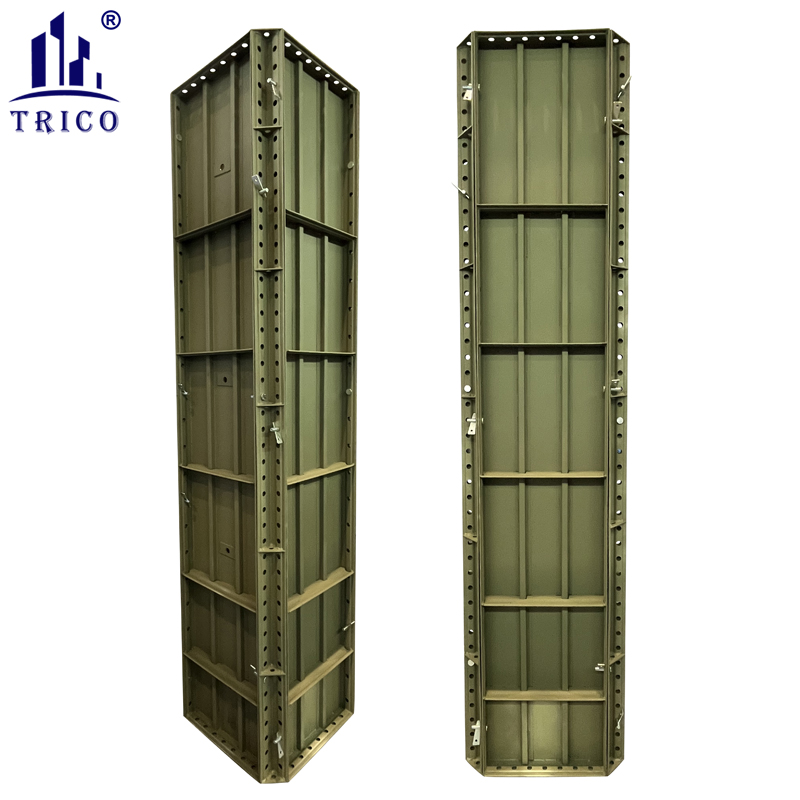

High-strength alloy steel formwork is a revolutionary new building formwork. It ismade of high-strength alloy steel, integrally formed, laser-automatically welded, and can be reused 300 times. Its cost is only one-third of that of aluminum alloy formwork, and it can be perfectly connected with the aluminum alloy formwork system, which can completely replace aluminum alloy formwork, shorten the construction period, and greatly reduce the construction cost. High-strength alloy steel formwork is an environmentally friendly building formwork.

Based on the various technical application systems developed by high-strength alloy steel formwork, it can be applied to various building scenes such as standard-layer buildings, non-standard-layer buildings such as basements, and pipe galleries.

Product Advantages

1. Convenient construction: The high-strength alloy steel formwork has a streamlined design and is quick to disassemble and assemble, which can greatly improve construction efficiency. The product system is divided into tie rod type and flat tie type, which are suitable for different construction needs.

2. High cost performance: This product is made of Q700 high-strength steel, which has excellent compression, tensile and bending properties, is stable and does not deform, and can be turned over more than 300 times. The price is only one-third of that of aluminum alloy formwork, significantly reducing construction costs.

3. Excellent construction effect: The high-strength alloy steel formwork board has a flat surface, tight seams, excellent seismic resistance, waterproof, anti-deformation, anti-slurry leakage properties, and easy demoulding. The steel has strong corrosion resistance and the unique spraying process makes the finished product beautiful and durable, which significantly improves the quality of the project.

4. Accelerate the construction progress: configure one set of formwork and three sets of supports, implement early formwork removal construction technology (each layer can reduce the construction period by 1-2 days), save formwork materials, increase the number of formwork turnovers, and speed up the construction progress. And by reserving holes to manually deliver the formwork and supports layer by layer, the labor intensity is reduced, and the cost of assembling and dismantling the formwork and transportation costs are reduced.

Technical Comparison

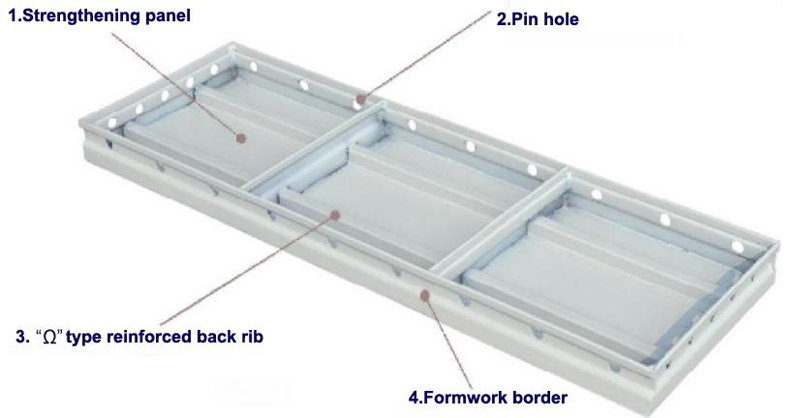

Product Introduction

1. Strengthening panel

The panel is 1.5mm thick and made of specially treated Q700 steel. It has a smooth surface, is strong and corrosion-resistant, and effectively improves the molding effect and product life.

2. Pin hole

Pin holes are arranged around the template, and the templates can be assembled together and the template gap can be adjusted by using pins and pin pieces.

3. “Ω” type reinforced back rib

The reinforcement ribs are of“Ω” type, which not only provides excellent mechanical properties but also reduces the weight of the product.

4. Formwork border

The width of the formwork frame is 65mm, using 2.0mm thick cold rolling High-strength steel, after strengthening treatment, significantly improves compression resistance and tensile, bending and impact resistance, effectively extending the product service life.

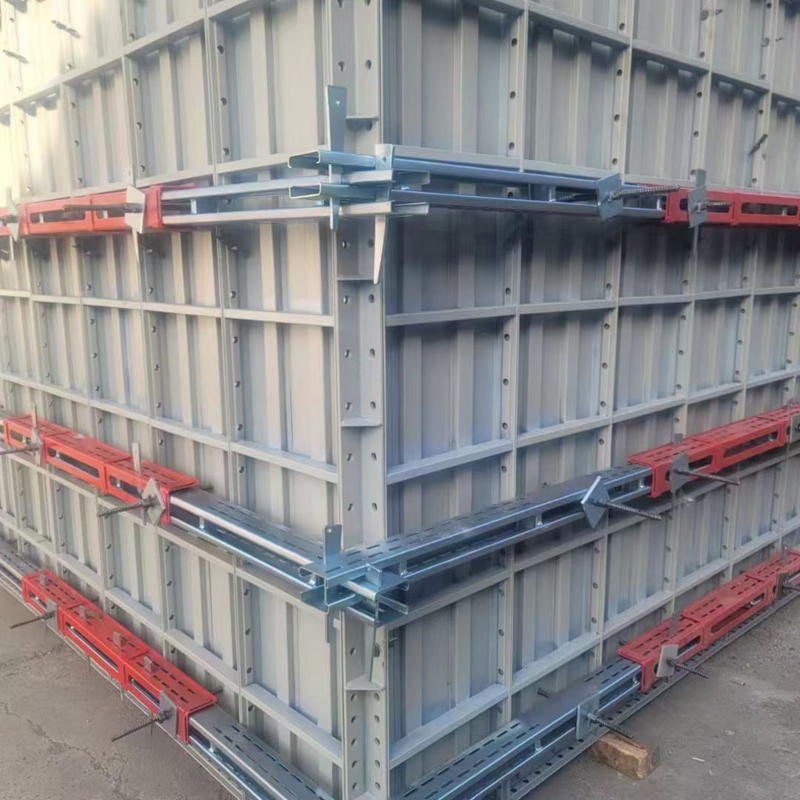

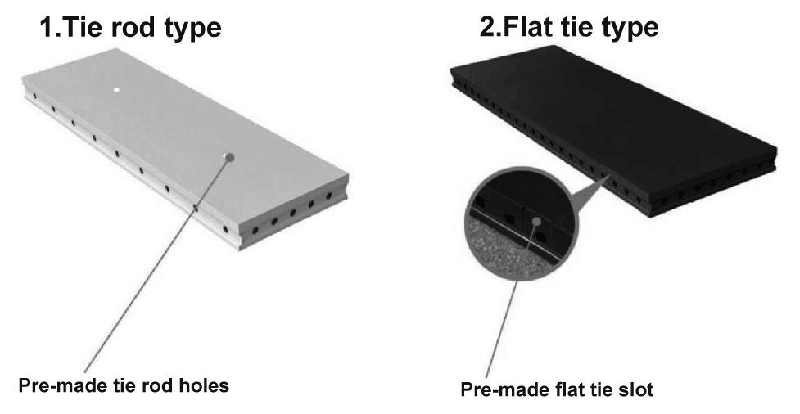

1. Tie rod type

The tie rod type alloy steel formwork is designed and applied in the traditional "tie rod system", which follows the traditional wood formwork screw reinforcement method. According to the design requirements, prefabricated holes are made on the formwork panel, and the through-wall screws and horizontal steel back ribs are used to achieve efficient reinforcement to ensure the stability of the structure. The advantage of the "tie rod system" is that it follows the traditional wood formwork reinforcement method, which is easy for construction workers to accept. The screw and the formwork panel are rigidly connected, and its bearing capacity is relatively strong.

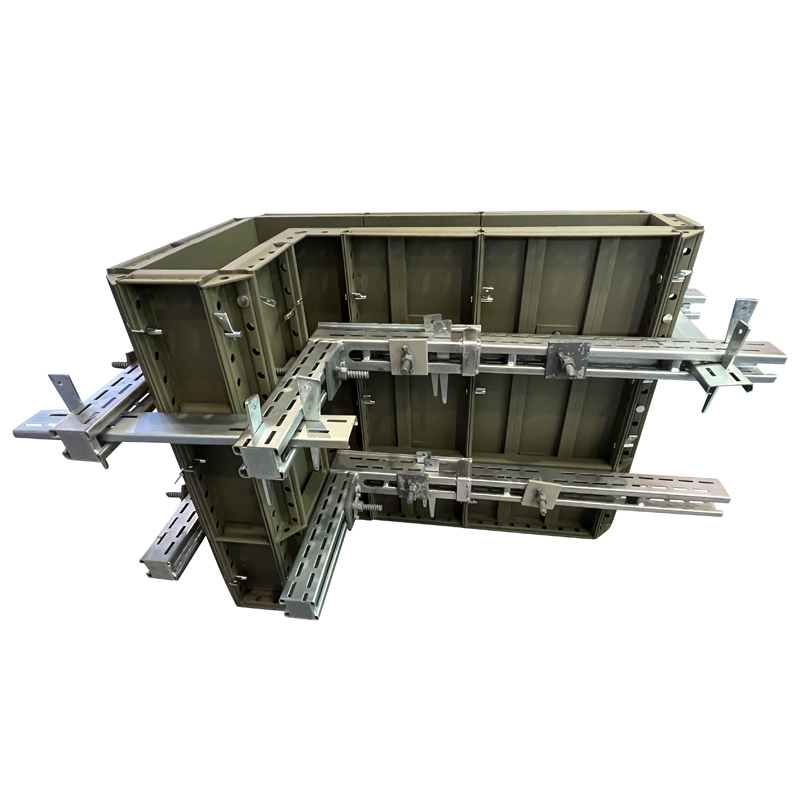

2. Flat tie type

The flat tie type alloy steel formwork is designed for the "flat tie  system" and is inspired by the pull-tab reinforcement method of aluminum formwork. According to the design requirements, the pull-tab slots are prefabricated on the frame of the formwork, and one-time flat tie and square tubes are used for reinforcement. The significant advantage of the "flat tie system" lies in its simple installation and removal process. Workers can adjust the position of the formwork by pulling the pull-tab and fix it with fasteners. When disassembling, just loosen the fasteners and remove the pull-tab. It is suitable for building structures of various shapes and sizes, especially irregular shapes such as round and arc shapes. The flat tie are arranged along the length of the formwork panel, and are also well adapted to long structures.

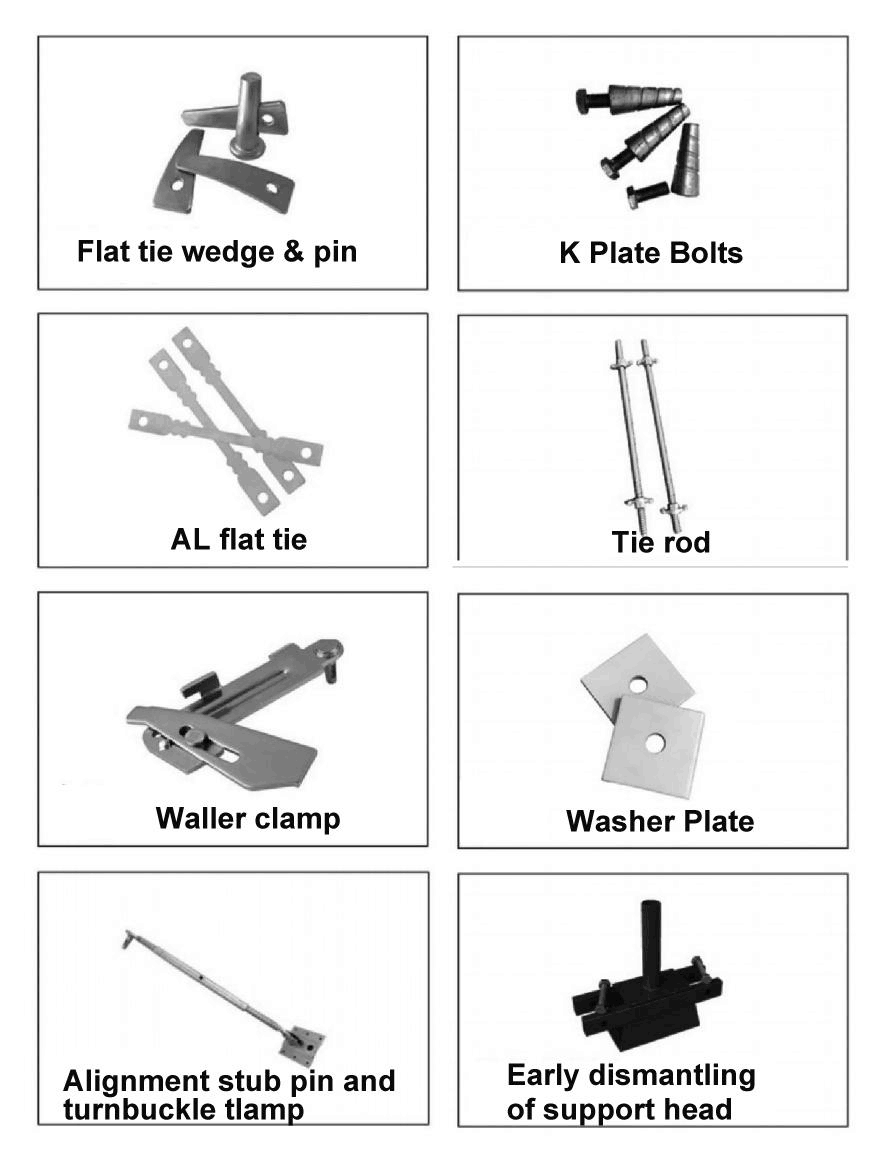

Formwork Accessories

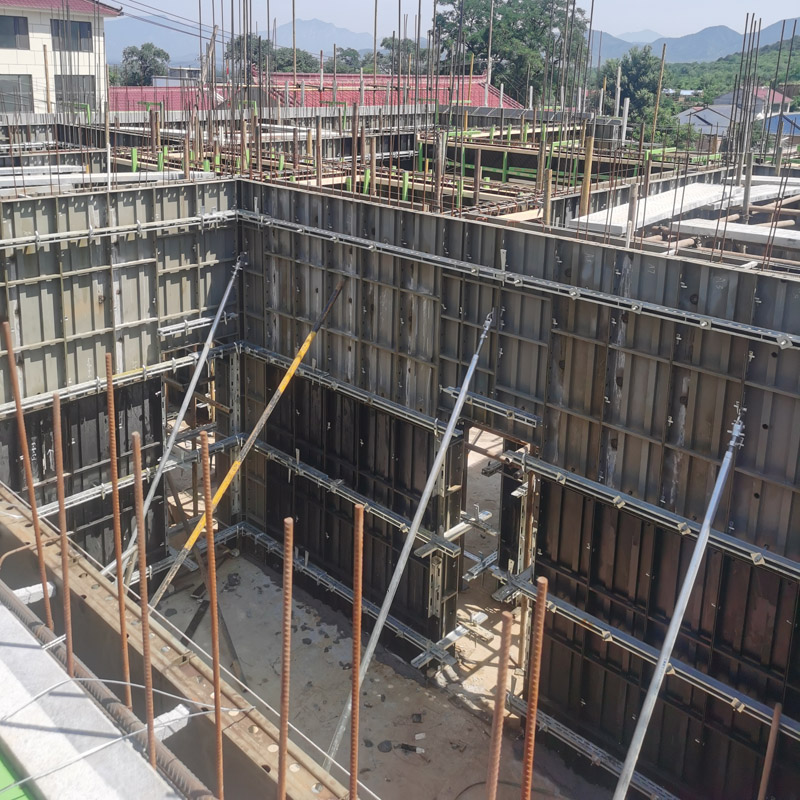

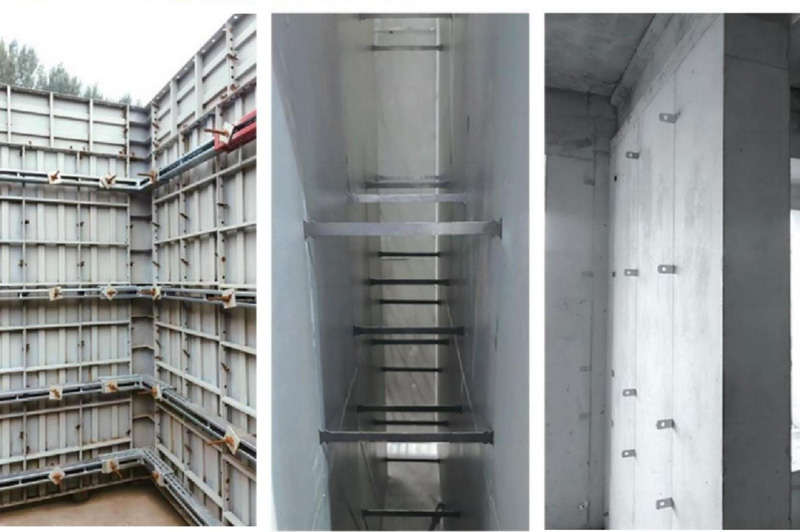

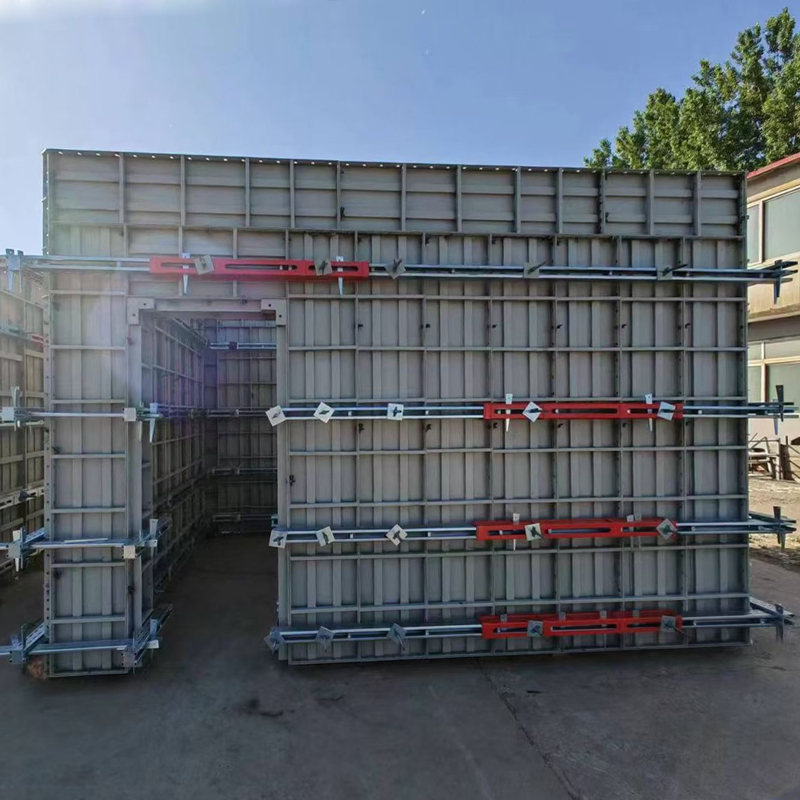

Engineering Examples

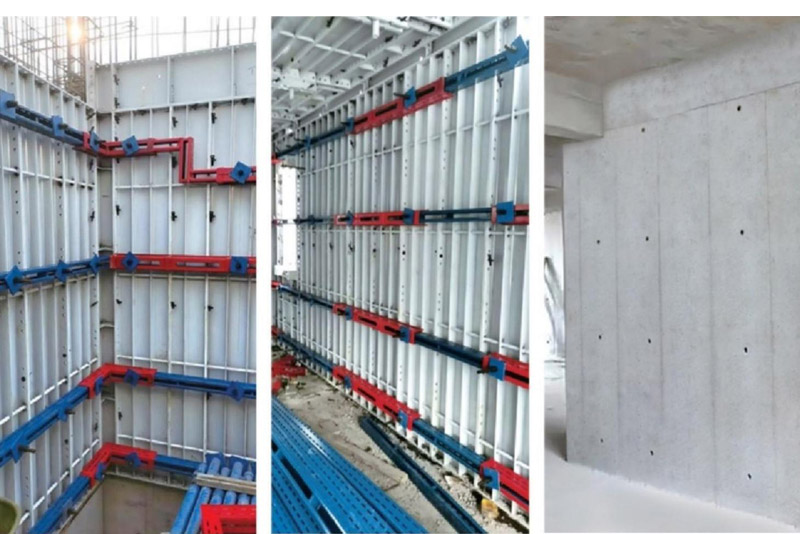

Trico's new formwork steel waler

Trico's new formwork steel walers series products include two specifications of high-strength steel back rib support products, 60 series and 80 series, which are suitable for a variety of formwork systems, with the characteristics of light weight, high strength and easy installation, achieving dual optimization of work efficiency and cost. The series of products include: main back ribs, inner corner back ribs, connecting back ribs, locking back ribs, and back rib assembly pins, gaskets, adjustment locks and other accessories.

Product Advantages

1.The new steel back rib series products innovate the back rib connection method, streamline the structure, and simplify the operation. The product design is scientific, the mechanics is reasonable, the support is stable, the construction safety is significantly improved, and the template support construction efficiency is increased by more than six times.

2. High-strength alloy steel, excellent corrosion resistance, after unique anti-corrosion treatment, significantly extended service life, can be recycled more than 300 times, high cost performance. Reduce construction costs by 30%, significant benefits.

3. With professional designers and advanced software, Trico can accurately calculate product usage according to construction drawings, ensure the perfection of technical construction plans, standardize and rationalize product usage, effectively avoid waste, and maximize customer interests.

Mechanical properties of steel used

Engineering Examples

Trico's ultra high strength steel pipe for concrete formwork support

Traditional steel pipes, square pipes, rectangular pipes, etc. used in the field of construction are soft in material and have low yield strength. Ultra-high-strength thin-walled steel pipes use Q980 steel and Q700 steel, which have the highest yield strength on the domestic market, and are compression-resistant, tensile-resistant, bending-resistant, ultra-thin, and lightweight.

Product Advantages

1. High strength: Maintain stable performance when bearing greater pressure and resisting external impact, and achieve tensile, compressive and bending resistance.

2. Lightweight: Compared with traditional steel pipes, ultra-high-strength thin-walled steel pipes achieve thinning of the pipe wall and weight reduction while ensuring strength, making the construction lighter, improving construction efficiency by about 40%, and shortening the construction period by about 30%.

3. Strong anti-corrosion: High-strength alloy steel itself has good wear resistance and corrosion resistance, and with unique anti-corrosion treatment, it has excellent wear resistance and corrosion resistance, greatly improving service life, replacing traditional square tubes, square wood, steel-clad wood and other recycling uses, and can reduce costs by about 50%.

4. Multiple models: Provide a variety of model options for different construction needs to meet various construction need.
