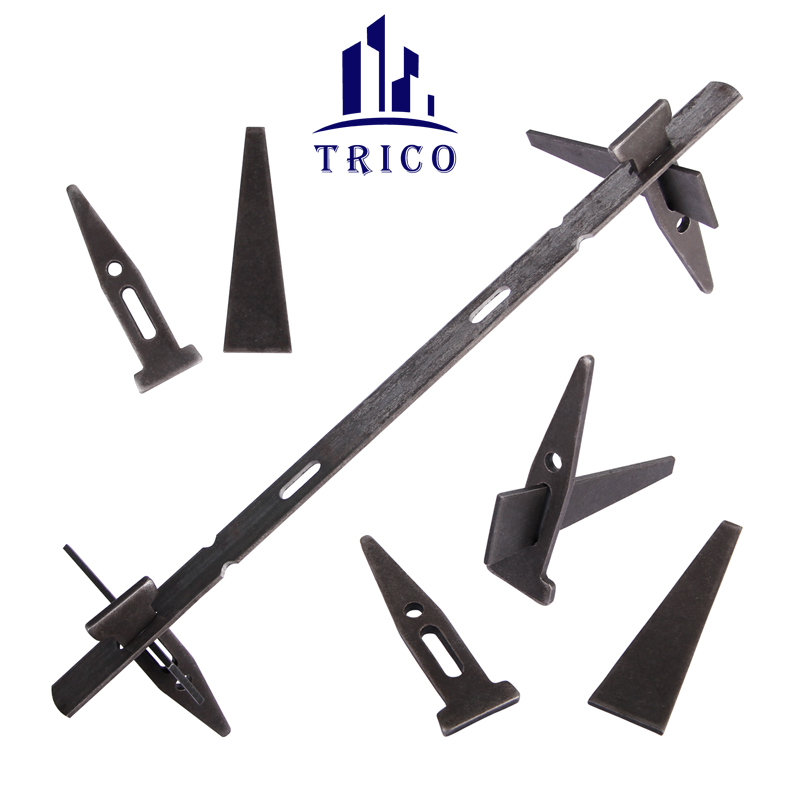

Wedge Bolt is used for Steel Plywood Froming System Accessories. Most widely used wedge bolt to connect loop ties and x-flat ties to concrete handset forms and fillers. There are different sizes for choosing. For example Short Wedge Bolt, Standard Wedge Bolt, Long Wedge Bolt , they are used with X Flat Tie/Loop Tie and Euro Panel. It will help your construction. The most versatile wedge bolts use for many applications.
| Steel Plywood Forming System Accessories | |||
| Commdity | Type | Specification | Usage |

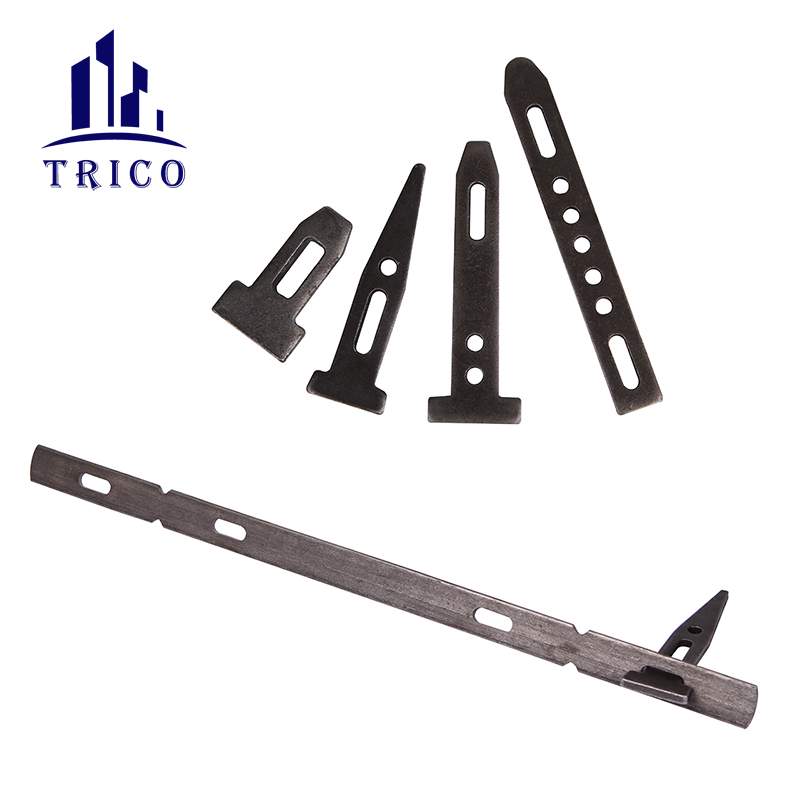

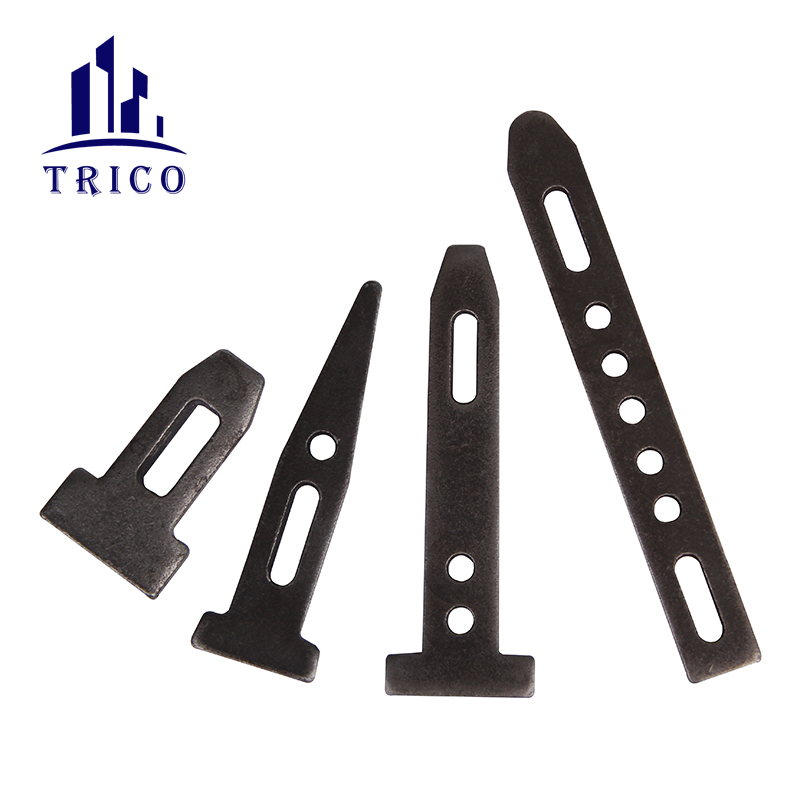

Wedge Bolt

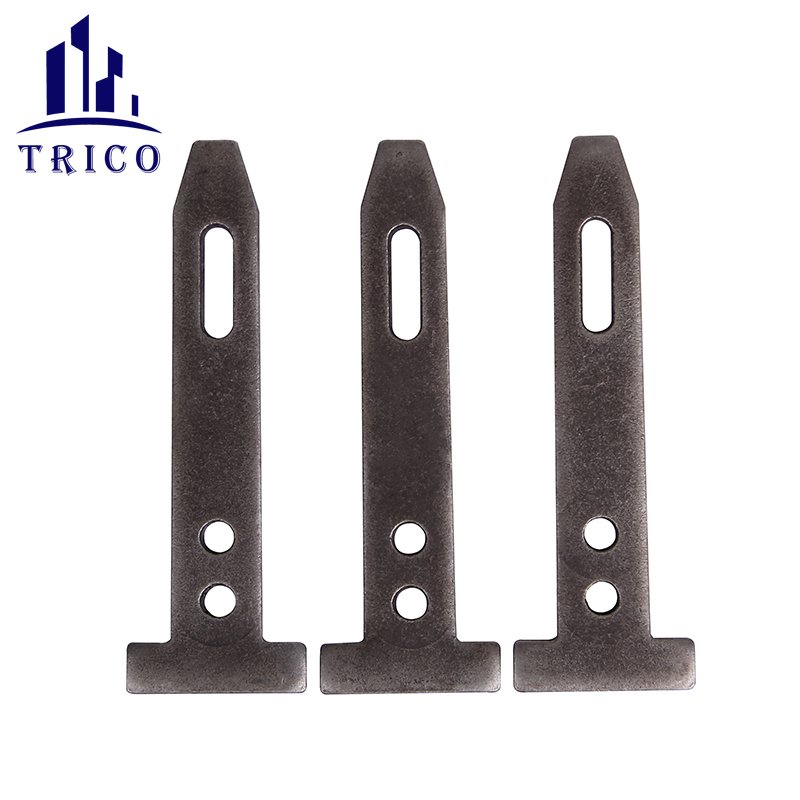

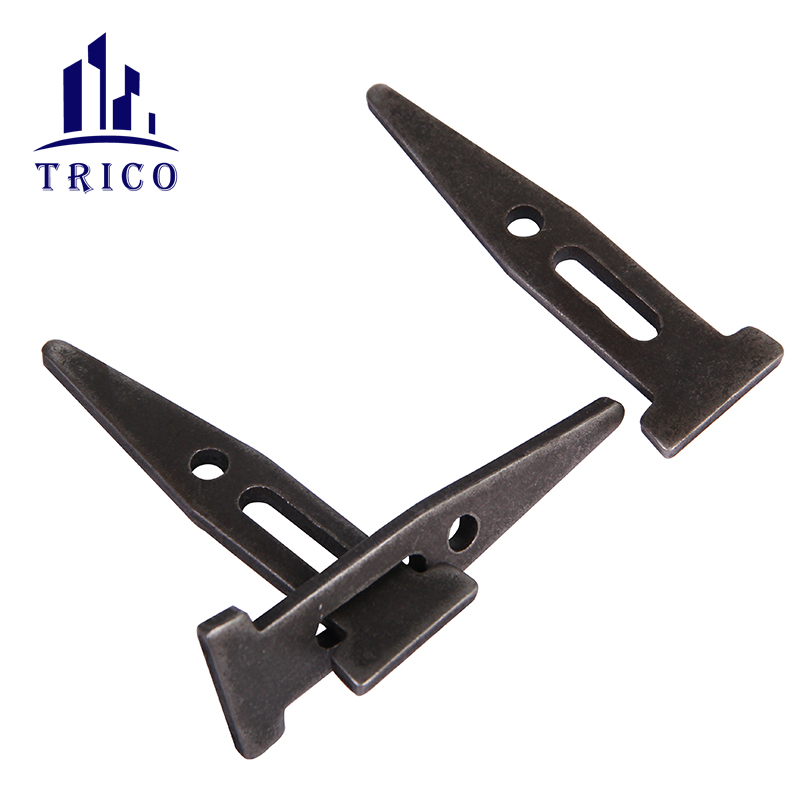

| Short Wedge Bolt | 24g | The short bolt eliminates the need to short stop standard wedge bolts. Can be used to attach inside corners and pilaster forms to Steel/Plywood forms. |
| Standard Wedge Bolt | 28g | The Standard Wedge Bolt is the most common wedge bolt used to assemble forms. | |
| Long Wedge Bolt | 37g | The Long Wedge Bolt is used when attaching steel fillers to panels and fillers. | |

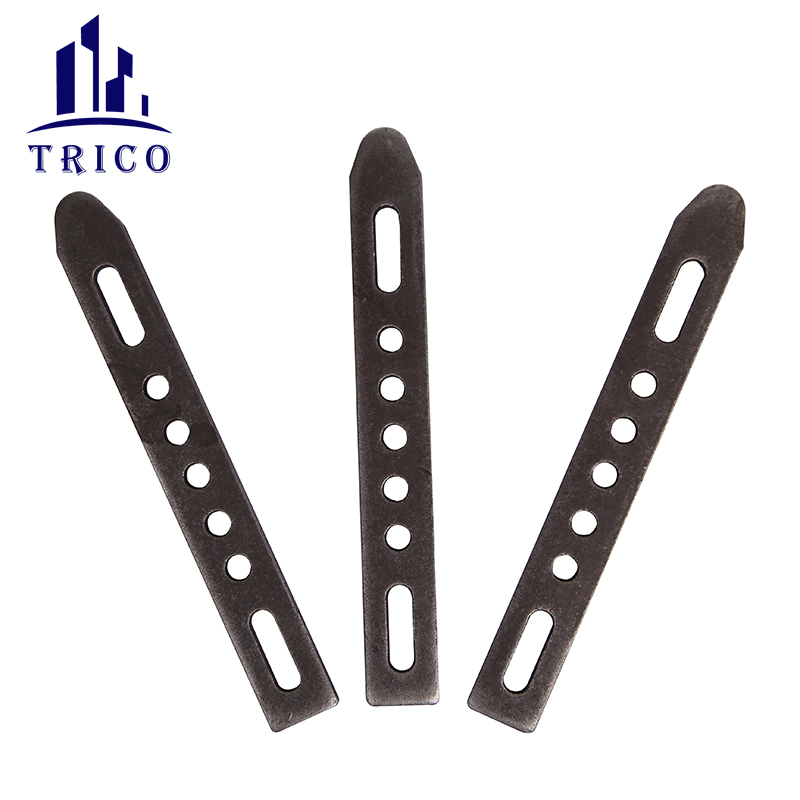

| Adjustable Wedge Bolt | 81g | Adjustable Wedge Bolt is used to attach steel fillers to panels and fillers. Works well when 2 steel fillers are next to each other. | |
X Flat Tie
| Standard Flat Tie | 4-48" Other Size Available Ultimate 6000lbs | X Flat Tie is used to lock steel panel and fillers during wall concrete |
| Heavy Duty Flat Tie | 4-48" Other Size Available Ultimate 7000lbs | ||
Steel Ply Panels& Fillers
| Euro Form Korea Steel Panel | Height: 2"-10" Width: 4"-24" Inner Corner and Outer Corner Available | Rugged steel frames are robotically welded for consistent strength and fit across all panels, fillers and corners. Exclusive DuraCoat powder coating helps keep the frame rust-free under the harshest conditions. |
| Related Accessories | Open Face 1pc Waler Bracket, Z Tie Holder, Plylag Gang Waler Rod, J Hook, Loop Tie, etc. | ||
X Flat Tie Specification
WALL SIZE | UNIT PACKAGE | PALLET | WEIGHT(KG) | |
g | lbs | |||
4” | 100pcs/carton | 10,000pcs/pallet | 103.98 | 0.2292 |
5” | 100pcs/carton | 10,000pcs/pallet | 111.9 | 0.2467 |
6” | 100pcs/carton | 10,000pcs/pallet | 119.81 | 0.2641 |
8” | 100pcs/carton | 10,000pcs/pallet | 141.21 | 0.3113 |
9” | 100pcs/carton | 10,000pcs/pallet | 151.91 | 0.3349 |
10” | 100pcs/carton | 10,000pcs/pallet | 162.61 | 0.3585 |
12” | 100pcs/carton | 10,000pcs/pallet | 184.01 | 0.4057 |
14” | 100pcs/carton | 5,000pcs/pallet | 205.41 | 0.4528 |
15” | 100pcs/carton | 5,000pcs/pallet | 216.11 | 0.4764 |
16” | 100pcs/carton | 5,000pcs/pallet | 226.81 | 0.5000 |
18” | 100pcs/carton | 5,000pcs/pallet | 248.21 | 0.5472 |
20” | 50pcs/bundle | 2,500pcs/pallet | 269.61 | 0.5944 |
22” | 50pcs/bundle | 2,500pcs/pallet | 291.01 | 0.6416 |
24” | 50pcs/bundle | 2,500pcs/pallet | 312.42 | 0.6888 |
26” | 50pcs/bundle | 2,500pcs/pallet | 333.82 | 0.7359 |
28” | 50pcs/bundle | 2,500pcs/pallet | 355.22 | 0.7831 |
30” | 50pcs/bundle | 2,500pcs/pallet | 376.62 | 0.8303 |
32” | 50pcs/bundle | 2,500pcs/pallet | 398.02 | 0.8775 |
34” | 50pcs/bundle | 2,500pcs/pallet | 419.42 | 0.9246 |
36” | 50pcs/bundle | 2,500pcs/pallet | 440.82 | 0.9781 |
38” | 50pcs/bundle | 2,500pcs/pallet | 462.22 | 1.0190 |
40” | 50pcs/bundle | 2,500pcs/pallet | 483.62 | 1.0662 |
42” | 25pcs/bundle | 2,500pcs/pallet | 505.02 | 1.1134 |
44” | 25pcs/bundle | 2,500pcs/pallet | 526.42 | 1.1605 |
46” | 25pcs/bundle | 2,500pcs/pallet | 547.82 | 1.2077 |
48” | 25pcs/bundle | 2,500pcs/pallet | 569.22 | 1.2549 |

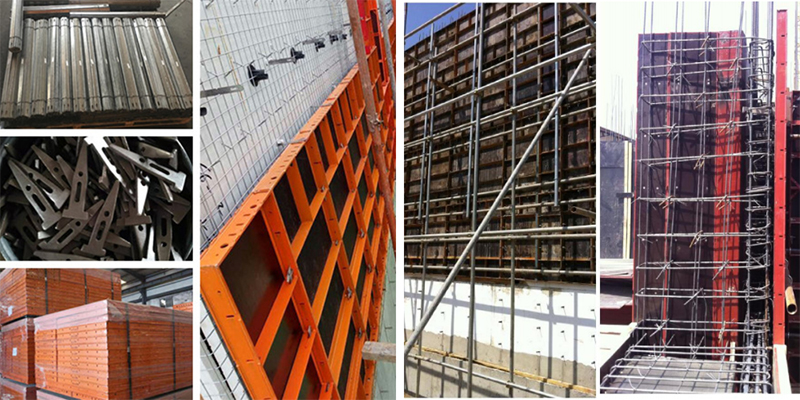

Steel Ply Forming System is very popular for wall concrete construction.
Conveniently located handles make set up, stripping and handling easier.With proper care contractors can expect that forms will be able to be reused up to 200 times before plywood needs to be replaced.Compatible with all other industry standard modular handset systems.All sizes of heavy duty loop ties, x-flat ties, wedge bolts, and accessories to offer the complete system.
