GT120 Heavy Duty Steel Frame Formwork Wall/Column Formwork System for Concrete Construction

Product Introduction:

Trico GT 120 is a heavy-duty steel frame formwork system. It is fabricated by 120mm steel structures with film-faced plywood panels. The GT120 steel ply formworks are used for hi-load concrete shuttering, like wall shuttering systems, and column formworks.

Product Details

GT120 Heavy Duty Steel Frame Formwork Wall/Column Formwork System for Concrete Construction

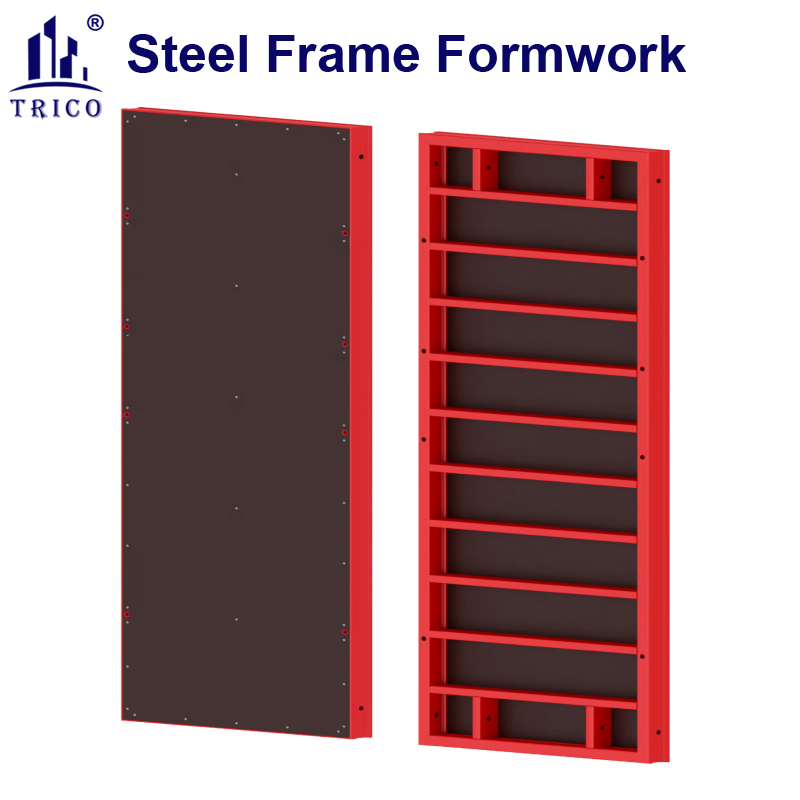

GT120 steel frame formwork is made up of 18mm thick plywood covered with hollow steel. It is a complete product system with many types, such as wall formwork, column formwork, angle formwork and so on. Ancillary products and accessory variety are complete, and product assembly is convenient. It is practical, safe, reliable, cost-saving and applicable to various solutions. As a result, it provides a set of complete and reliable formwork products for building construction, especially wall and column construction.

Material

Steel,plywood

Feature

Reusable, high strength, adjustable size

Place of Origin

Hebei,China

Warranty

1 Year

Brand Name

TRICO

Model Number

GT120

Color

green, blue or customized

Type of Steel

Q345B

Thickness of Plywood

18 mm

Width

300-2400 mm

Height

300-3000 mm

Maximum Lateral Pressure to be Born for Column

80 KN/meter

Maximum Lateral Pressure to be Born for Wall

60KN/meter

Application

column, wall

1-GT120 Heavy Duty Steel Frame Formwork WallColumn  Formwork System  for Concrete Construction.jpg2-GT120 Heavy Duty Steel Frame Formwork WallColumn  Formwork System  for Concrete Construction.jpg

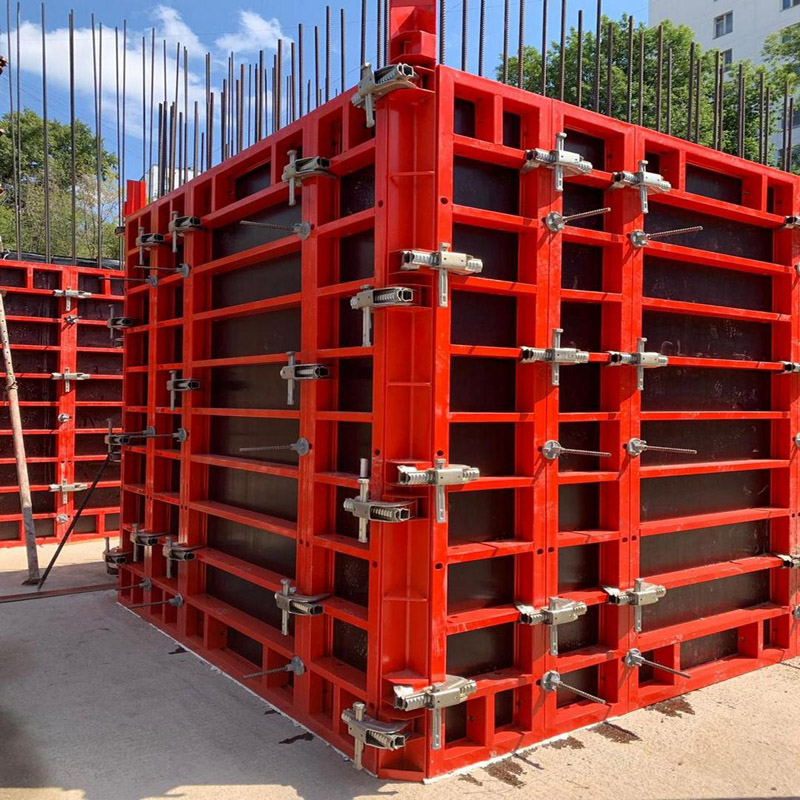

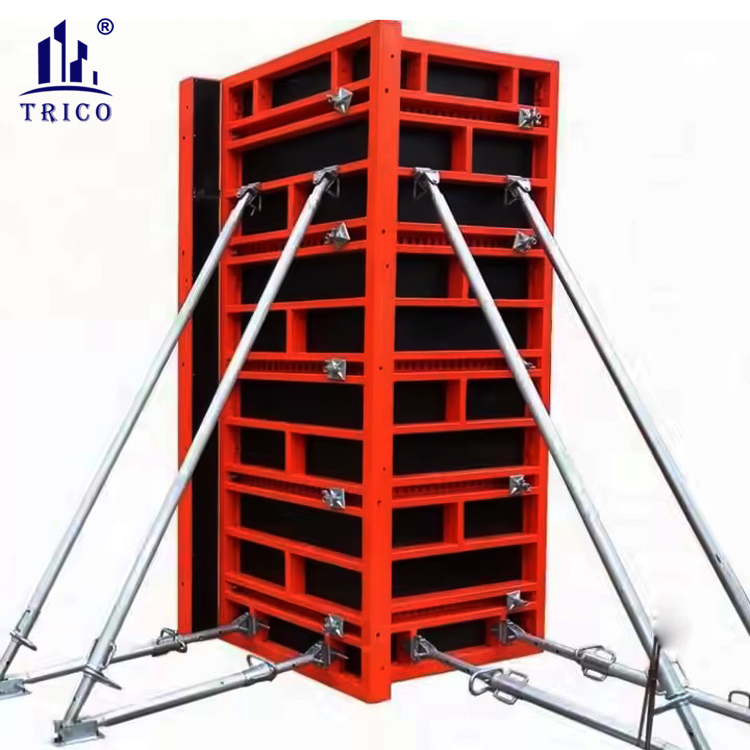

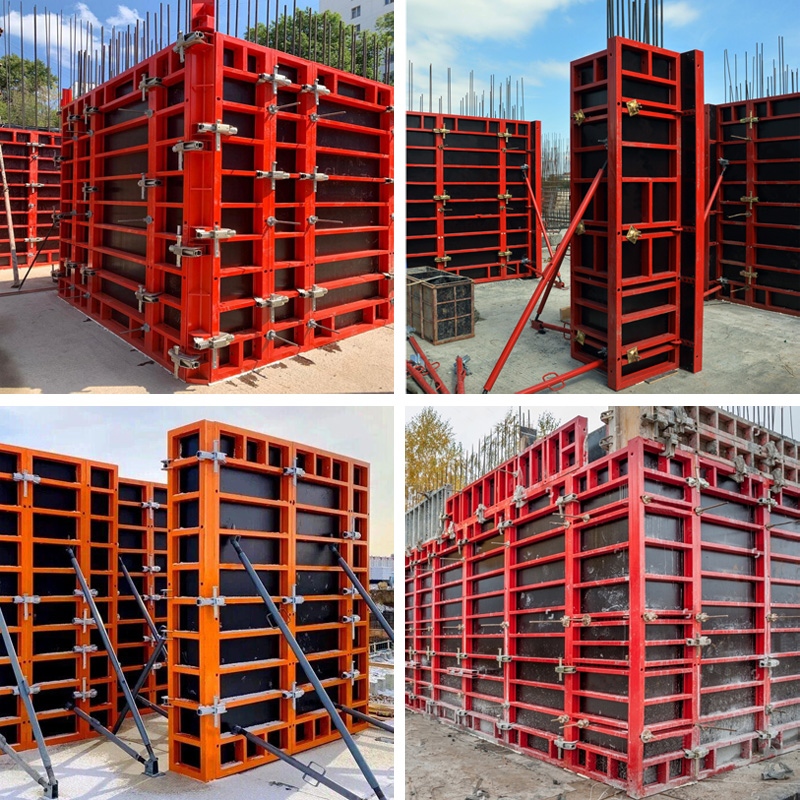

Trico GT 120 adjustable square column formworks

Technical Parameters:

Maximum size of square adjustable column template: 1050mmx1050mm Maximum size of

rectangular adjustable column template: 750mmx1050mm

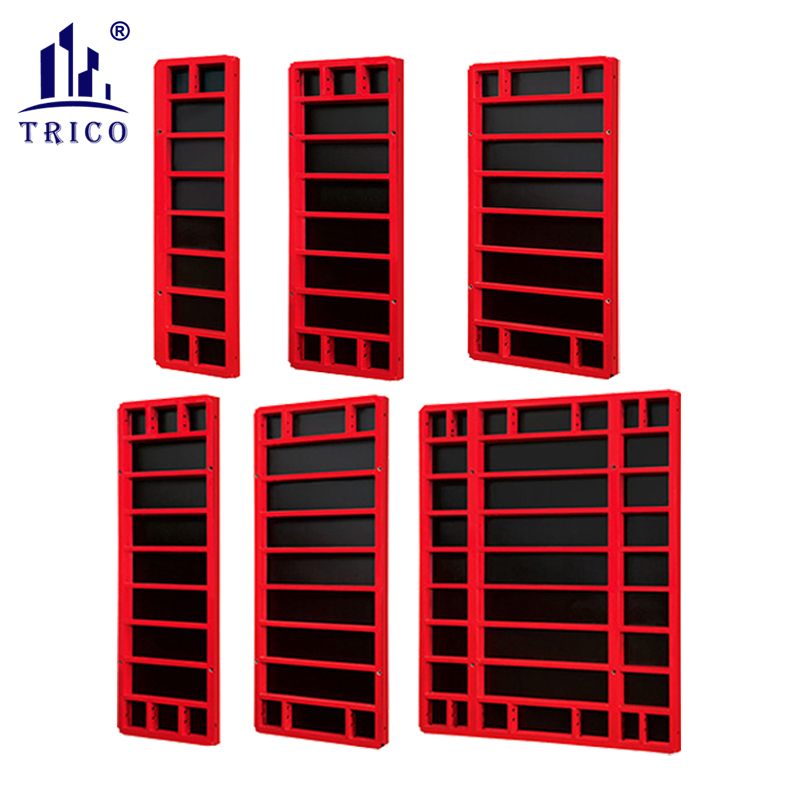

Usual format:


750/1050 column formwork specifications

750 series

1050 series

HxW (mmxmm)

300x900

300x1200

600x900

600x1200

1200x900

1200x1200

3000x900

3000x1200

Product Advantages:

1.As a standardized system, it is flexible to assemble, while wood batten can be filled to satisfy the need of non-standard size.

2.The frame is highly strengthened, and the wall formwork can bear lateral pressure as much as  60 KN/m while the column formwork can bear 80KN/m.

3.The adjustable steel clamp is convenient and can hold tightly.

4.There is a prizing part designed in the corner. It is helpful to position and remove formwork easily.

5.The plywood is screwed on from the back when connecting the frame and plywood, so the surface of the finished concrete is perfect.

3-GT120 Heavy Duty Steel Frame Formwork WallColumn  Formwork System  for Concrete Construction.jpg

4-GT120 Heavy Duty Steel Frame Formwork WallColumn  Formwork System  for Concrete Construction.jpg

5-GT120 Heavy Duty Steel Frame Formwork WallColumn  Formwork System  for Concrete Construction.jpg
